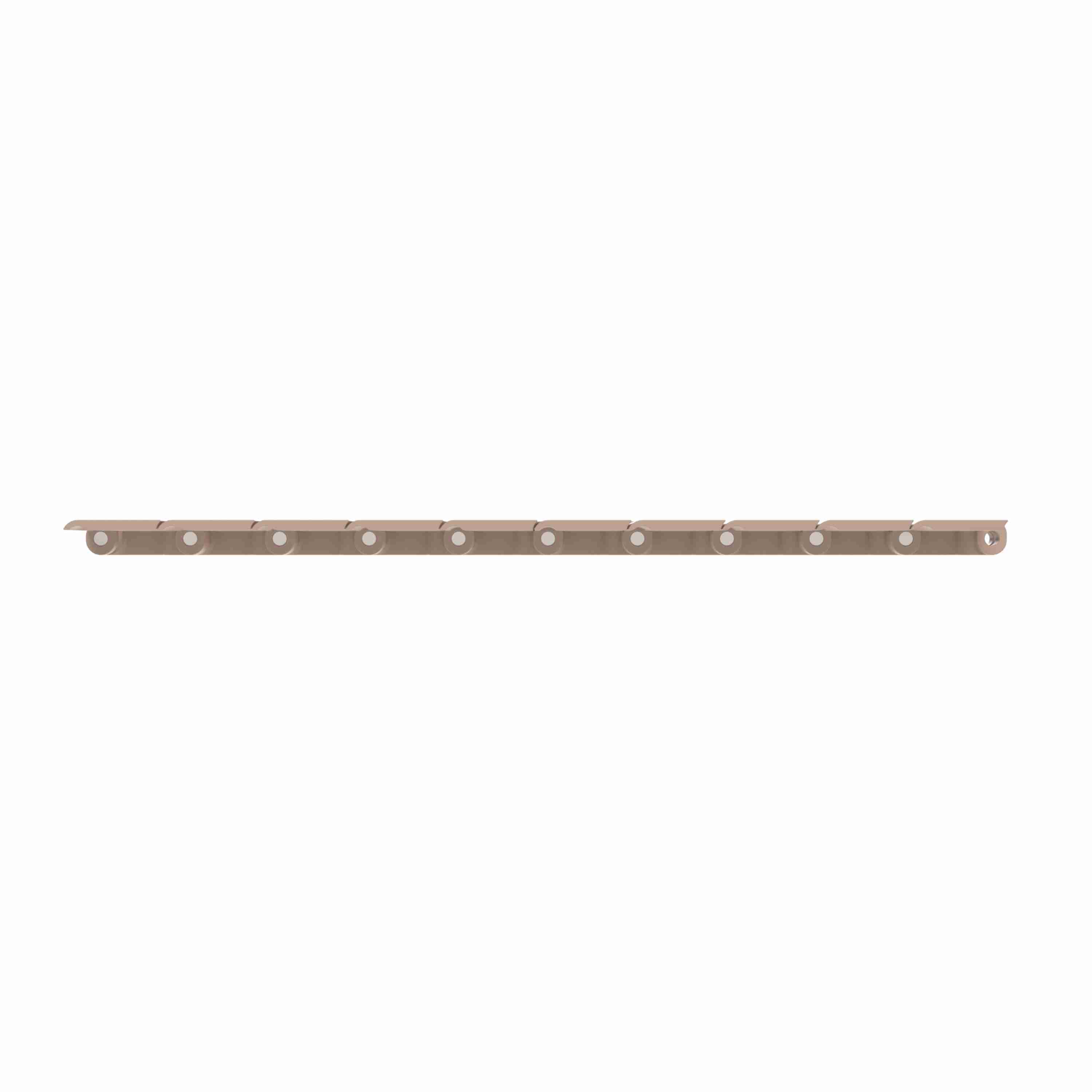

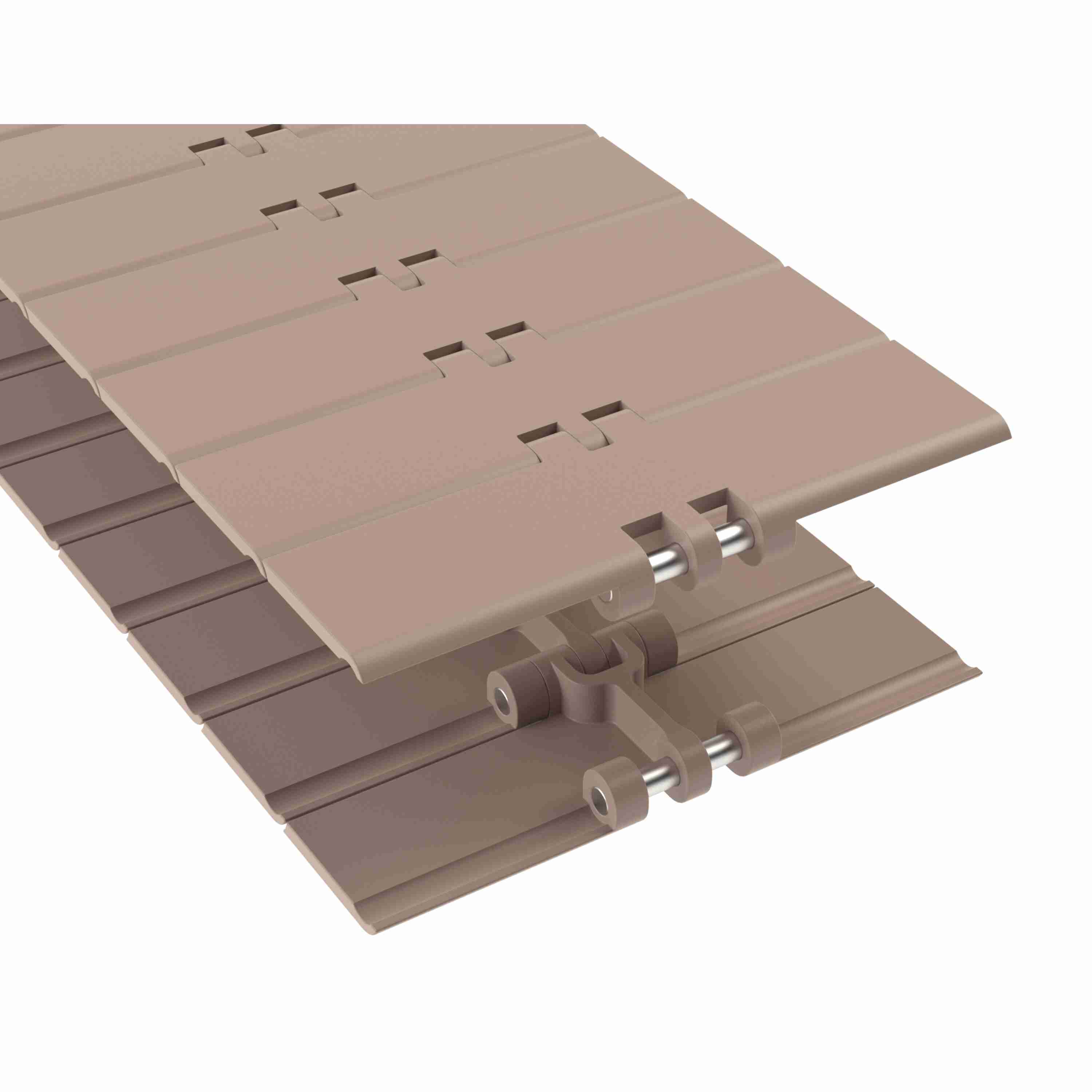

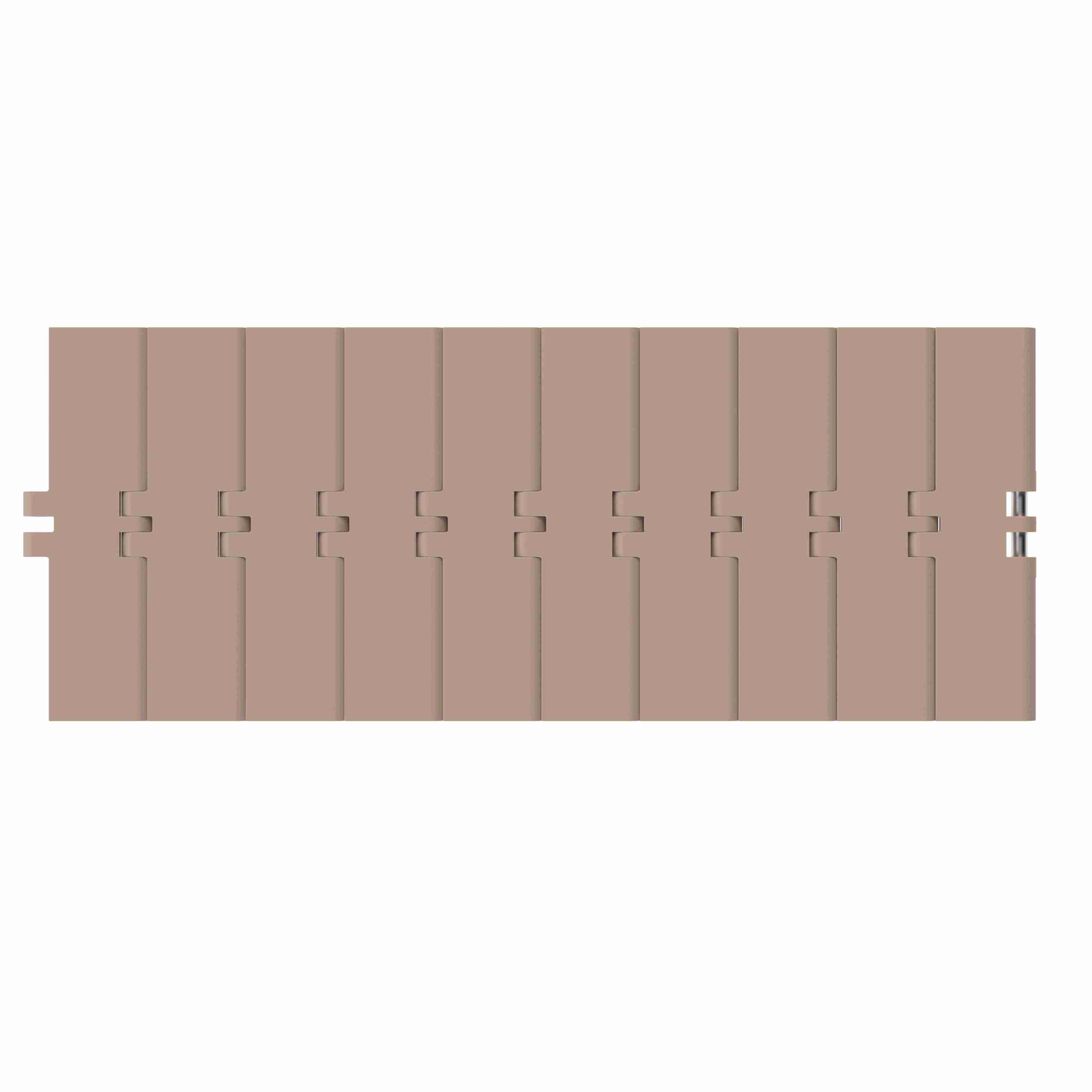

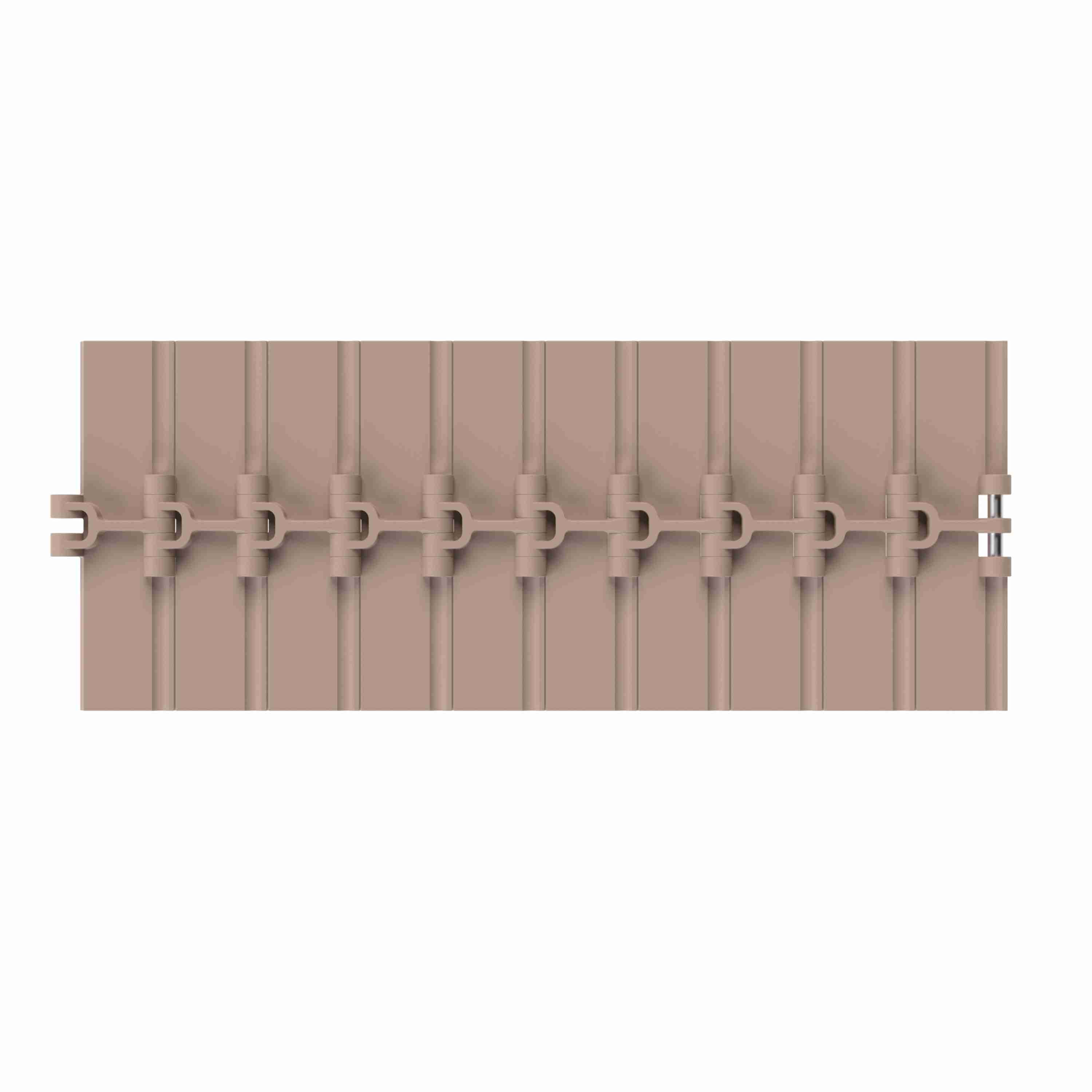

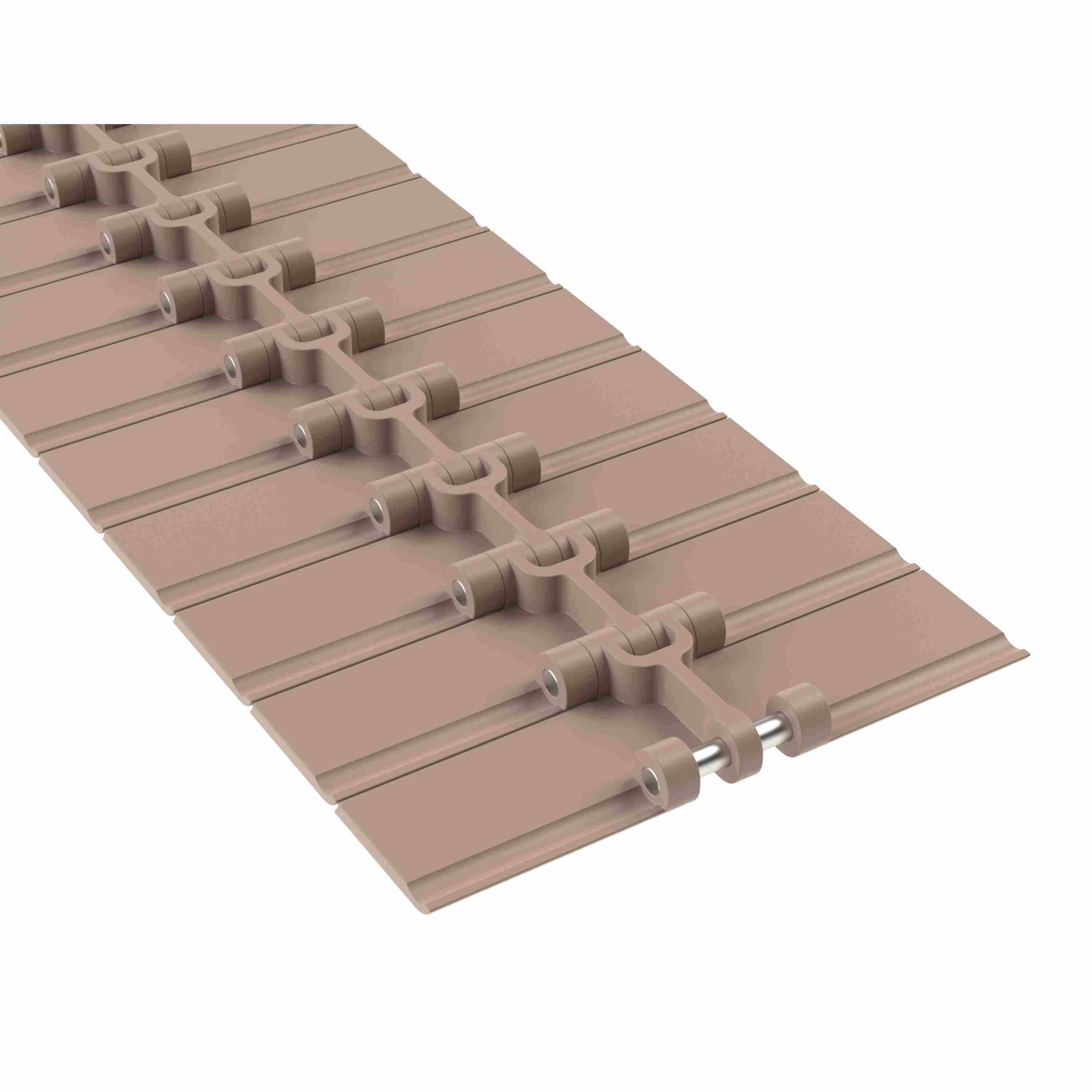

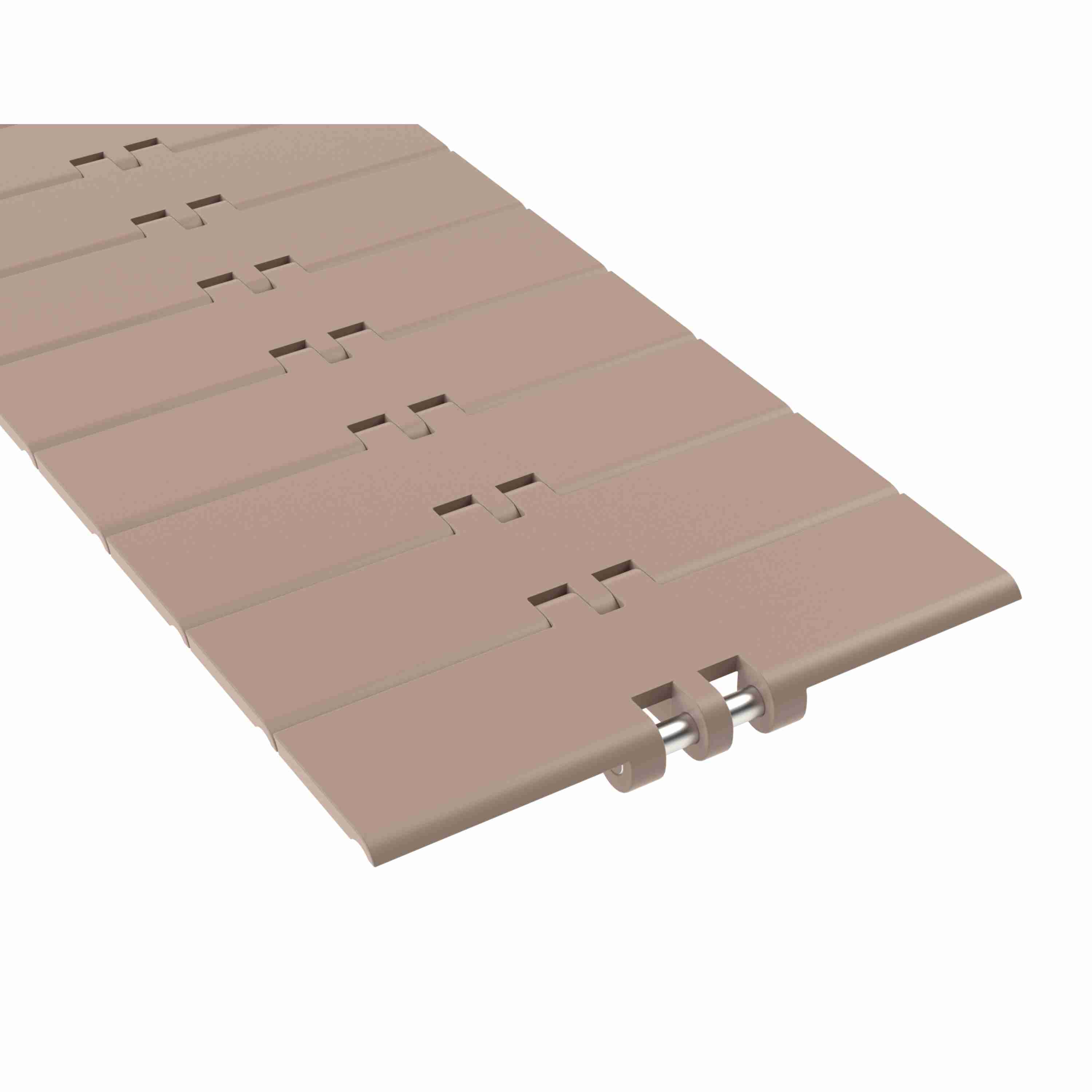

Rexnord 820 Straight Running Solid Top, Material: Tan Low Friction, Width: 6in, Pitch: 1.5in - LF820K6
Part #:10177689
Catalog #:LF820K6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.16 in | Chain Strength (lb): | 365 lb |
| Chain Material: | LF | Chain Strength (N): | 1,621 N |
| Chain Width (mm): | 152.4 mm | Chain Width (in): | 6 in |
| Rod/Pin Material: | Stainless Steel | Chain Material Description: | Tan Low Friction |
| Chain Pitch (in): | 1.5 in | Chain Number: | 820 |
| Flight Thickness (mm): | 4.1 mm | Surface Type: | Solid Top |
| Straight or Side-Flex: | Straight Running | Series: | TableTop 820 Series Chain |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.11 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
