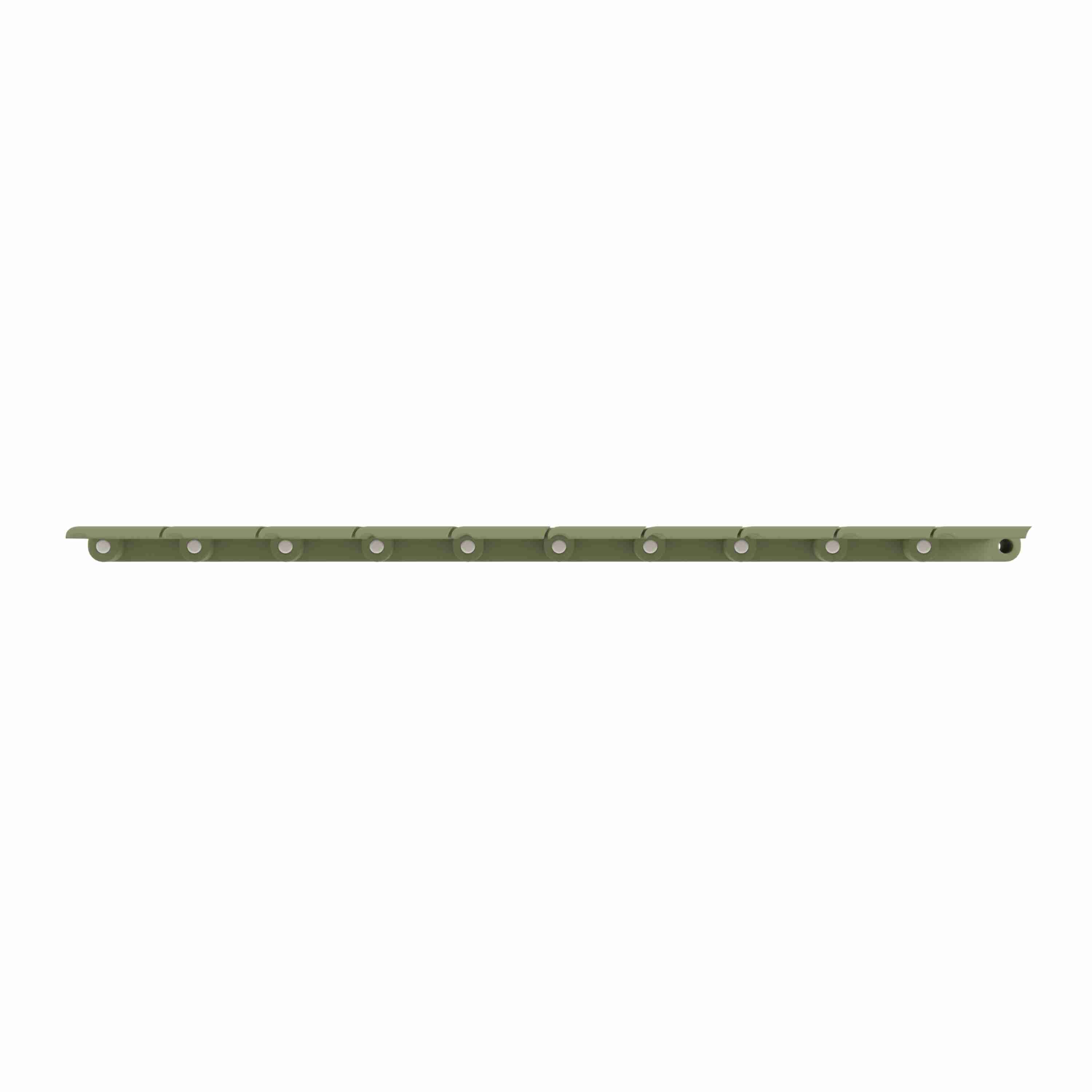

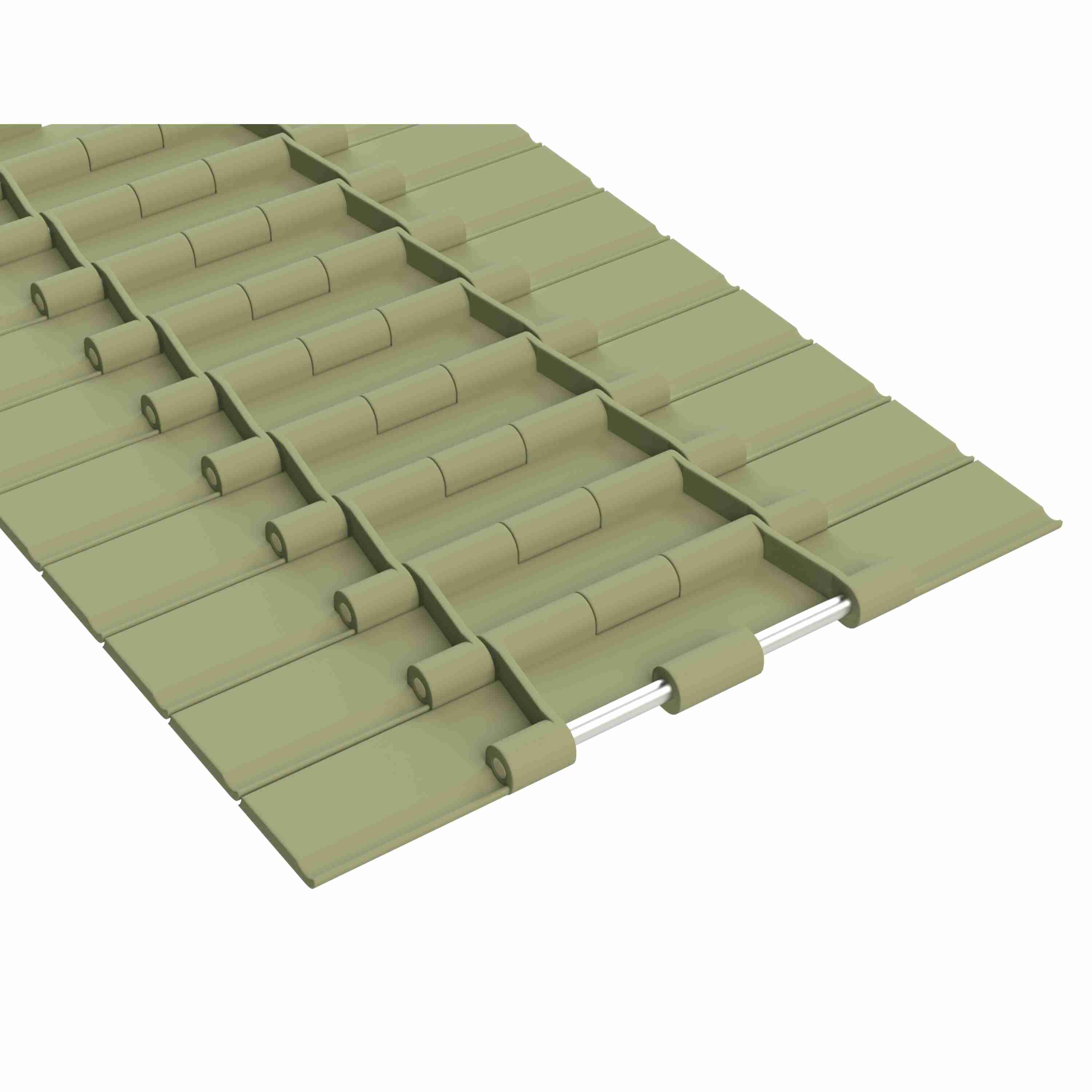

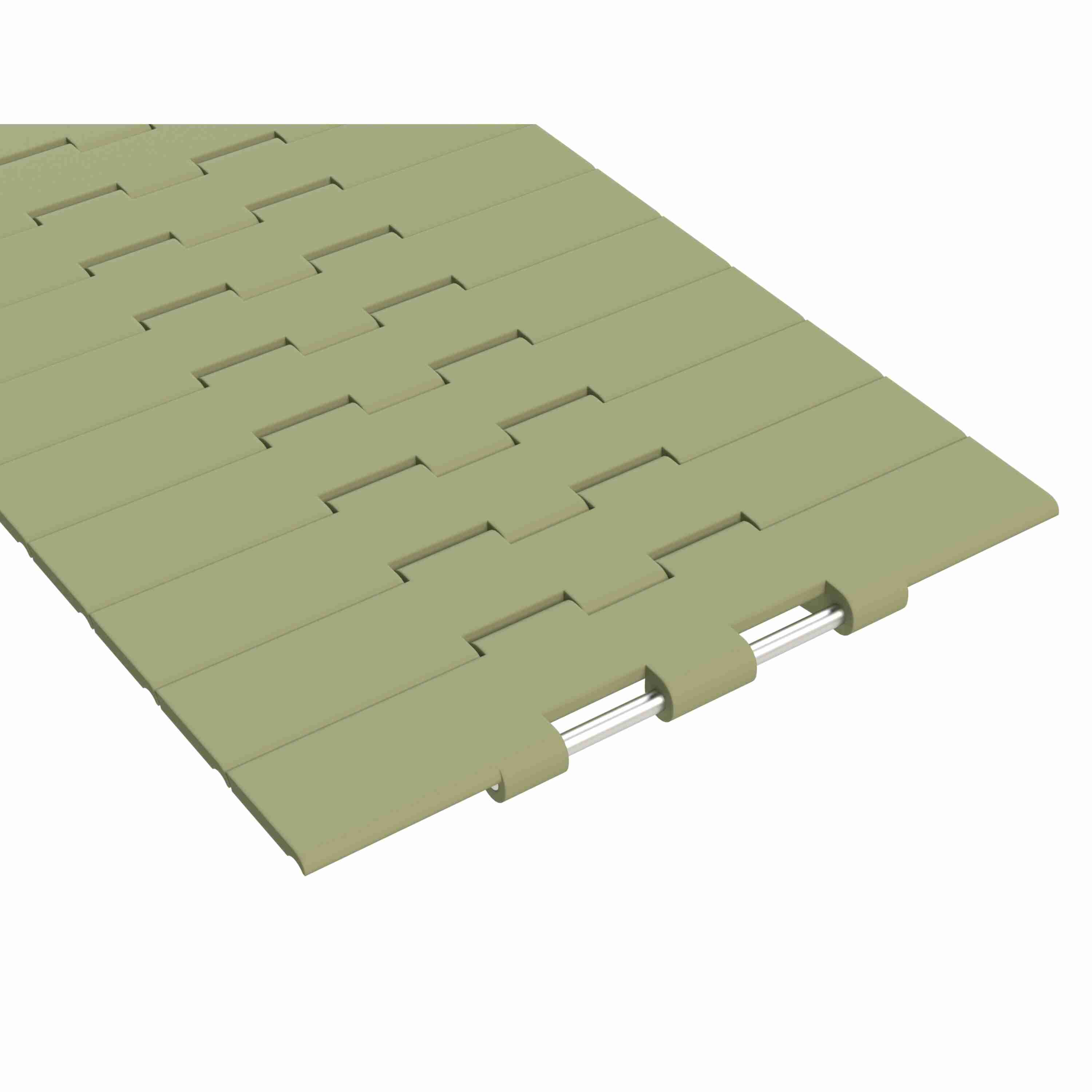

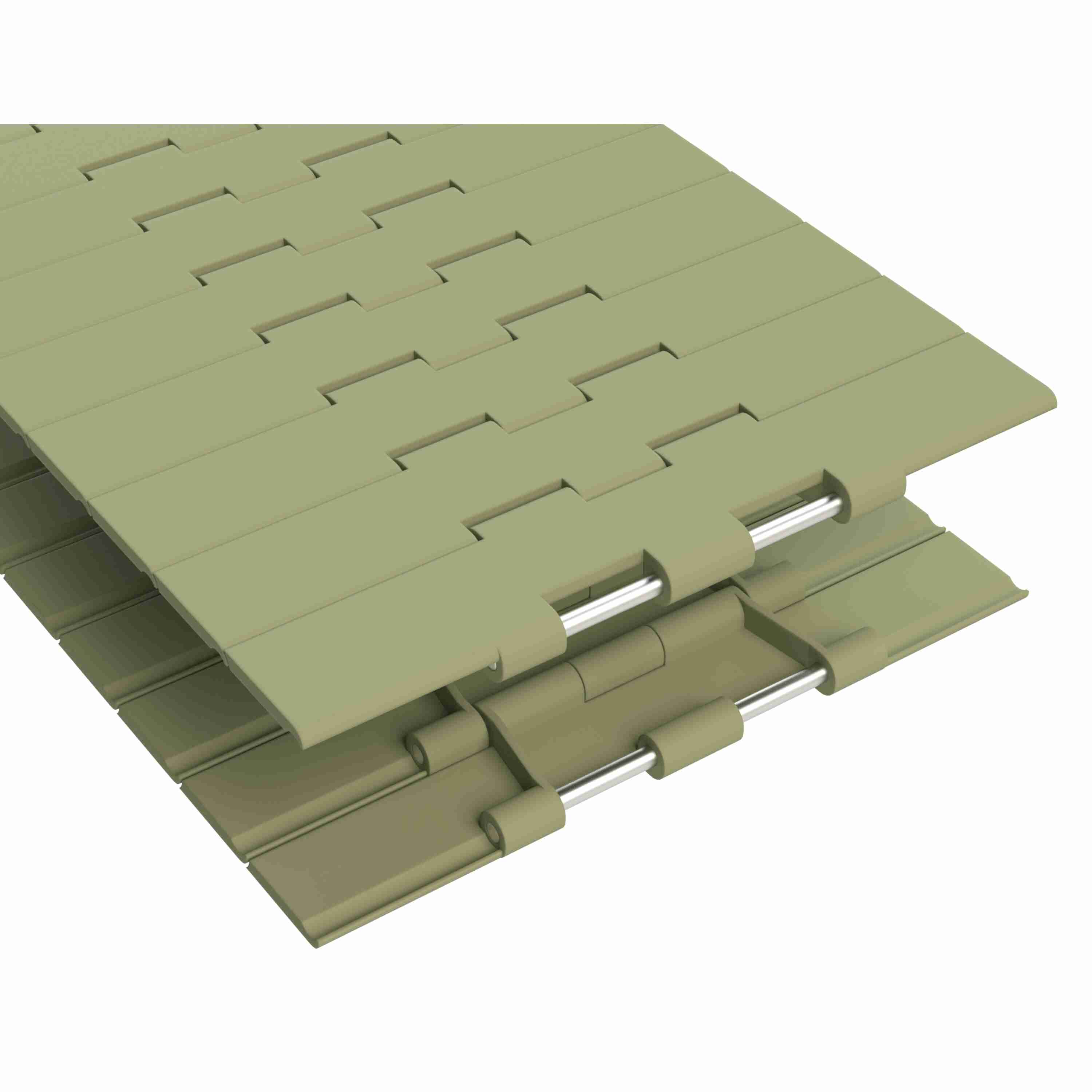

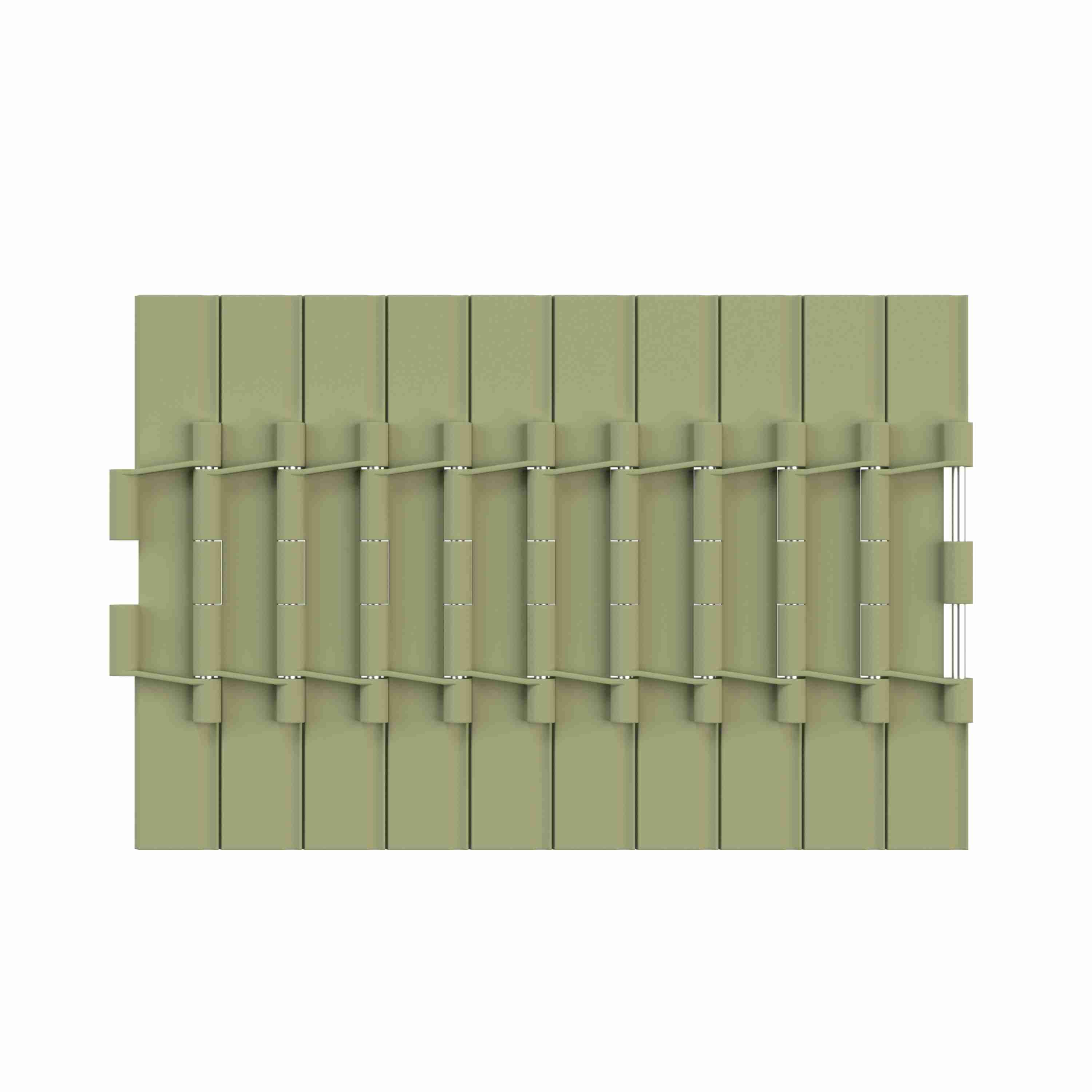

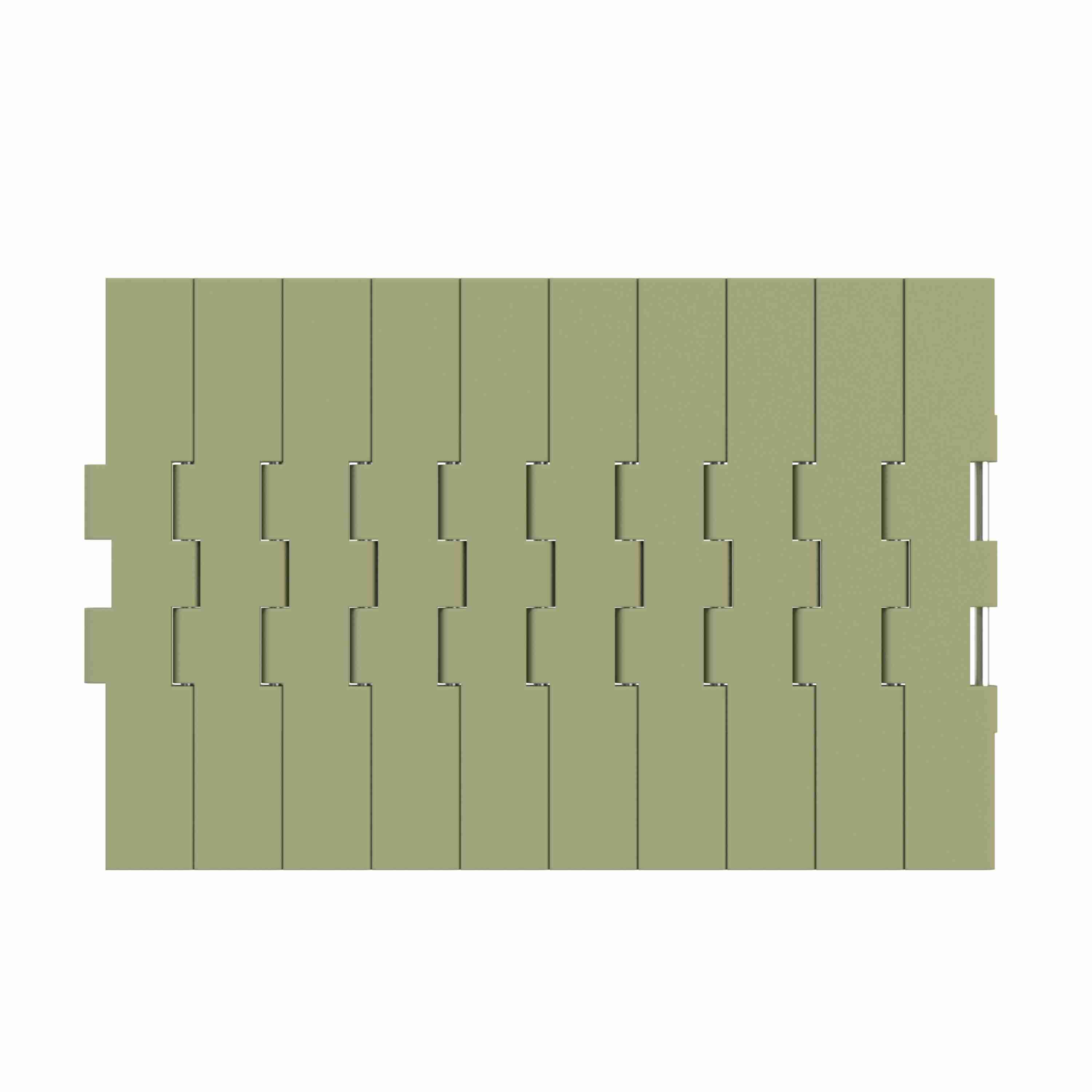

Rexnord 821 Straight Running Solid Top, Material: Green Abrasion Resistant Polyamide, Width: 7.5in, Pitch: 1.5in - 81431771
Part #:10145654
Catalog #:81431771
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 190.5 mm | Chain Number: | 821 |
| Rod/Pin Material: | Stainless Steel | Chain Width (in): | 7.5 in |
| Chain Pitch (mm): | 38.1 mm | Chain Material: | WX |
| Flight Thickness (in): | 0.19 in | Chain Width Measurement System: | Imperial |
| Surface Type: | Solid Top | Flight Thickness (mm): | 4.8 mm |
| Straight or Side-Flex: | Straight Running | Chain Strength (lb): | 625 lb |
| Chain Strength (N): | 2,775 N | Series: | TableTop 821 Series Chain |
| Chain Material Description: | Green Abrasion Resistant Polyamide | Chain Pitch (in): | 1.5 in |
General Specifications
| Weight: | 0.21 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
