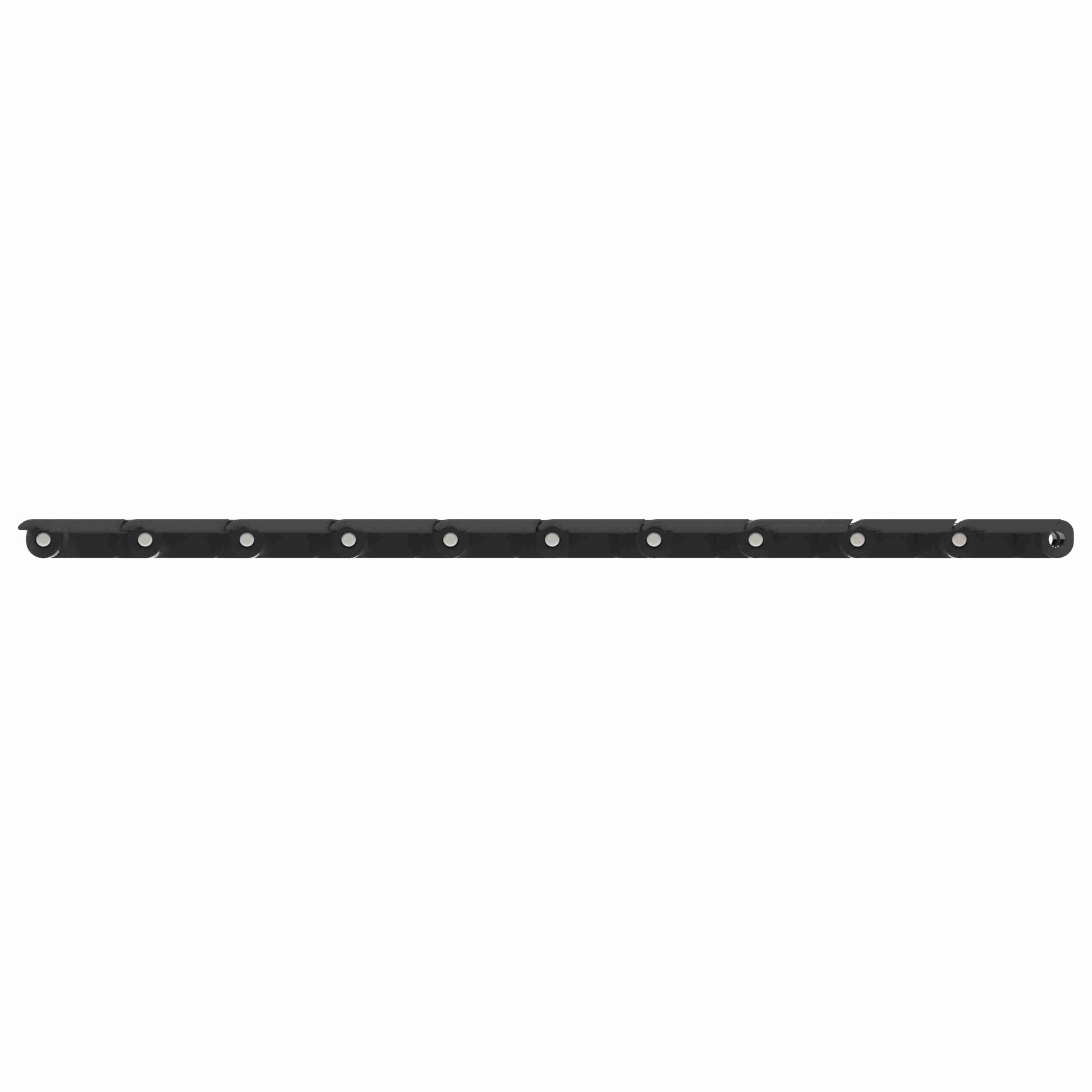

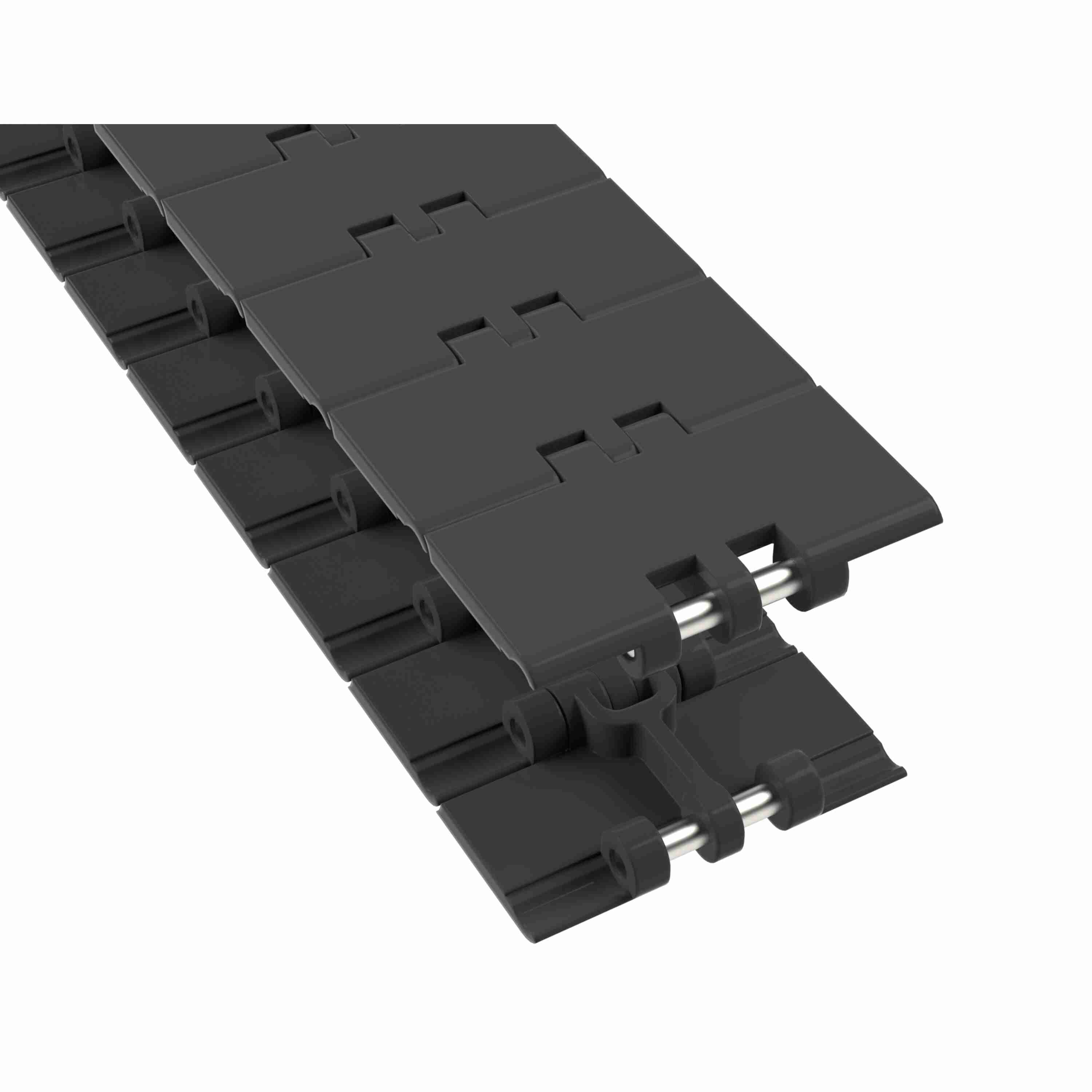

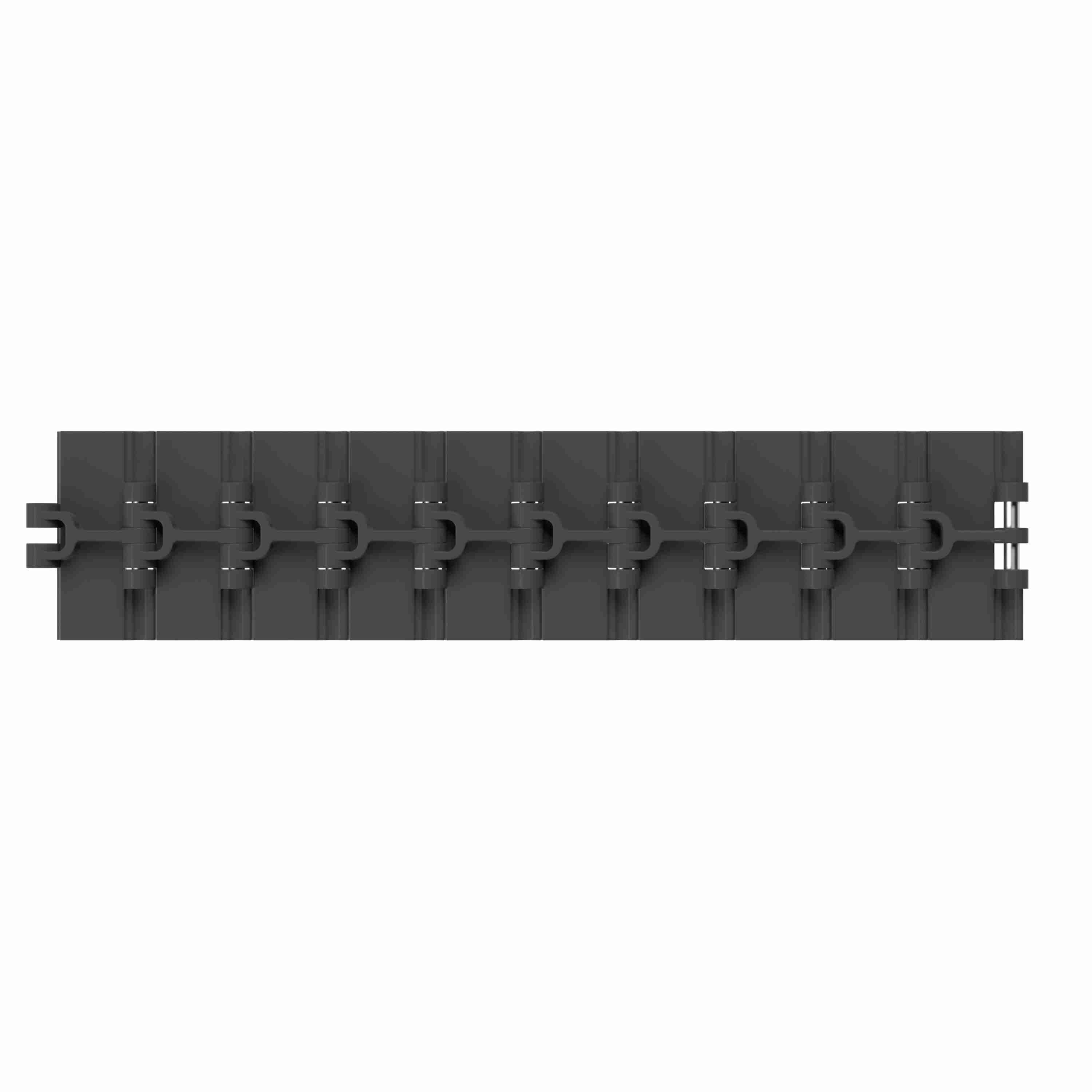

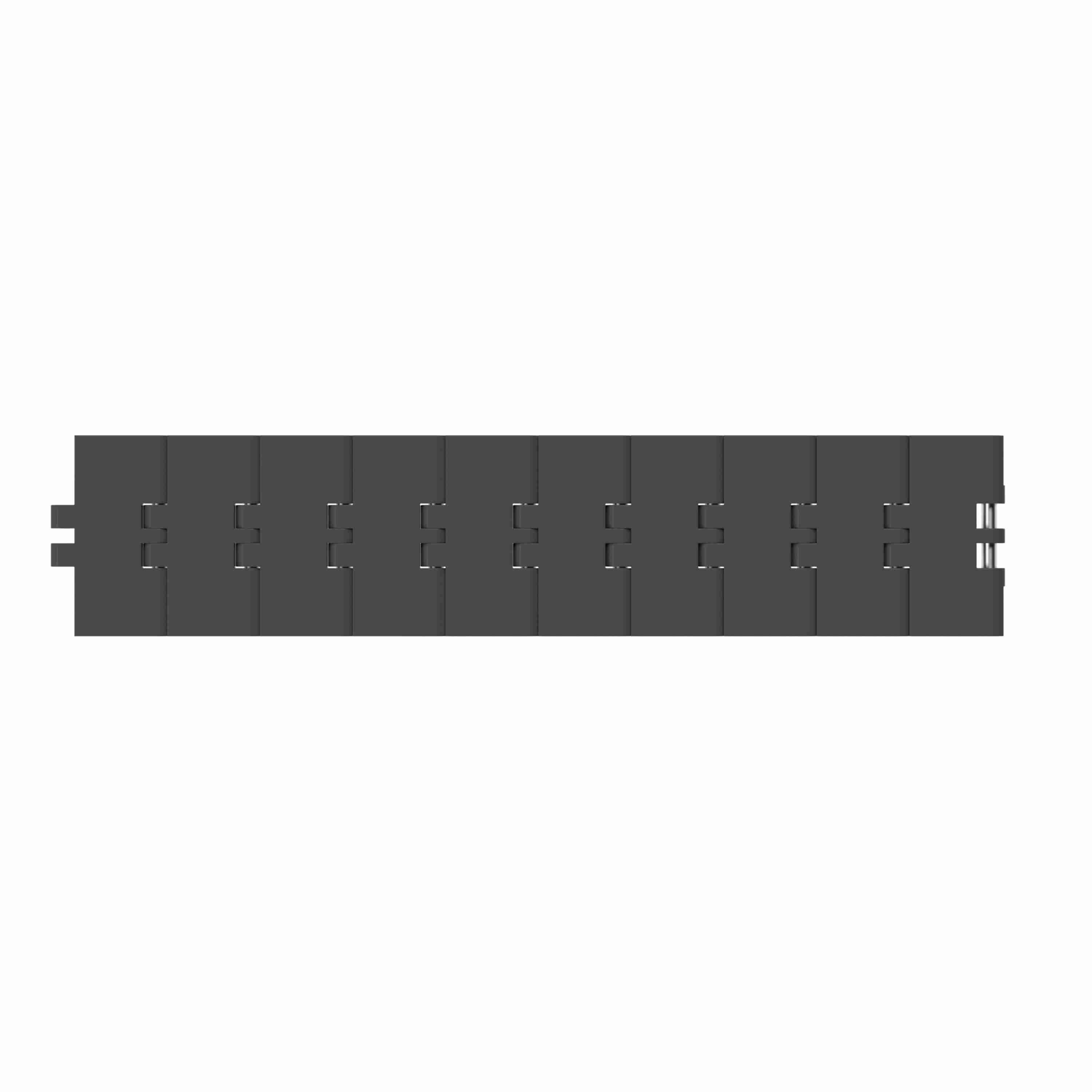

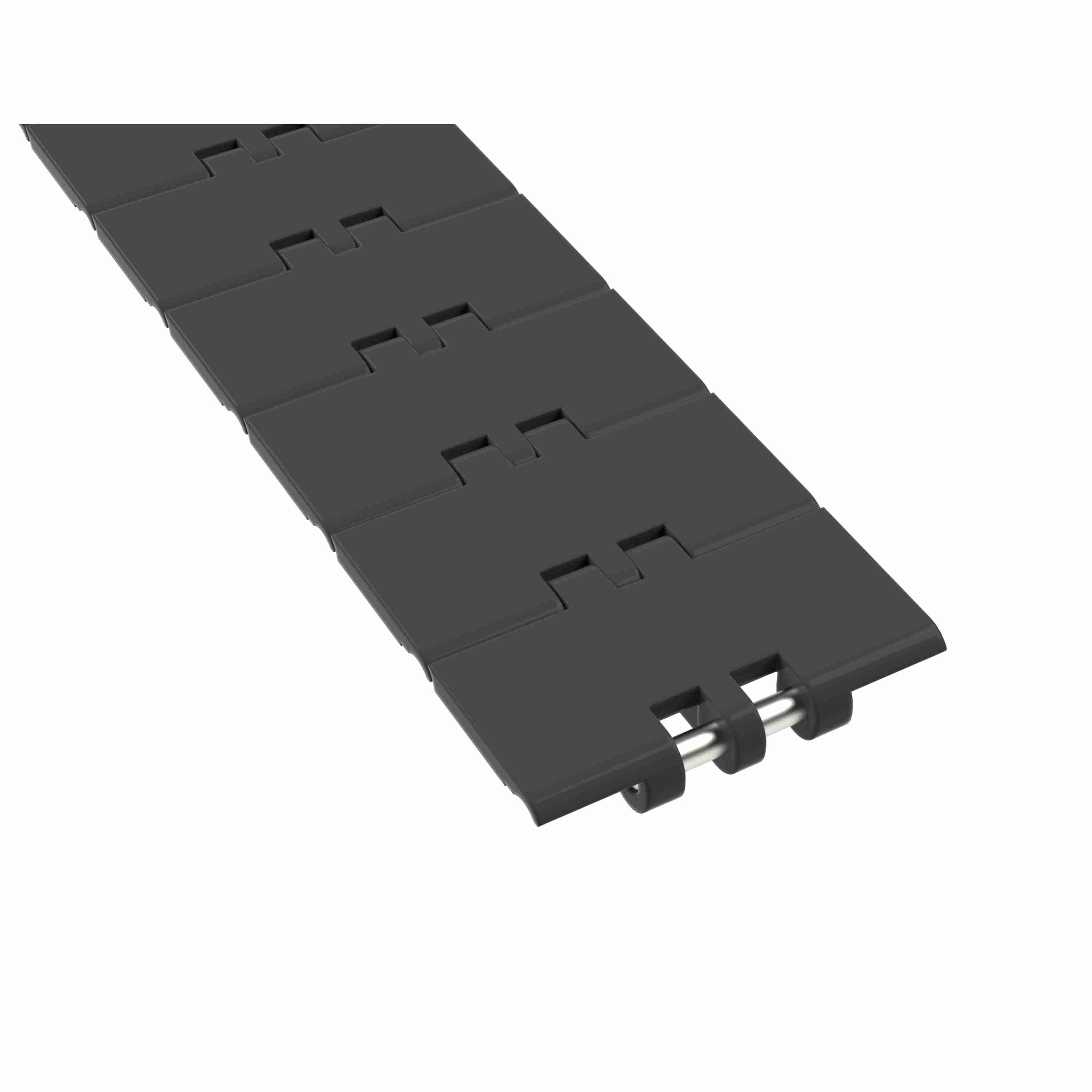

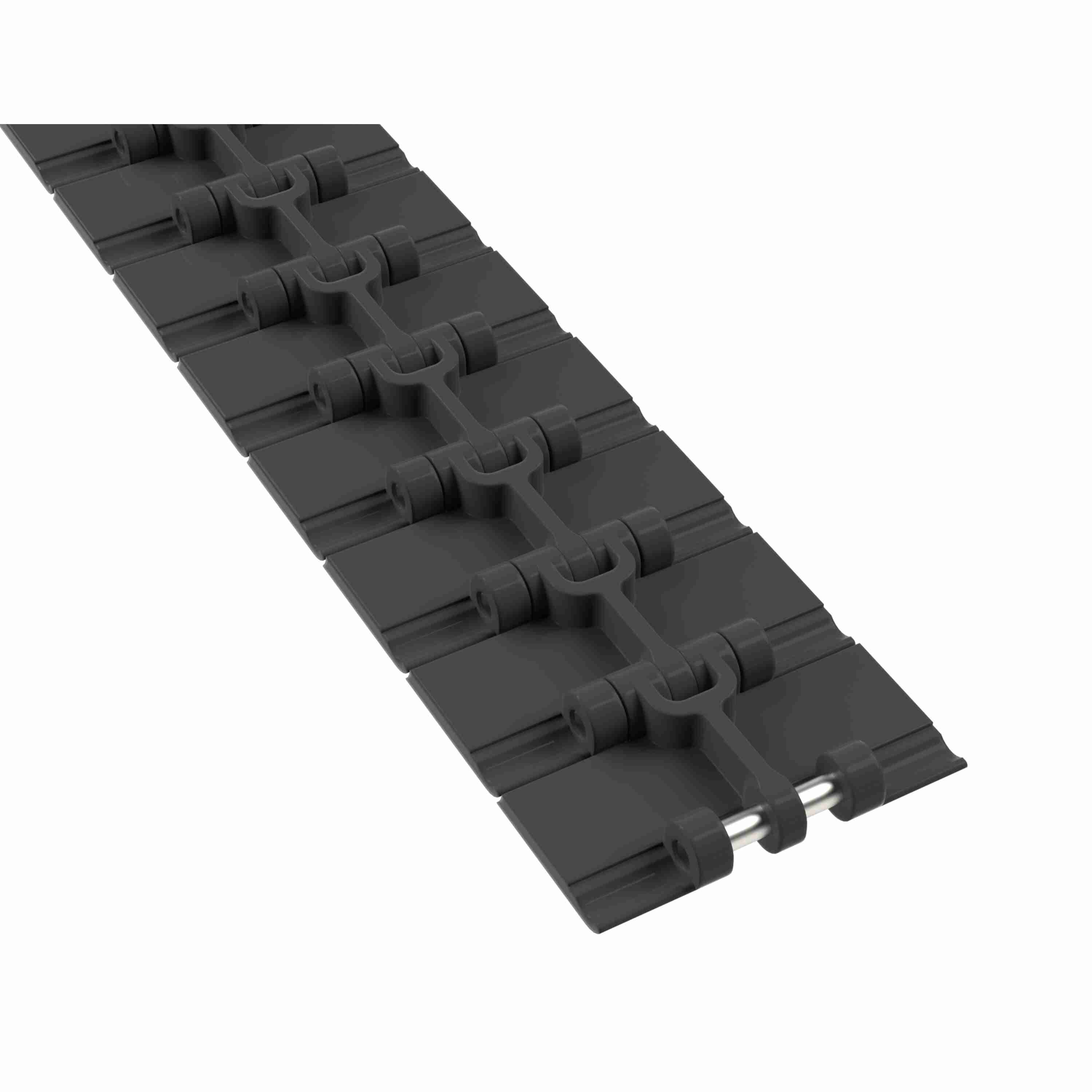

Rexnord 831 Straight Running Solid Top, Material: Black Anti-Static, Width: 3.25in, Pitch: 1.5in - AS831-K3.25
Part #:10156546
Catalog #:AS831-K3.25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | AS | Chain Pitch (mm): | 38.1 mm |
| Flight Thickness (mm): | 4.8 mm | Flight Thickness (in): | 0.19 in |
| Chain Width (in): | 3.25 in | Chain Material Description: | Black Anti-Static |
| Chain Width (mm): | 82.6 mm | Chain Strength (lb): | 219 lb |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 1.5 in |
| Chain Width Measurement System: | Imperial | Surface Type: | Solid Top |
| Chain Number: | 831 | Rod/Pin Material: | Stainless Steel |
| Series: | TableTop 831 Series Chain | Chain Strength (N): | 972 N |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
