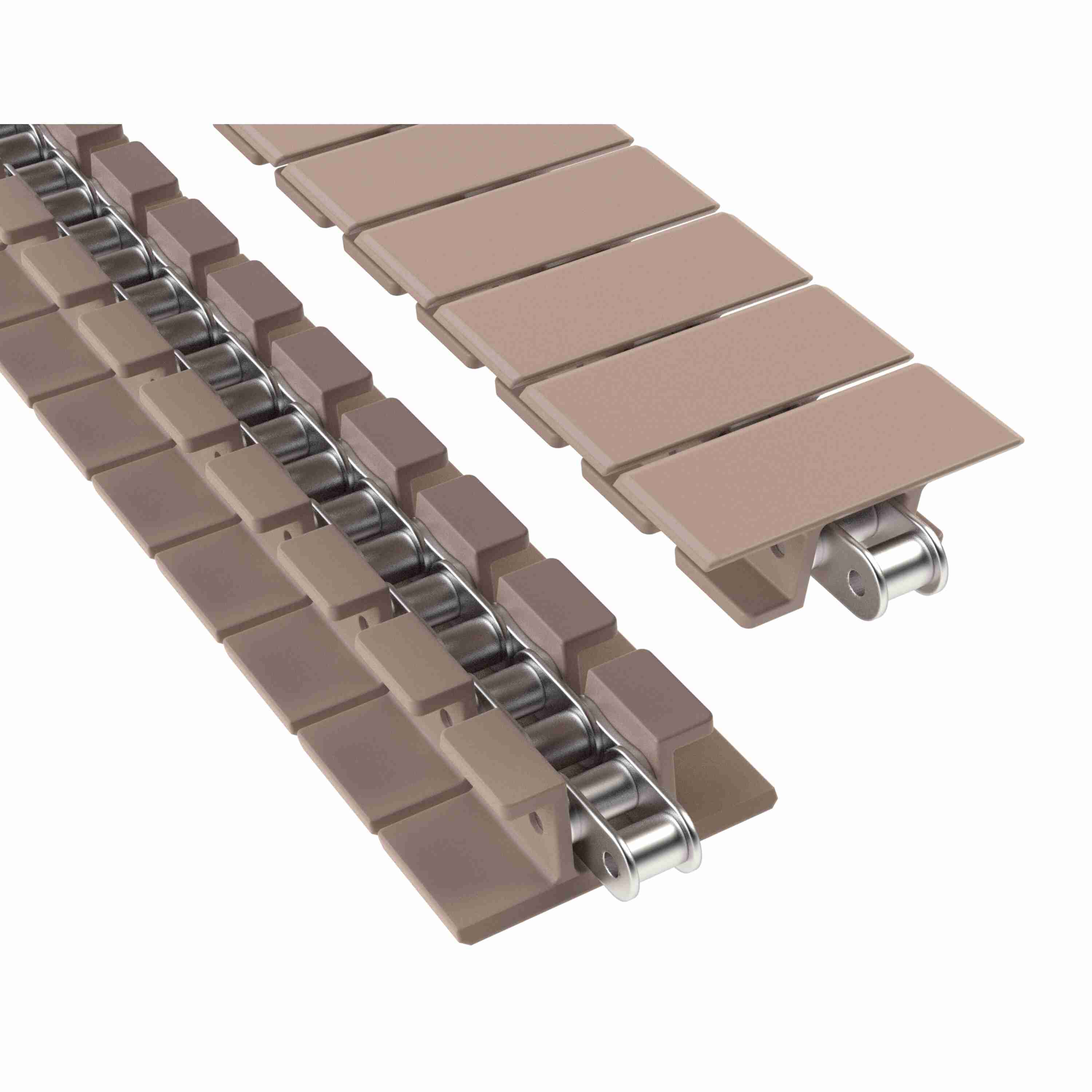

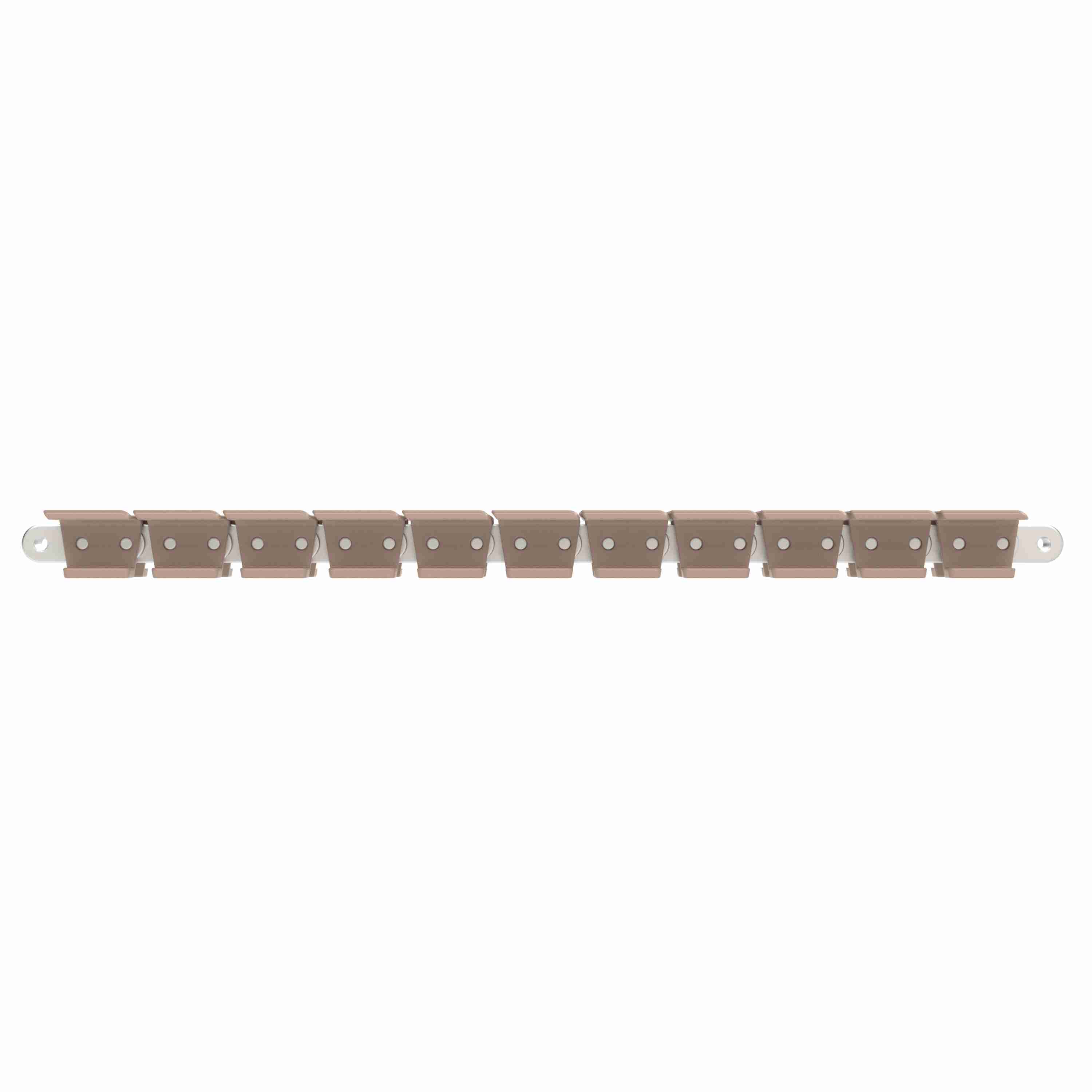

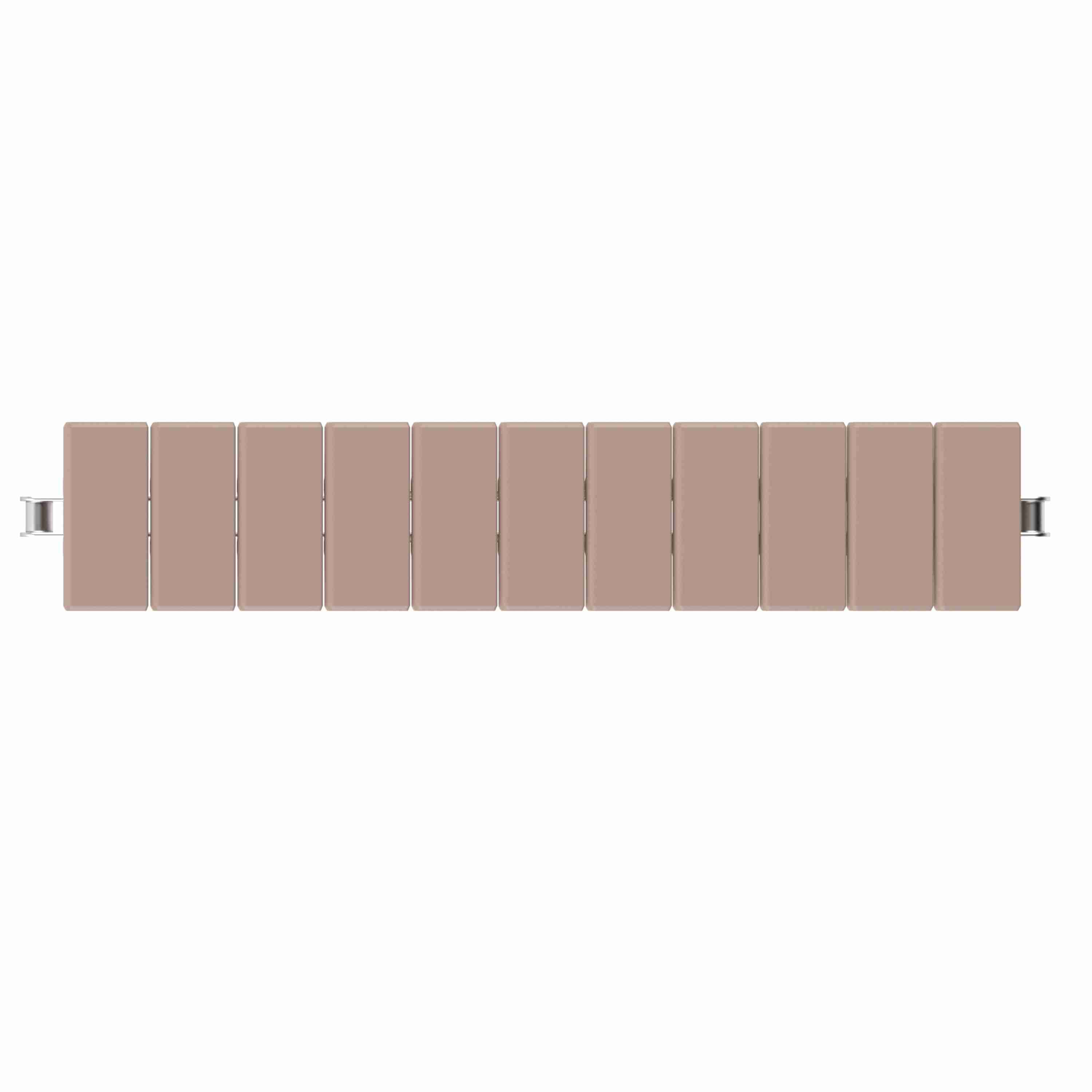

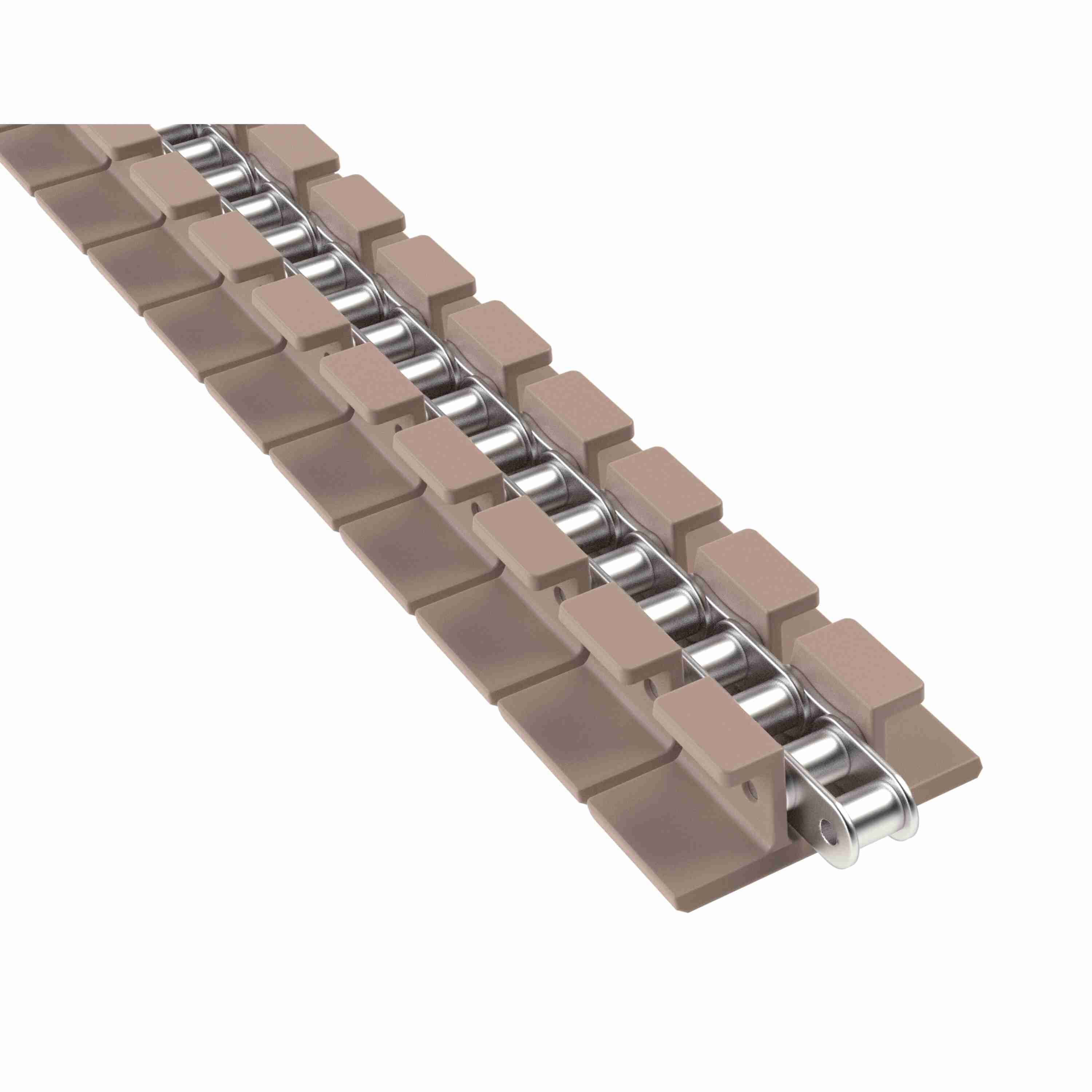

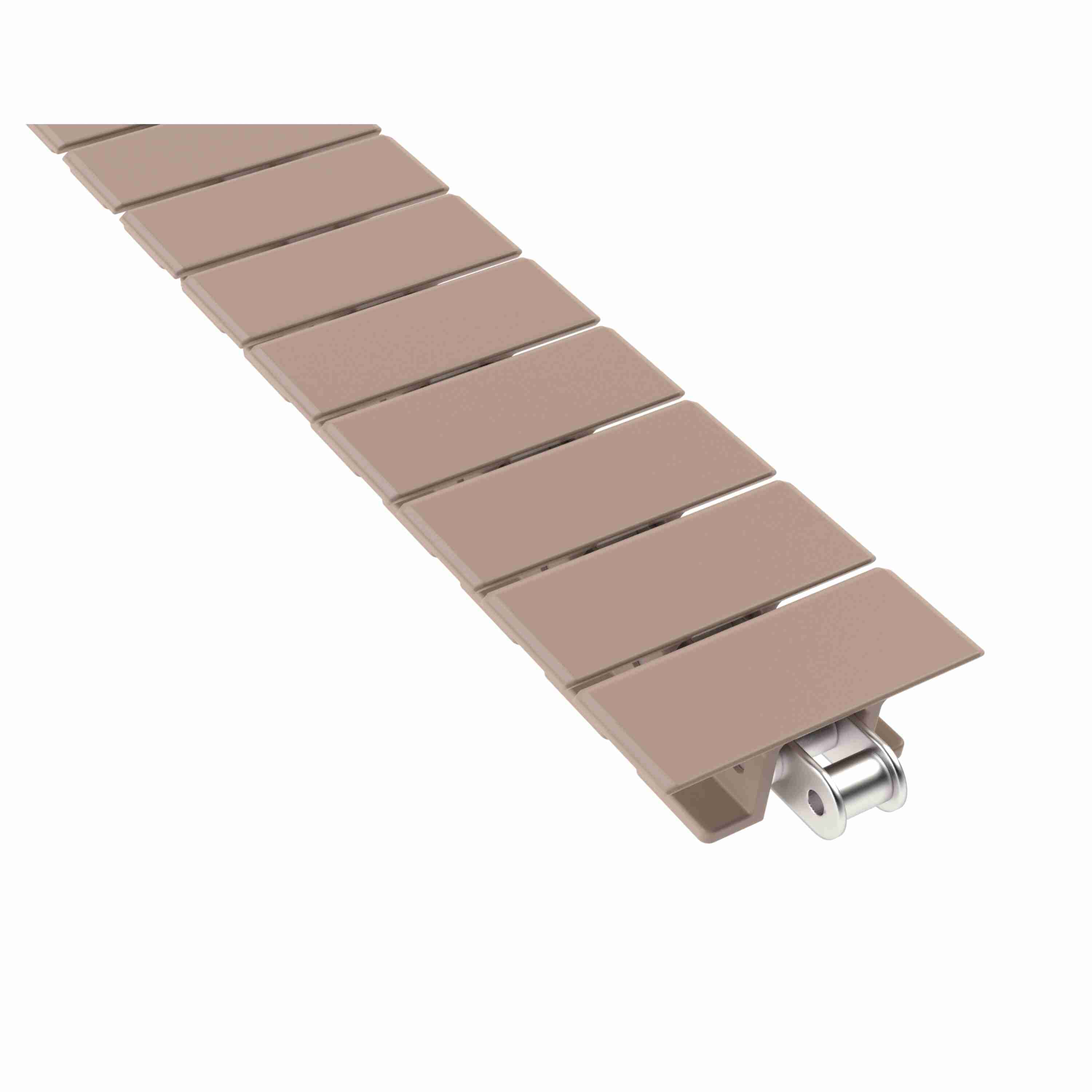

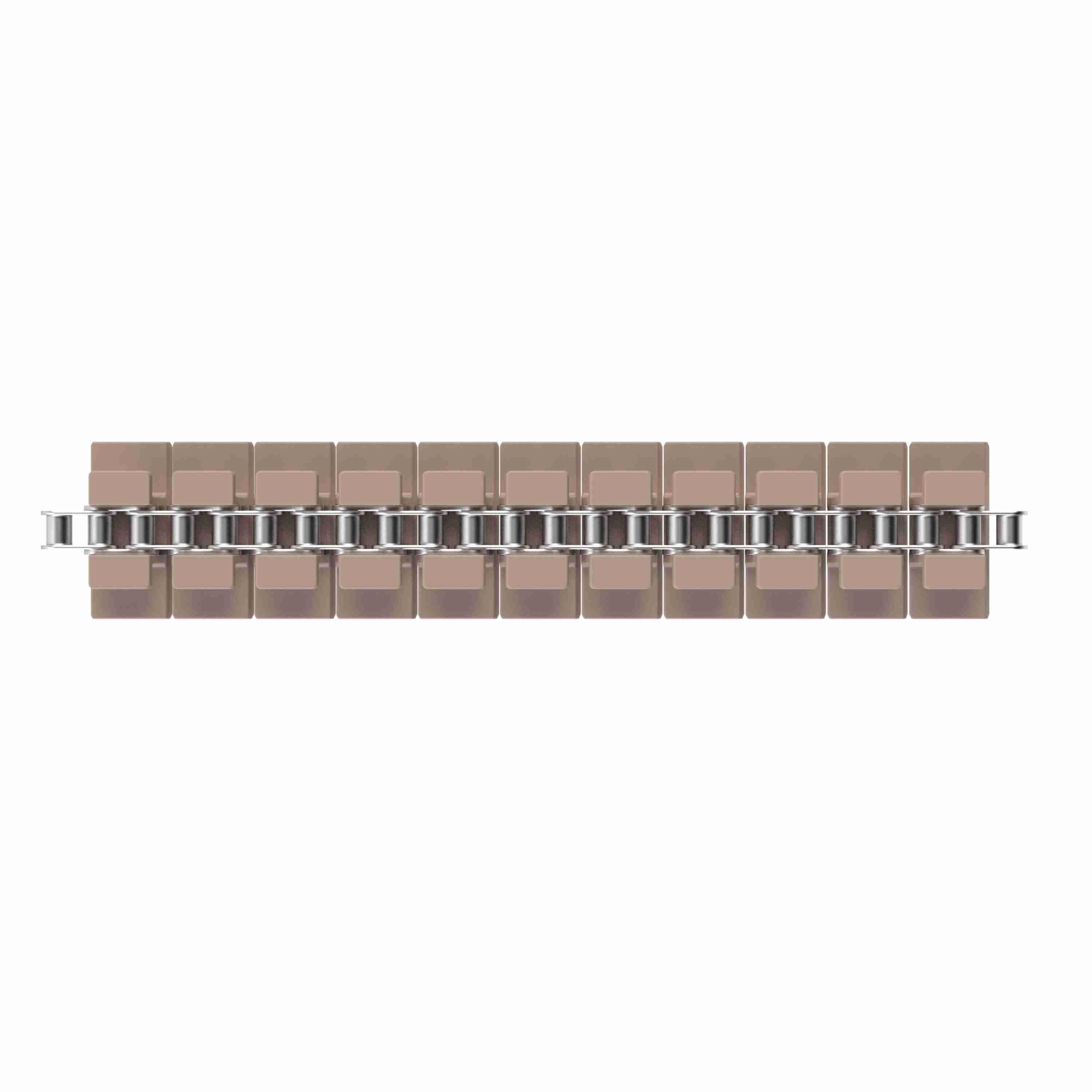

Rexnord 863TAB Straight Running Solid Top, Material: Tan Low Friction, Width: 3.25in, Pitch: 0.75in - 81413797
Part #:10144969
Catalog #:81413797
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Straight Running |
| Chain Strength (N): | 3,330 N | Flight Thickness (mm): | 4.1 mm |
| Chain Material Description: | Tan Low Friction | Surface Type: | Solid Top |
| Base Chain Material: | Stainless Steel | Chain Width (in): | 3.25 in |
| Chain Number: | 863TAB | Chain Pitch (in): | 0.75 in |
| Chain Pitch (mm): | 19.05 mm | Flight Thickness (in): | 0.16 in |
| Chain Width (mm): | 82.6 mm | Series: | TableTop 863 Series Chain |
| Chain Material: | LF | Chain Strength (lb): | 750 lb |
General Specifications
| Weight: | 0.18 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
