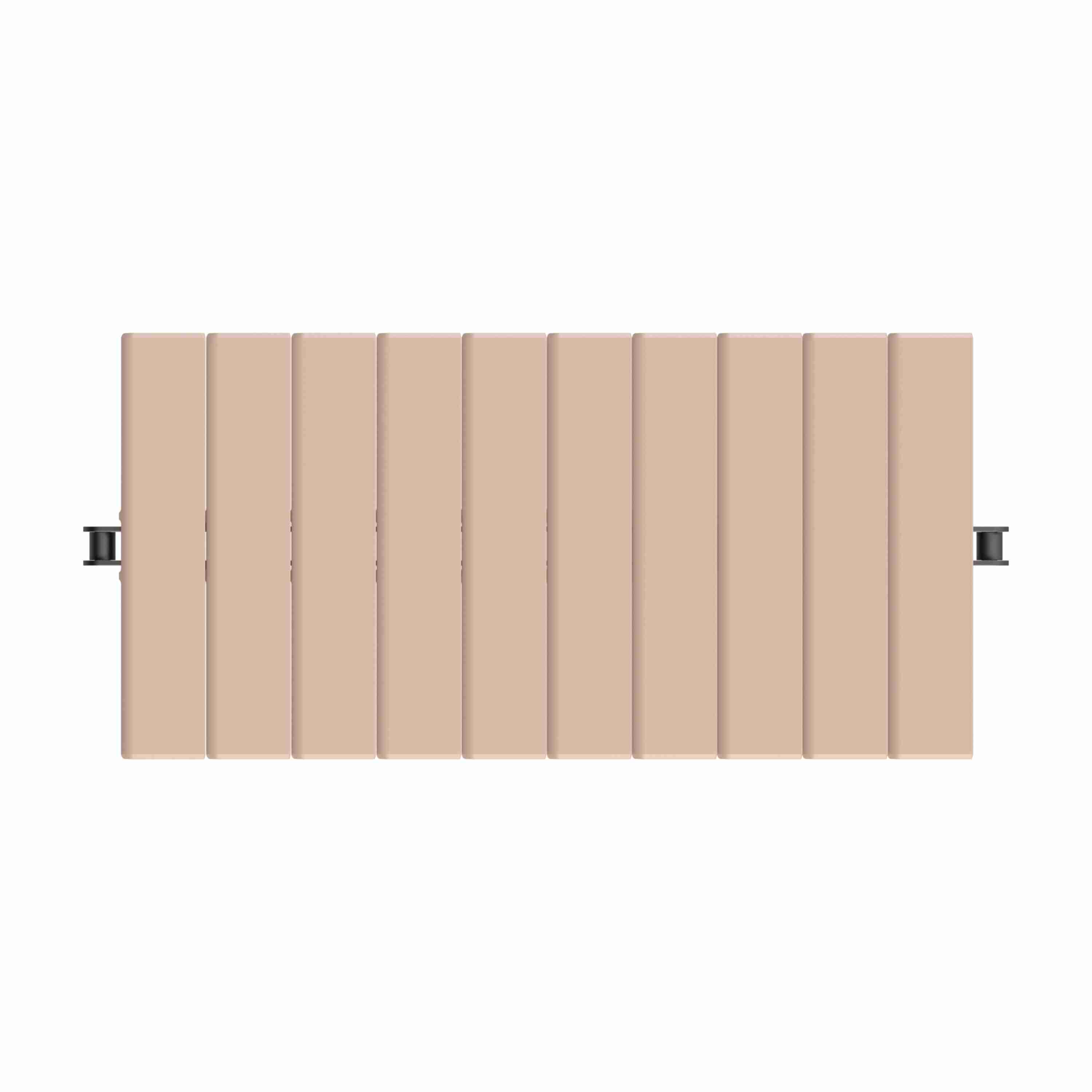

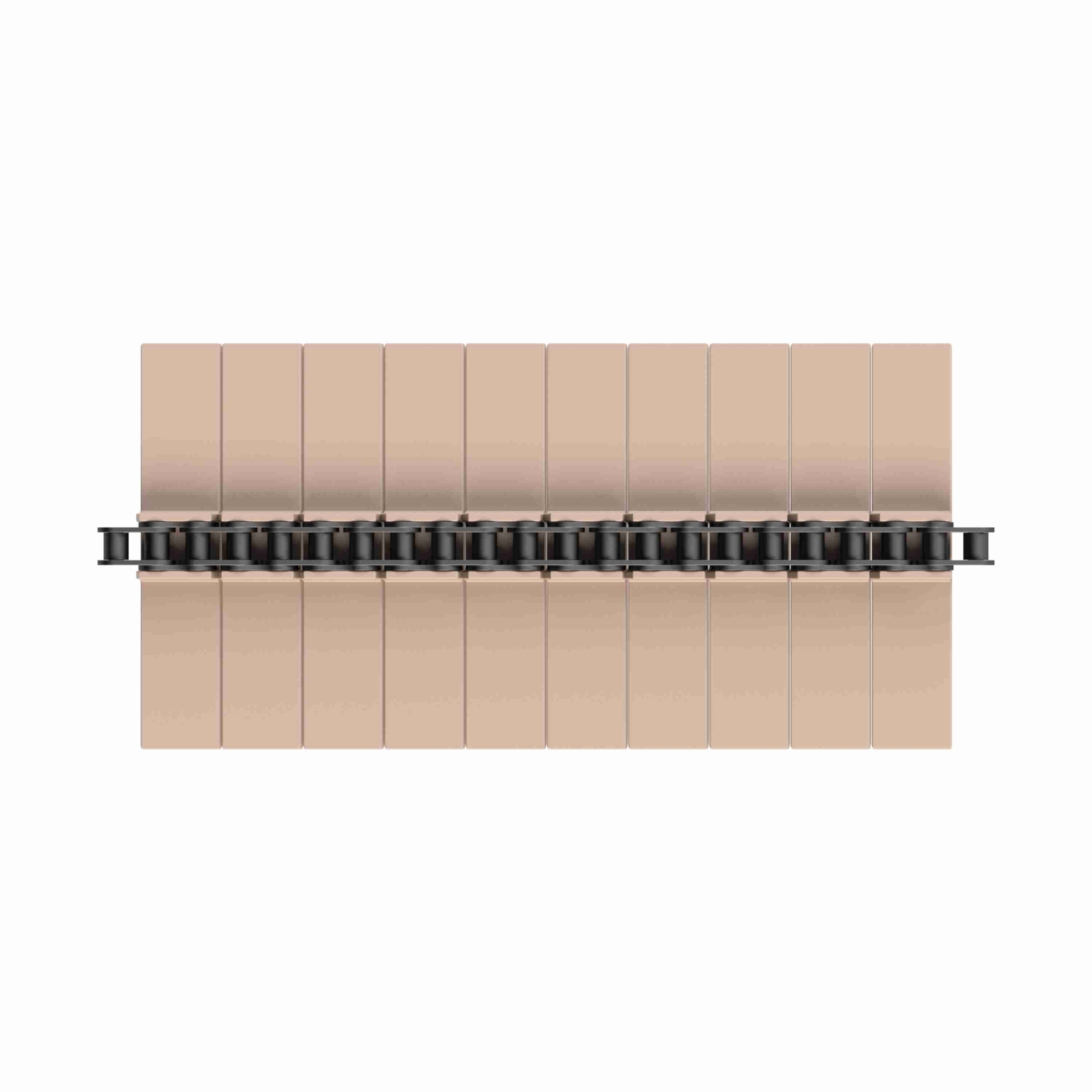

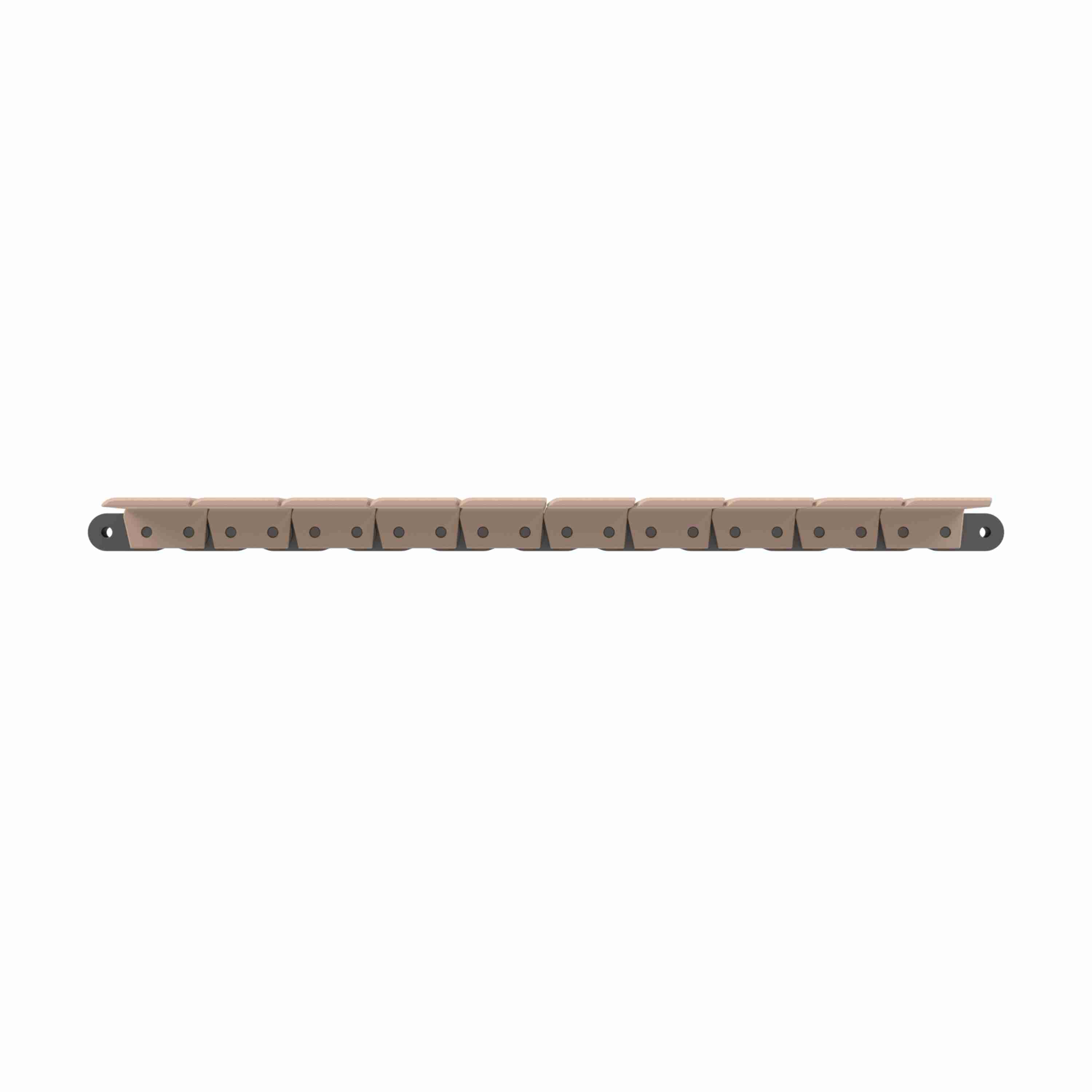

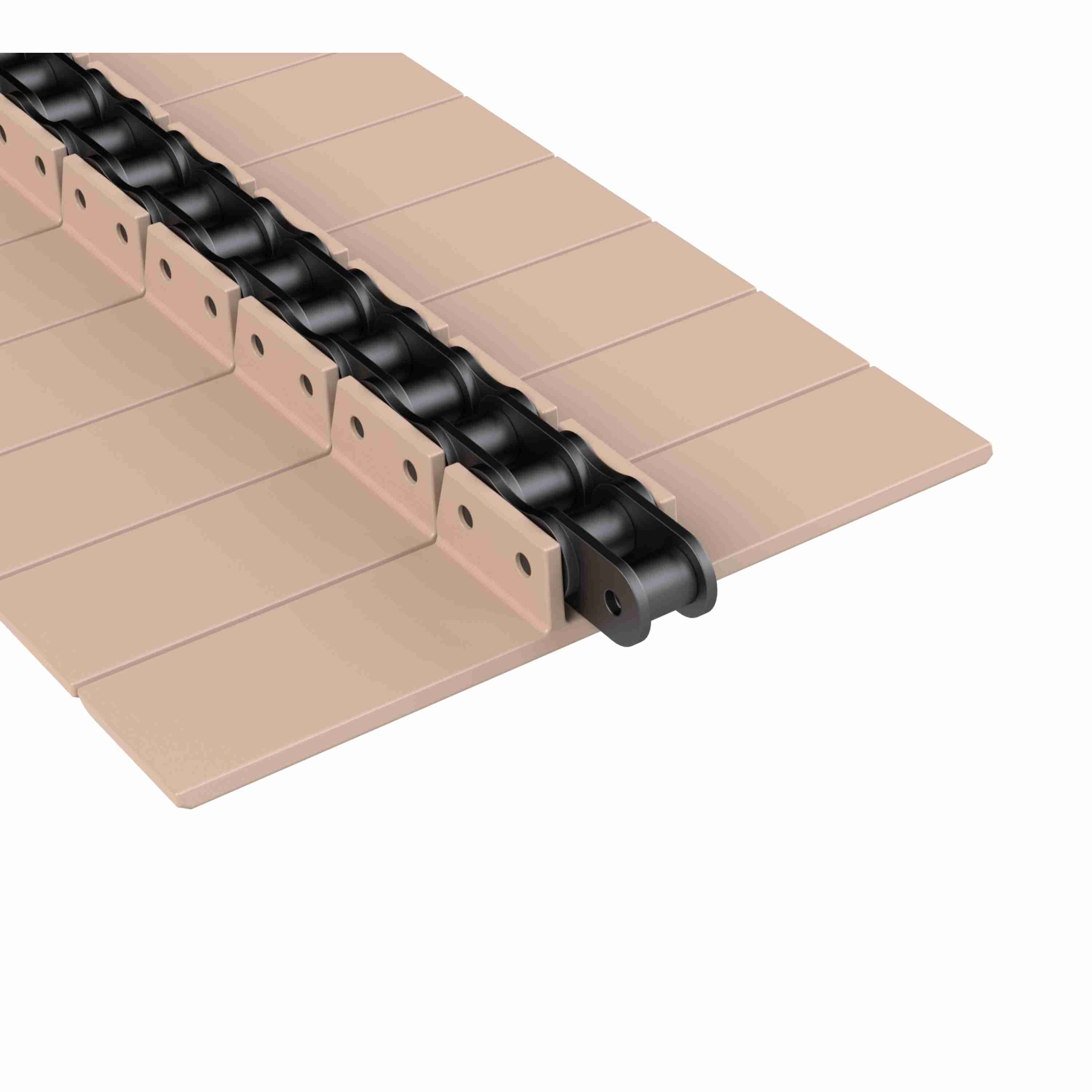

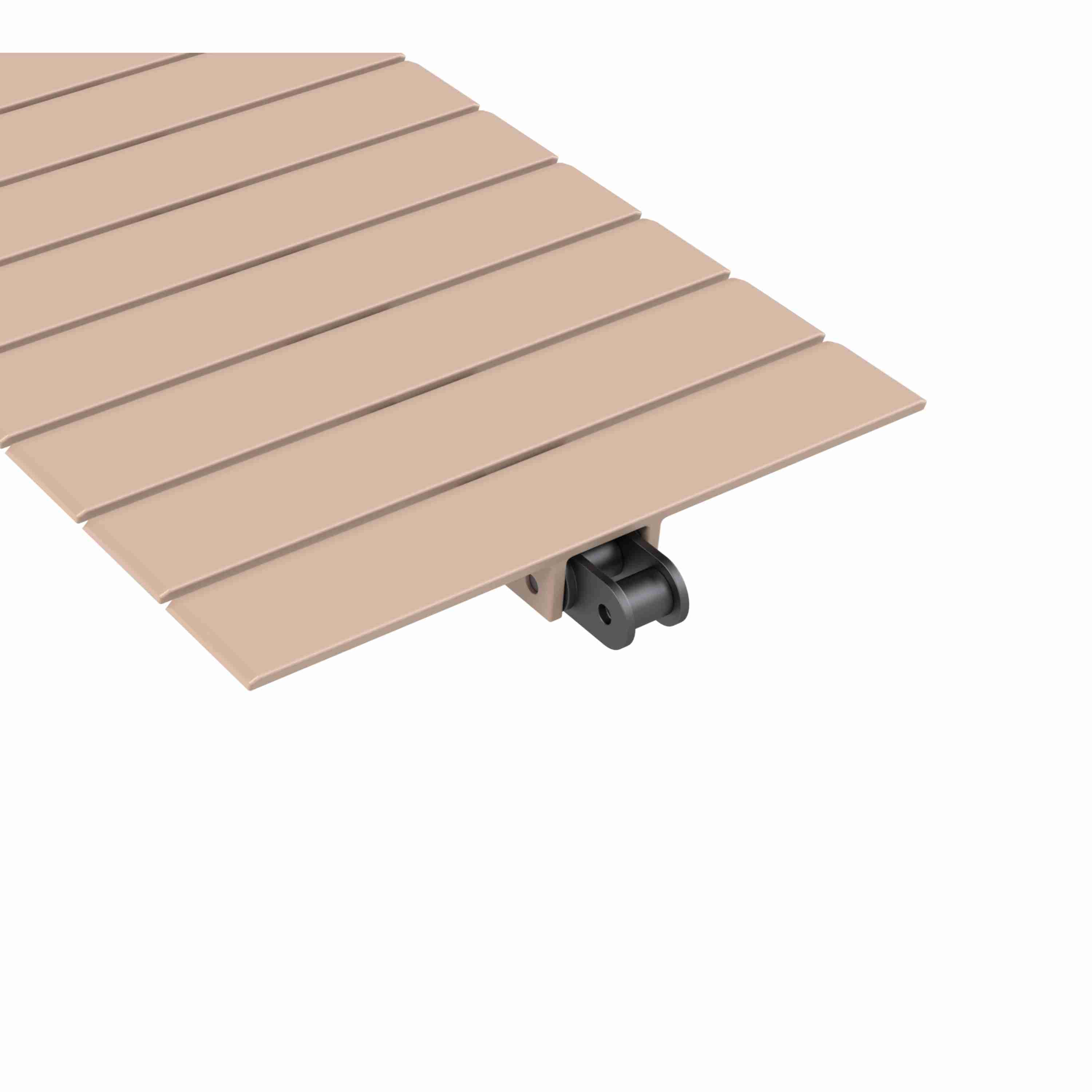

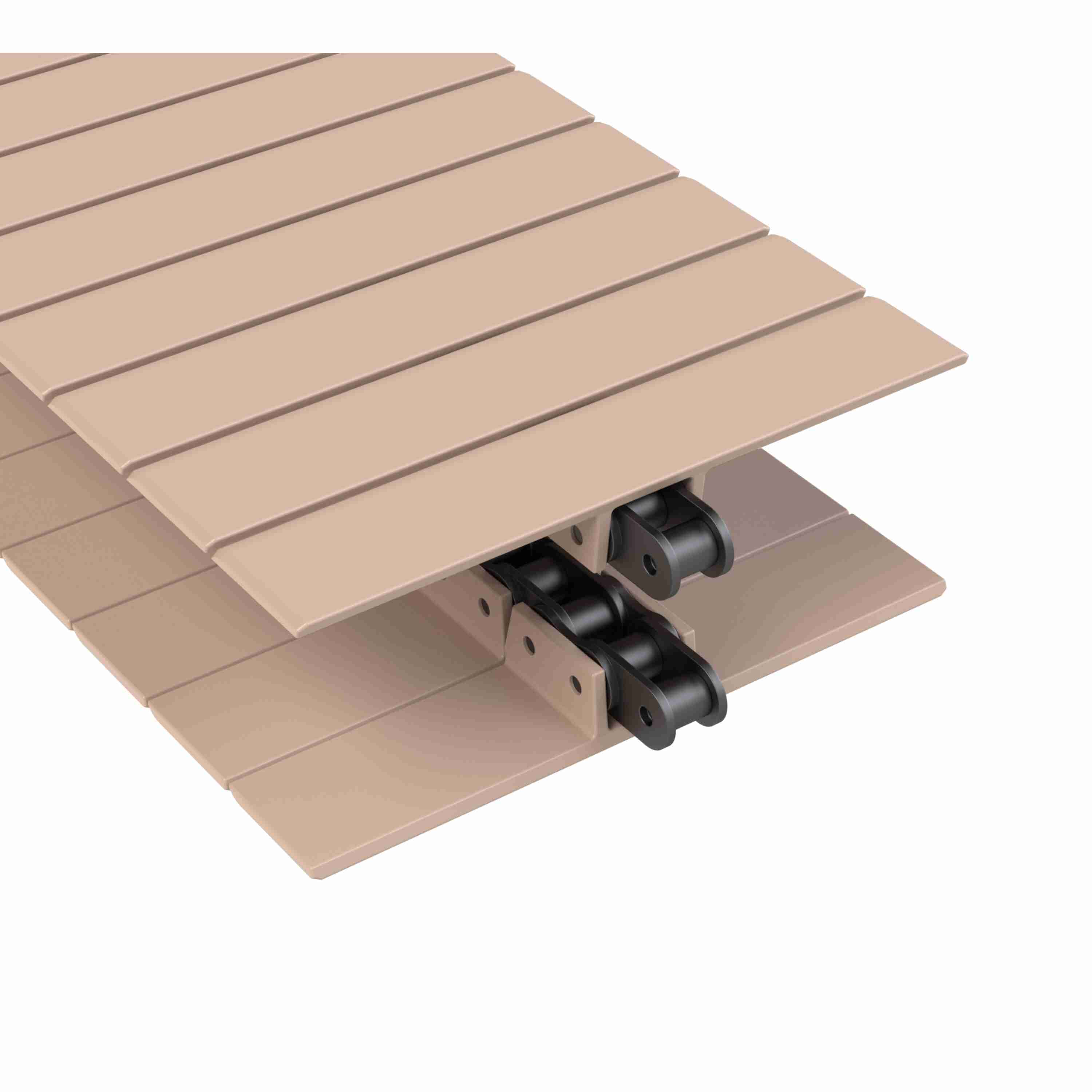

Rexnord 963 Straight Running Solid Top, Material: Tan Low Friction, Width: 7.5in, Pitch: 1.5in - LF963K7-1/2
Part #:10177771
Catalog #:LF963K7-1/2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.16 in | Chain Pitch (in): | 1.5 in |
| Chain Material Description: | Tan Low Friction | Chain Width (mm): | 190.5 mm |
| Series: | TableTop 963 Series Chain | Flight Thickness (mm): | 4.1 mm |
| Chain Number: | 963 | Base Chain Material: | Steel |
| Surface Type: | Solid Top | Chain Strength (N): | 4,440 N |
| Chain Strength (lb): | 1,000 lb | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 7.5 in | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 38.1 mm | Chain Material: | LF |
General Specifications
| Weight: | 0.23 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
