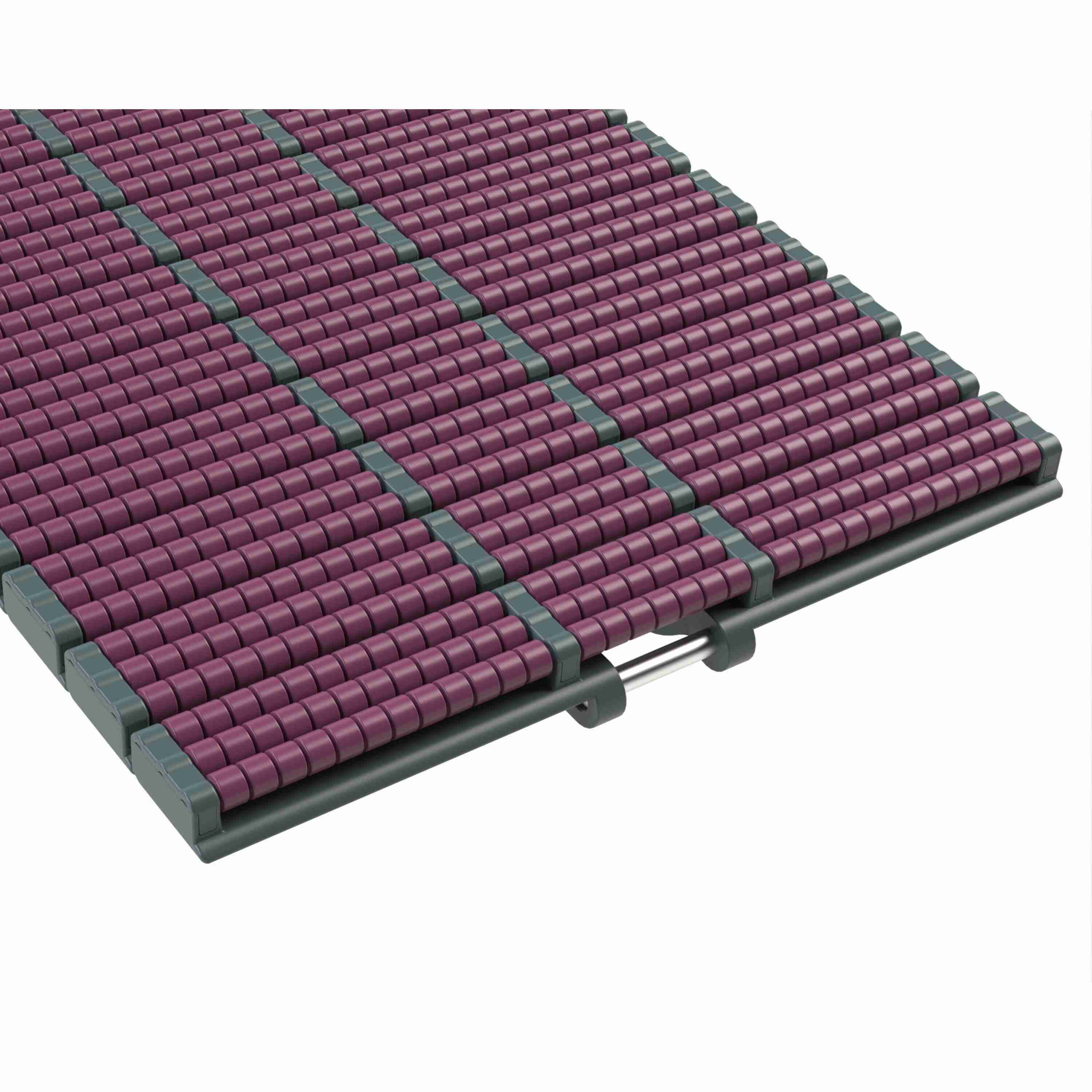

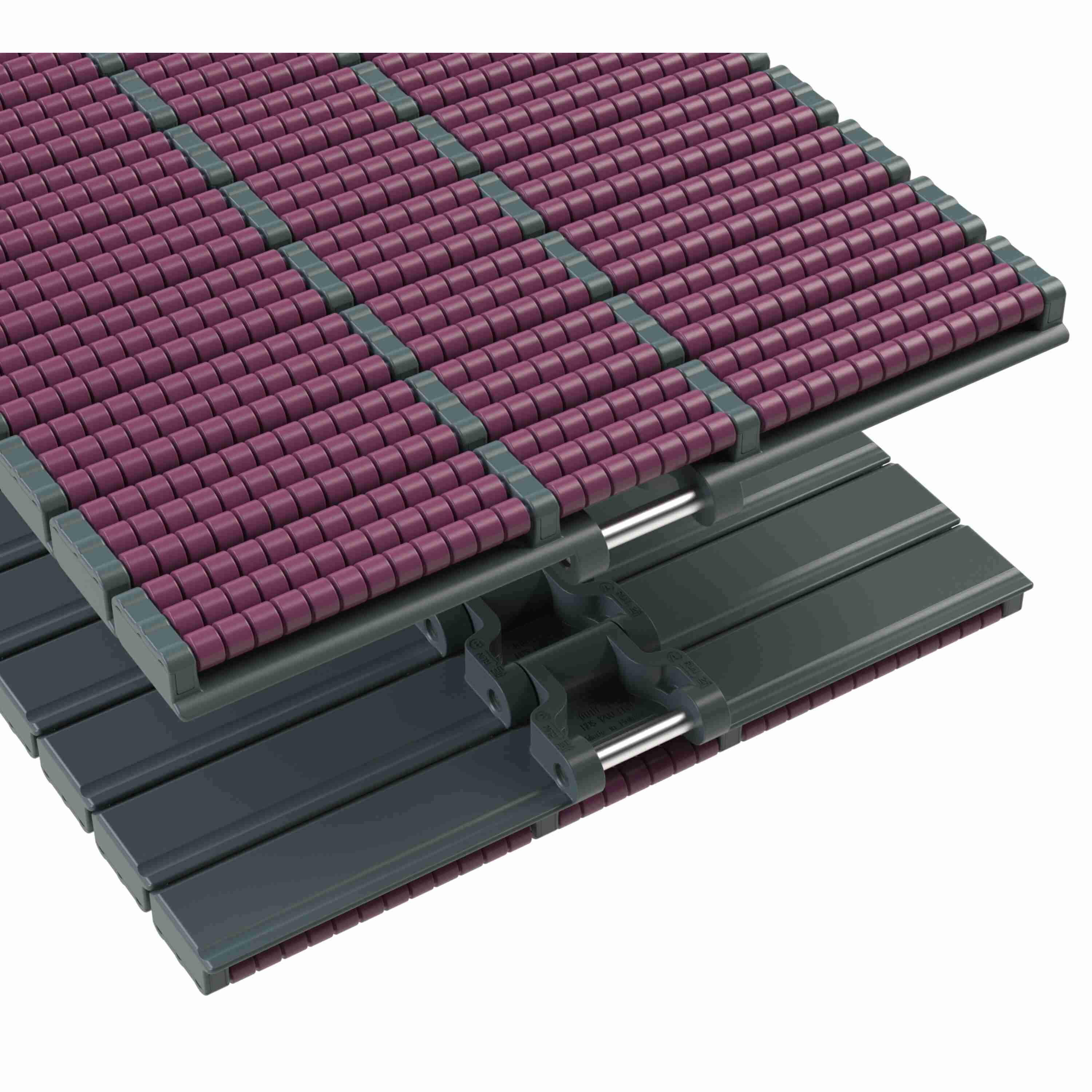

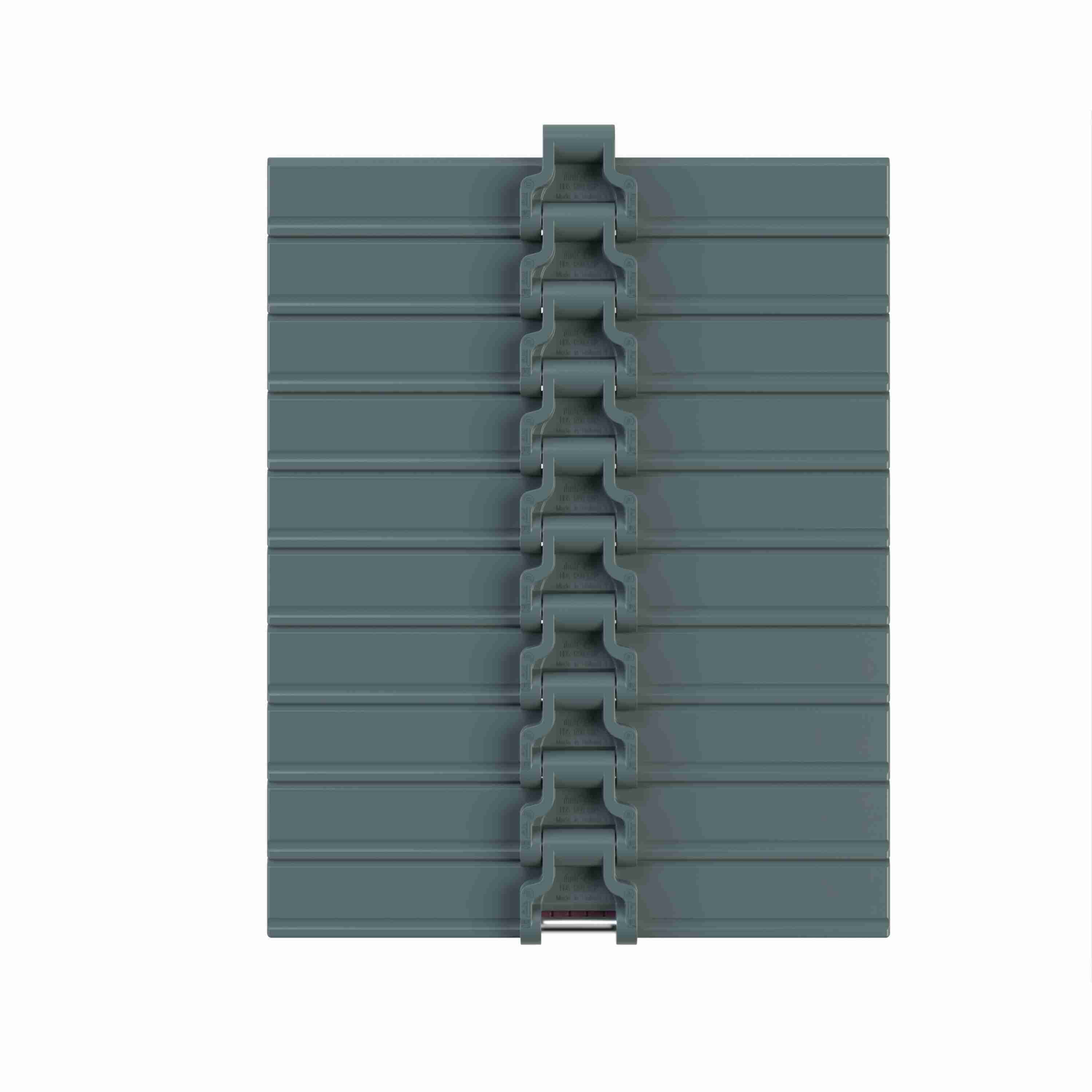

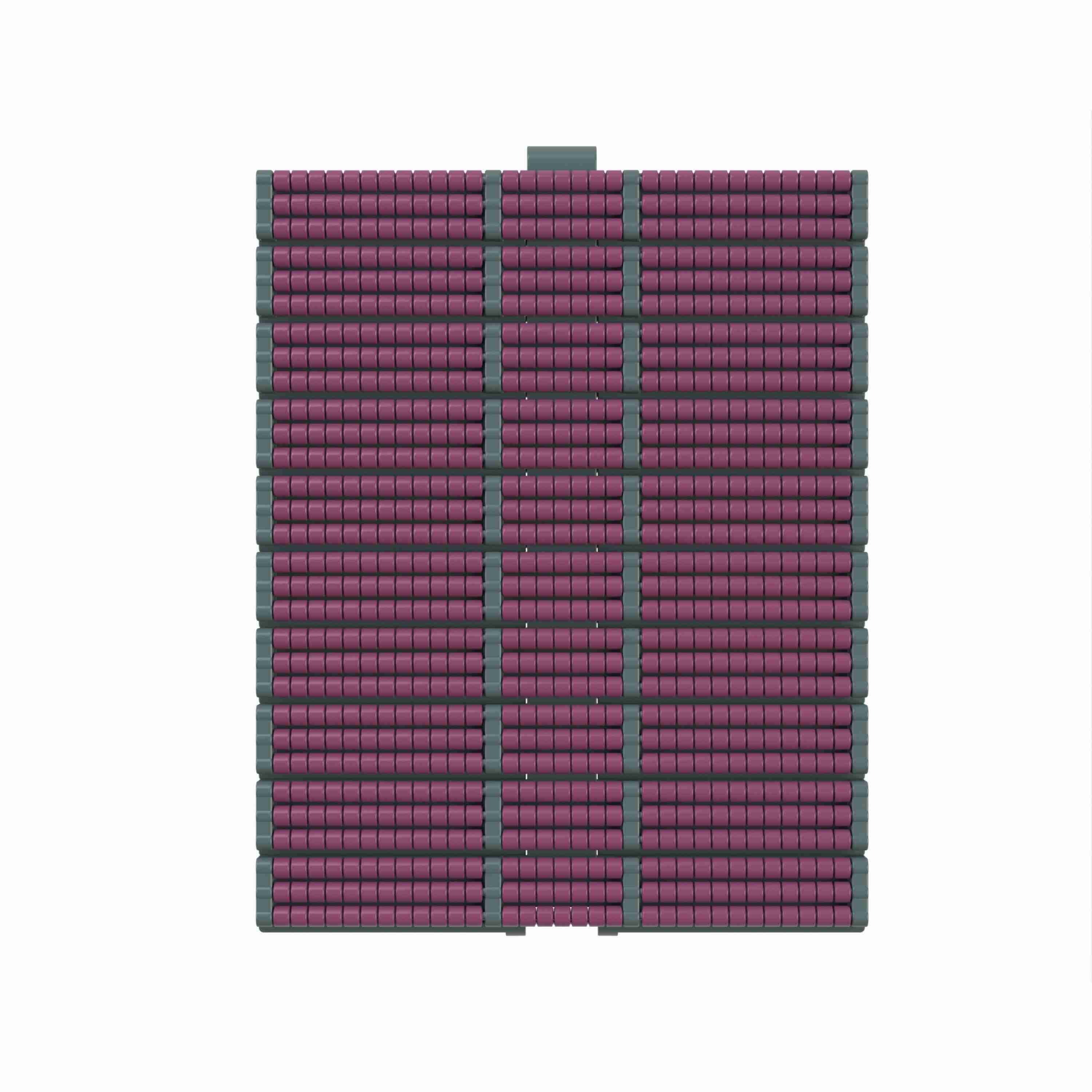

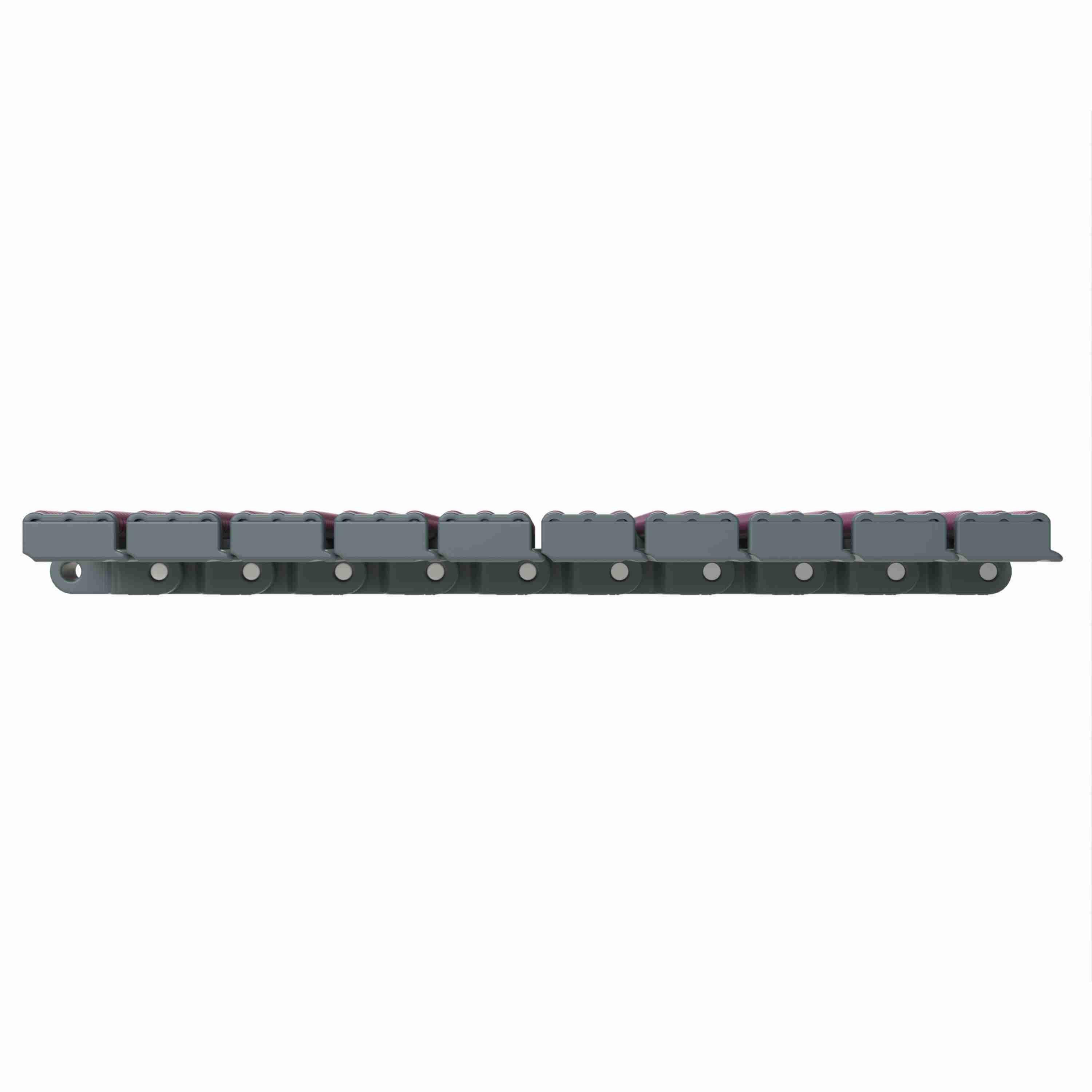

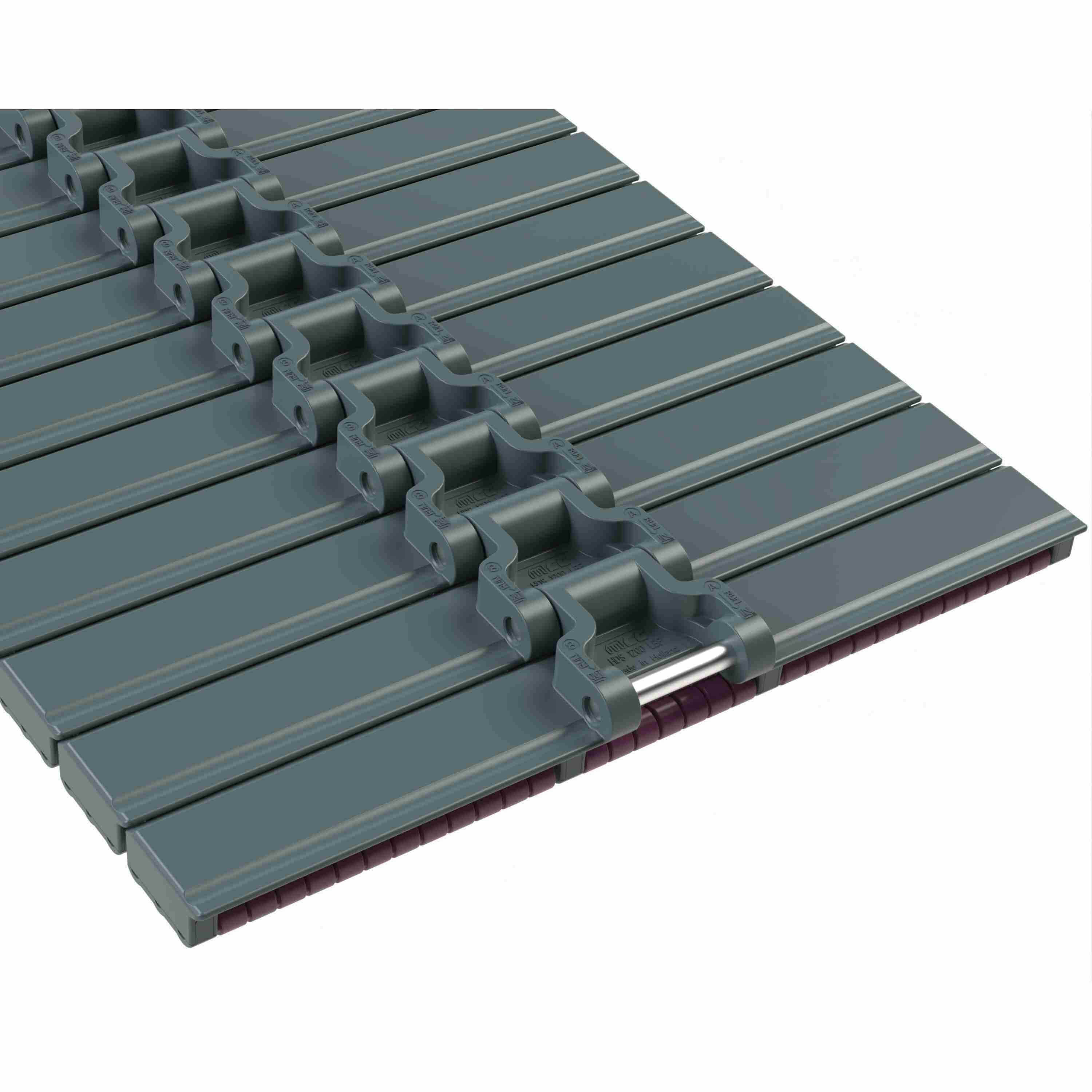

Rexnord HDS LBP Straight Running Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 12in, Pitch: 1.5in - 752.81.20
Part #:10139133
Catalog #:752.81.20
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Low Backline Pressure | Chain Width (in): | 12 in |
| Chain Number: | HDS LBP | Chain Strength (N): | 3,830 N |
| Chain Pitch (in): | 1.5 in | Flight Thickness (in): | 0.76 in |
| Rod/Pin Material: | Stainless Steel | Chain Material: | XLA |
| Chain Material Description: | Internally Lubricated Polyacetal (Grey) | Chain Pitch (mm): | 38.1 mm |
| Chain Strength (lb): | 863 lb | Series: | TableTop HDS Series Chain |
| Chain Width (mm): | 304.8 mm | Chain Width Measurement System: | Imperial |
| Flight Thickness (mm): | 19.3 mm | Straight or Side-Flex: | Straight Running |
General Specifications
| Weight: | 0.29 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
