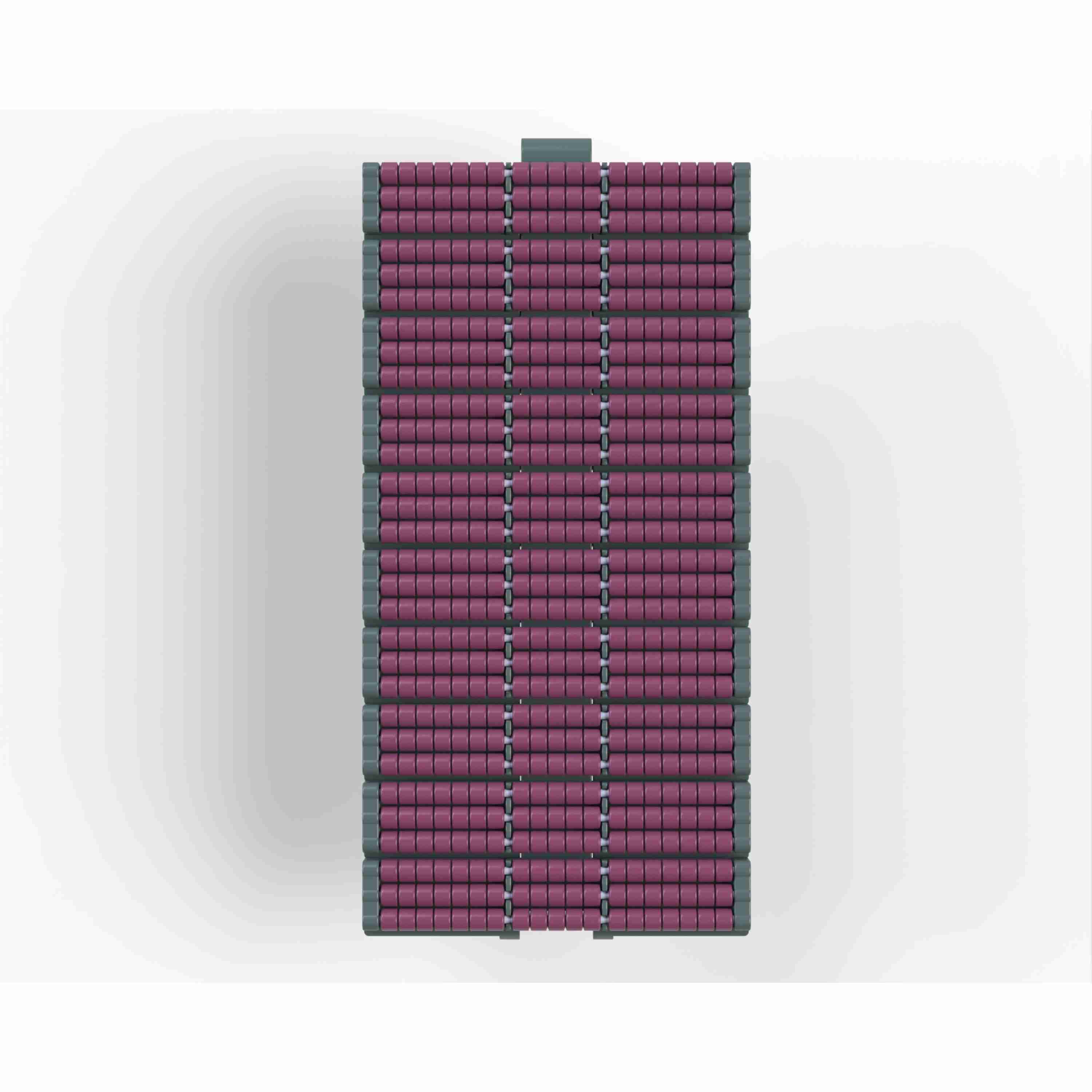

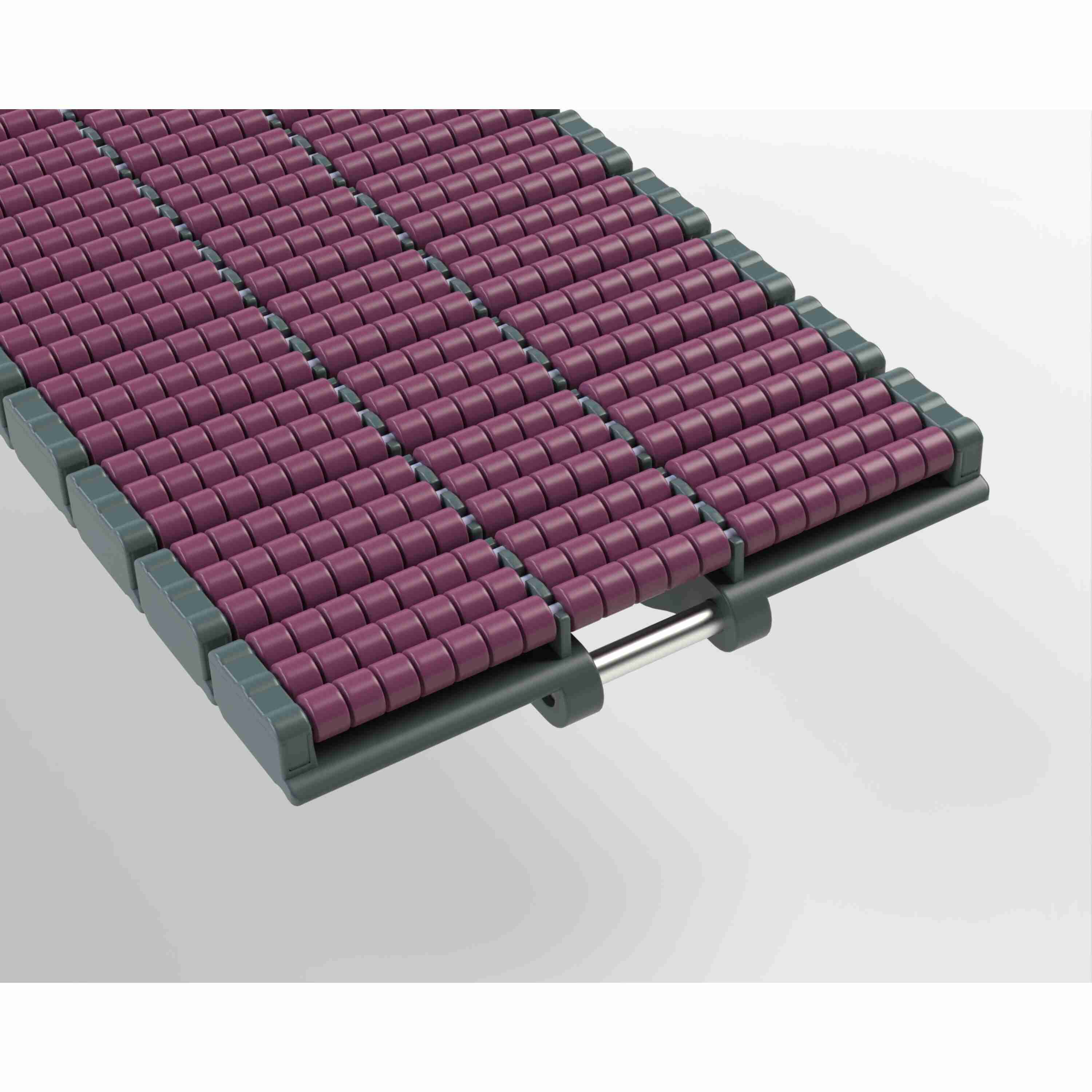

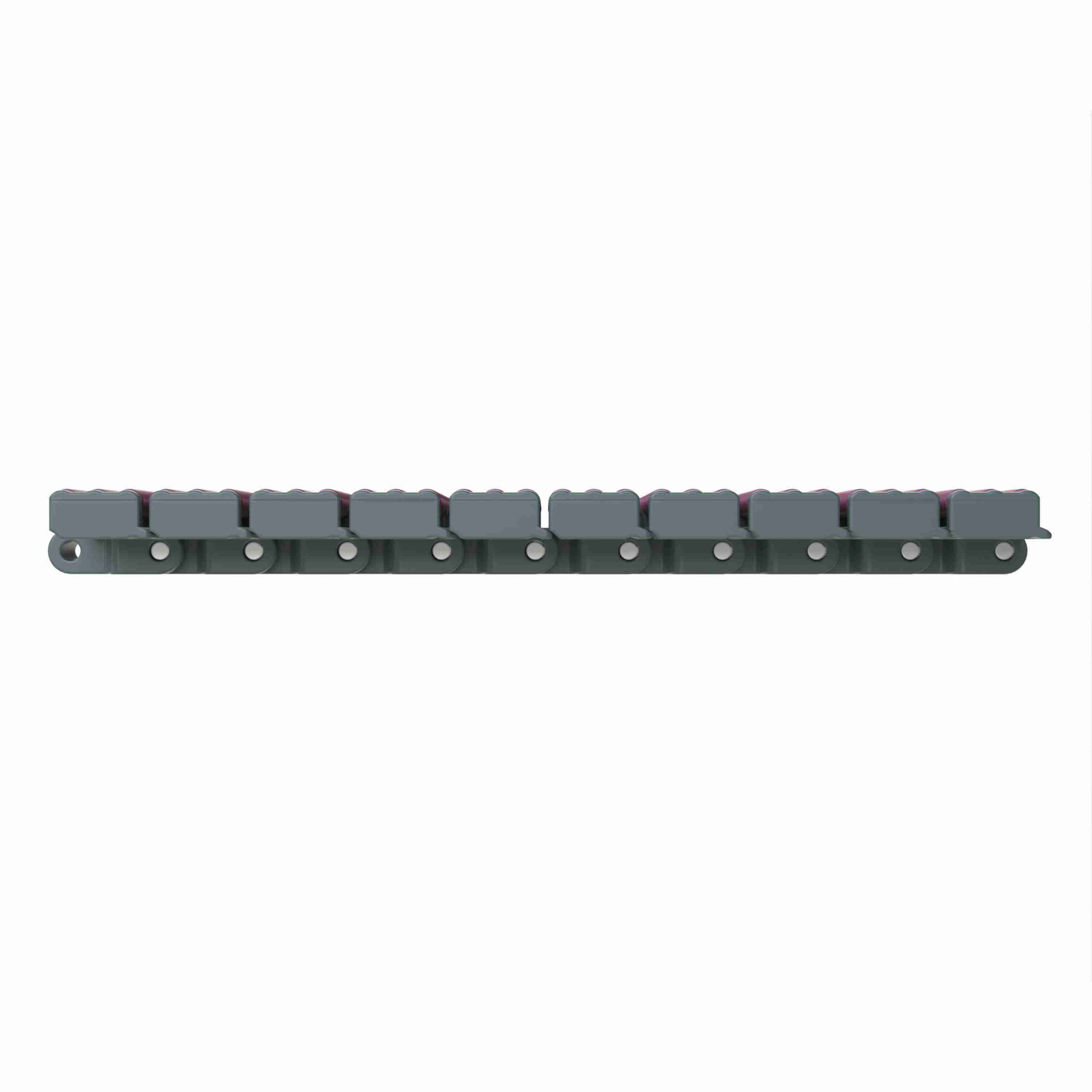

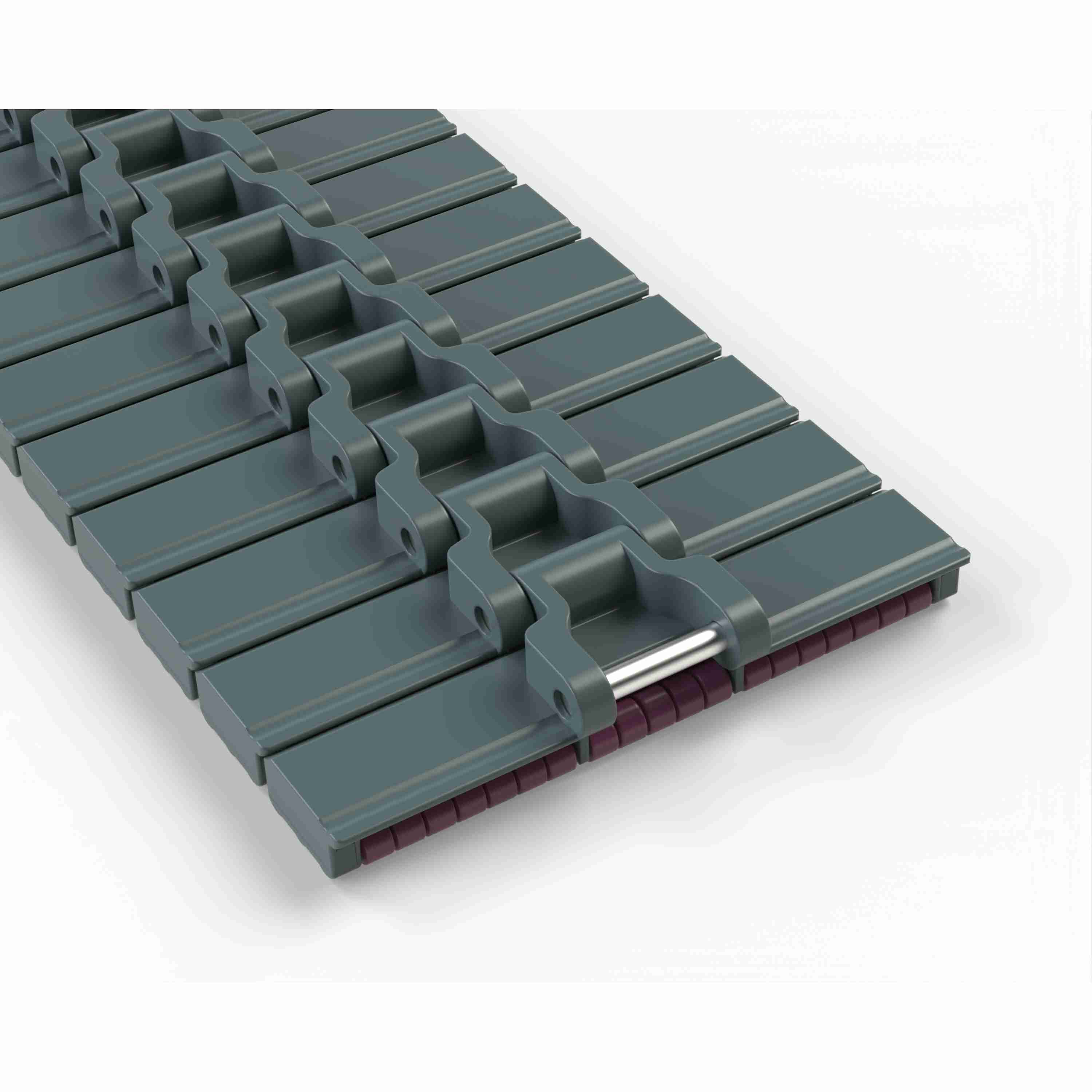

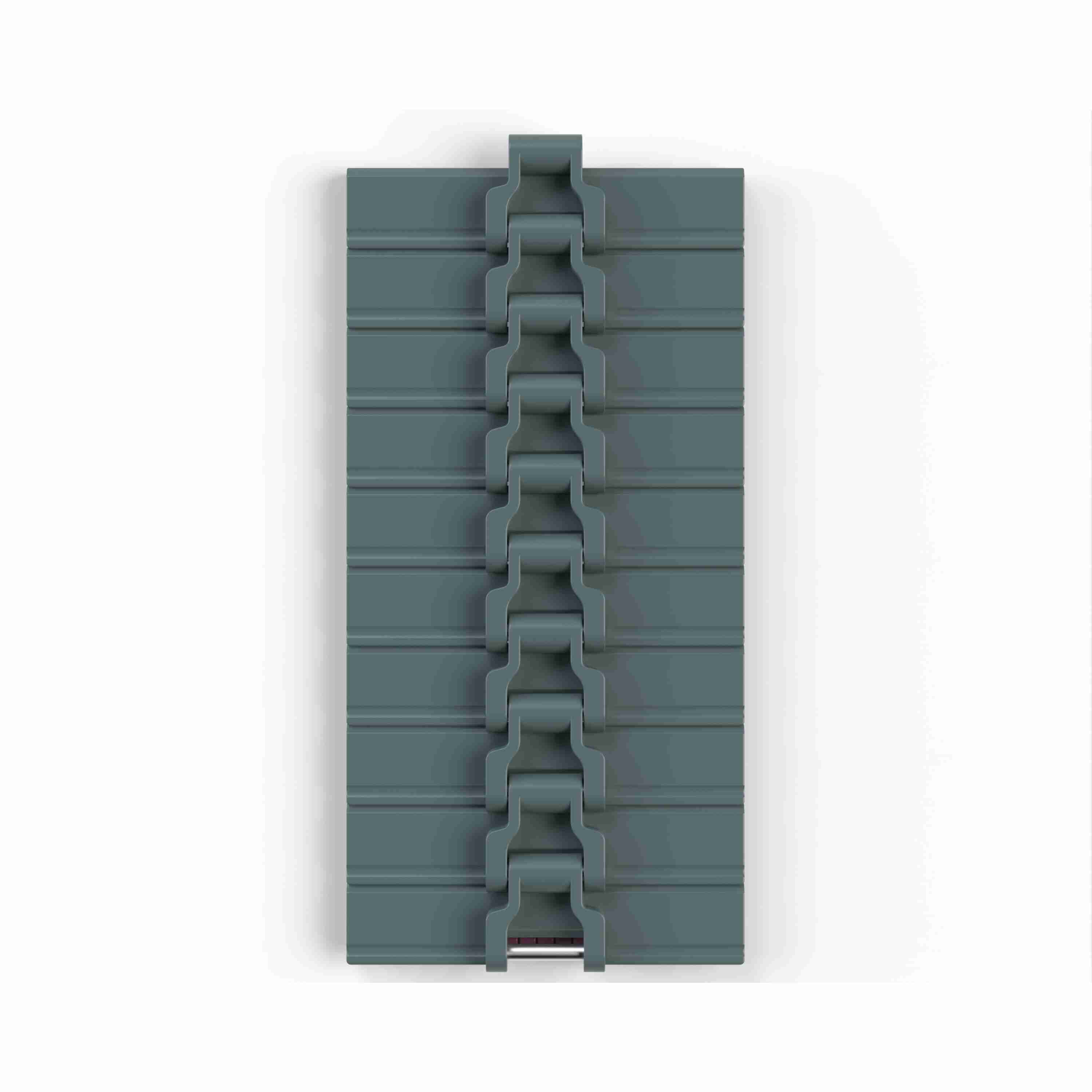

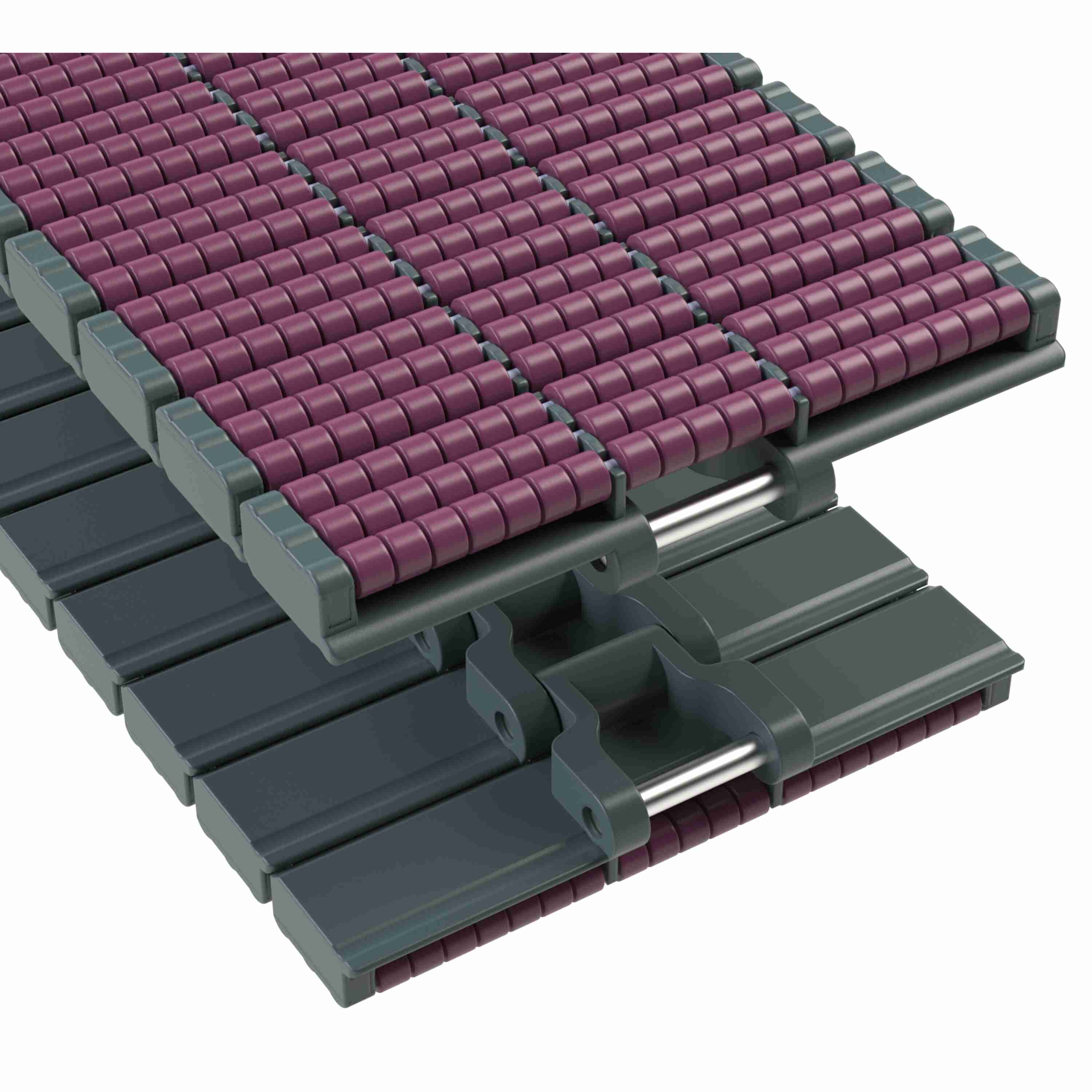

Rexnord HDS LBP Straight Running Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 7.5in, Pitch: 1.5in - 752.81.13
Part #:10139131
Catalog #:752.81.13
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 38.1 mm | Surface Type: | Low Backline Pressure |
| Series: | TableTop HDS Series Chain | Flight Thickness (in): | 0.76 in |
| Flight Thickness (mm): | 19.3 mm | Chain Number: | HDS LBP |
| Chain Width (mm): | 190.5 mm | Chain Width Measurement System: | Imperial |
| Rod/Pin Material: | Stainless Steel | Chain Material: | XLA |
| Chain Strength (lb): | 863 lb | Chain Width (in): | 7.5 in |
| Straight or Side-Flex: | Straight Running | Chain Strength (N): | 3,830 N |
| Chain Material Description: | Internally Lubricated Polyacetal (Grey) | Chain Pitch (in): | 1.5 in |
General Specifications
| Weight: | 0.20 KG | HTC: | 3926906090 |
