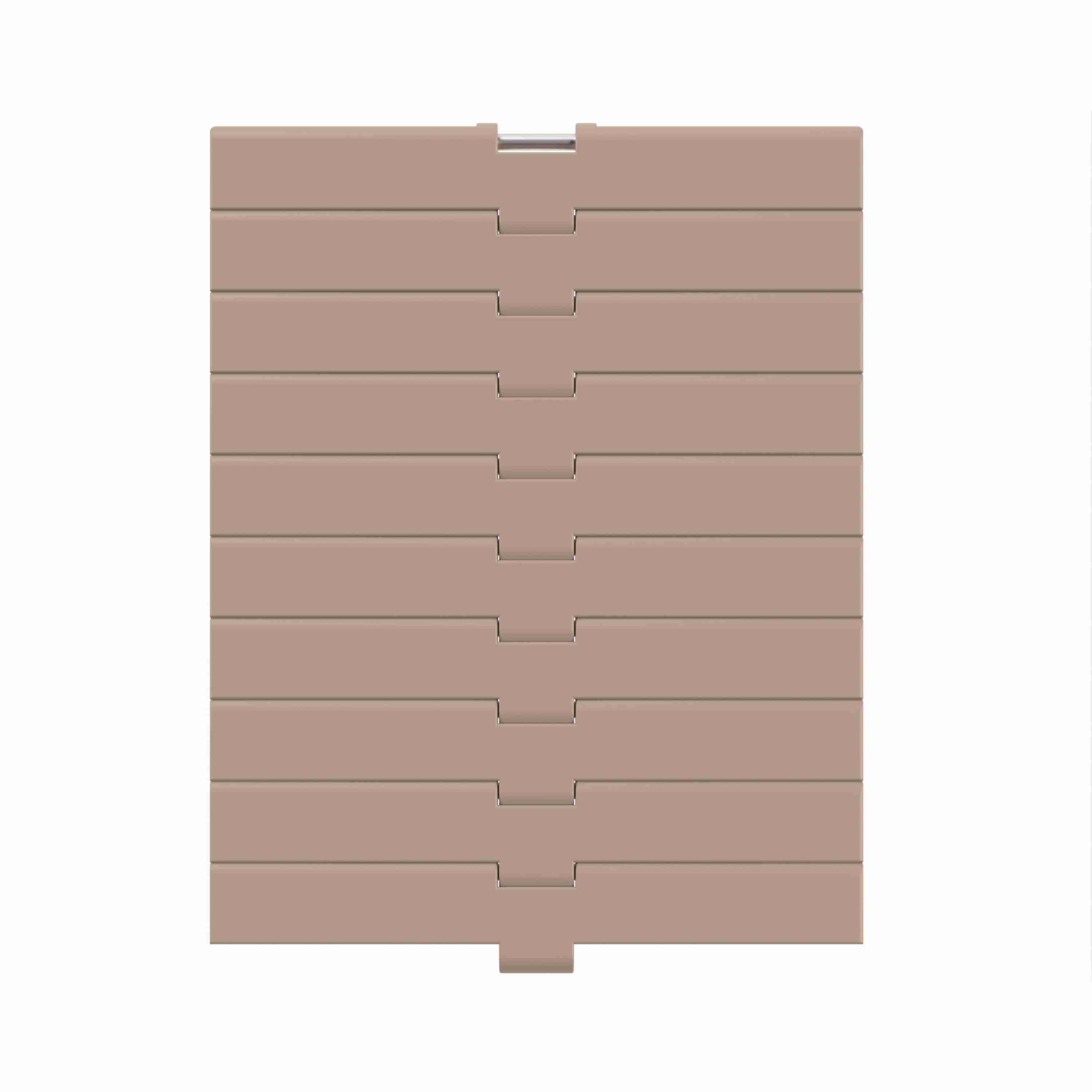

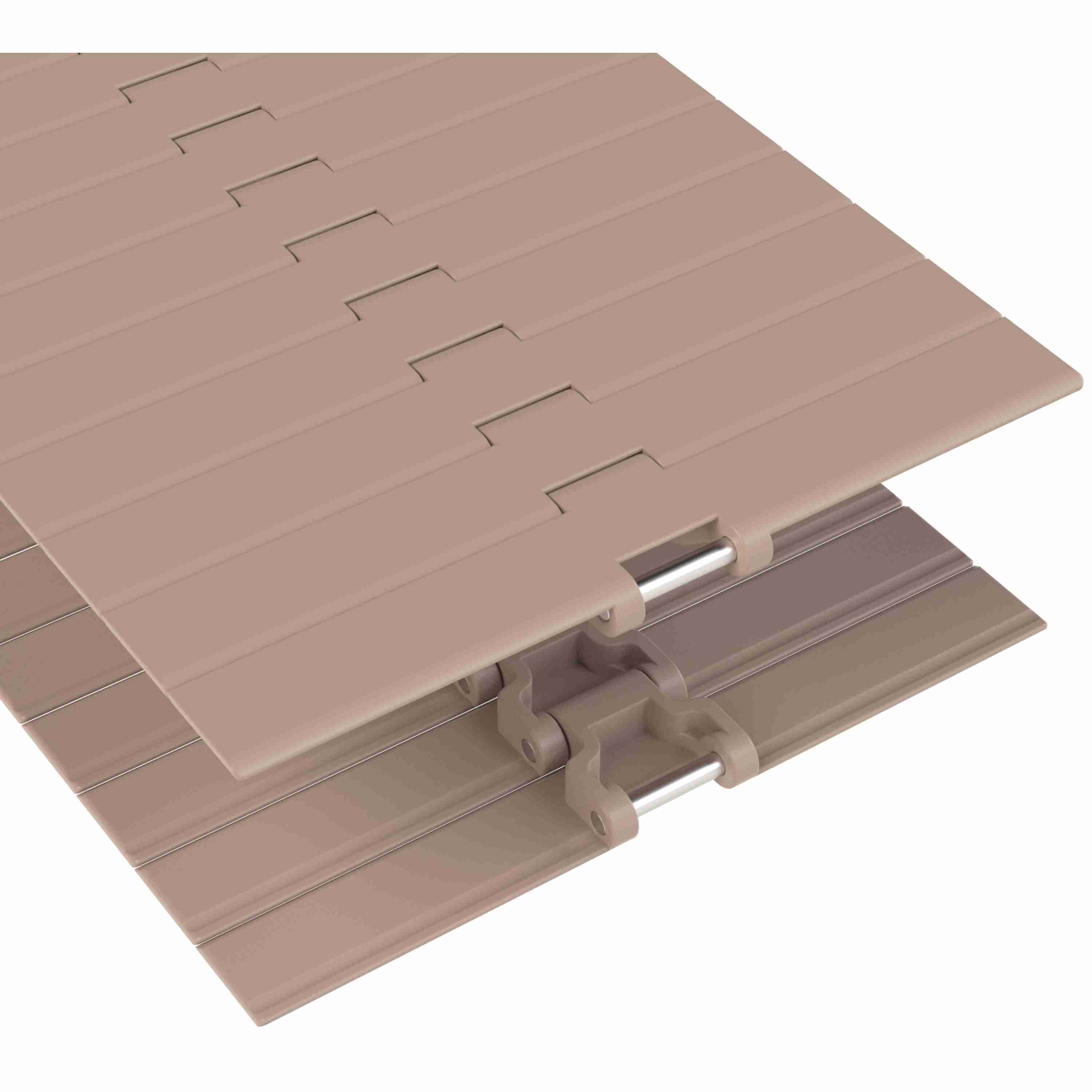

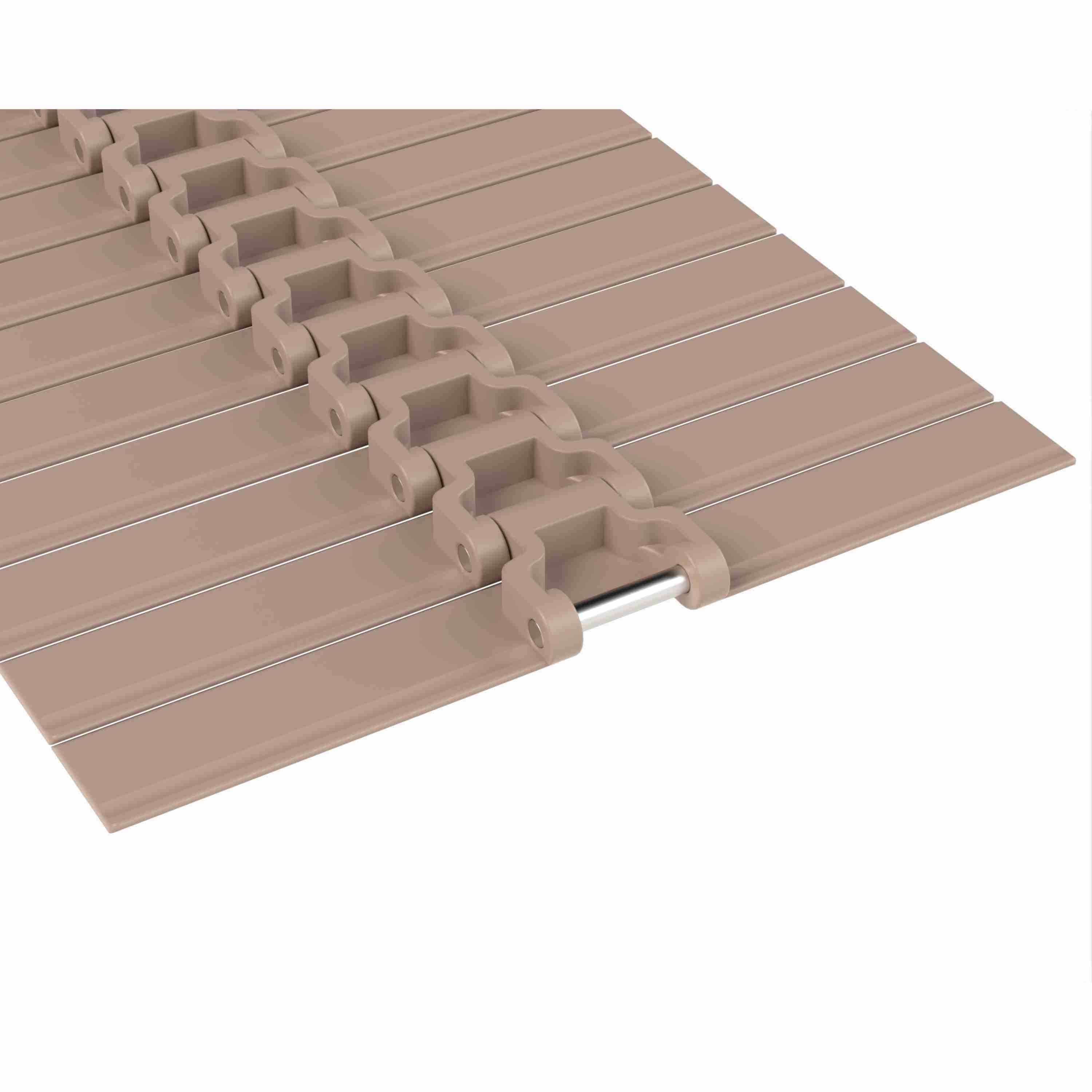

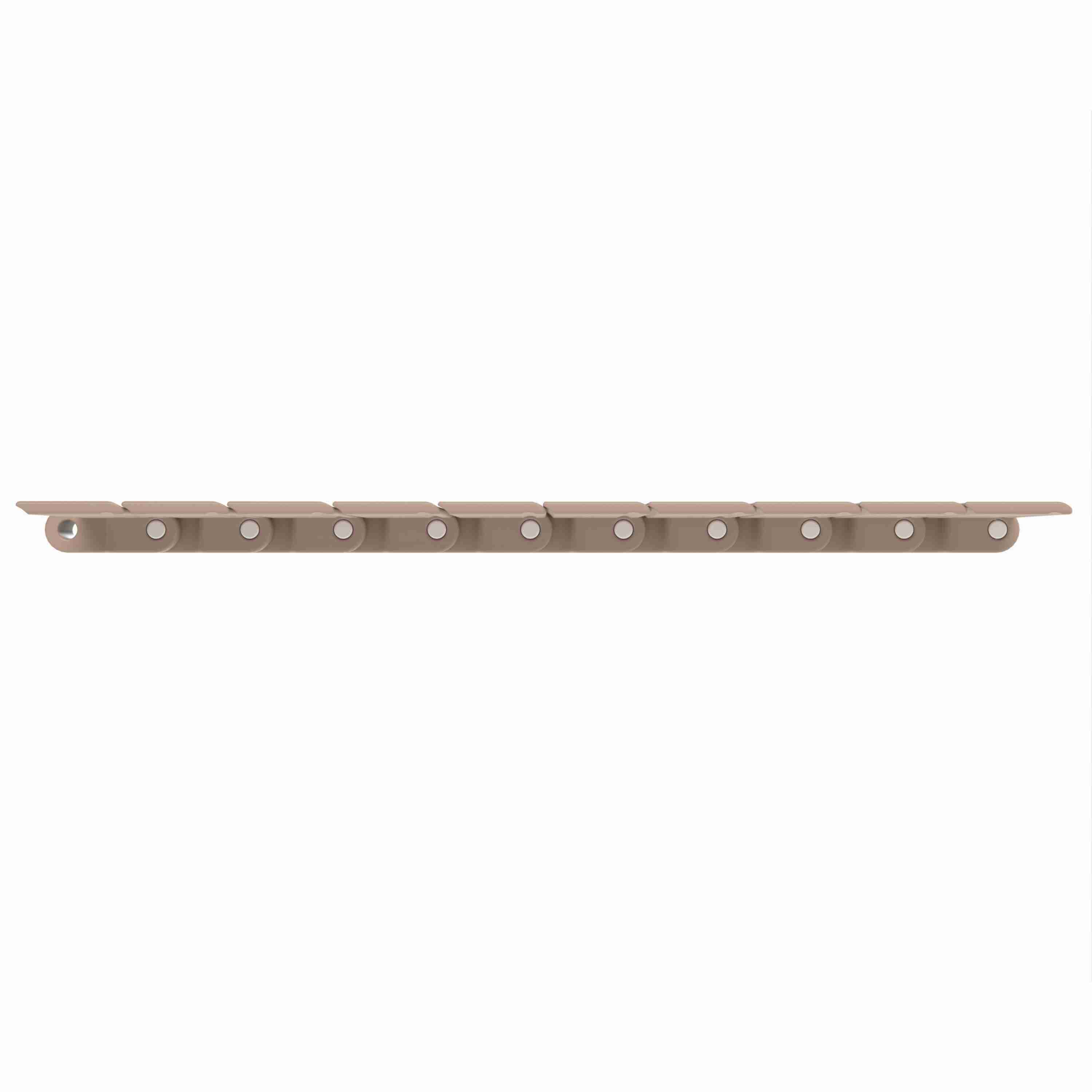

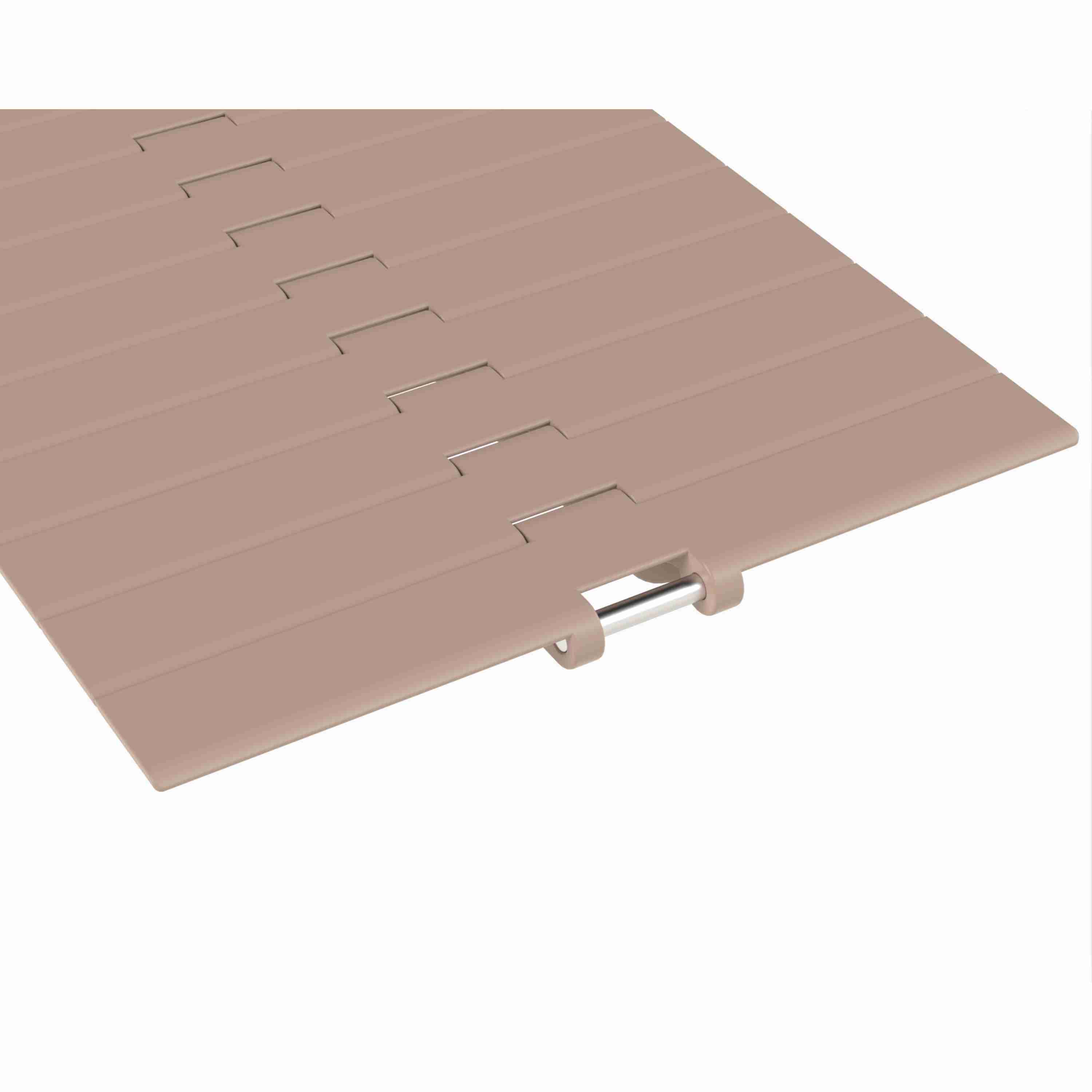

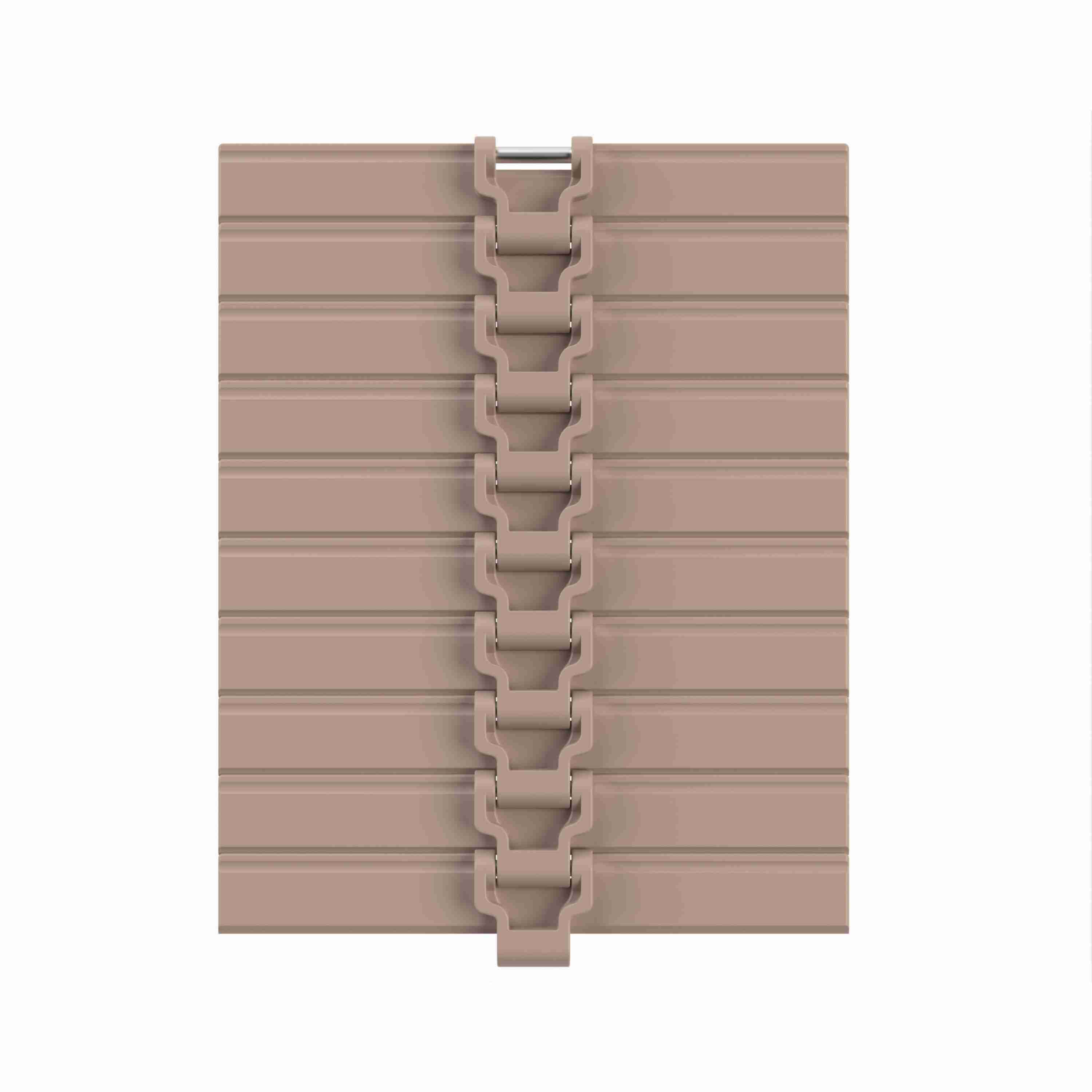

Rexnord HDS Straight Running Solid Top, Material: Tan Low Friction, Width: 12in, Pitch: 1.5in - 752.62.922
Part #:10375135
Catalog #:752.62.922
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 12 in | Flight Thickness (in): | 0.19 in |
| Chain Width Measurement System: | Imperial | Chain Number: | HDS |
| Chain Pitch (in): | 1.5 in | Series: | TableTop HDS Series Chain |
| Surface Type: | Solid Top | Chain Pitch (mm): | 38.1 mm |
| Straight or Side-Flex: | Straight Running | Rod/Pin Material: | Stainless Steel |
| Chain Material: | LF | Flight Thickness (mm): | 4.8 mm |
| Chain Strength (lb): | 863 lb | Chain Strength (N): | 3,830 N |
| Chain Width (mm): | 304.8 mm | Chain Material Description: | Tan Low Friction |
General Specifications
| Weight: | 94.55 G | HTC: | 3926906090 |
