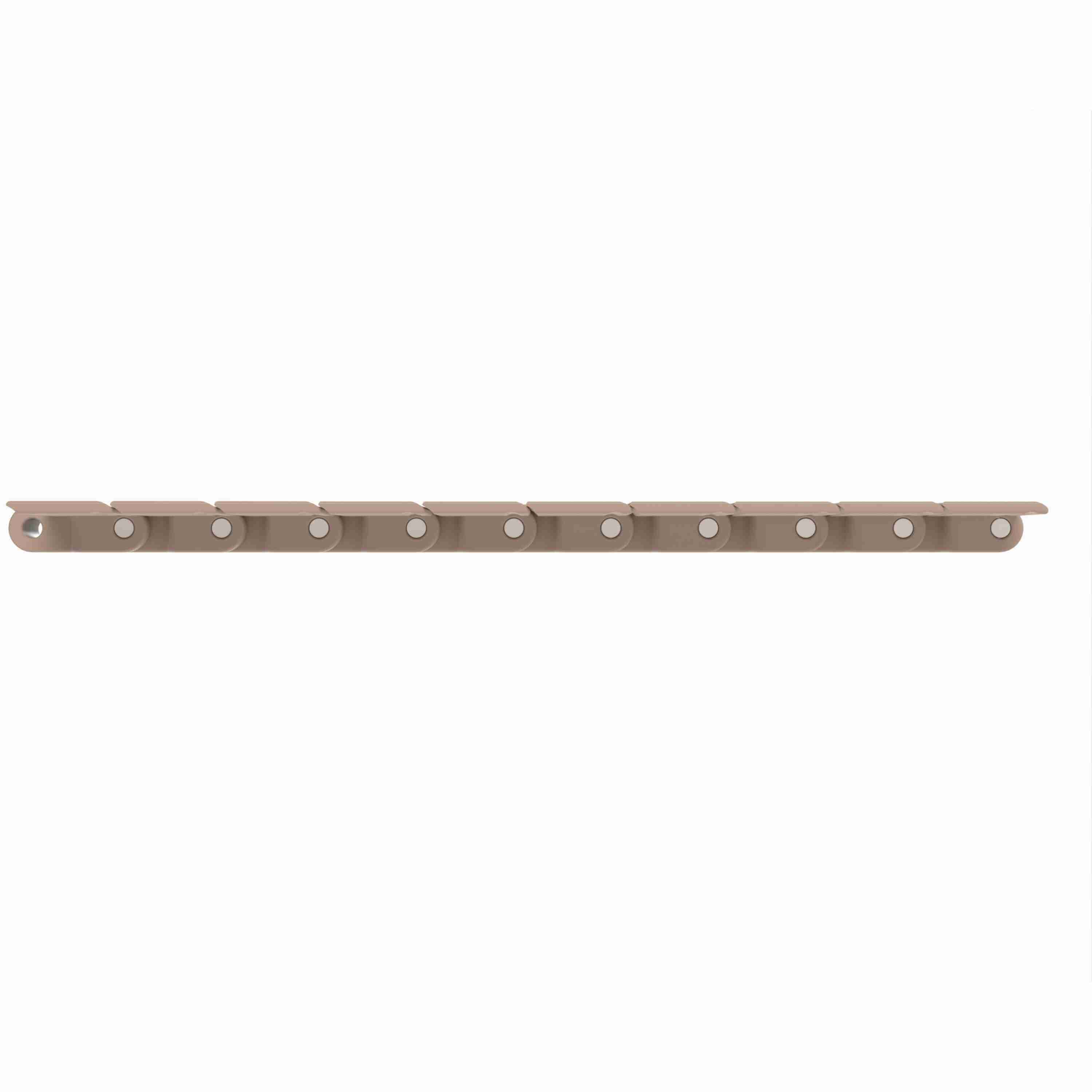

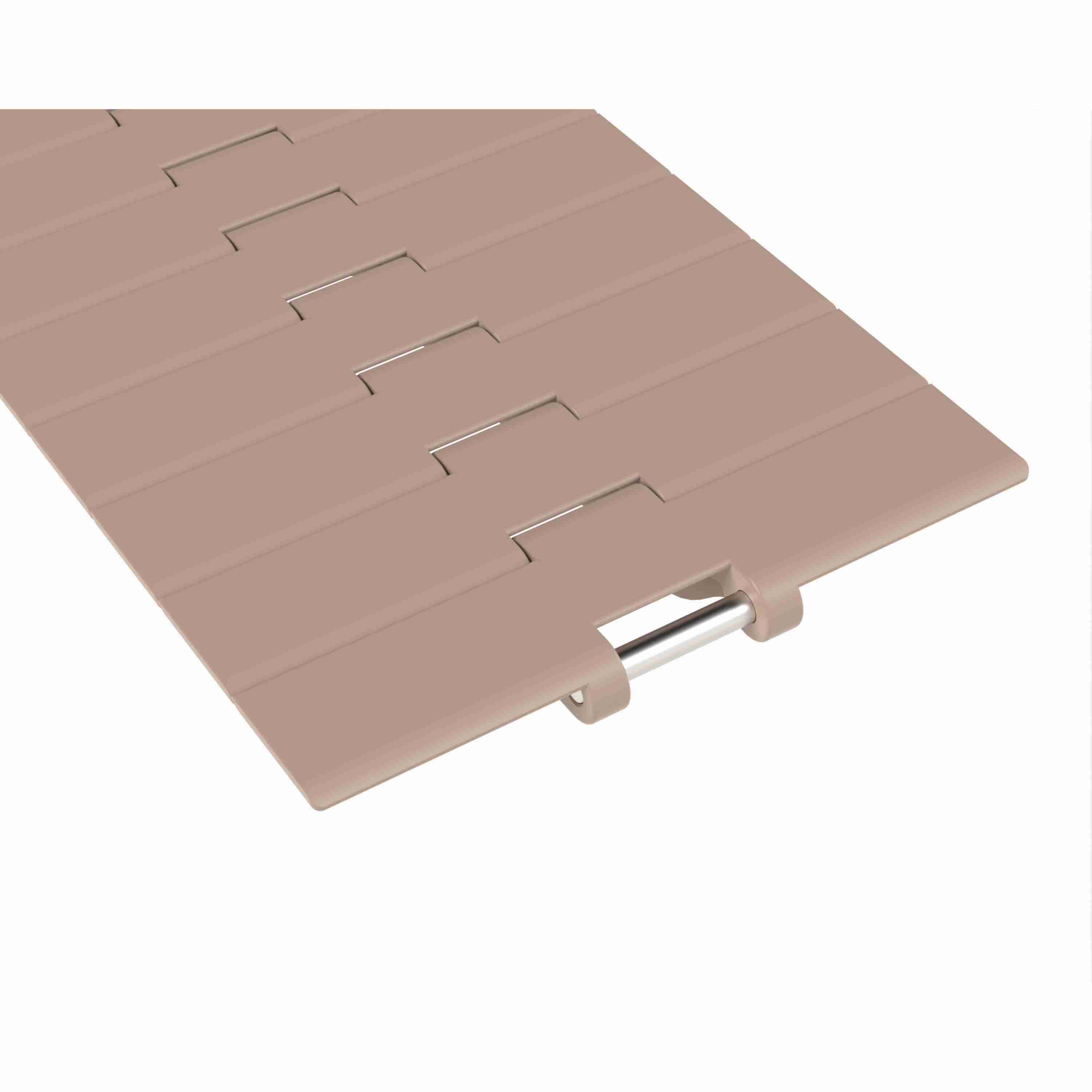

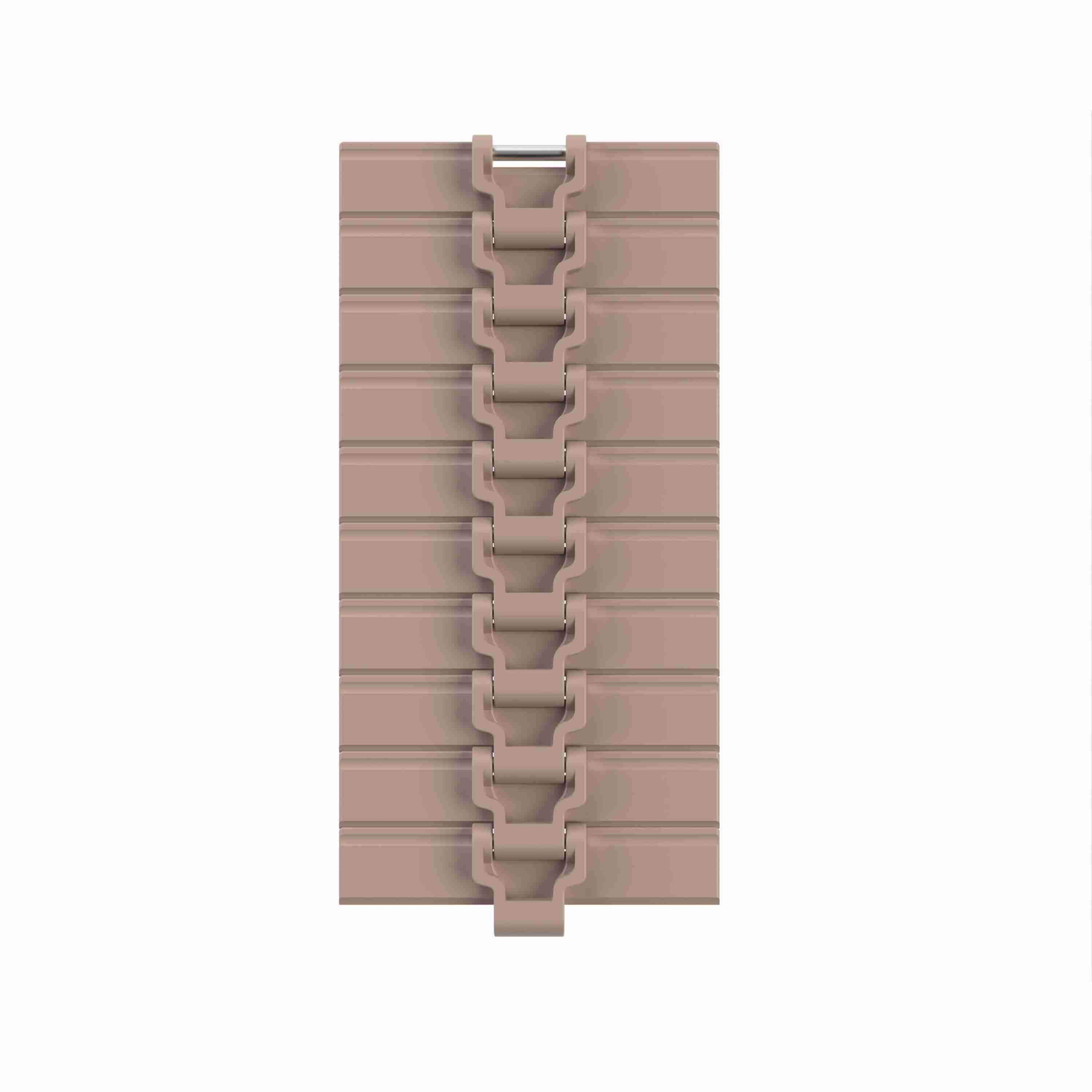

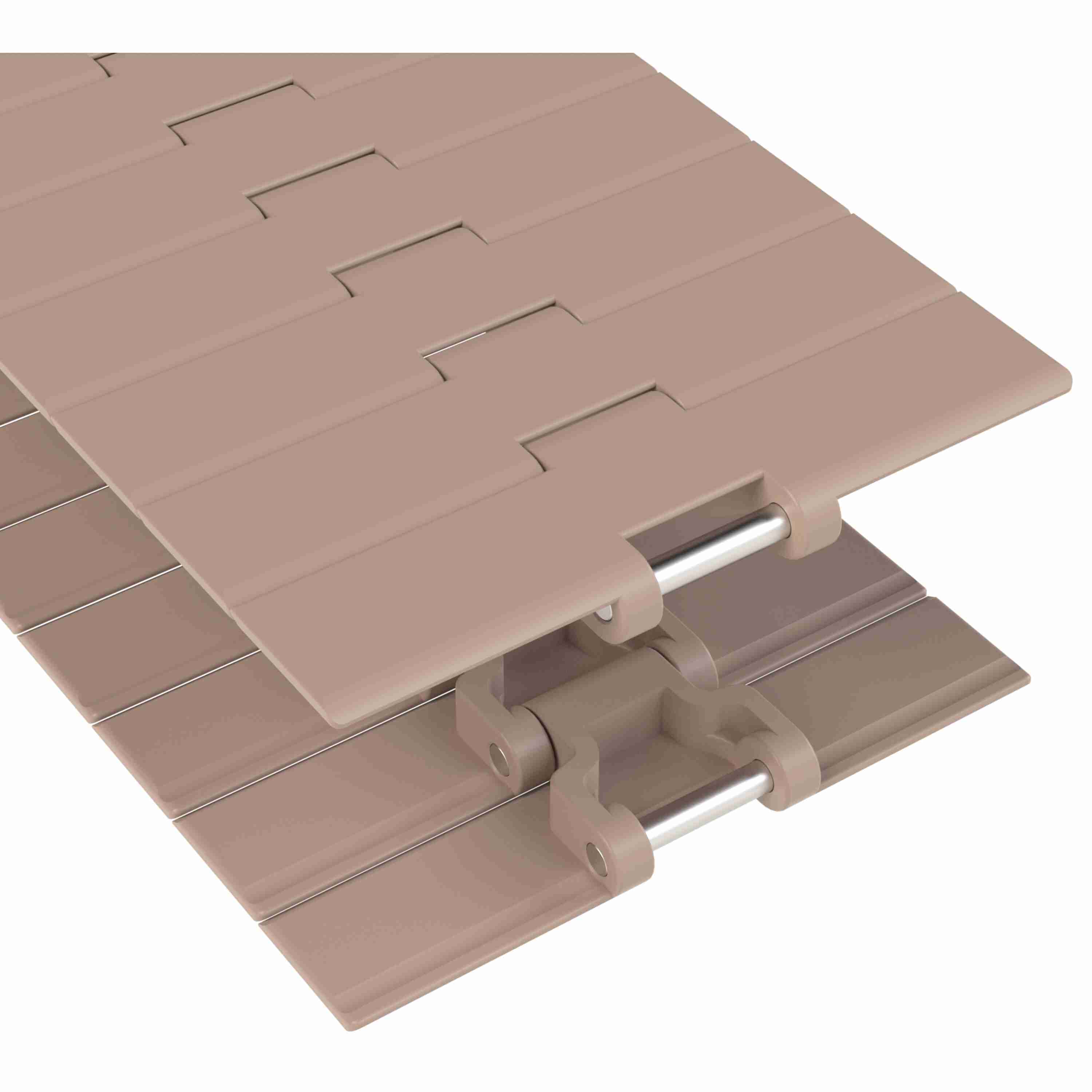

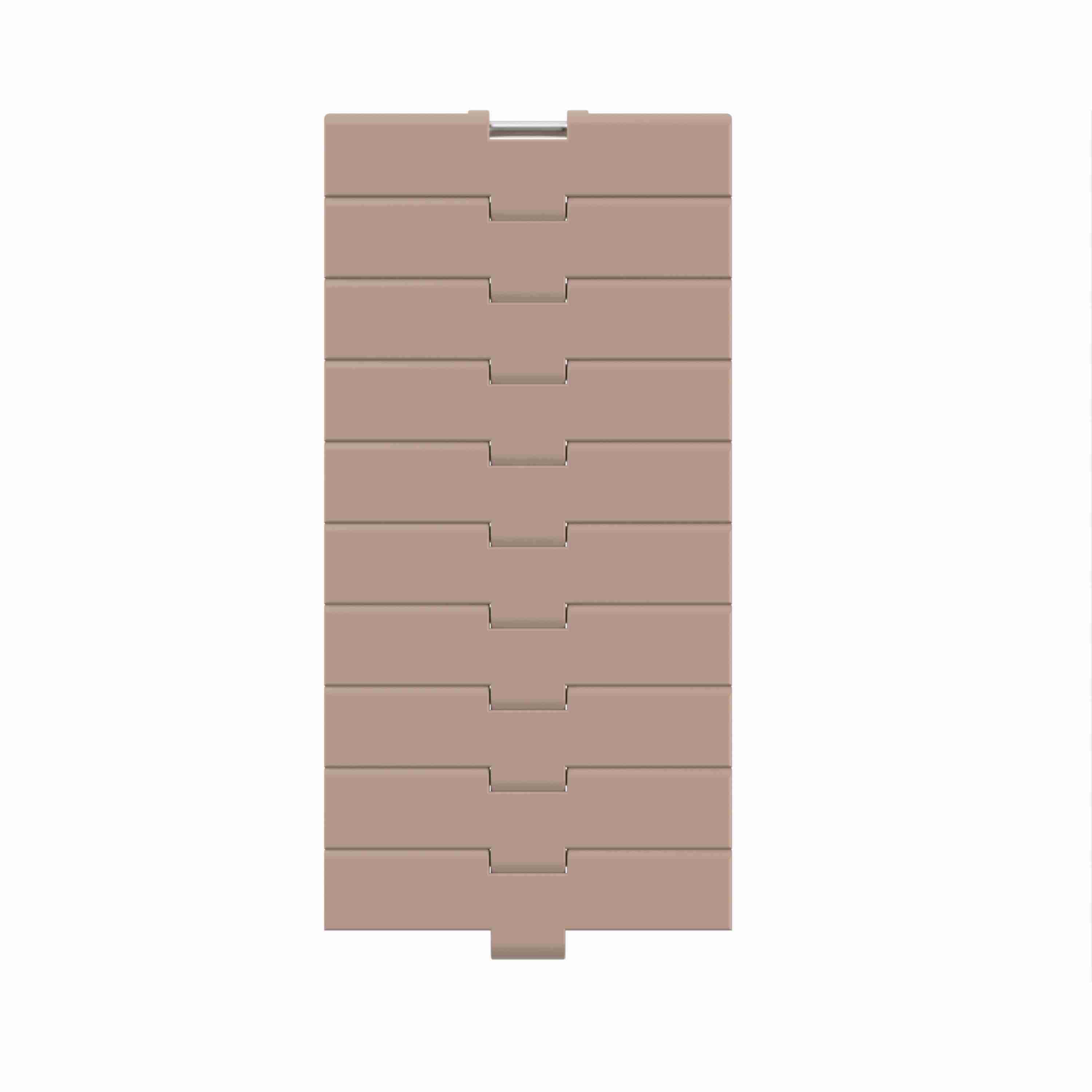

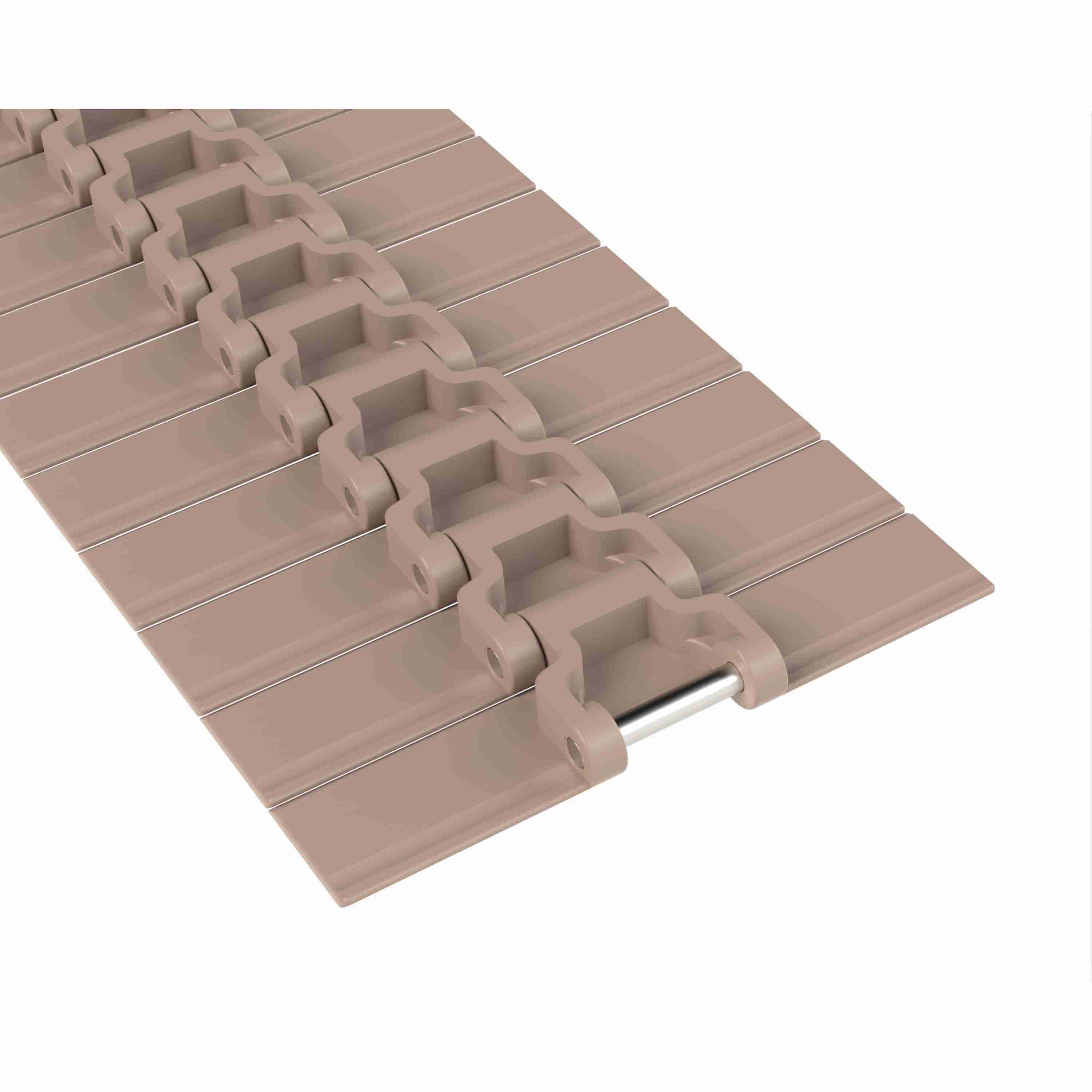

Rexnord HDS Straight Running Solid Top, Material: Tan Low Friction, Width: 7.5in, Pitch: 1.5in - 752.62.72
Part #:10139126
Catalog #:752.62.72
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Straight or Side-Flex: | Straight Running | Surface Type: | Solid Top |
| Rod/Pin Material: | Stainless Steel | Chain Strength (N): | 3,830 N |
| Chain Width (in): | 7.5 in | Chain Width Measurement System: | Imperial |
| Chain Pitch (mm): | 38.1 mm | Chain Pitch (in): | 1.5 in |
| Flight Thickness (mm): | 4.8 mm | Chain Width (mm): | 190.5 mm |
| Chain Strength (lb): | 863 lb | Flight Thickness (in): | 0.19 in |
| Chain Material Description: | Tan Low Friction | Series: | TableTop HDS Series Chain |
| Chain Material: | LF | Chain Number: | HDS |
General Specifications
| Weight: | 0.09 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
