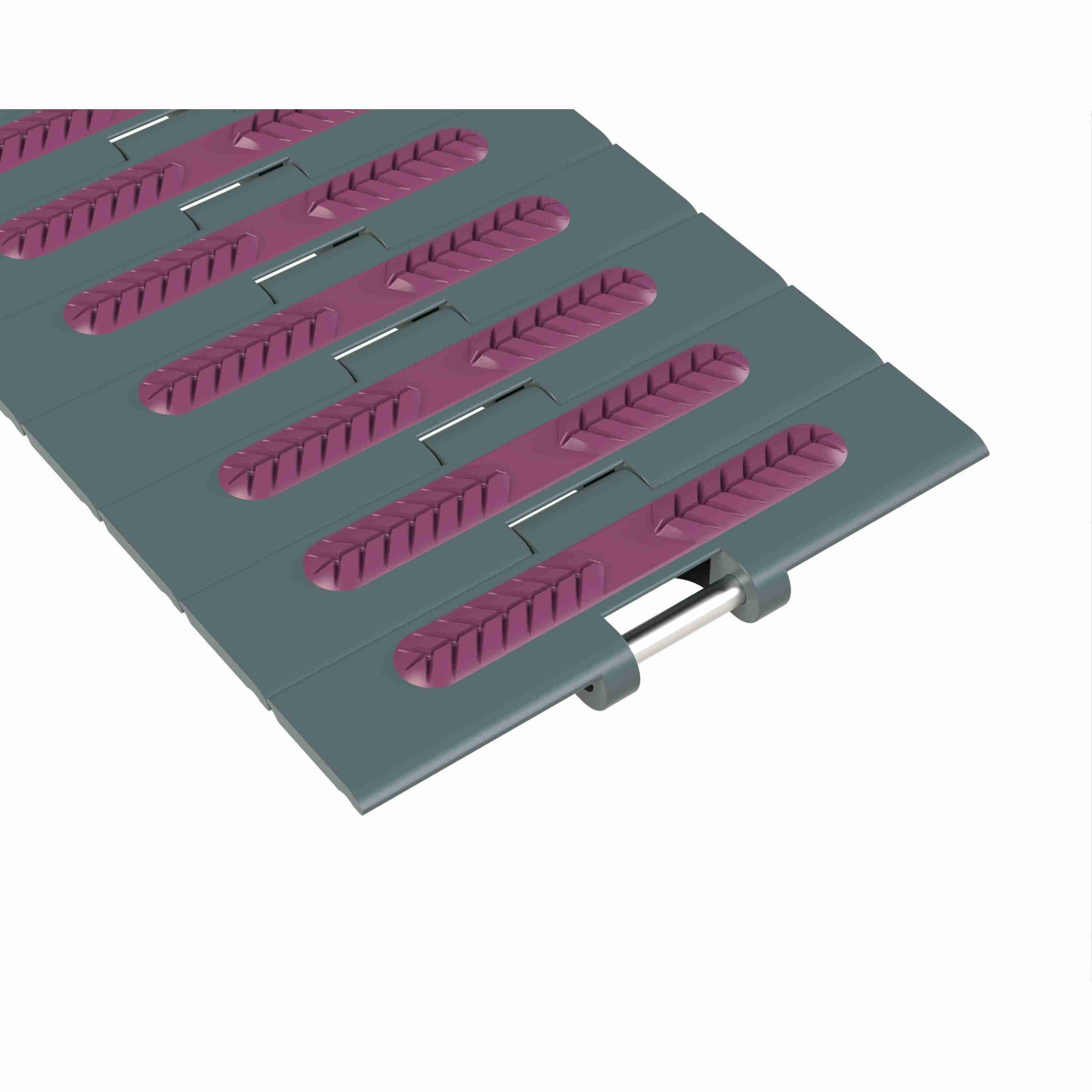

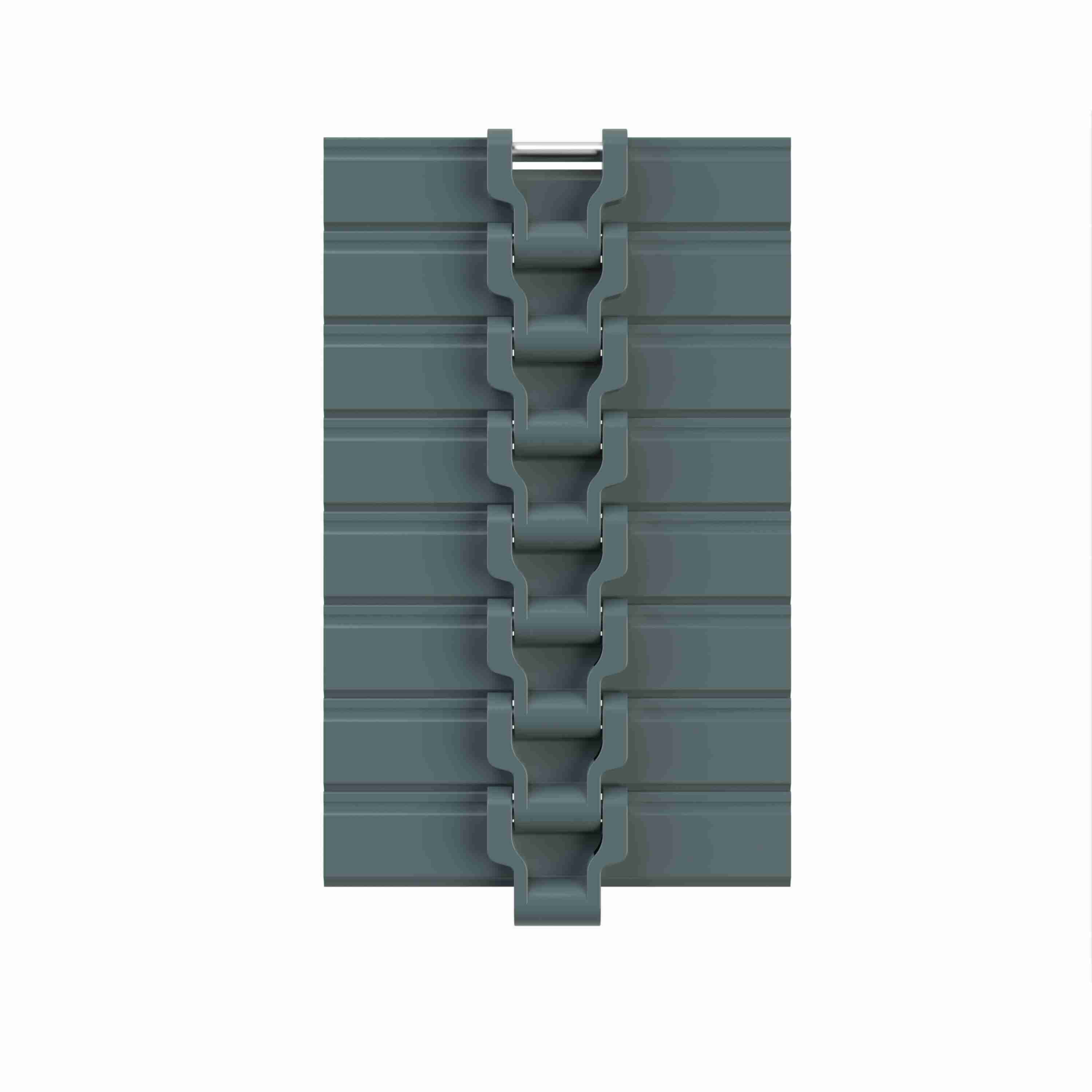

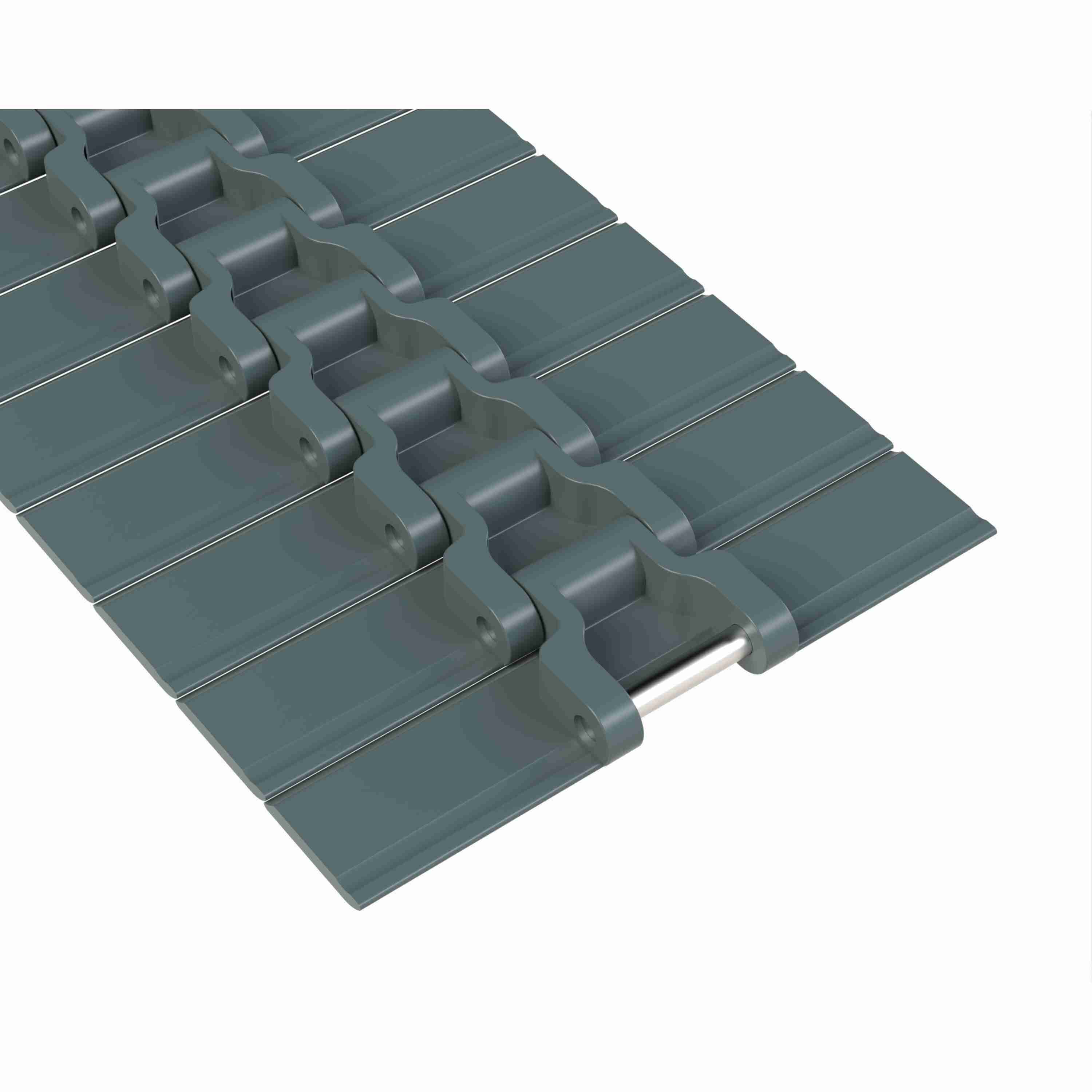

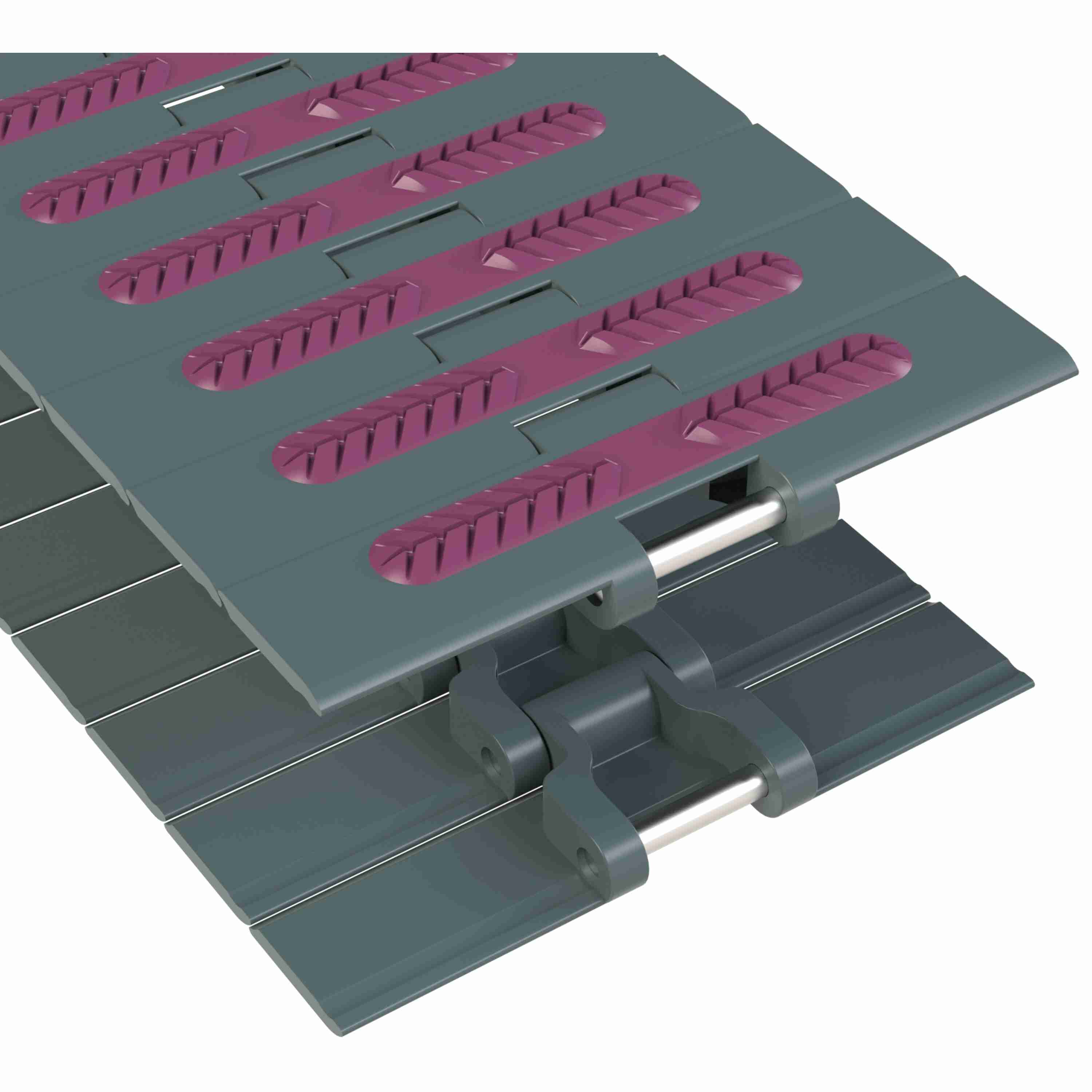

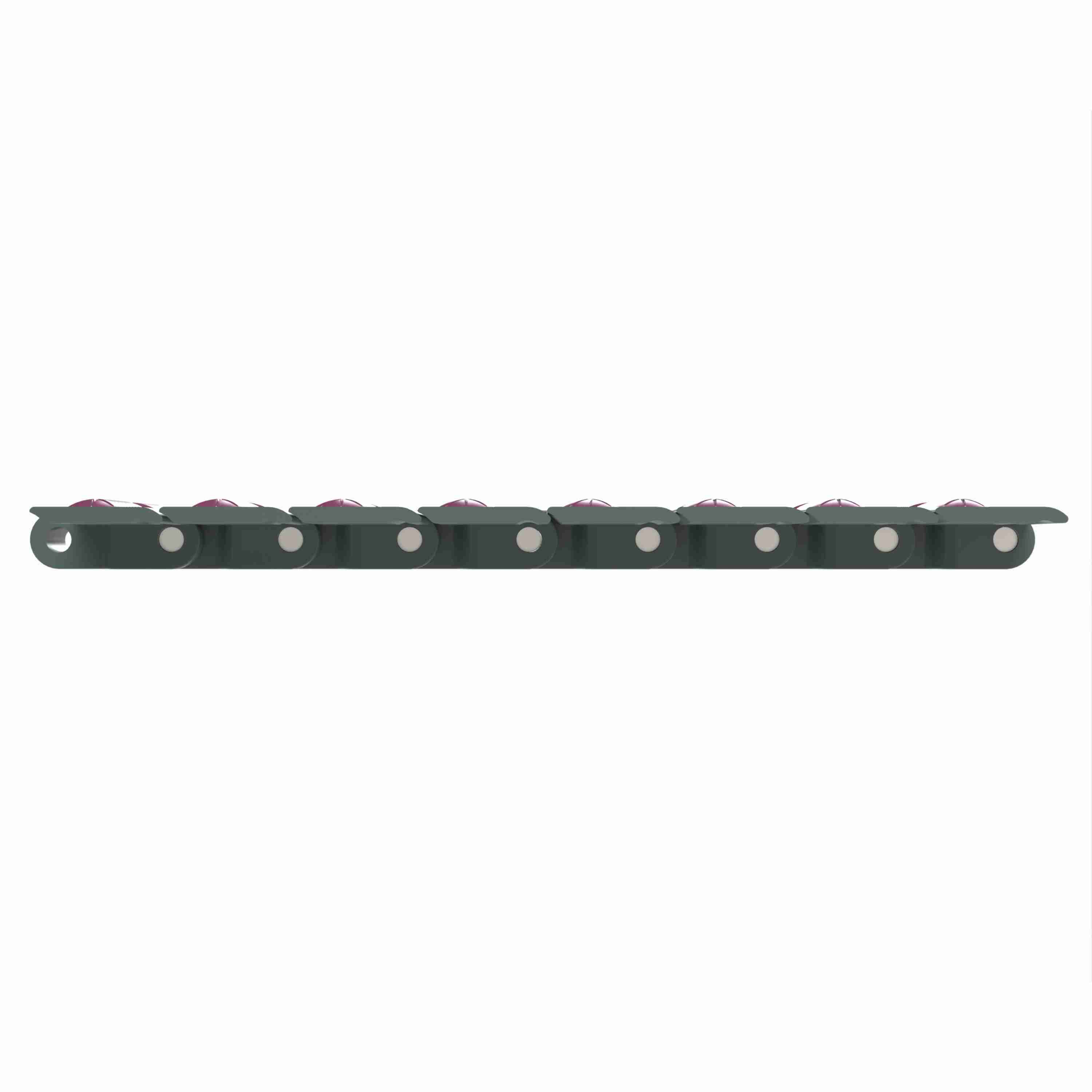

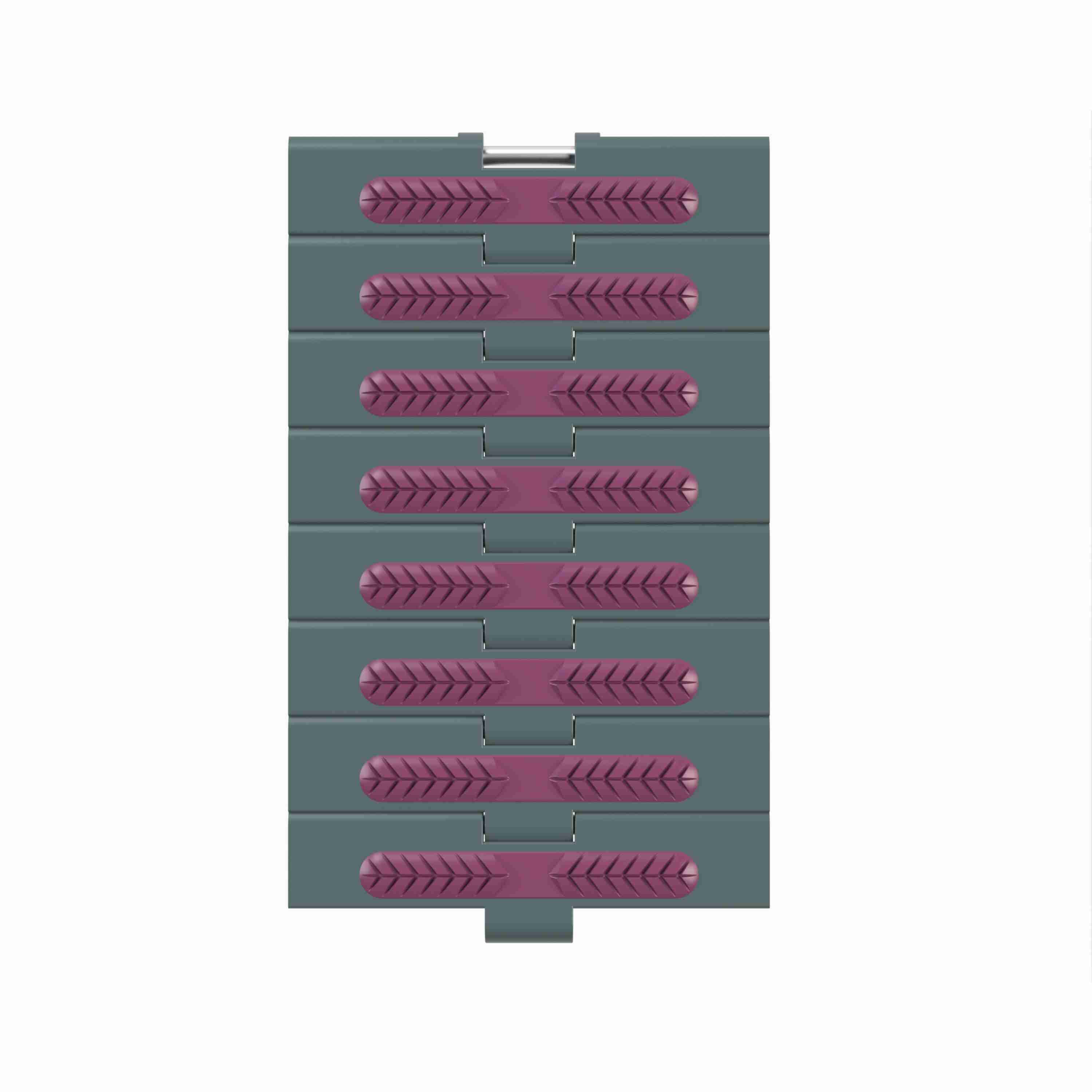

Rexnord HDS SuperGrip™ Straight Running SuperGrip™, Material: Internally Lubricated Polyacetal (Grey), Width: 7.5in, Pitch: 1.5in - 780.31.72
Part #:10144159
Catalog #:780.31.72
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (mm): | 7.8 mm | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Strength (N): | 2,700 N | Chain Material Description: | Internally Lubricated Polyacetal (Grey) |
| Flight Thickness (in): | 0.31 in | Chain Width (in): | 7.5 in |
| Chain Material: | XLA | Series: | TableTop HDS Series Chain |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 38.1 mm |
| Surface Type: | SuperGrip™ | Chain Strength (lb): | 608 lb |
| Chain Pitch (in): | 1.5 in | Chain Number: | HDS SuperGrip™ |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Stainless Steel |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width (mm): | 190.5 mm |
General Specifications
| Weight: | 0.18 LB | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
