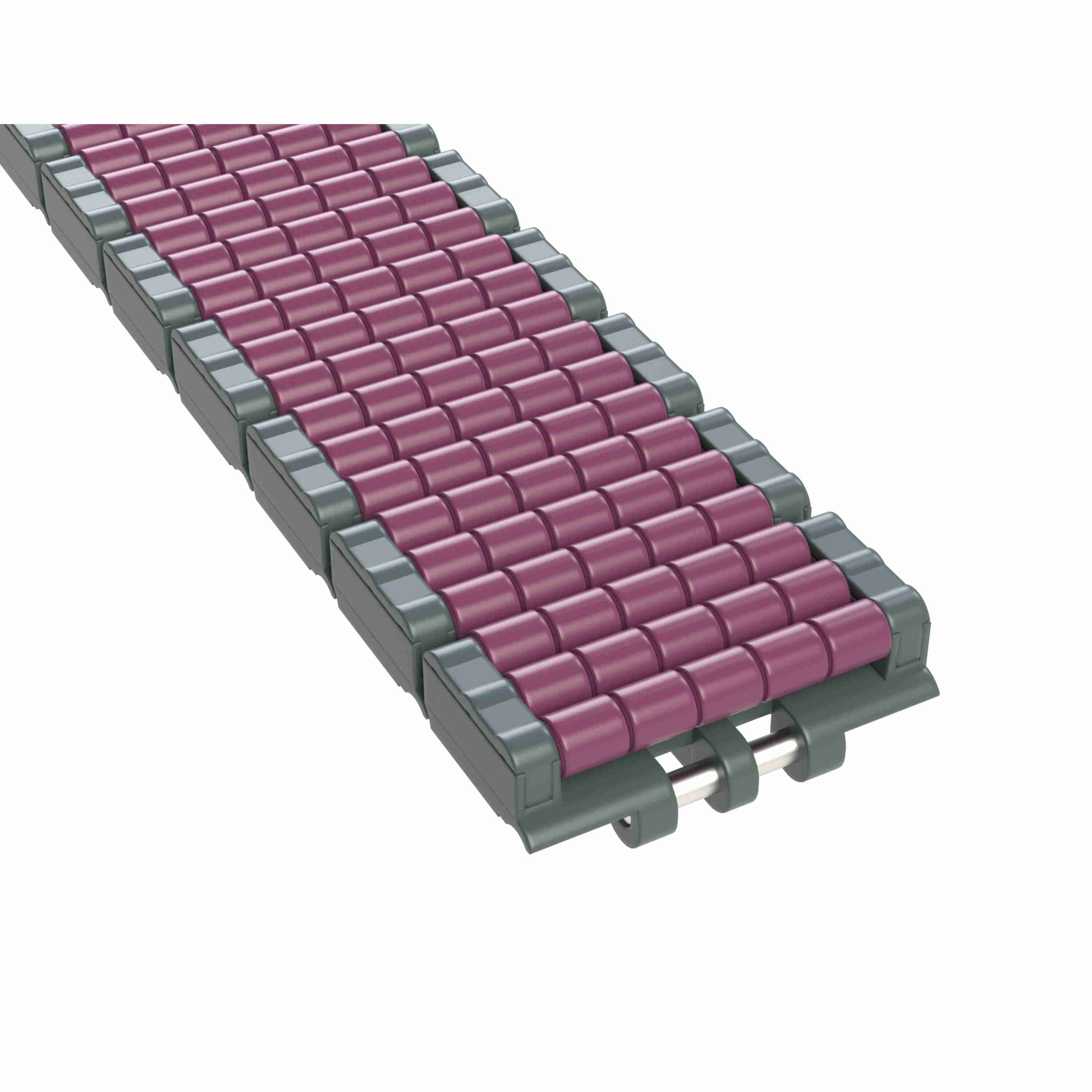

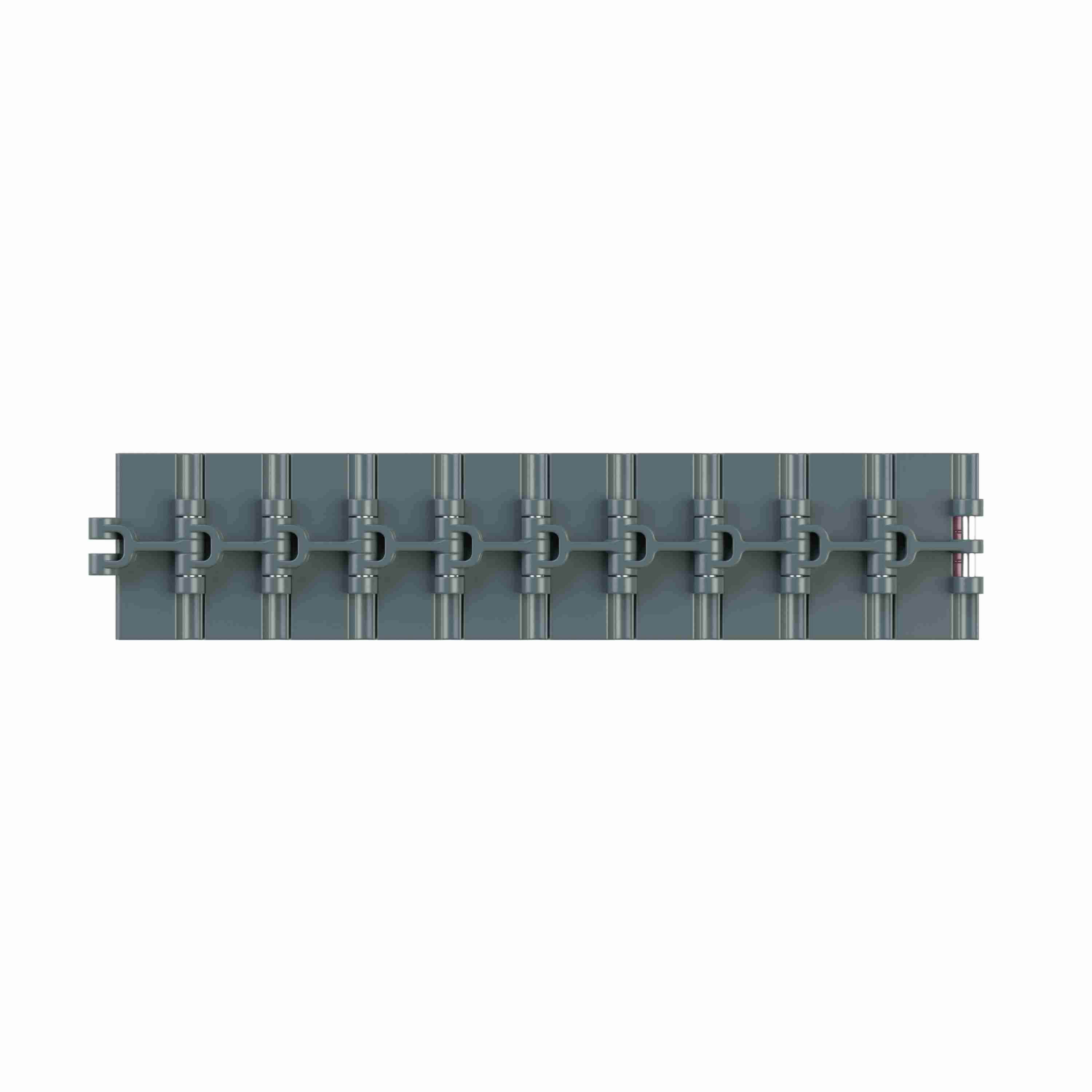

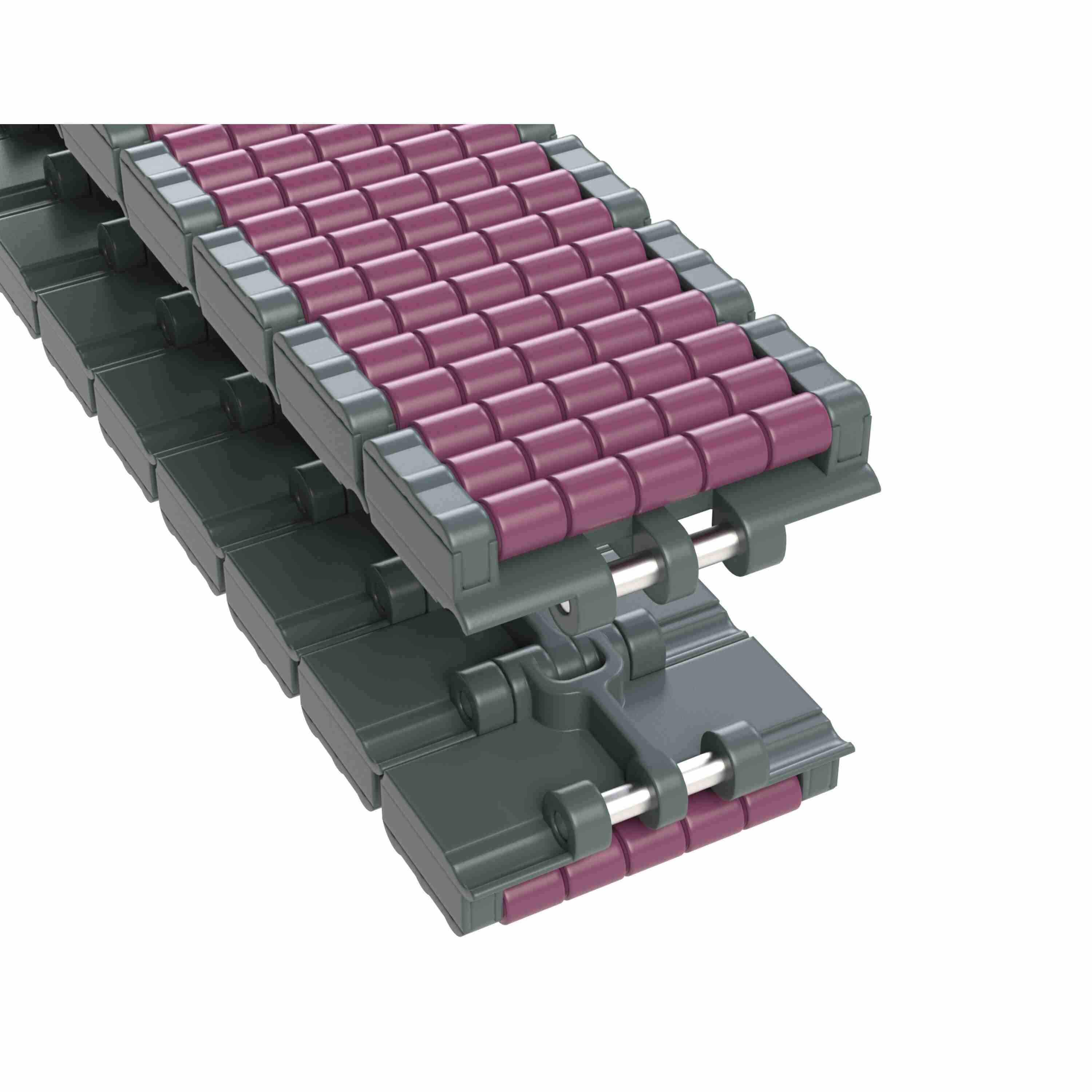

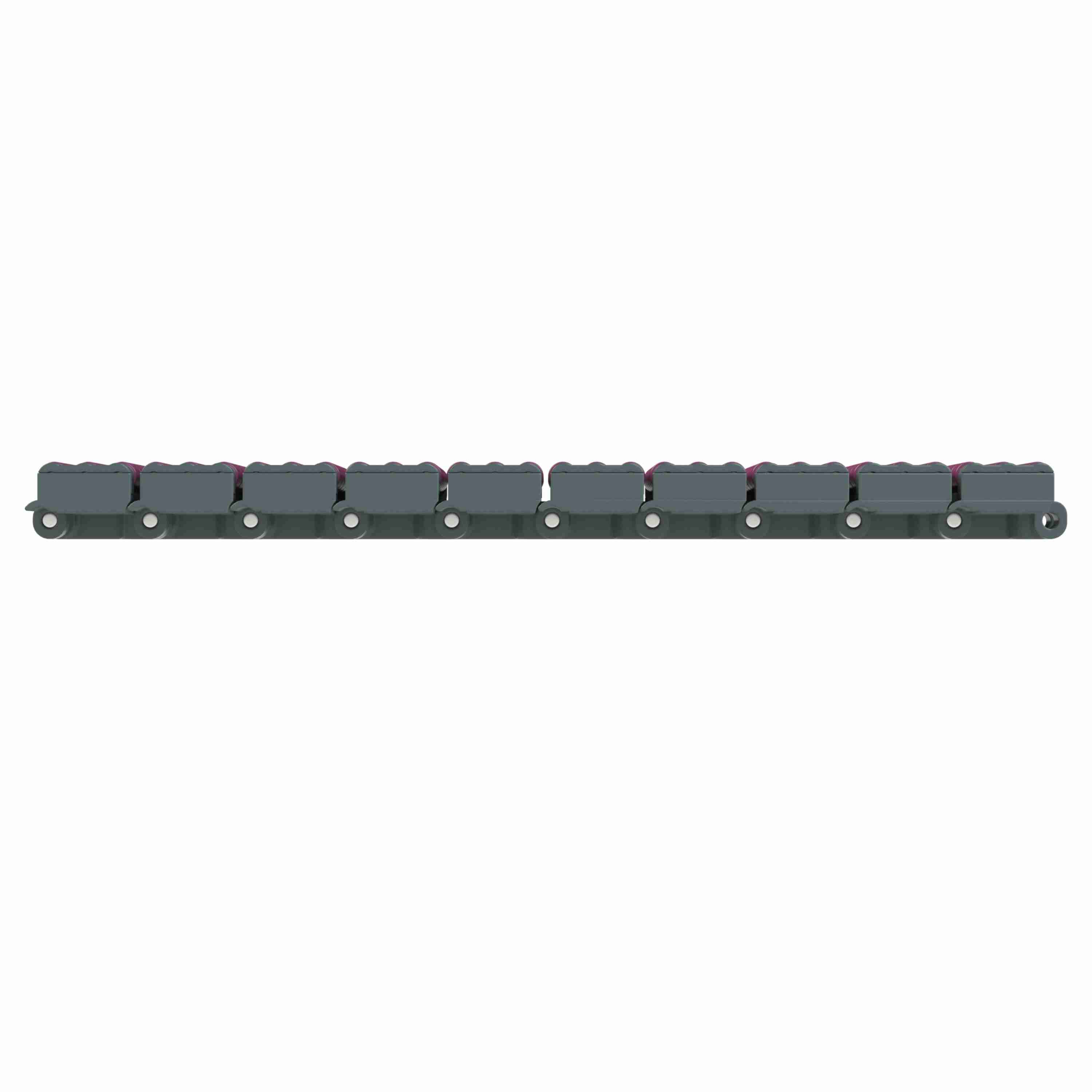

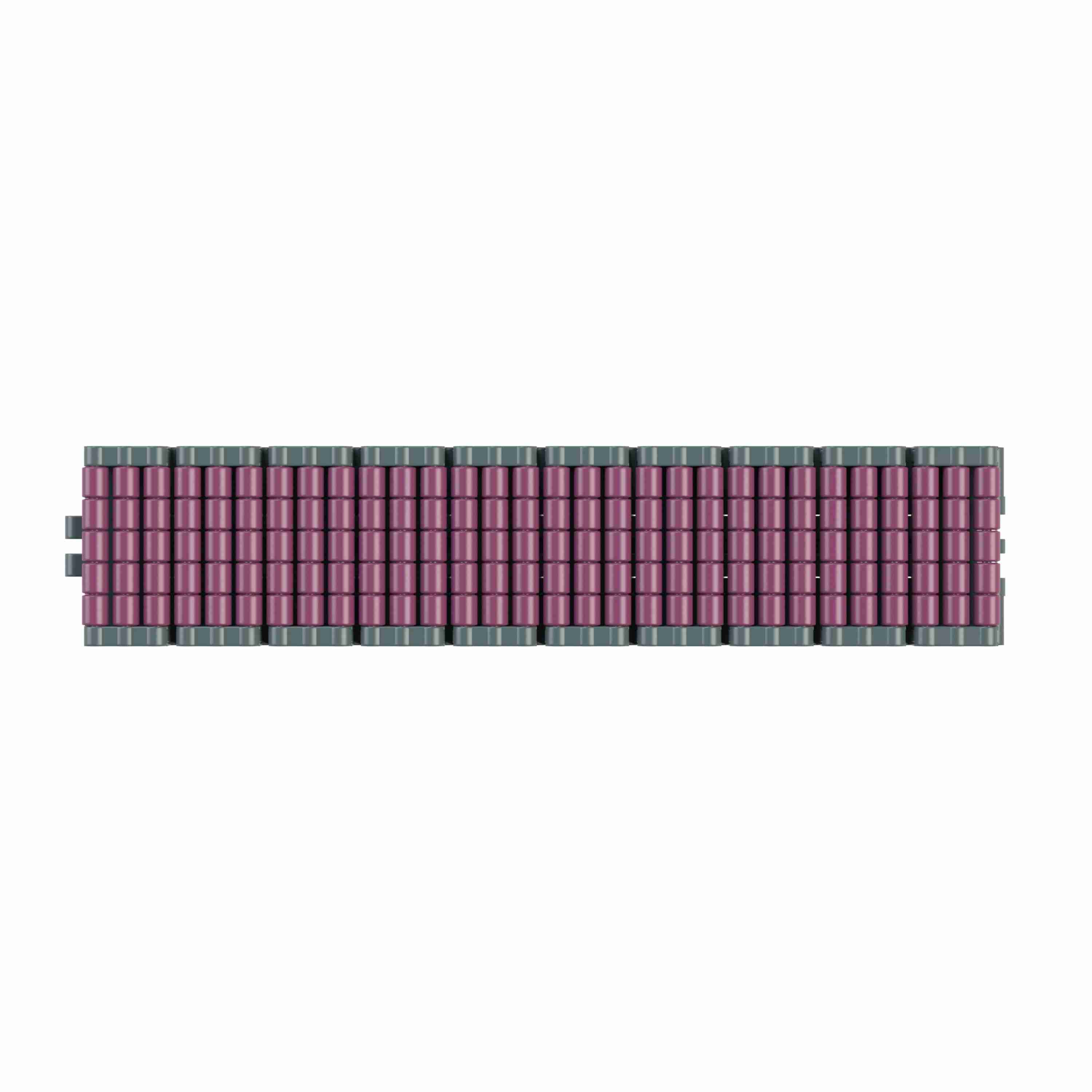

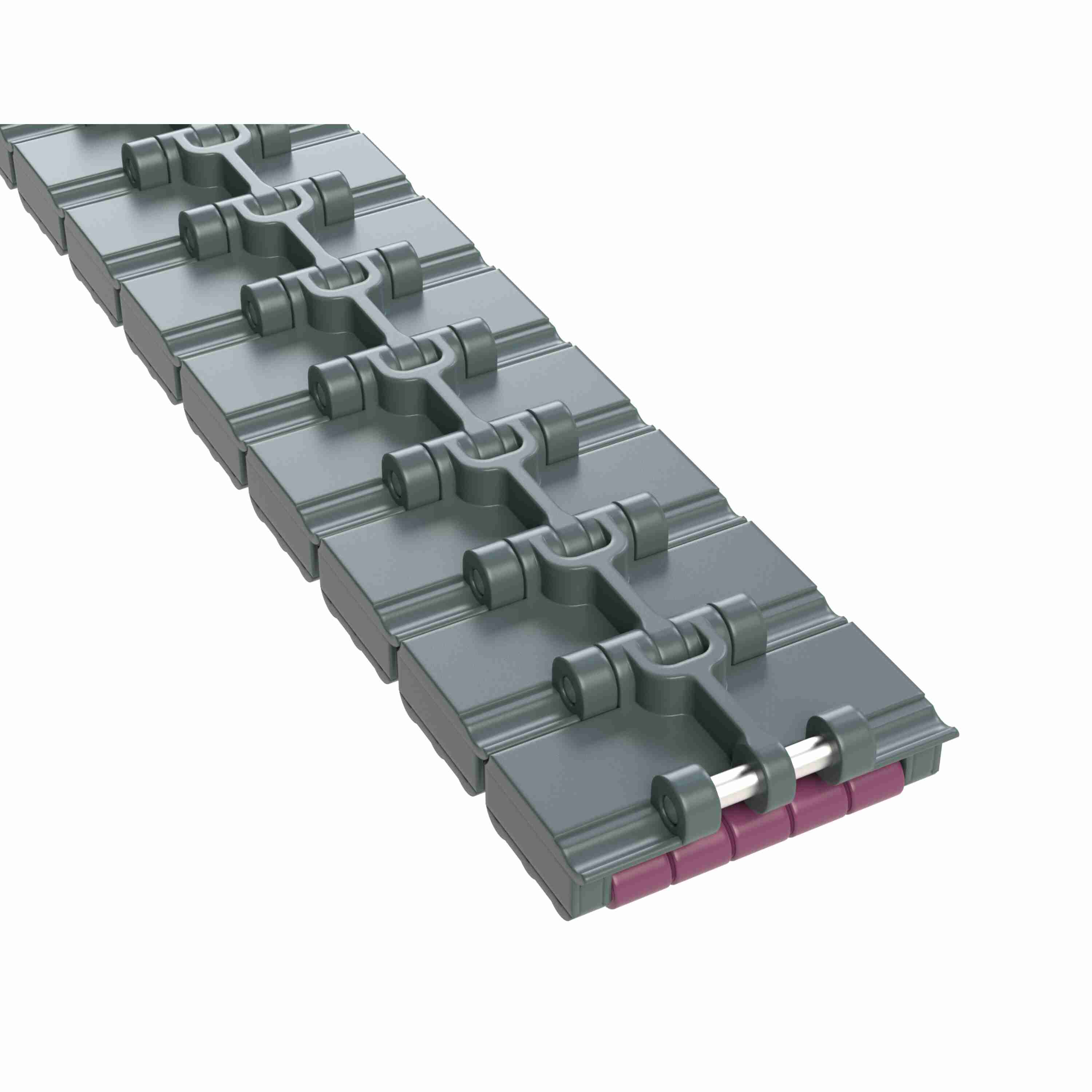

Rexnord SHD LBP Straight Running Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 3.25in, Pitch: 1.5in - 752.85.09
Part #:10139137
Catalog #:752.85.09
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (mm): | 19.3 mm | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Straight Running | Chain Strength (lb): | 365 lb |
| Flight Thickness (in): | 0.76 in | Chain Strength (N): | 1,621 N |
| Series: | TableTop 831 Series Chain | Chain Pitch (in): | 1.5 in |
| Chain Material: | XLA | Chain Number: | SHD LBP |
| Surface Type: | Low Backline Pressure | Rod/Pin Material: | Stainless Steel |
| Chain Material Description: | Internally Lubricated Polyacetal (Grey) | Chain Width (mm): | 82.6 mm |
| Chain Width (in): | 3.25 in | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 28.27 G | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
