KleanTop™ PacTitan Pro™ Metal Belt
An Advanced Conveying Solution for the Toughest Food Processing Applications
The KleanTop PacTitan Pro Metal Belt features a cutting-edge, patent-pending conveyor belt design and is built to meet the unique needs of food processing industries, including small product handling, tight transfers, and harsh applications. With a proven extended service life of up to six times longer than the average metal conveyor belt available, the PacTitan Pro lowers the risk of unplanned downtime and improves food and employee safety.
Related Documents
Improve Belt Life
Reduces Maintenance Time and Cost
Improves Production Line Uptime
Minimizes Product Contamination
"Investing in PacTitan Pro can generate a significant amount of production uptime and cost savings. When properly installed in the right application, your team spends less time on maintenance and replacement, you’re buying fewer replacement belts, and you get more production hours out of the day. Often, we see end users running this belt for months compared to the weeks that they would run typical wire belts."
— Natalie Gray, U.S. Strategic Account Manager
for Food & Beverage
Tour the new KleanTop PacTitan Pro and learn why this rugged metal belt lasts more than 6 times longer than average round wire belts, adding up to big annual cost savings.
Advanced Conveying Solution for the Toughest Food Processing Applications
Groundbreaking Belt Design
The easy-to-splice design allows for faster installation and maintenance. Reusable rods can be used for splicing, eliminating the need for extra splice rod stock. A smooth belt edge protects line workers and decreases product damage since there are no raw ends or catch points during operation. Proven to last more than 6 times longer than the average metal conveyor belt, the PacTitan Pro design eliminates common causes of belt failure in food processing. Fully hinged to the backbend over conveyor rollers, instead of flexing, eliminating component fatigue and breakage.Improved Belt Durability and Production Savings
Tests done in battering applications have helped optimize usage of batter and breading leading to overall cost savings. In fryer applications the ploughing effect of the flat and wire design results in a more efficient usage of oil, leaving it cleaner for usage.Significantly Reduces Risk of Product Contamination Due to Belt Damage
In certain conveying belts, damaged components can fracture and separate causing product contamination, loss and even recall. The PacTitan Pro rod slots keep broken pickets intact. The broken section is easily repaired or replaced without the risk of splintered metal. In testing, under higher-than-normal belt tension, the pickets fail before the rods break. This design feature ensures that if the belt does fail, it's unlikely to result in product contamination due to metal breakage.
Applications

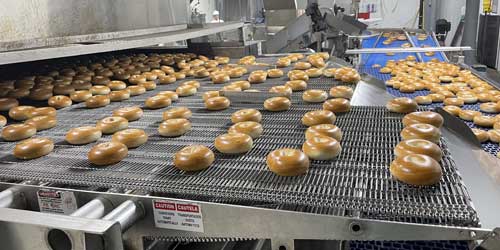

The KleanTop PacTitan Pro is ideal for battering, breading, glazing, drying and frying applications.Key Industries

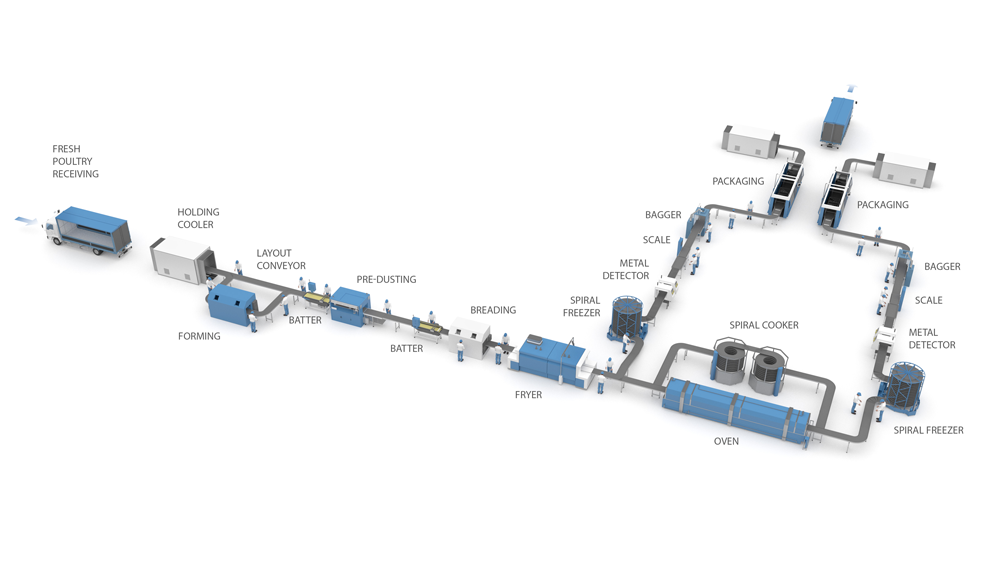

The KleanTop PacTitan Pro was built to meet the unique needs of food processing industries, including meat and poultry, frozen foods, bakery and snack, as well as fruit and vegetables.
Series Specifications
PacTitan Pro Belts Portfolio - Standard Widths 0.429" pitch (7/16" nominal)*
| Material | Material Description | Width (in.) | 2nd Count | Drive Lanes | Edge Pattern | Infill Pattern | Edge Treatment |
| 10781173 | T304-4 PTP-4-28-2-1-1-IL | 4 | 28 | 2 | 1 | 1 | Interlocking Edge |
| 10780513 | T304-34 PTP-34-28-6-3-3-IL | 34 | 28 | 6 | 3 | 3 | Interlocking Edge |
| 10778602 | T304-38 PTP-38-28-6-3-3-IL | 38 | 28 | 6 | 3 | 3 | Interlocking Edge |
| 10781172 | T304-40 PTP-40-28-7-3-3-IL | 40 | 28 | 7 | 3 | 3 | Interlocking Edge |
| 10786997 | T304-42 PTP-42-28-8-3-3-IL | 42 | 28 | 8 | 3 | 3 | Interlocking Edge |
| 10793800 | T304-44 PTP-44-28-8-3-3-IL | 44 | 28 | 8 | 3 | 3 | Interlocking Edge |
*Additional Widths Available

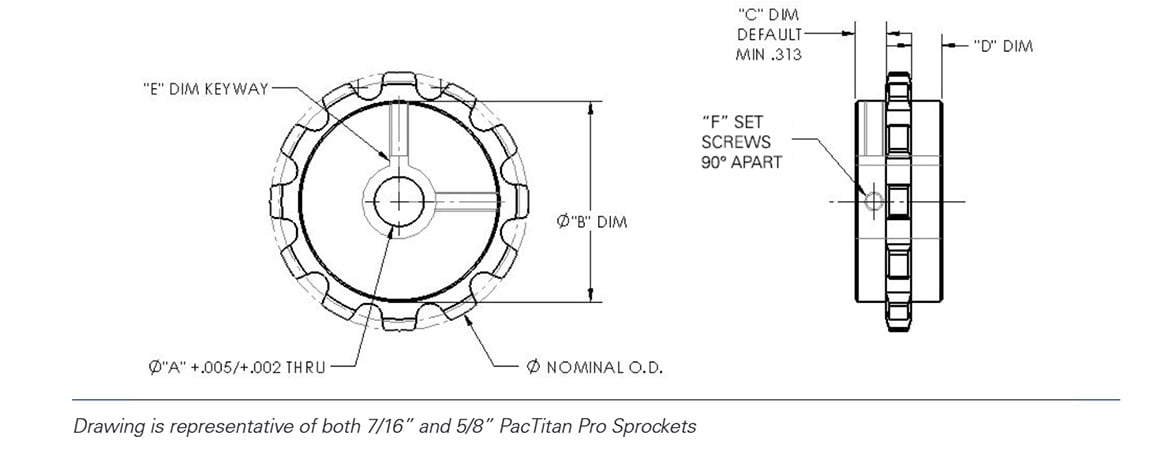

PacTitan Pro Sprockets Portfolio - Standard 0.429” (7/16’ nominal)*
| Material | Material Description |
Nr Teeth |
Nominal OD (in.) |
Bore "A" | Hub "B" |
Hub Width "C" | Hub Width "D" | Sprocket Key "E" |
Nr Set Screws "F" |
Material |
| 10786896 | SKPTP-T303 12T-0.625-N-1 | 12 | 1.85 | 0.625 | 1.291 | 0.75 | 0 | N | 1 | SS |
| 10781169 | SKPTP-T303 13T-1.00-K-1 | 13 | 1.99 | 1 | 1.431 | 0.313 | 0.313 | 0.25 | 1 | SS |
| 10786899 | SKPTP-T303 14-0.75-N-1 | 14 | 2.13 | 0.75 | 1.57 | 0.313 | 0.313 | N | 1 | SS |
| 10795200 | SKPTP-T303 15T-1.25-K-2 | 15 | 2.27 | 1.25 | 1.708 | 0.313 | 0.313 | 0.25 | 1 | SS |
| 10786897 | SKPTP-T303 17T-1.00-N-1 | 17 | 2.55 | 1 | 1.985 | 0.313 | 0.313 | N | 1 | SS |
| 10781168 | SKPTP-T303 17T-1.00-K-2 | 17 | > 2.55 | 1 | 1.985 | 0.313 | 0.313 | 0.25 | 2 | SS |
| 10786898 | SKPTP-T303 17T-1.25-N-1 | 17 | 2.55 | 1.25 | 1.985 | 0.313 | 0.313 | N | 1 | SS |
| 10781170 | SKPTP-T303 20T-1.25-K-2 | 20 | 2.96 | 1.25 | 2.399 | 0.313 | 0.313 | 0.25 | 2 | SS |
| 10795664 | SKPTP-T303 20T-1.437-K-2 | 20 | 2.96 | 1.438 | 2.399 | 0.313 | 0.313 | 0.375 | 2 | SS |
| 10777756 | SKPTP-T303 21T-1.50-K-2 | 21 | 3.1 | 1.5 | 2.536 | 0.313 | 0.313 | 0.375 | 2 | SS |
| 10792527 | SKPTP-T303 41HT-1.25-K-2 | 41HT | 5.99 | 1.25 | 4 | 0.313 | 0.313 | 0.25 | 2 | SS |
PacTitan Pro Belts Portfolio - Standard Widths* 0.632" pitch (5/8" nominal)
| Material | Material Description | Width (in.) | 2nd Count | Drive Lanes | Edge Pattern | Infill Pattern | Edge Treatment |
| 11029492 | T304-4-PTP-4-19-2-1-1-IL | 4 | 19 | 2 | 1 | 1 | Interlocking Edge |
| 11029493 | T304-34-PTP-34-19-6-3-3-IL | 24 | 19 | 6 | 3 | 3 | Interlocking Edge |
| 11029494 | T304-38-PTP-38-19-6-3-3-IL | 28 | 19 | 6 | 3 | 3 | Interlocking Edge |
| 11029495 | T304-40-PTP-40-19-7-3-3-IL | 40 | 19 | 7 | 3 | 3 | Interlocking Edge |
| 11029506 | T304-42-PTP-42-19-8-3-3-IL | 32 | 19 | 8 | 3 | 3 | Interlocking Edge |
| 11029507 | T304-44 PTP-44-19-8-3-3-IL | 44 | 19 | 8 | 3 | 3 | Interlocking Edge |
Additional Widths Available
PacTitan Pro Sprockets Portfolio
| Material | Material Description | Nr Teeth | Nominal OD (in.) | Bore "A" | Hub "B" | Hub Width "C" | Hub Width "D" | Sprocket Key "E" | Nr Set Screws "F" | Material |
| 11029509 | SKPTP-T303-19-10T-1.25-K-2 | 10T | 2.2 | 1.25 | 1.62 | 0.313 | 0.313 | 0.25 | 2 | SS |
| 11029510 | SKPTP-T303-19-12T-1.00-K-2 | 12T | 2.61 | 1 | 2.03 | 0.313 | 0.313 | 0.25 | 2 | SS |
| 11029511 | SKPTP-T303-19-14T-1.437-K-2 | 14T | 3.02 | 1.438 | 2.44 | 0.313 | 0.313 | 0.375 | 2 | SS |
| 11029513 | SKPTP-T303-19-15T-1.50-K-2 | 15T | 3.22 | 1.5 | 2.64 | 0.313 | 0.313 | 0.375 | 2 | SS |
| 11029514 | SKPTP-T303-19-28HT-1.25-K-2 | 28HT | 6 | 1.25 | 3 | 0.313 | 0.313 | 0.25 | 2 | SS |
