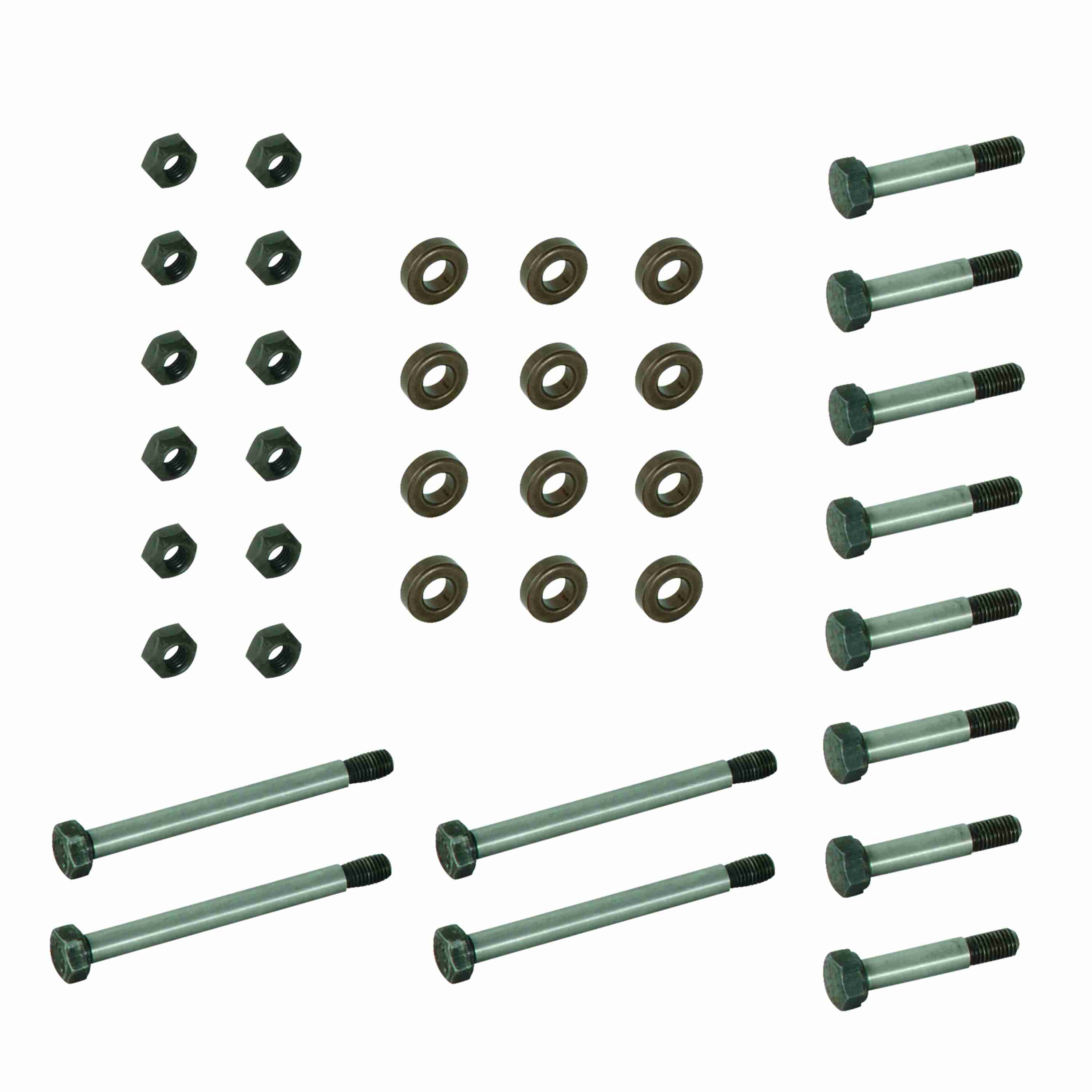

Rexnord Thomas 001960 Hardware Kits Disc Coupling Parts & Kits - 001960
Part #:10030287
Catalog #:001960
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bolt Body Diameter (in): | 0.65 in | Coupling Model(s): | DBZ;DBZ-A;DBZ-B |
| Coupling Size: | 351 | Hardware Material: | Alloy Steel |
| Locknut Coating: | None | Locknut Quantity: | 12 |
| Long Bolt Body Diameter (in): | 0.65 in | Long Bolt Non-Threaded Length (in): | 5.49 in |
| Long Bolt Quantity: | 4 | Long Bolt Thread: | 5/8 in - 18 |
| Product: | Thomas DBZ Hardware Kits | Series: | Hardware Kits |
| Short Bolt Body Diameter (in): | 0.65 in | Short Bolt Non-Threaded Length (in): | 2.07 in |
| Short Bolt Quantity: | 8 | Short Bolt Thread: | 5/8 in - 18 |
| Washer Quantity: | 12 |
General Specifications
| UPC: | 698210065409 | Weight: | 9.31 LB |
| Packaged Length: | 7.50 IN | Packaged Width: | 7.50 IN |
| Packaged Height: | 7.75 IN | HTC: | 7318152095 |
| Country of Origin: | China |
