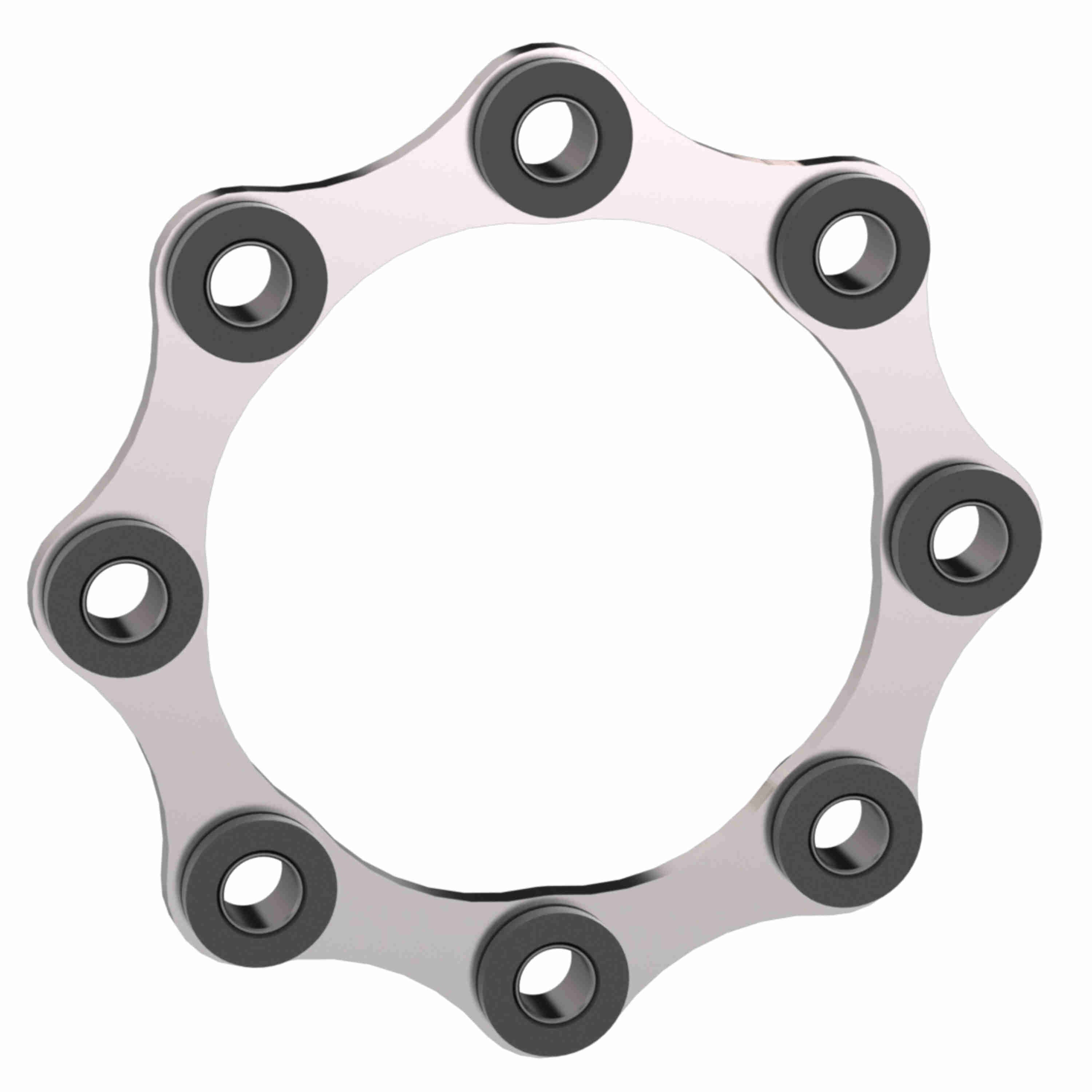

Rexnord Thomas 10000104 Flexible Elements Disc Coupling Parts & Kits - 10000104
Part #:10000104
Catalog #:10000104
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bolt Circle Diameter (in): | 11.97 in | Bolt Hole Diameter (in): | 1.08 in |
| Bushing Inside Diameter (in): | 1.08 in | Coupling Model(s): | XTSR |
| Coupling Size: | 3058 | Disc Pack Material: | Stainless Steel |
| Disc Pack Profile: | Scalloped | Misalignment Capacity (Per Disc Pack): | 1/3° |
| Number of Bolt Holes: | 8 | Product: | Thomas Series XTSR Disc Packs |
| Series: | Flexible Elements | Unitization: | FullyUnitized |
General Specifications
| UPC: | 782934737763 | Weight: | 11.86 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 16.00 IN |
| Packaged Height: | 1.50 IN | HTC: | 8483908010 |
| Country of Origin: | China |
