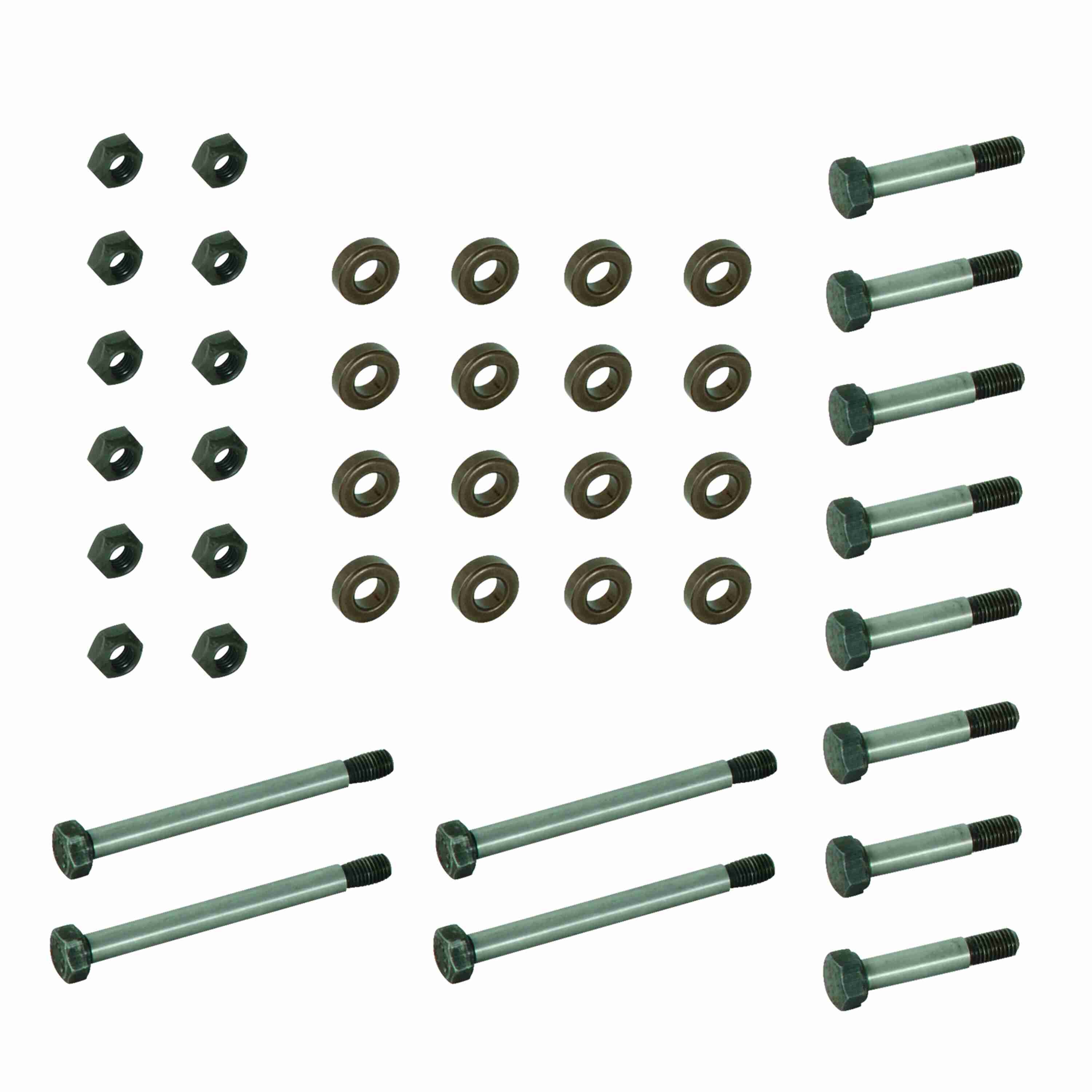

Rexnord Thomas 416320 Hardware Kits Disc Coupling Parts & Kits - 416320
Part #:10102003
Catalog #:416320
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bolt Body Diameter (in): | 0.26 in | Coupling Model(s): | DBZ;DBZ-A;DBZ-B |
| Coupling Size: | 163 | Hardware Material: | Alloy Steel |
| Locknut Coating: | None | Locknut Quantity: | 12 |
| Long Bolt Body Diameter (in): | 0.26 in | Long Bolt Non-Threaded Length (in): | 2.45 in |
| Long Bolt Quantity: | 4 | Long Bolt Thread: | 1/4 in - 28 |
| Product: | Thomas DBZ Hardware Kits | Series: | Hardware Kits |
| Short Bolt Body Diameter (in): | 0.26 in | Short Bolt Non-Threaded Length (in): | 0.98 in |
| Short Bolt Quantity: | 8 | Short Bolt Thread: | 1/4 in - 28 |
| Washer Quantity: | 16 |
General Specifications
| UPC: | 698210062903 | Weight: | 0.77 LB |
| Packaged Length: | 3.50 IN | Packaged Width: | 3.75 IN |
| Packaged Height: | 4.00 IN | HTC: | 7318152095 |
| Country of Origin: | China |
