Kop-Flex Elastomeric Coupling - Style Max-C (K2) - Size 7 - Rough Bore - 70 K2 FR

Name: Kop-Flex Elastomeric Coupling - Style Max-C (K2) - Size 7 - Rough Bore - 70 K2 FR
Brand: Kop-Flex
Availability: OutOfStock

Part #:2270130

Catalog #:70 K2 FR

Key Features Product Specs

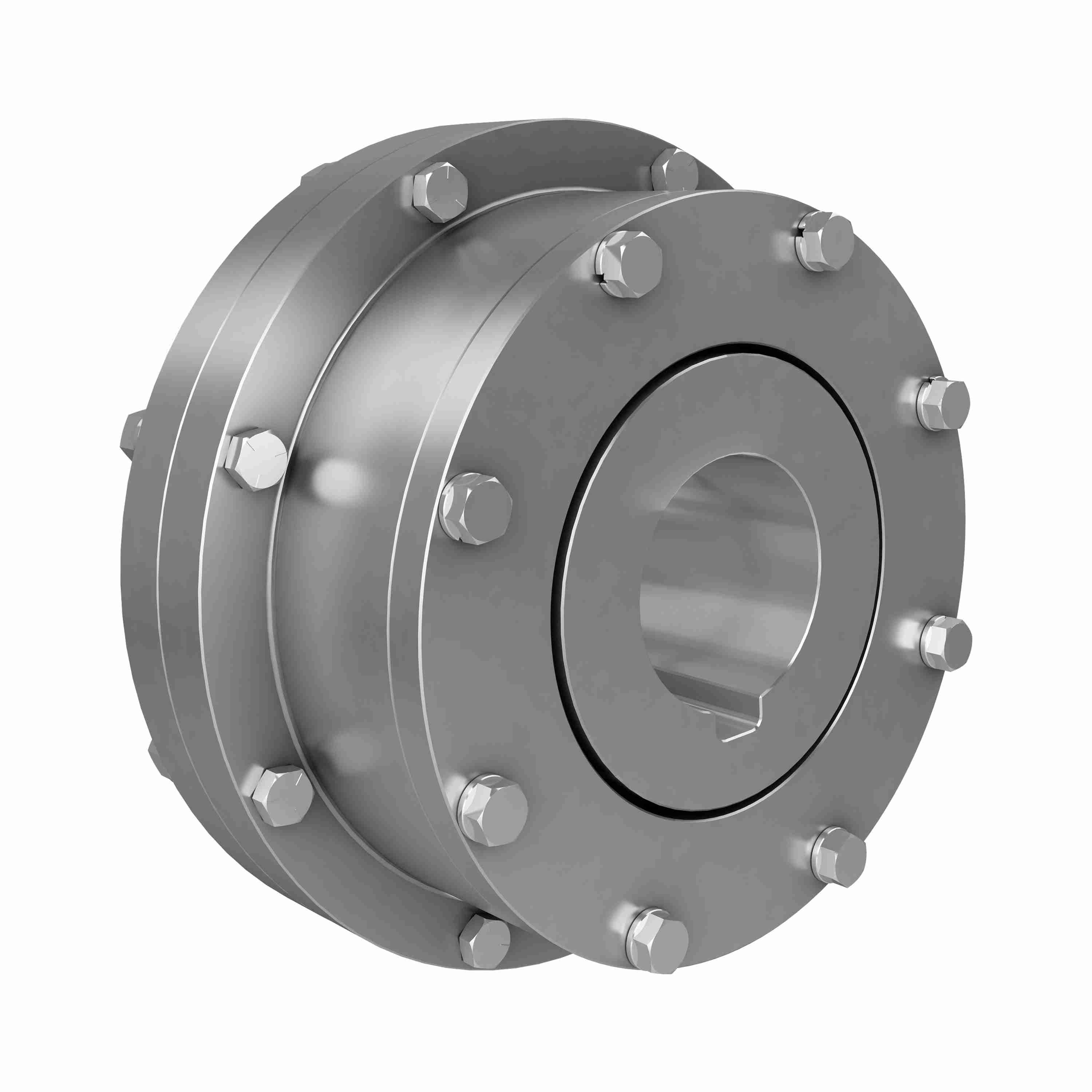

Image differs from product

Add to Compare

Please contact <a href="mailto:ptscustomerservice@regalrexnord.com">customer service</a> for price and availability.

Compare Product

Non-Lubricated design for toughest industrial applications.
Provides torsional damping to reduce torsional vibration and cushion shock loads.
Redundant fail safe design with interlocking parts.
Easy to assemble and operate in hot, wet, gritty tough environment.

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Bore Size Max (in):	10 in	Bore Size Min (in):	6 in
Bore Type:	Rough Bore	Configuration:	Flex Rigid
Coupling Size:	7	Coupling Type:	Elastomeric Coupling
Flange Diameter (in):	26.88 in	Length Through Bore (in):	9.25 in
Lube/Non-Lube:	Non-Lubricated	Max Bore Flex Hub (in):	10 in
Max Bore Rigid Hub (in):	14.13 in	Measurement System:	Imperial
Outside Diameter (in):	26.88 in	Overall Length (in):	18.12 in
Rating HP @ 100 RPM - Continuous:	1,300	Rating HP @ 100 RPM - Peak:	2,600
Shaft Separation Max. (C) (in):	0.5 in	Speed Max (rpm):	1,430 rpm
Speed Max Balanced (rpm):	2,150 rpm	Stock Rough Bore Max (C Flex) or DO (in):	6 in
Stock Rough Bore Max (C Rigid) (in):	6 in	Style:	Max-C (K2)
Torque Rating (in-lb):	819,000 in/lbs

UPC:	662384018004
