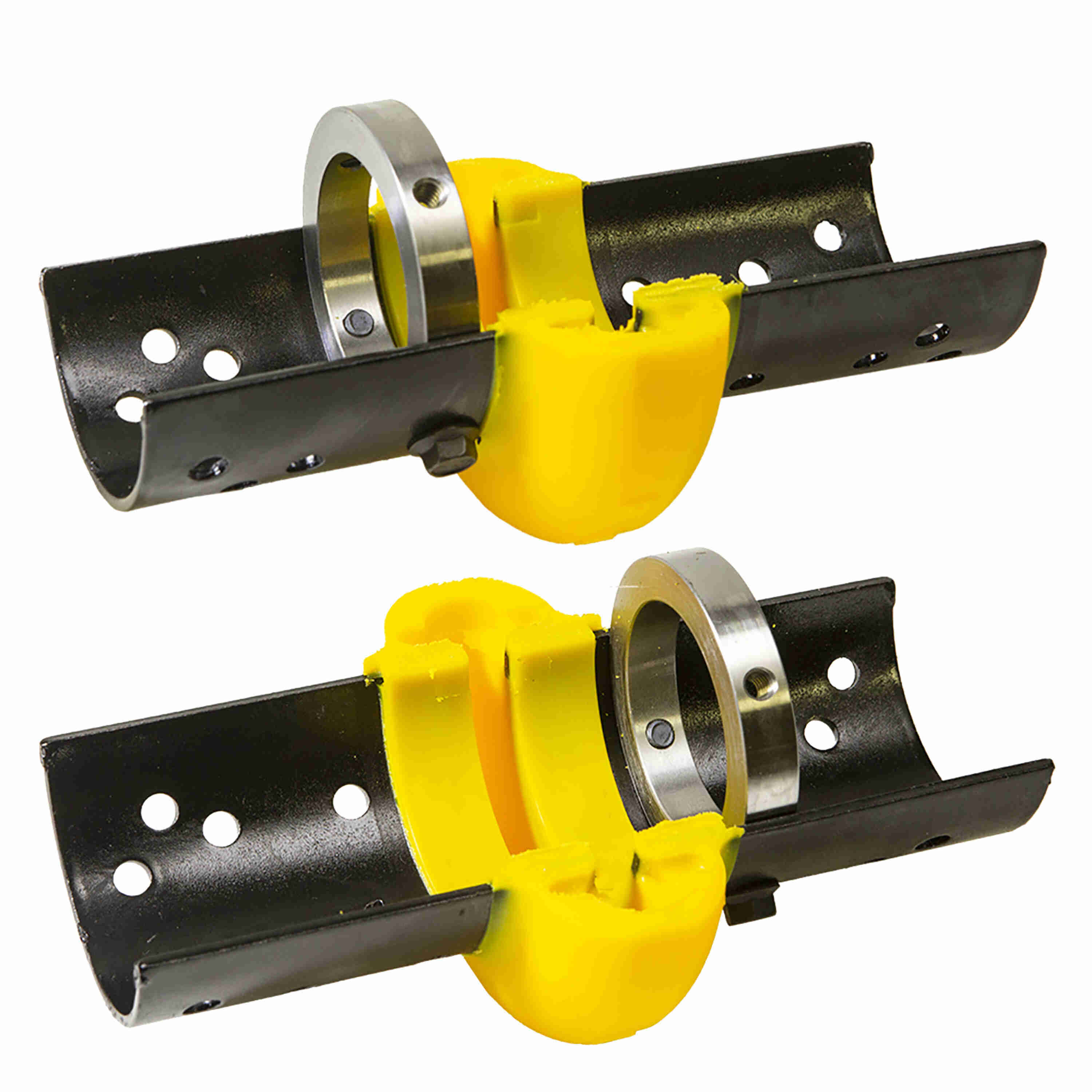

Rexnord Omega 7300090HDY Elements-Flexible Elastomeric Coupling Parts & Kits - 7300090HDY
Part #:10287831
Catalog #:7300090HDY
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Assembled with High Speed Rings: | True | Cap Screws: | Standard Imperial |
| Continuous Torque Rating (in-lb): | 1,160 in/lbs | Continuous Torque Rating (Nm): | 131 N·m |
| Coupling Size: | ES5-R | Coupling Style: | Spacer |
| Coupling Type: | Elastomeric | Element Material: | Heavy Duty Yellow (HDY) |
| Element Style: | +25% Greater Torque Capacity | Major Diameter of Coupling (in): | 5.38 in |
| Major Diameter of Coupling (mm): | 137 mm | Maximum Speed Rating (rpm): | 6,600 rpm |
| Product: | Omega Spacer Elastomeric Elements | Series: | Elements-Flexible |
| Shoe Coating: | Standard Coating |
General Specifications
| UPC: | 698210068660 | Weight: | 4.20 LB |
| Packaged Length: | 5.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 7.00 IN | HTC: | 8483908010 |
| Country of Origin: | United States of America |
