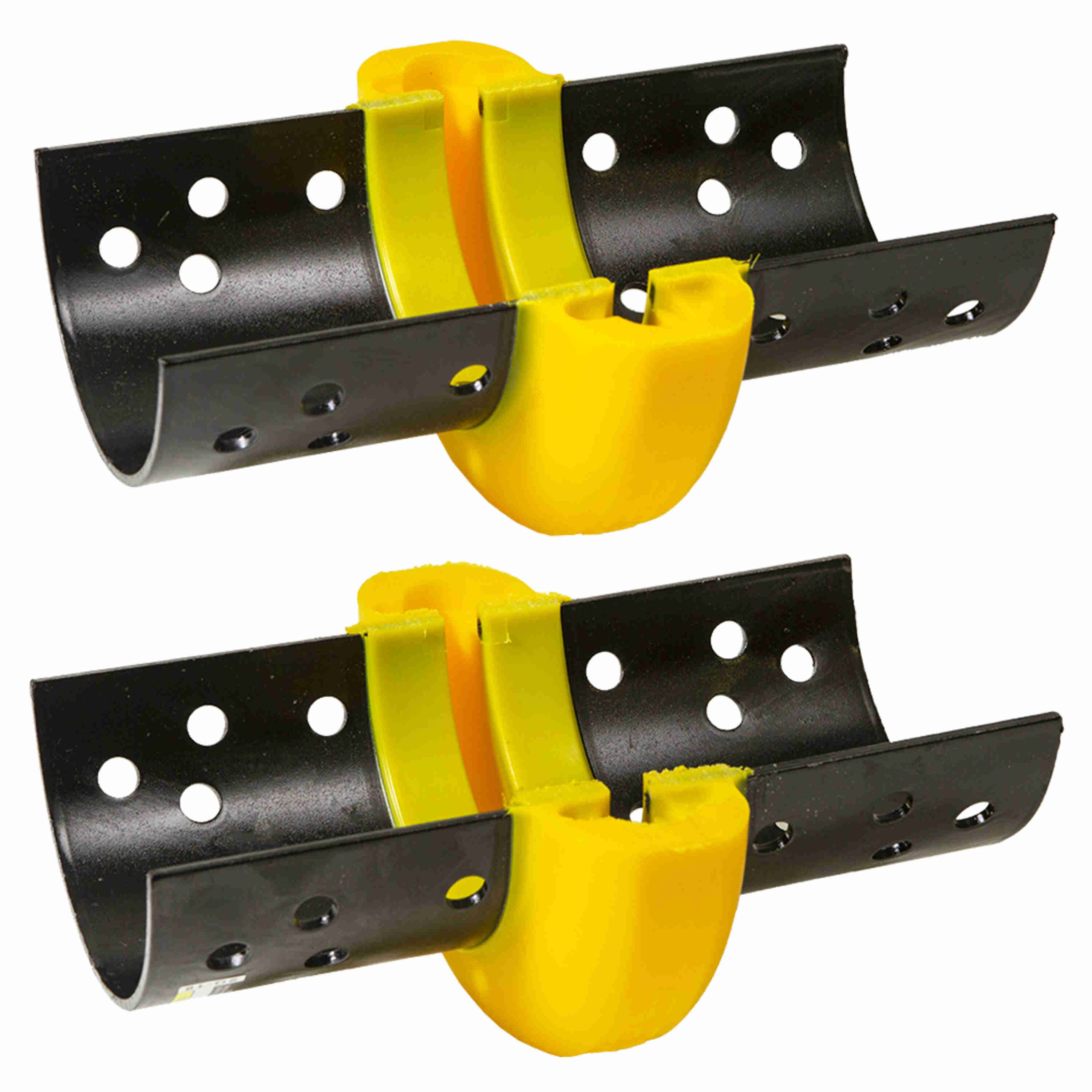

Rexnord Omega 7300097MHDY Elements-Flexible Elastomeric Coupling Parts & Kits - 7300097MHDY
Part #:10287849
Catalog #:7300097MHDY
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Assembled with High Speed Rings: | True | Cap Screws: | Metric Capscrews |
| Continuous Torque Rating (in-lb): | 2,250 in/lbs | Continuous Torque Rating (Nm): | 254 N·m |
| Coupling Size: | ES15M-R | Coupling Style: | Spacer |
| Coupling Type: | Elastomeric | Element Material: | Heavy Duty Yellow (HDY) |
| Element Style: | +25% Greater Torque Capacity | Major Diameter of Coupling (in): | 6.38 in |
| Major Diameter of Coupling (mm): | 163 mm | Maximum Speed Rating (rpm): | 6,000 rpm |
| Product: | Omega Spacer Elastomeric Elements | Series: | Elements-Flexible |
| Shoe Coating: | Standard Coating |
General Specifications
| UPC: | 782935425935 | Weight: | 5.50 LB |
| HTC: | 8483908010 | Country of Origin: | United States of America |
