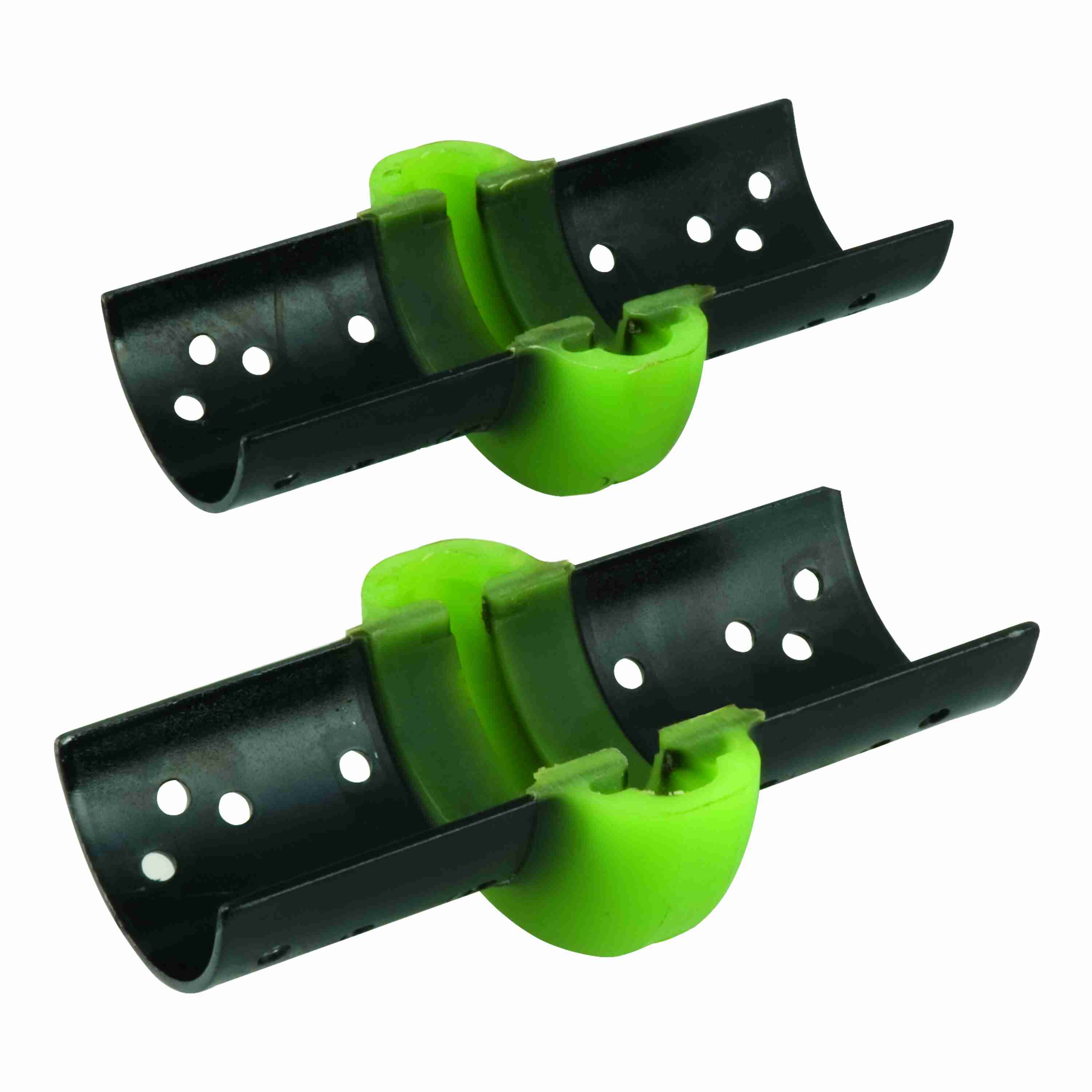

Rexnord Omega 7300105HSUJBS Elements-Flexible Elastomeric Coupling Parts & Kits - 7300105HSUJBS
Part #:10288001
Catalog #:7300105HSUJBS
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Assembled with High Speed Rings: | False | Cap Screws: | Stainless Steel Capscrews |
| Continuous Torque Rating (in-lb): | 3,650 in/lbs | Continuous Torque Rating (Nm): | 412 N·m |
| Coupling Size: | ES30J | Coupling Style: | Spacer |
| Coupling Type: | Elastomeric | Element Material: | Hydrolytically Stable Urethane (HSU) |
| Element Style: | Hot & Humid Environment Resistance | Major Diameter of Coupling (in): | 8.25 in |
| Major Diameter of Coupling (mm): | 210 mm | Maximum Speed Rating (rpm): | 4,200 rpm |
| Product: | Omega Spacer Elastomeric Elements | Series: | Elements-Flexible |
| Shoe Coating: | Anti-Corrosion |
General Specifications
| UPC: | 662864375382 | Weight: | 15.20 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 12.00 IN |
| Packaged Height: | 12.00 IN | HTC: | 8483908010 |
| Country of Origin: | United States of America |
