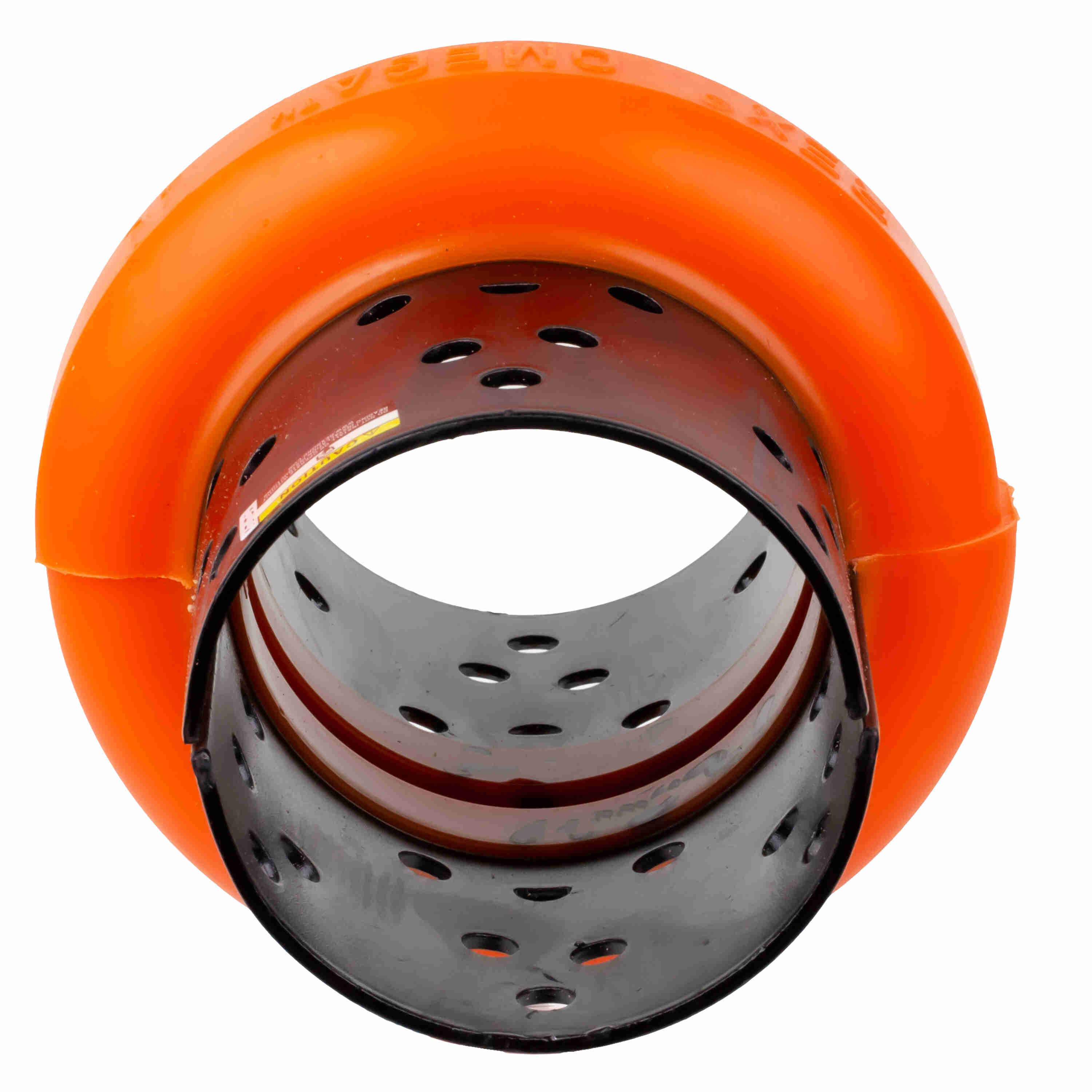

Rexnord Omega 7300120 Elements-Flexible Elastomeric Coupling Parts & Kits - 7300120
Part #:10287356
Catalog #:7300120
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Assembled with High Speed Rings: | False | Cap Screws: | Standard Imperial |
| Continuous Torque Rating (in-lb): | 12,500 in/lbs | Continuous Torque Rating (Nm): | 1,412 N·m |
| Coupling Size: | ES60 | Coupling Style: | Spacer |
| Coupling Type: | Elastomeric | Element Material: | Urethane (Orange) |
| Element Style: | High Misalignment | Major Diameter of Coupling (in): | 12.5 in |
| Major Diameter of Coupling (mm): | 318 mm | Maximum Speed Rating (rpm): | 2,800 rpm |
| Product: | Omega Spacer Elastomeric Elements | Series: | Elements-Flexible |
| Shoe Coating: | Standard Coating |
General Specifications
| UPC: | 698210001209 | Weight: | 29.32 LB |
| Packaged Length: | 15.00 IN | Packaged Width: | 15.00 IN |
| Packaged Height: | 14.00 IN | HTC: | 8483908010 |
| Country of Origin: | United States of America |
