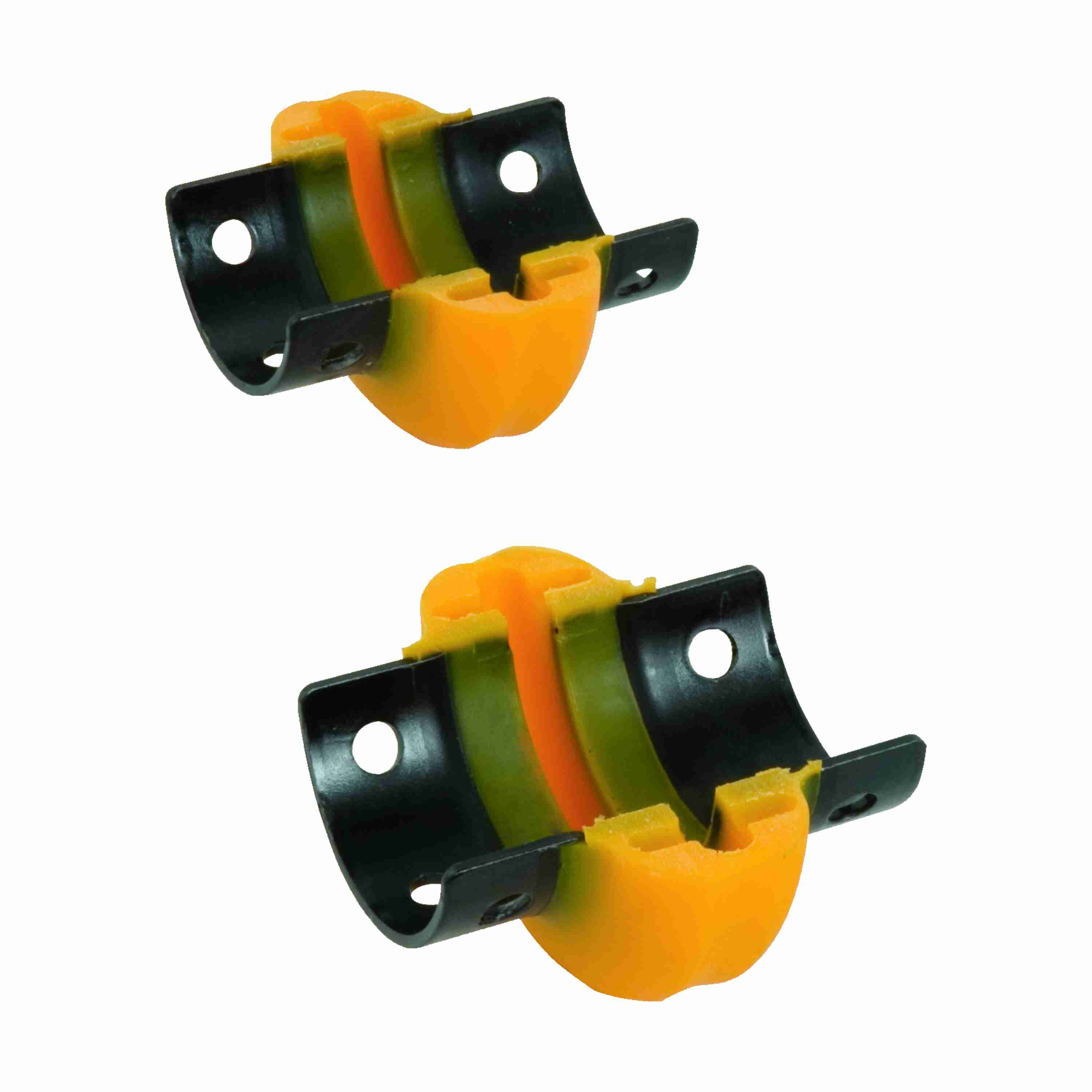

Rexnord Viva 7392656 Elements-Flexible Elastomeric Coupling Parts & Kits - 7392656
Part #:10312618
Catalog #:7392656
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Cap Screws: | Metric Capscrews | Continuous Torque Rating (in-lb): | 2,210 in/lbs |
| Continuous Torque Rating (Nm): | 250 N·m | Coupling Size: | V150 |
| Coupling Style: | Close Coupled | Coupling Type: | Elastomeric |
| Element Material: | Polyurethane (Yellow) | Major Diameter of Coupling (in): | 5.91 in |
| Major Diameter of Coupling (mm): | 150 mm | Maximum Speed Rating (rpm): | 4,800 rpm |
| Product: | Viva Closed-Coupled Elastomeric Elements | Series: | Elements-Flexible |
| Shoe Coating: | Standard Coating |
General Specifications
| UPC: | 793699469974 | Weight: | 1.28 KG |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 5.00 IN | HTC: | 8483908010 |
| Country of Origin: | United States of America |
