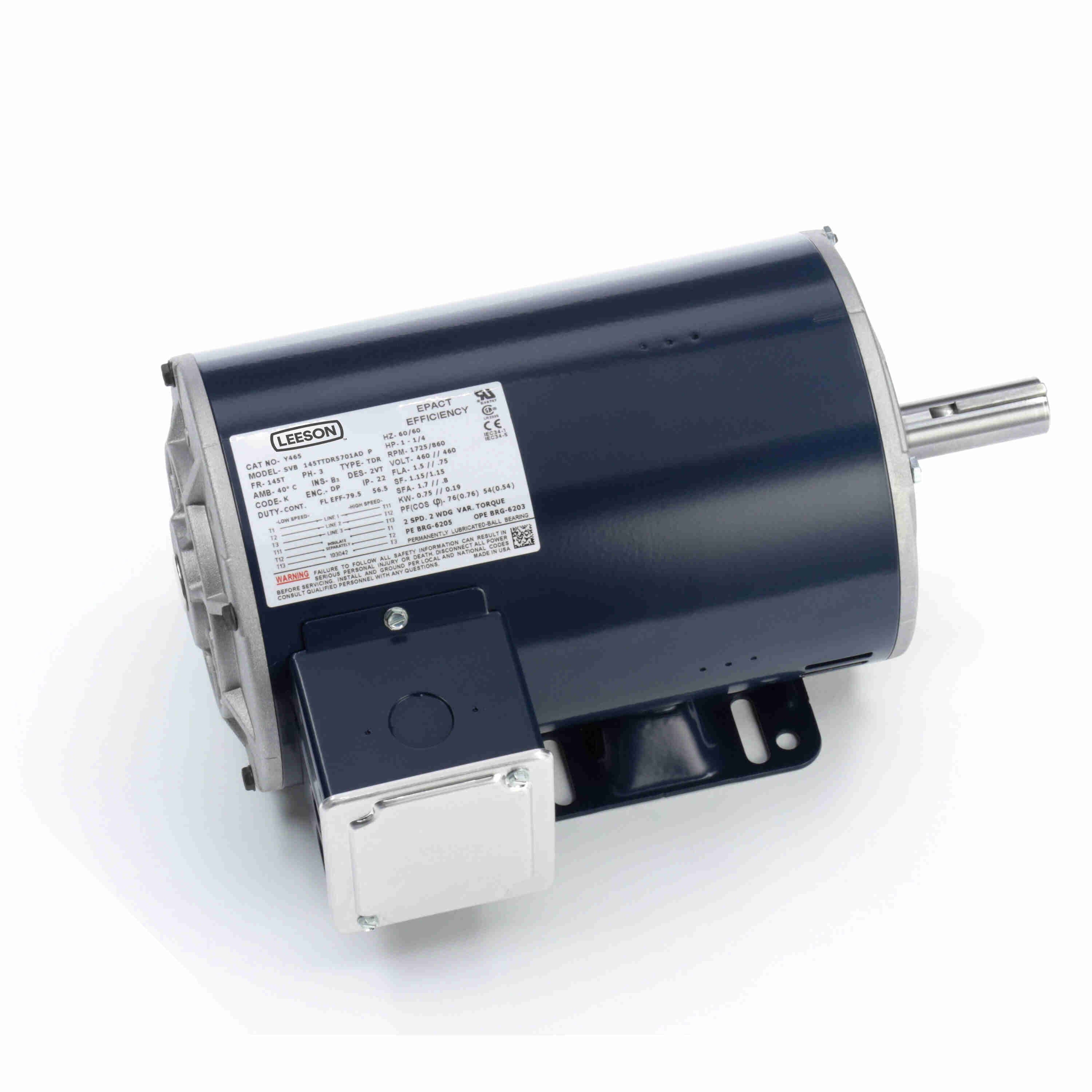

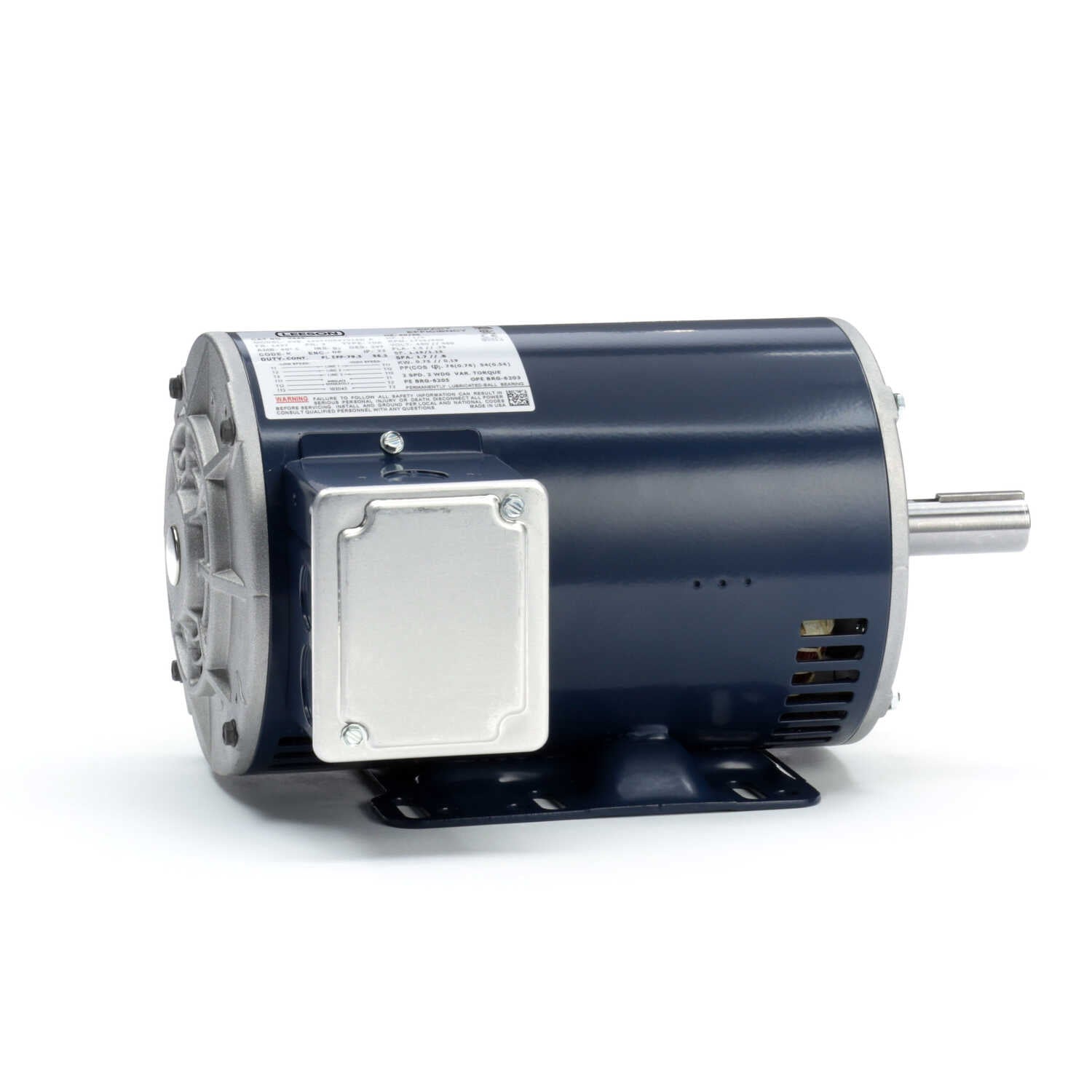

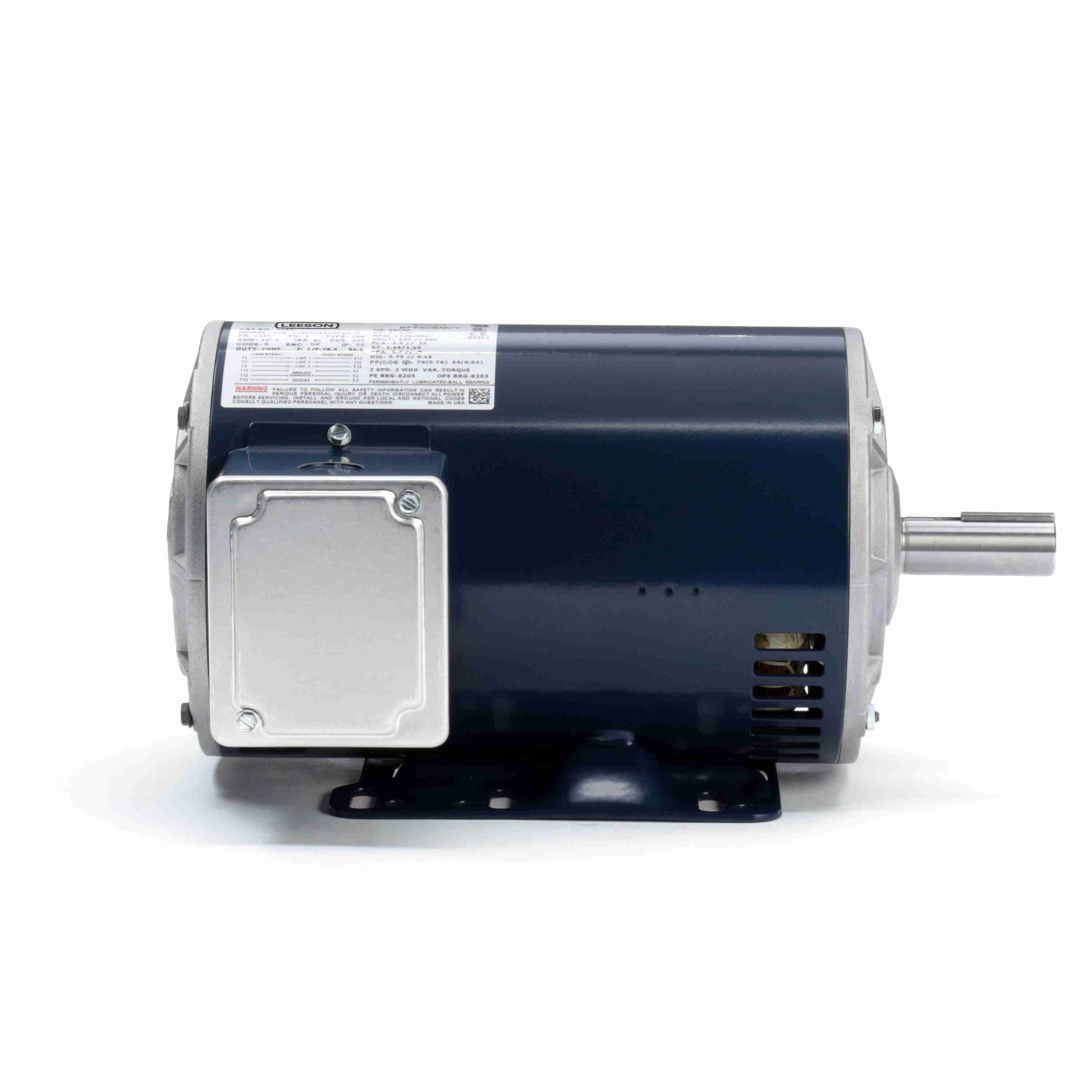

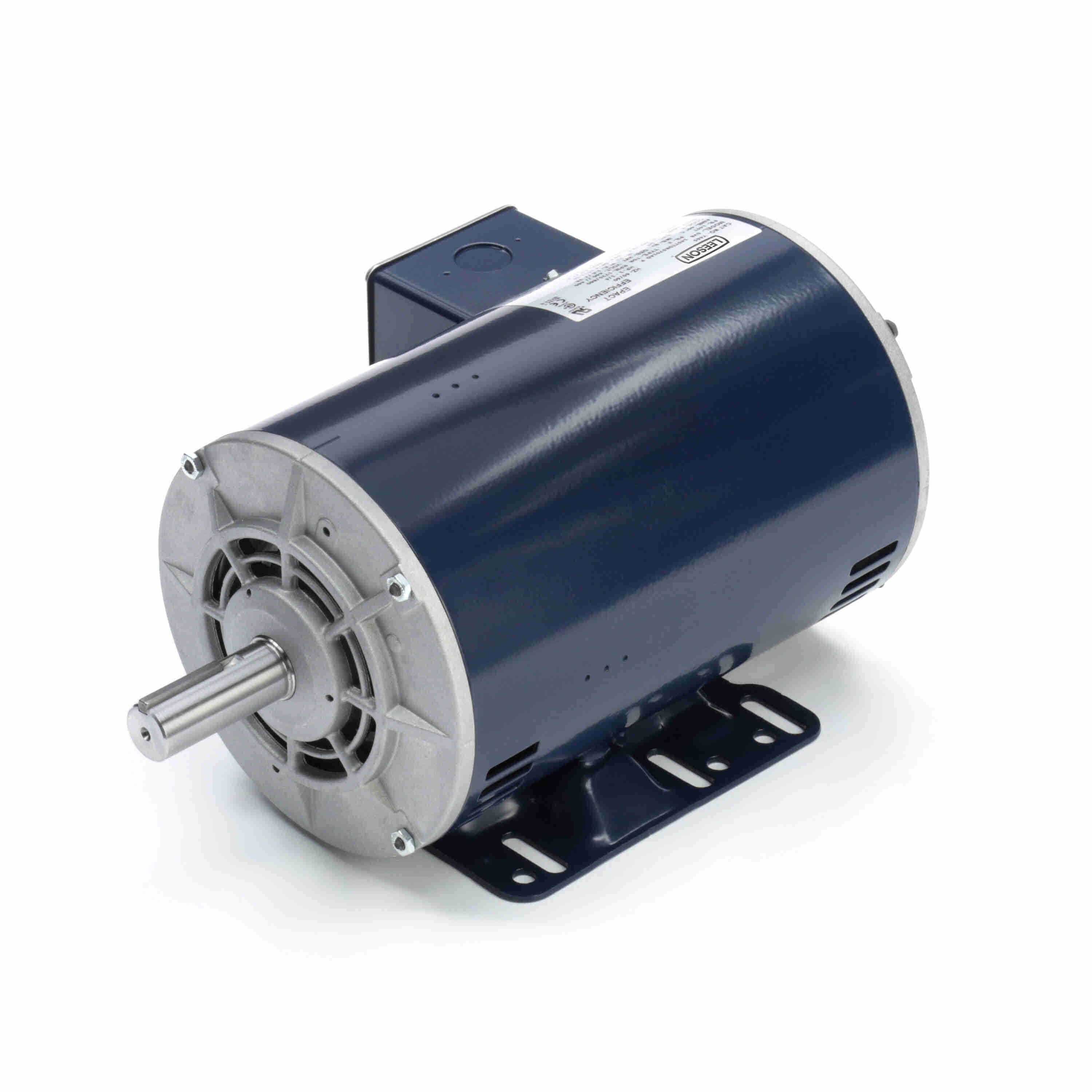

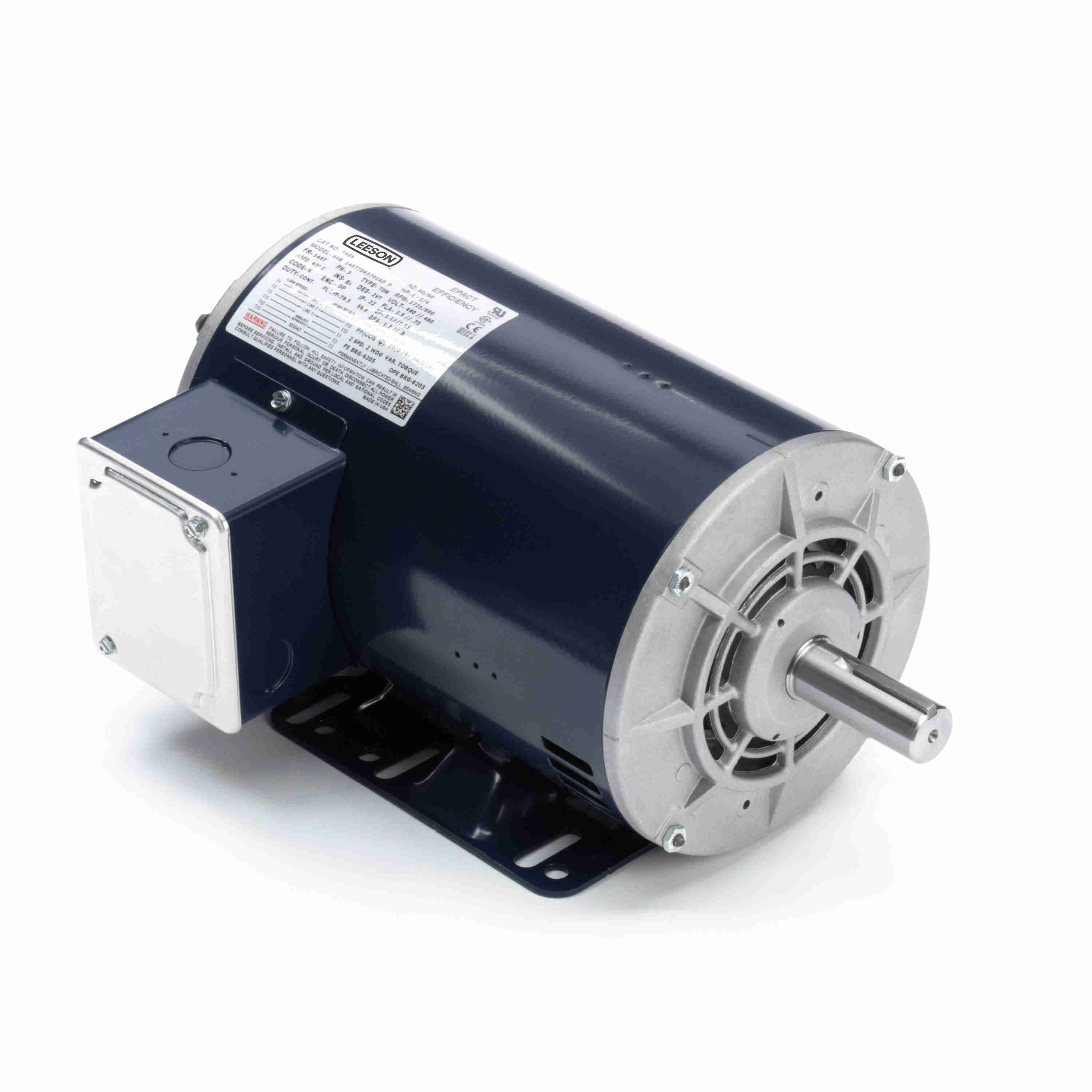

LEESON Other Purpose Motor, 1 & 0.25 HP, 3 Ph, 60 Hz, 460 & 460 V, 1800 & 1800 RPM, 145T Frame, DP - Y465
Part #:145TTDR5701
Catalog #:Y465
Model #:145TTDR5701AD
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Nameplate Specifications
| Phase: | 3 | Output HP: | 1 & 0.25 Hp |
| Output KW: | 0.75 & 0.19 kW | Voltage: | 460 & 460 V |
| Speed: | 1725 & 860 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 145T | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 79.5 & 56.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 1.5 & .75 A | Power Factor: | 76 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | 2VT | KVA Code: | K |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 2 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4//8 | Rotation: | Reversible |
| Resistance Main: | 26.4 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 12.99 in |
| Frame Length: | 9.06 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.28 in | Assembly/Box Mounting: | F1 ONLY |
General Specifications
| UPC: | 722856042521 | Weight: | 42.00 LB |
| Packaged Length: | 16.38 IN | Packaged Width: | 10.50 IN |
| Packaged Height: | 8.12 IN | HTC: | 8501.52.4000 |
| Country of Origin: | Mexico |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 10.50 | 700.0 | 5.60 | 187.0 | 76.5 | 1.00 | ||
| Break-Down | 6.00 | 400.0 | 9.00 | 300.0 | 1,430 | 88.0 | 1.00 | |
| 1/3 | 10.00 | 667.0 | 6.00 | 200.0 | 350 | 1.00 | ||
| Pull-Up | 9.00 | 600.0 | 7.50 | 250.0 | 1,000 | 1.00 | ||
| 2/3 | 8.00 | 533.0 | 8.00 | 267.0 | 1,200 | 1.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 0.90 | 0.98 | 1.10 | 1.30 | 1.50 | 1.70 | 1.80 |
| Rated Output (KW) | 0.10 | 0.30 | 0.50 | 0.70 | 0.90 | 1.10 | 1.20 |
| Efficiency (%) | 0.0 | 64.0 | 75.0 | 78.5 | 79.5 | 79.5 | 79.0 |
| Power Factor (%) | 12.5 | 37.0 | 56.0 | 68.0 | 76.0 | 79.5 | 81.5 |
| Speed (RPM) | 1,800 | 1,790 | 1,770 | 1,750 | 1,725 | 1,720 | 1,710 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 36.0 | 50.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.70 | 1.50 | 2.20 | 3.00 | 3.50 | 3.80 |
