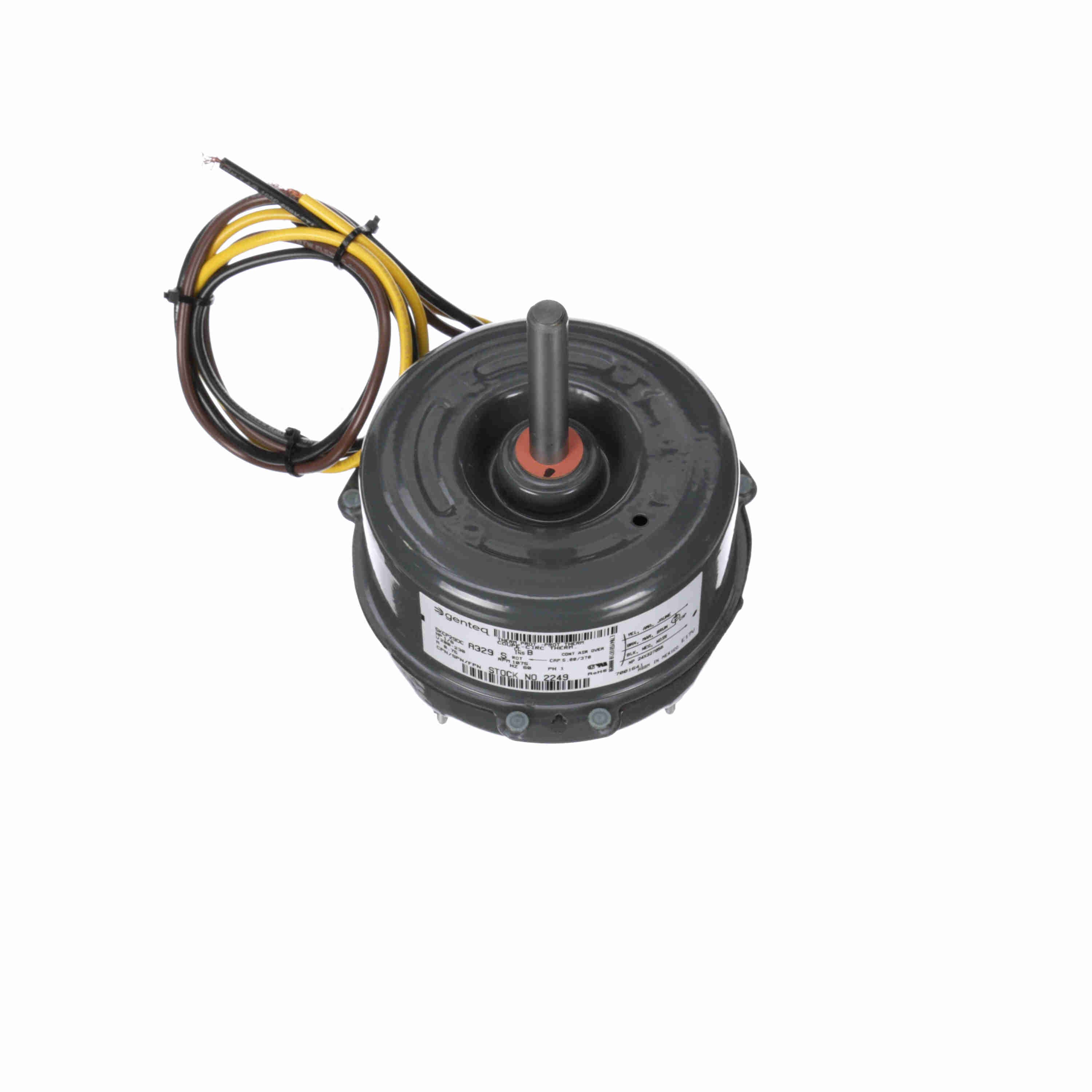

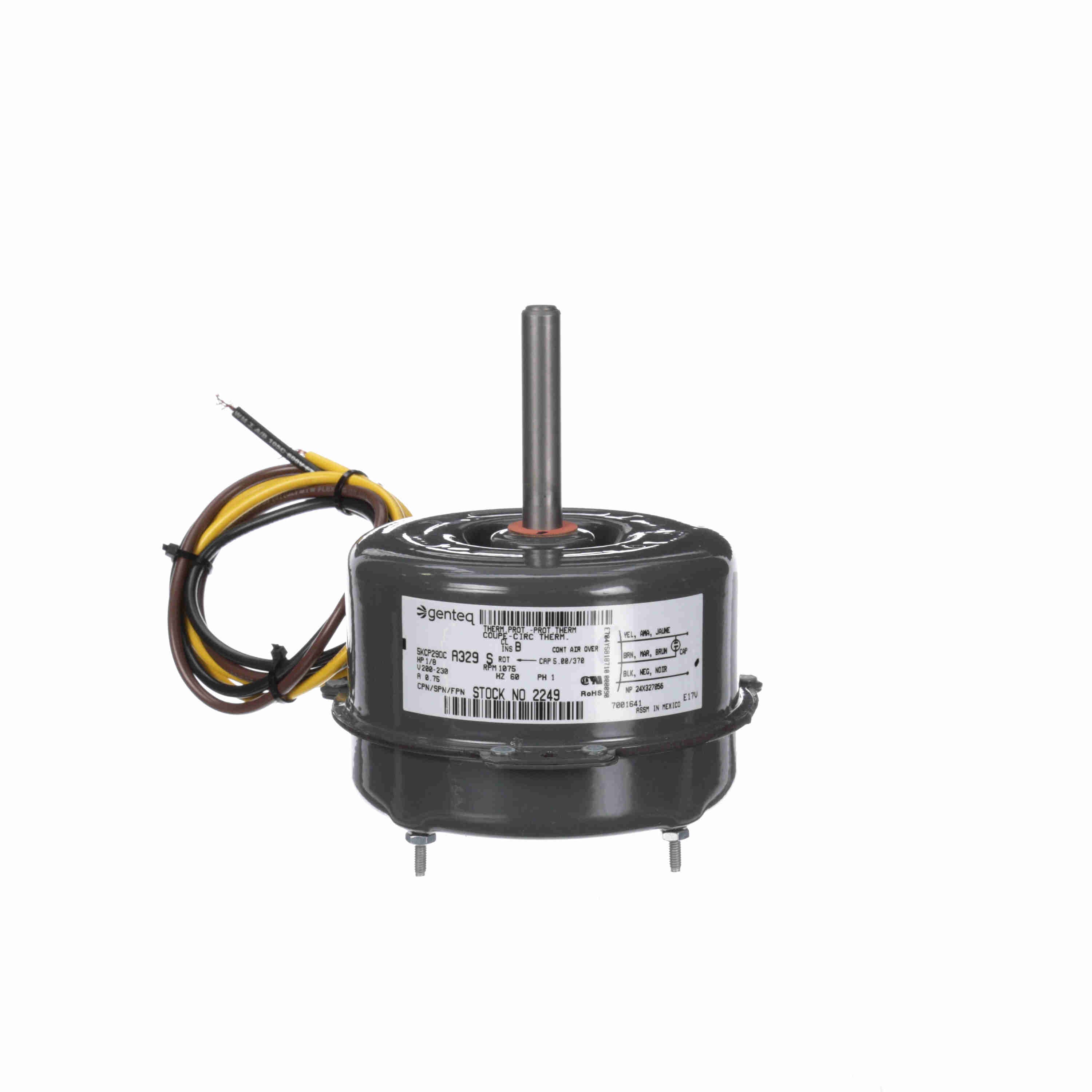

Genteq Condenser Fan Motor, 1/8 HP, 1 Ph, 60 Hz, 200-230 V, 1075 RPM, 1 Speed, 42 Frame, CLOSEDAO - 2249
Part #:2249
Catalog #:2249
Model #:5KCP29DCA329S
KEY FEATURES
- Condenser Fan - Heat Pump Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Opposite Shaft End, Flange Mount
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/8 Hp |
| Voltage: | 200-230 V | Speed: | 1075 rpm |
| Service Factor: | 1 | Frame: | 42 |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 0.75 A | Duty: | Continuous Air Over |
| Insulation Class: | B | UL: | Recognized |
| CSA: | Y | CE: | N |
| A2L Status: | A2L Compliant | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Poles: | 6 |
| Rotation: | Counterclockwise | Mounting: | Extended Studs |
| Motor Orientation: | Vsd | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 5.98 in |
| Frame Length: | 3.32 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 2.75 in |
General Specifications
| UPC: | 815585023180 | Weight: | 8.40 LB |
| Packaged Length: | 10.12 IN | Packaged Width: | 5.50 IN |
| Packaged Height: | 5.50 IN |
