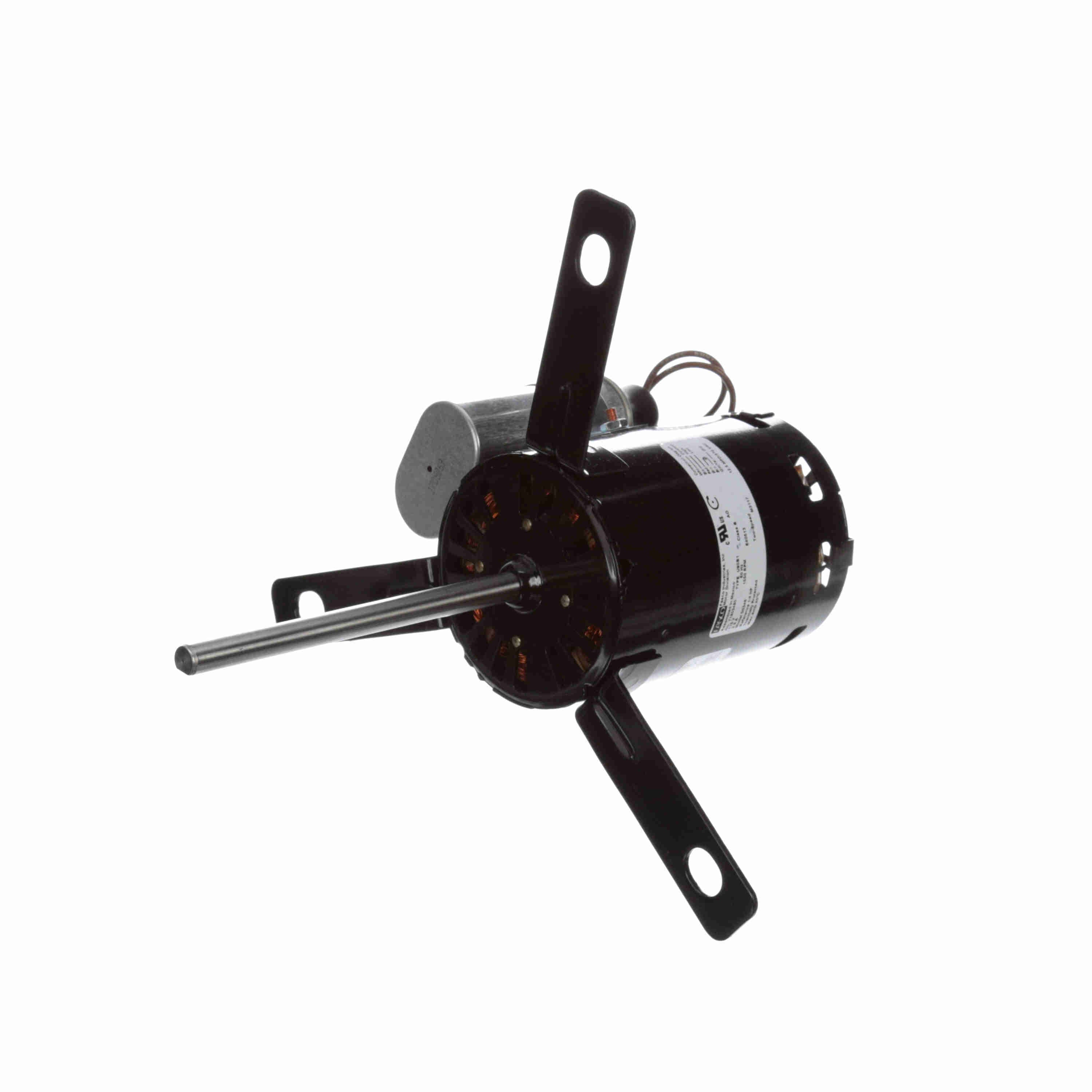

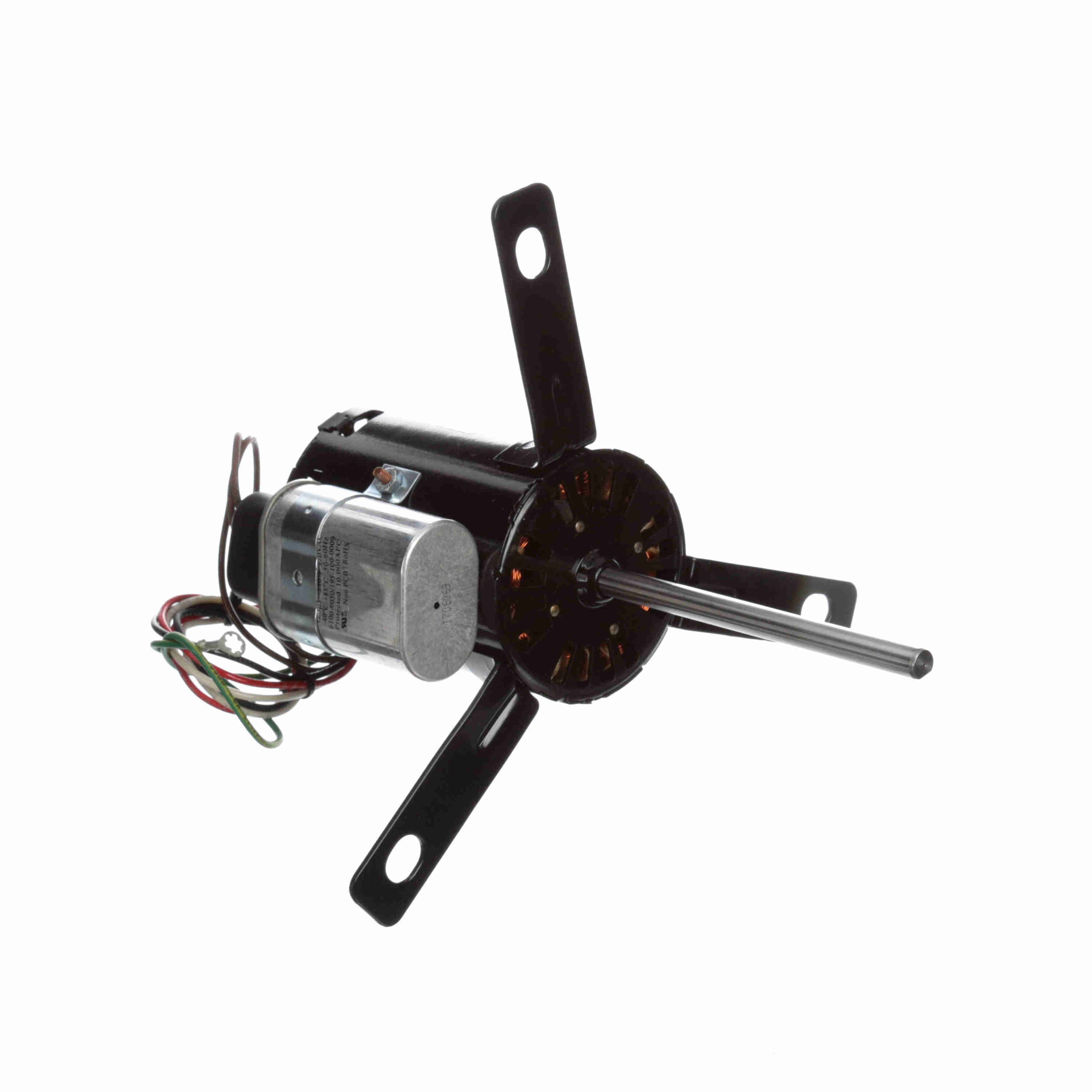

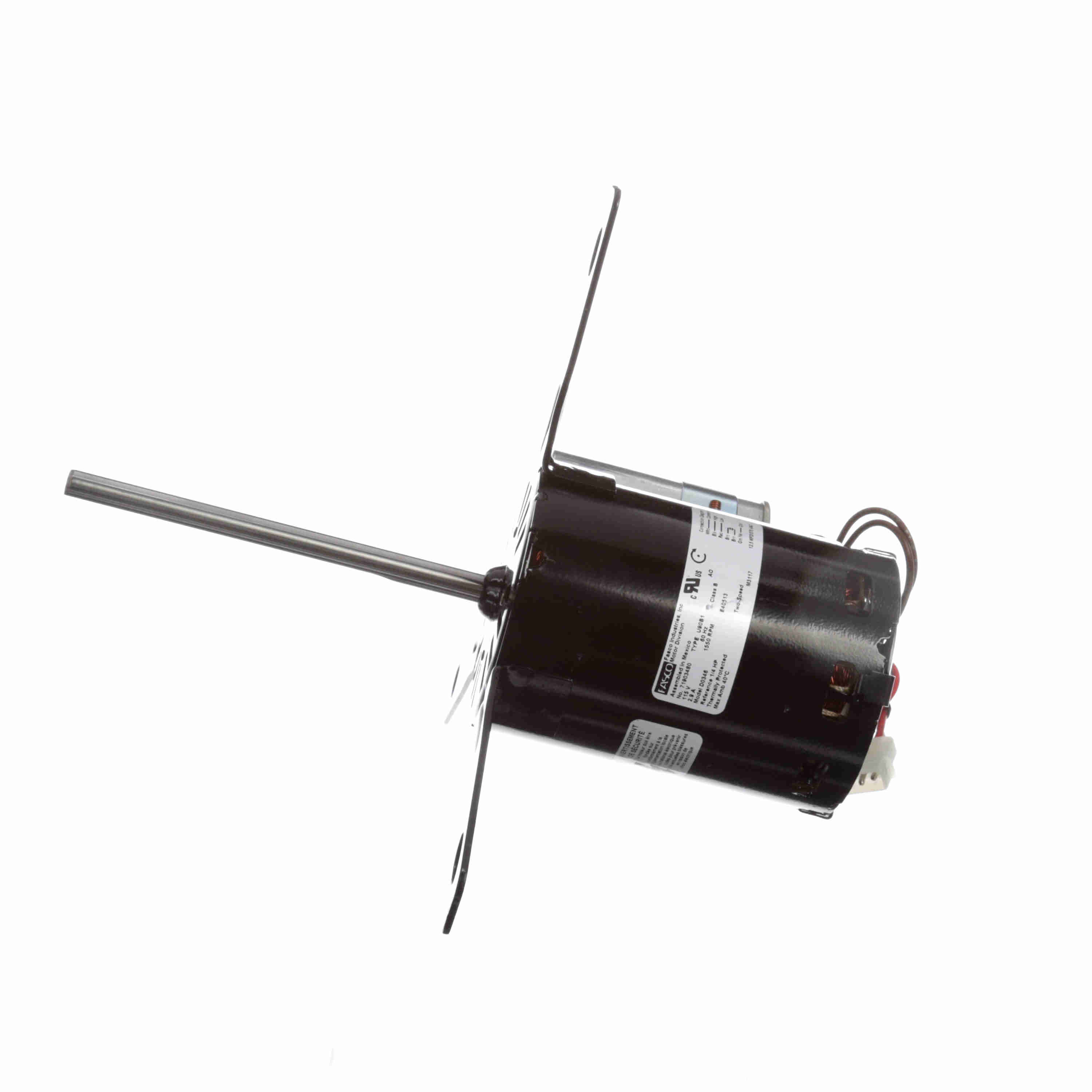

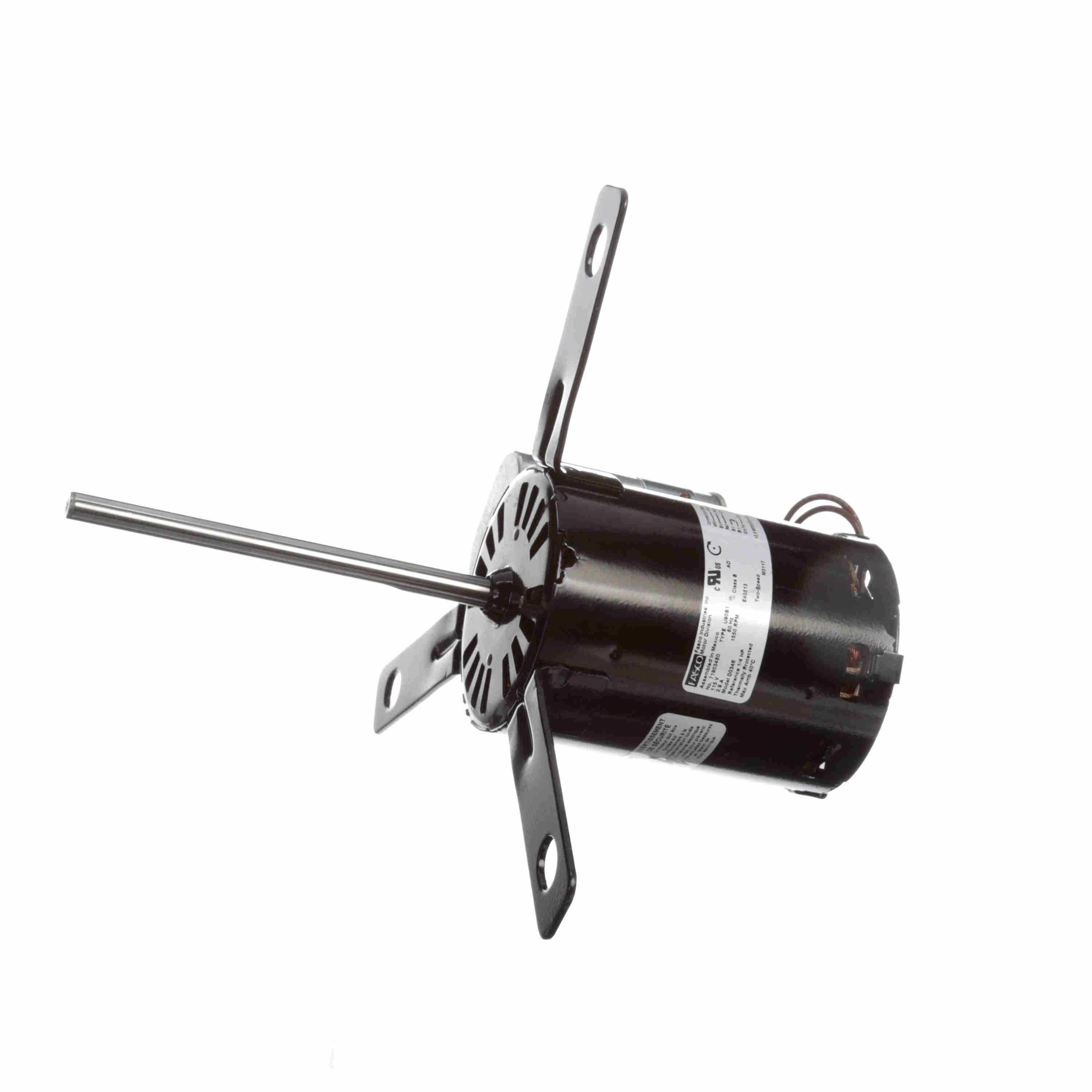

FASCO OEM Replacement Motor, 1/4 HP, 1 Ph, 60 Hz, 115 V, 1550 RPM, 2 Speed, 3.3" Diameter, OAO - D0346
Part #:D0346
Catalog #:D0346
KEY FEATURES
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End End-Frame and Opposite Shaft End End-Frame, Enclosed Shell Shaft End and Open Shell Opposite Shaft End, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 10" Leads with Plug Assembly
- Lug Mount Shaft End
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications

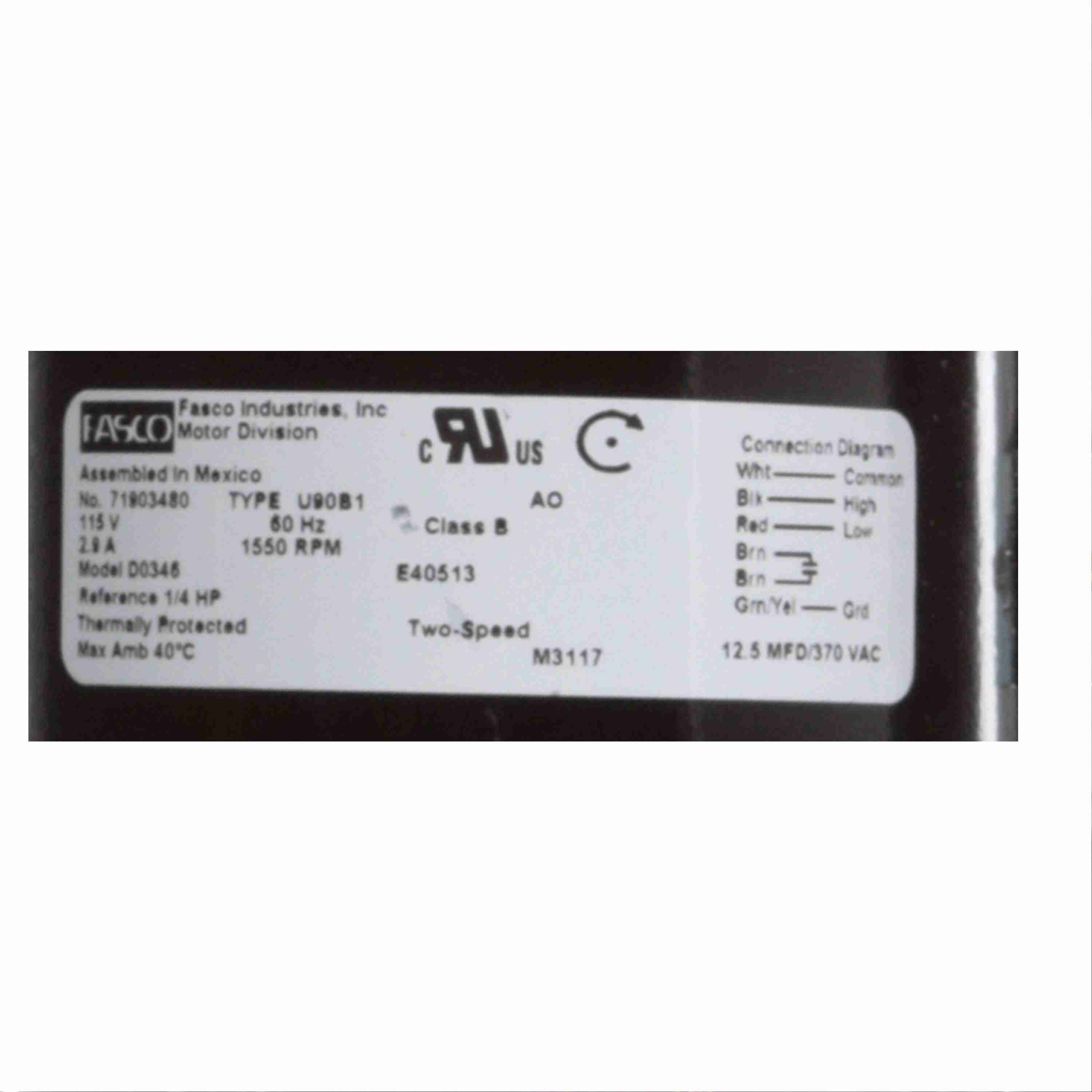

Nameplate Specifications
| Phase: | 1 | Output HP: | 1/4 Hp |
| Output KW: | 0.19 kW | Voltage: | 115 V |
| Speed: | 1550 rpm | Service Factor: | 1 |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 2.90 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 2 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Lug | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 10.12 in |
| Frame Length: | 4.68 in | Shaft Diameter: | 0.375 in |
| Shaft Extension: | 5.44 in |
General Specifications
| UPC: | 815585027294 | Weight: | 8.05 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.38 IN |
| Packaged Height: | 12.50 IN | Country of Origin: | Mexico |
