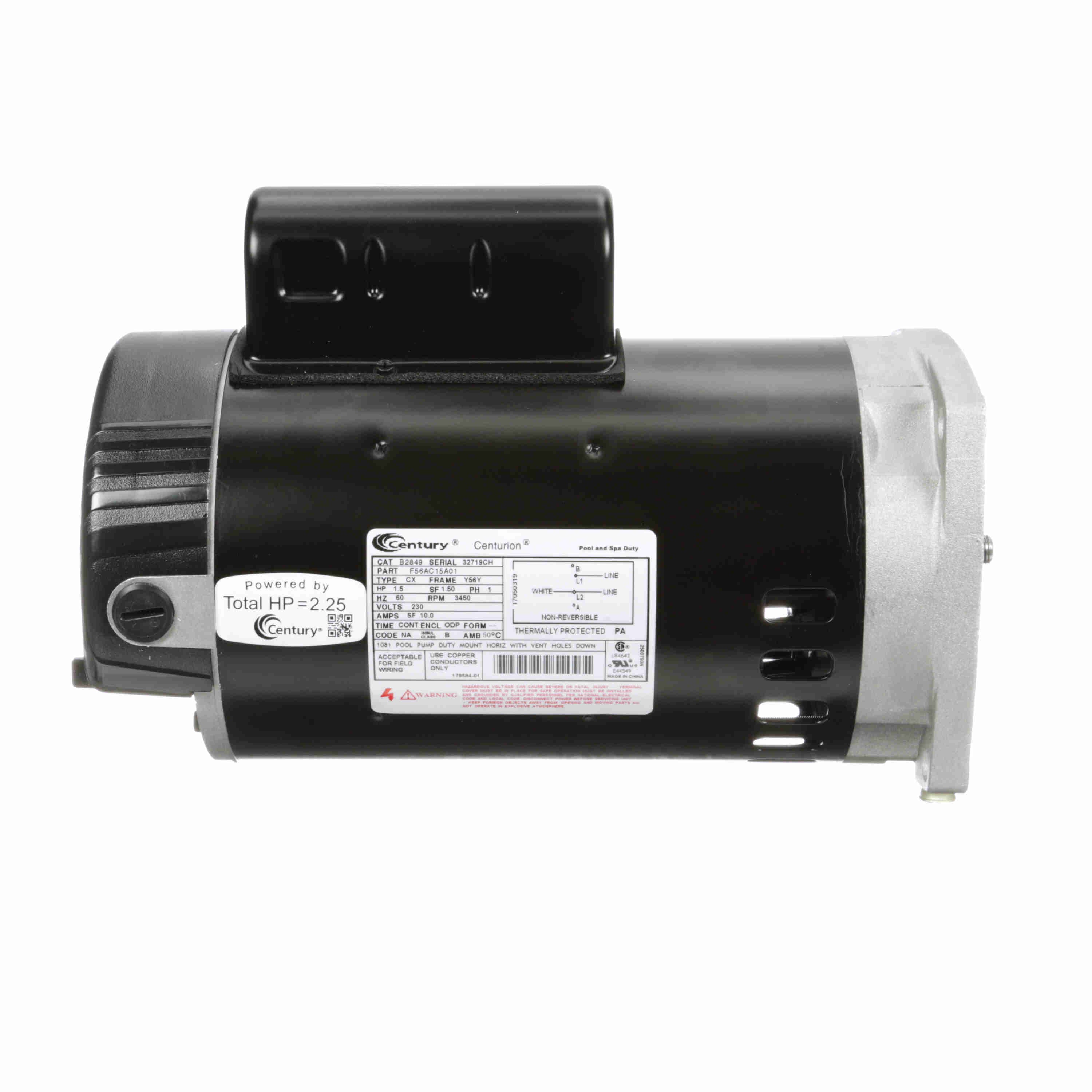

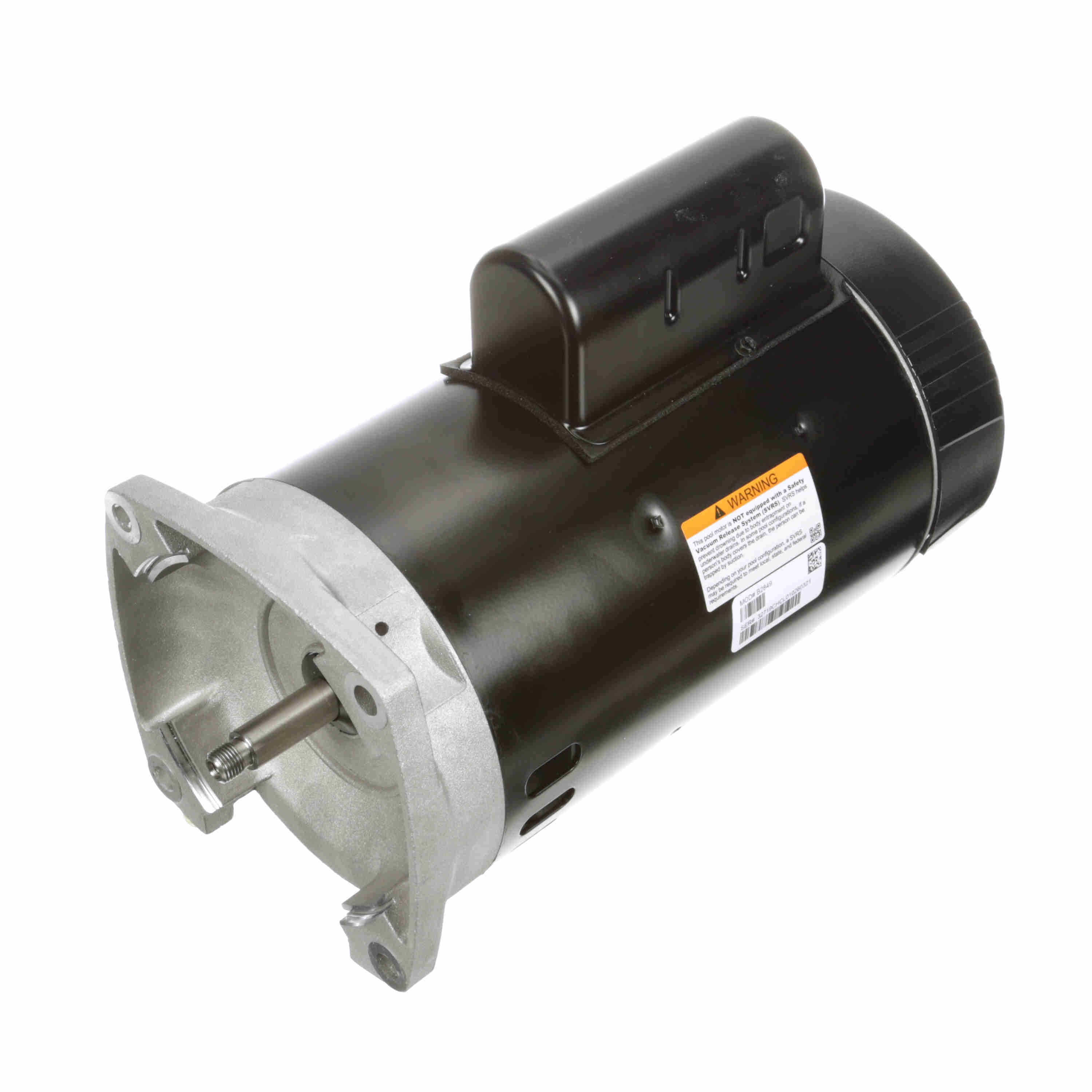

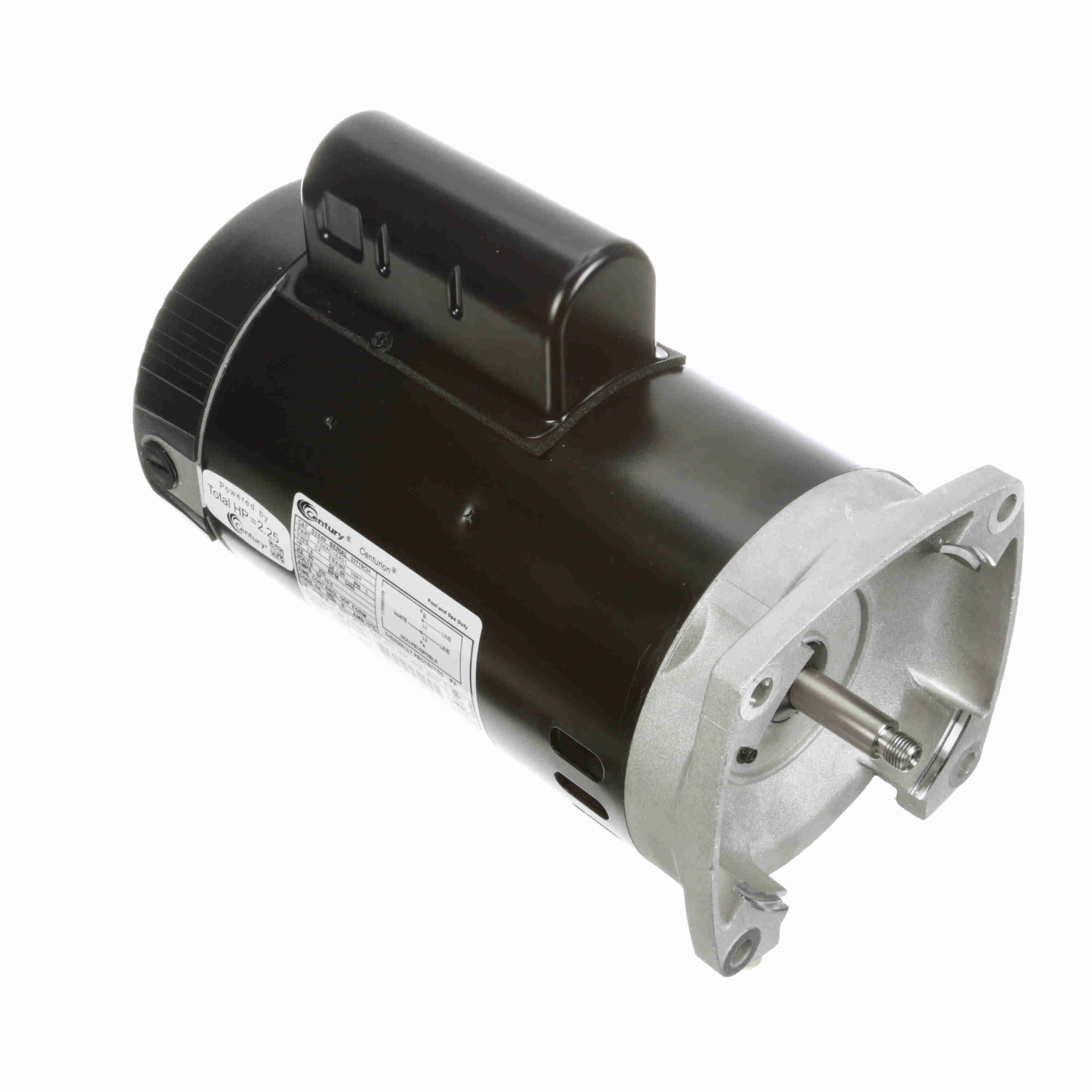

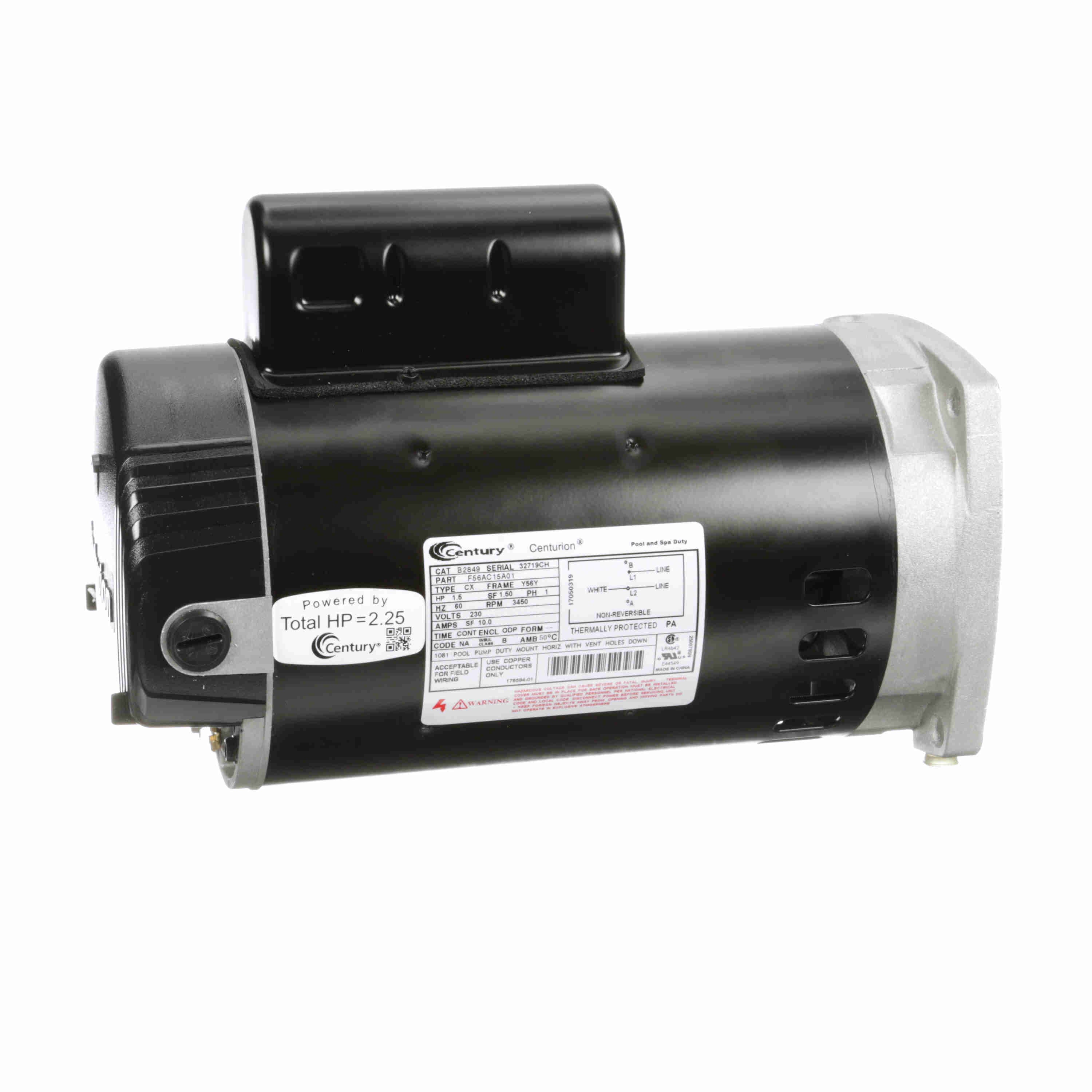

Century Pool Pump Motor, 1.5 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 56Y Frame, ODP - B2849
Part #:B2849
Catalog #:B2849
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Nameplate Specifications
| Phase: | 1 | Output HP: | 1.5 Hp |
| Output KW: | 1.1 kW | Voltage: | 230 V |
| Speed: | 3450 rpm | Service Factor: | 1.5 |
| Frame: | 56Y | Enclosure: | Open Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | SF 10.0 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | Y | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor, Single Or Dual Voltage | Poles: | 2 |
| Rotation: | Counterclockwise Pump End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | 1/2 Thread |
| Frame Length: | 9.00 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 0.91 in |
General Specifications
| UPC: | 786674077097 | Weight: | 32.25 LB |
| Packaged Length: | 15.98 IN | Packaged Width: | 10.75 IN |
| Packaged Height: | 9.13 IN | Country of Origin: | Mexico |
