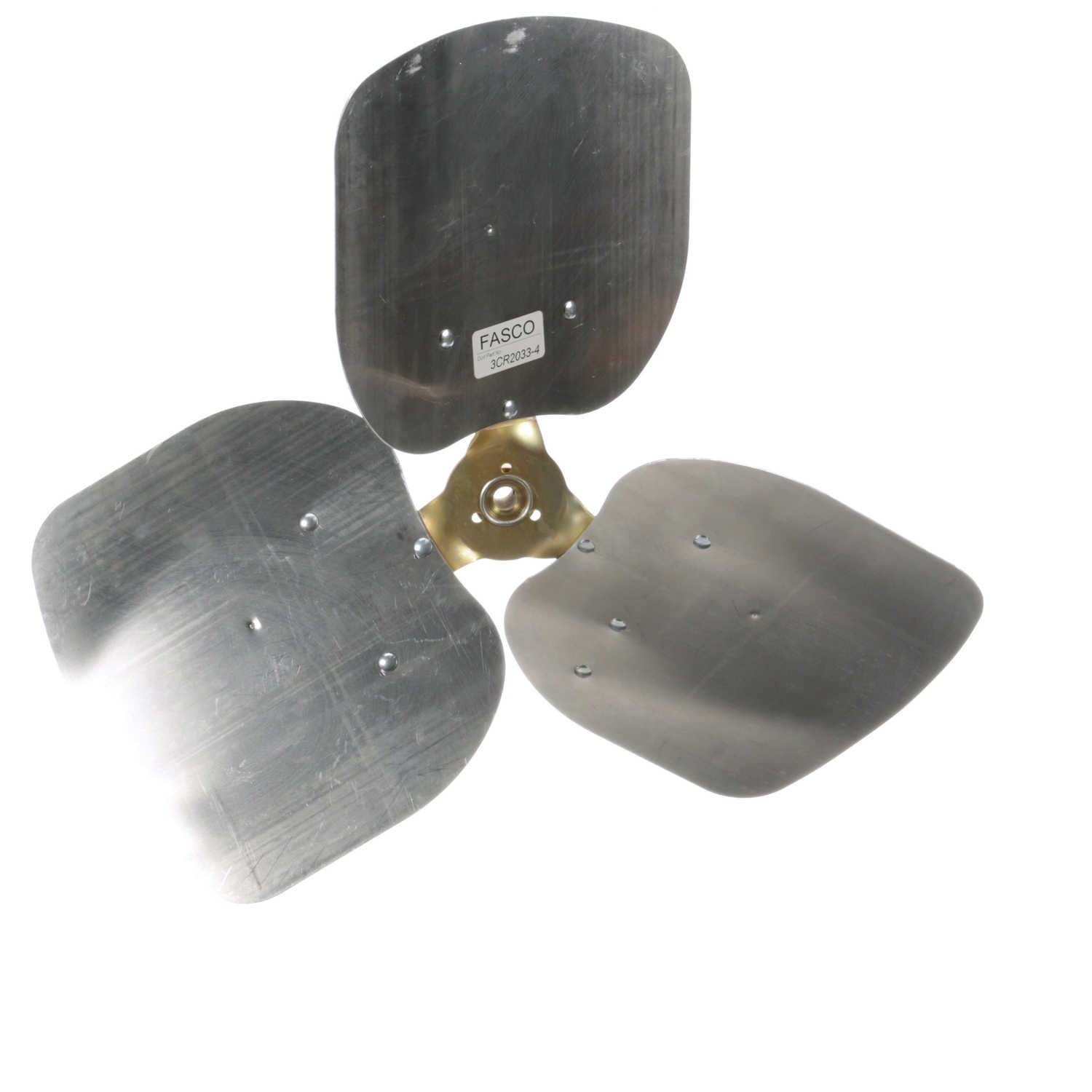

FASCO 3 Blade CW, Fixed Hub 1/2 Bore, 33° Pitch, 20" Dia - 3CR2033-4
Part #:3CR2033-4
Catalog #:3CR2033-4
KEY FEATURES
- 3 Blade, Fixed Hub, Condenser (Pressure) Type Fan Blade. Factory Balanced, 1/2" Bore, Shaved and Staked Hub-Attached on Intake Side
- Blades: 3
- Rotation: Clockwise
- Diameter: 20 Inches
- Pitch: 33°
- 0 Inches Static Pressure: CFM = 4070, BHP = 0.26
- 30 Inches Static Pressure: CFM = 2830, BHP = 0.33
- Maximum RPM: 1140
- Standard Pack: qty 4
- Typical Application: Air-Condition Condensers, Power Roof Ventilators, Heat Pumps, Heat Exchangers, Unit Heaters, Exhaust Fans
