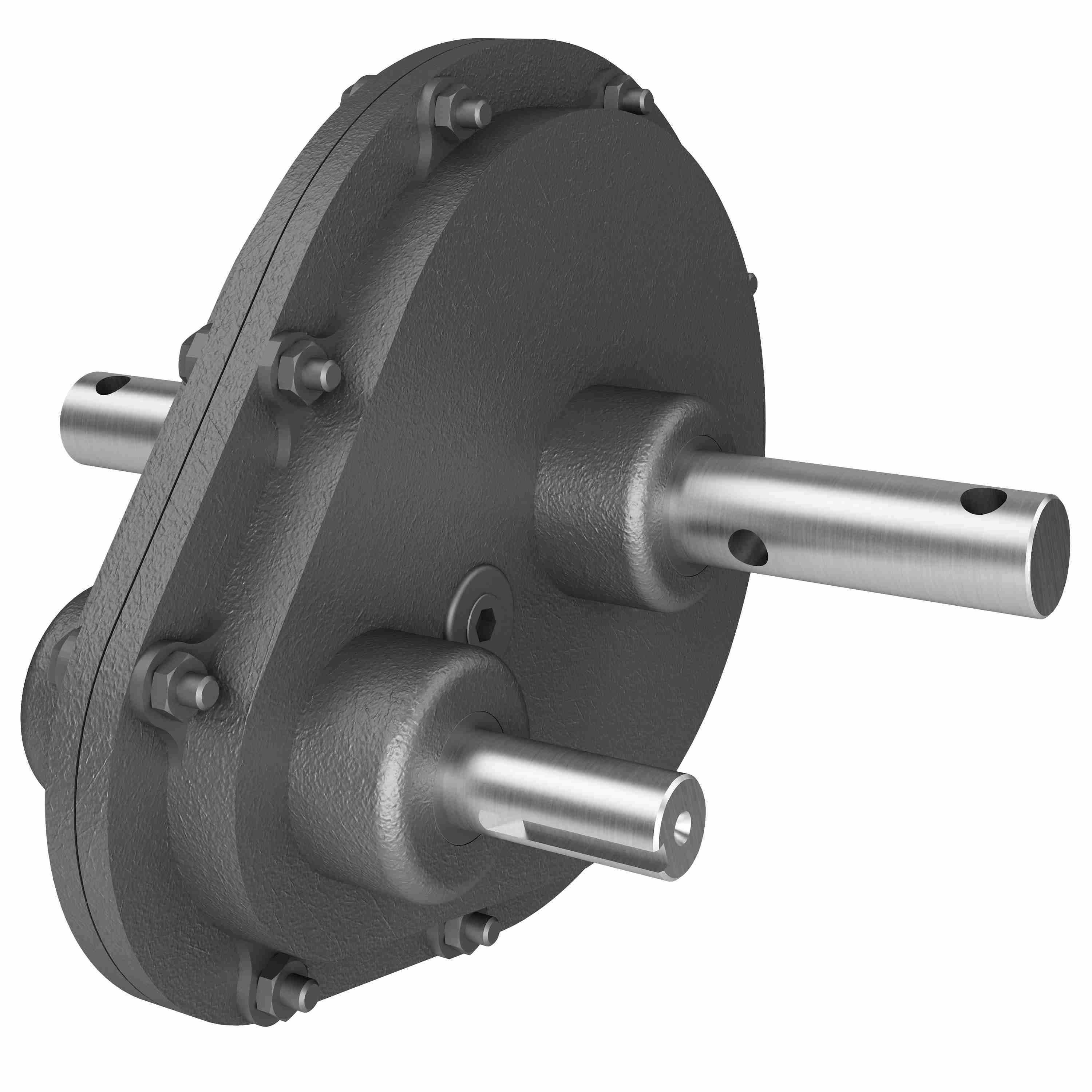

Hub City Parallel Shaft Drive Cast Iron Parallel Shaft Drive - 230 5/1 DO S
Part #:0220-01609
Catalog #:230 5/1 DO S
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Parallel | Series Code: | 230 |
| Product Line: | Parallel Shaft Drive | Output RPM: | 350 |
| Input Diameter (in): | 0.75 in | Model Code: | 230 |
| Service Factor: | 1 | Maximum Input HP: | 2.5 |
| Ratio: | 5:1 | Gear Type: | S |
| Output Diameter (in): | 1.000 in | Style: | DO |
| Ratio Range: | 5:1 | Input Style: | Shaft |
| Output Torque Rating (in-lb): | 437 in/lbs | Output shaft: | Shaft |
| Housing Material: | Cast Iron |
General Specifications
| UPC: | 662798005904 | Weight: | 23.00 LB |
| Packaged Length: | 10.50 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 9.00 IN |
