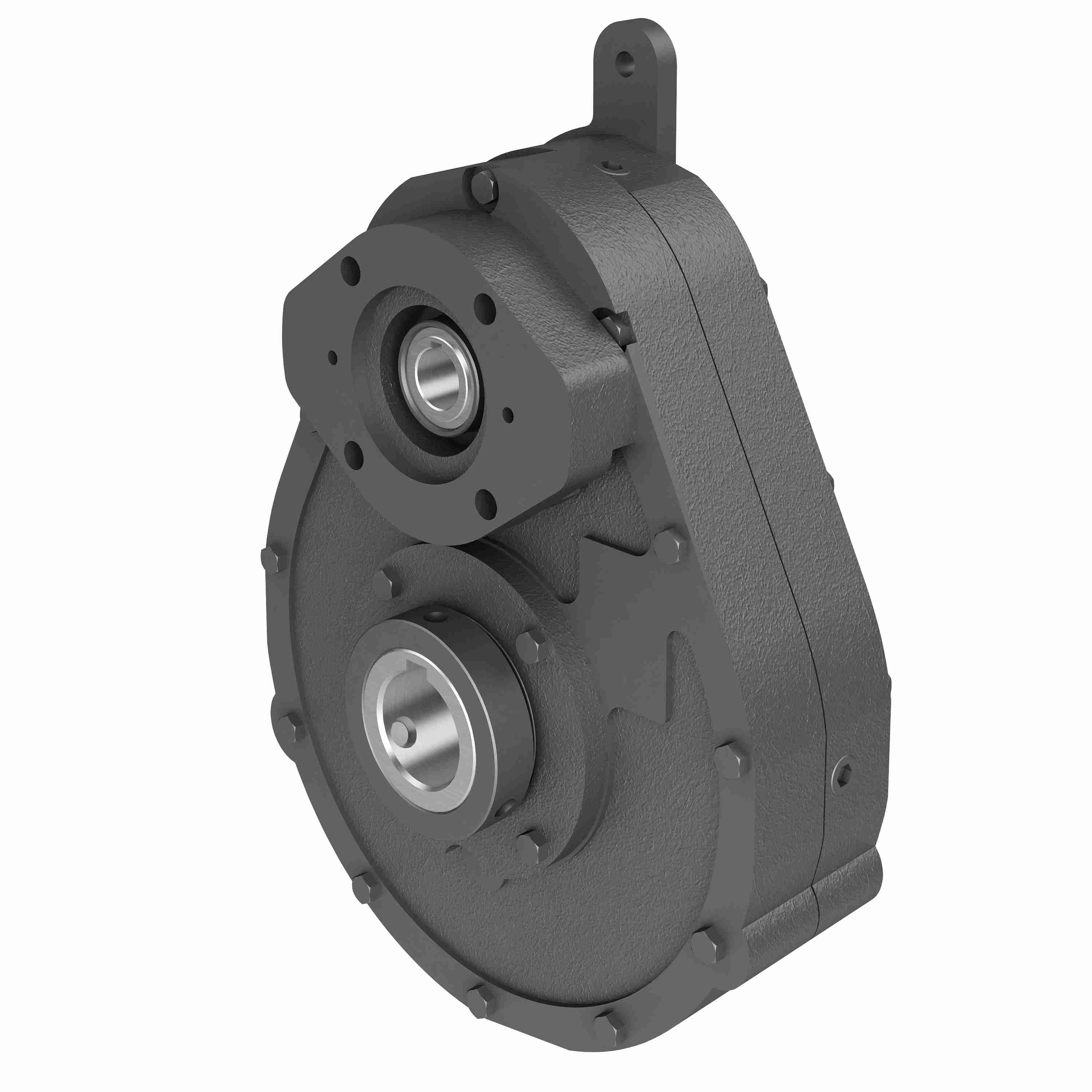

Hub City Parallel Shaft Drive Cast Iron Parallel Shaft Drive - 95LH 4.19/1 S B2 1.500 .875 DIA - 3/16 X 3/32 KW

Name: Hub City Parallel Shaft Drive Cast Iron Parallel Shaft Drive - 95LH 4.19/1 S B2 1.500 .875 DIA - 3/16 X 3/32 KW
Brand: Hub City
Availability: OutOfStock

Part #:20-2006861

Catalog #:95LH 4.19/1 S B2 1.500 .875 DIA - 3/16 X 3/32 KW

Key Features Product Specs

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

Rugged Cast Iron Housing
High Strength Gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals

How can we improve our Product Information?

Resource Center

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Technical Specifications

Output RPM:	418	Series Code:	95L
Output Diameter (in):	1.500 in	Service Factor:	1
Maximum Input HP:	40.9	Ratio:	4.19:1
Product Type:	Parallel	Product Line:	Parallel Shaft Drive
Gear Type:	S	Input Diameter (in):	.875 DIA - 3/16 X 3/32 KW in
Model Code:	95LH	Input Style:	Hydraulic Adapter
Ratio Range:	4:1	Motor Frame Size:	B2
Output Torque Rating (in-lb):	6,111 in/lbs	Output shaft:	Hollow Bore
Housing Material:	Cast Iron

General Specifications

UPC:	662798291185	Weight:	95.00 LB
Packaged Length:	20.50 IN	Packaged Width:	12.25 IN
Packaged Height:	12.00 IN
