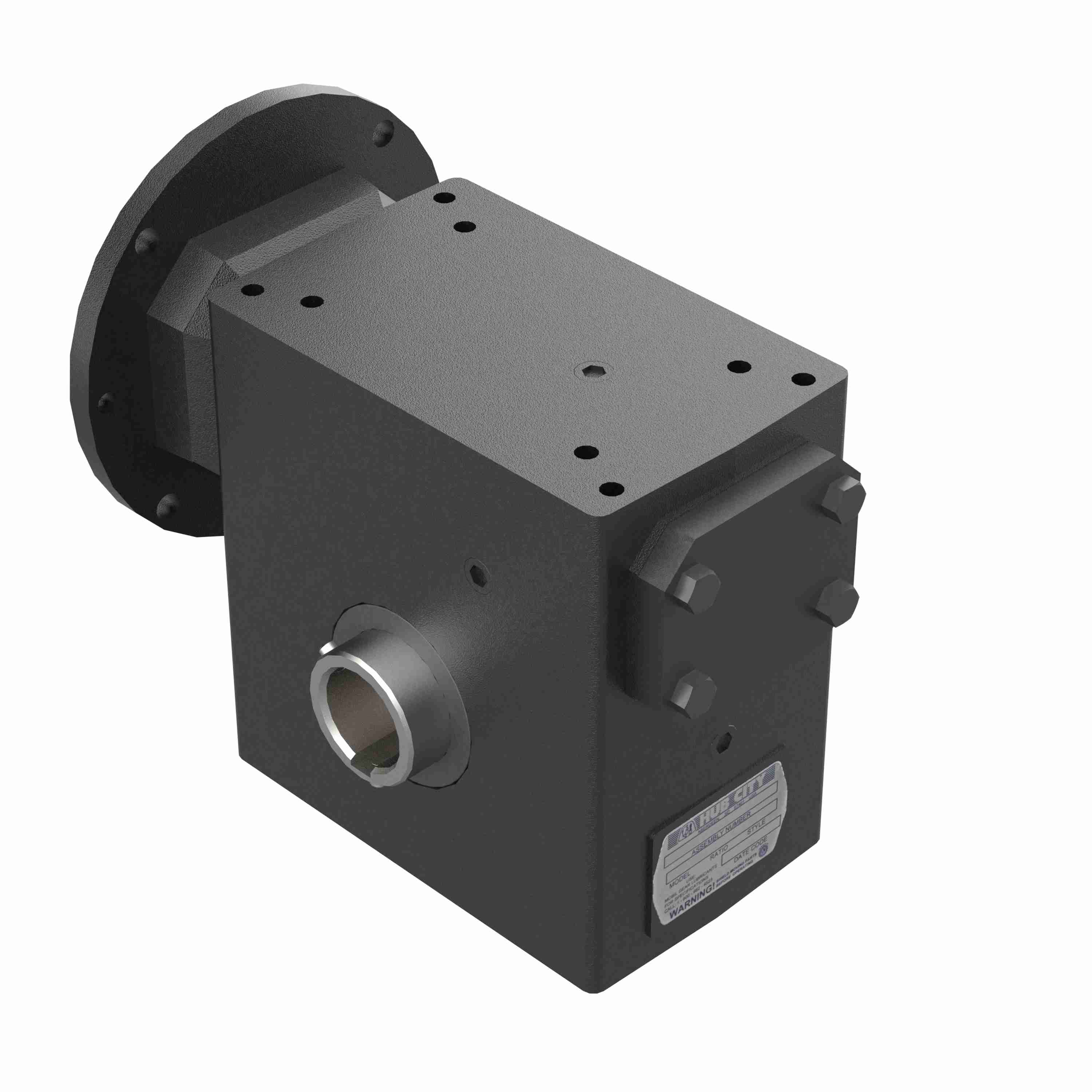

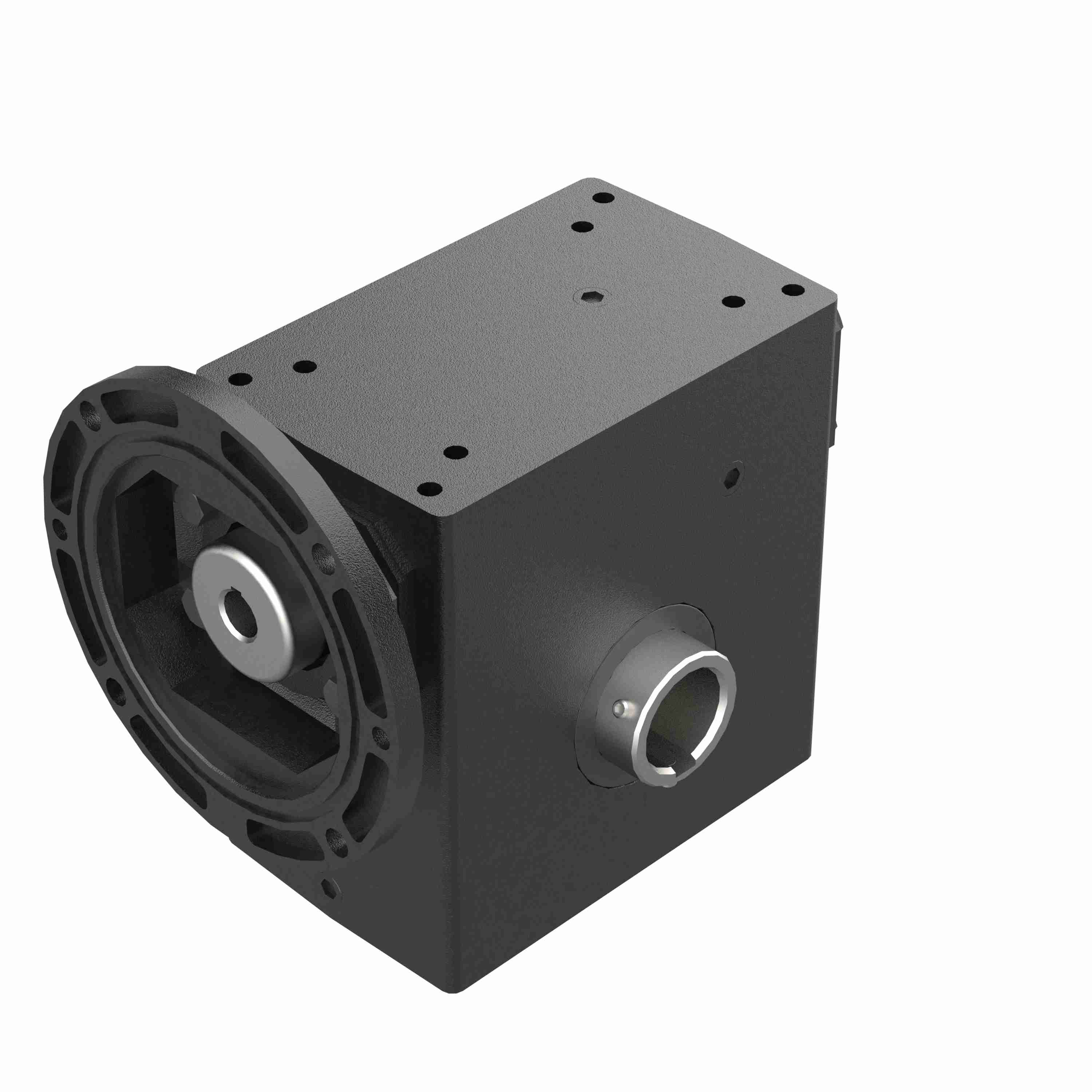

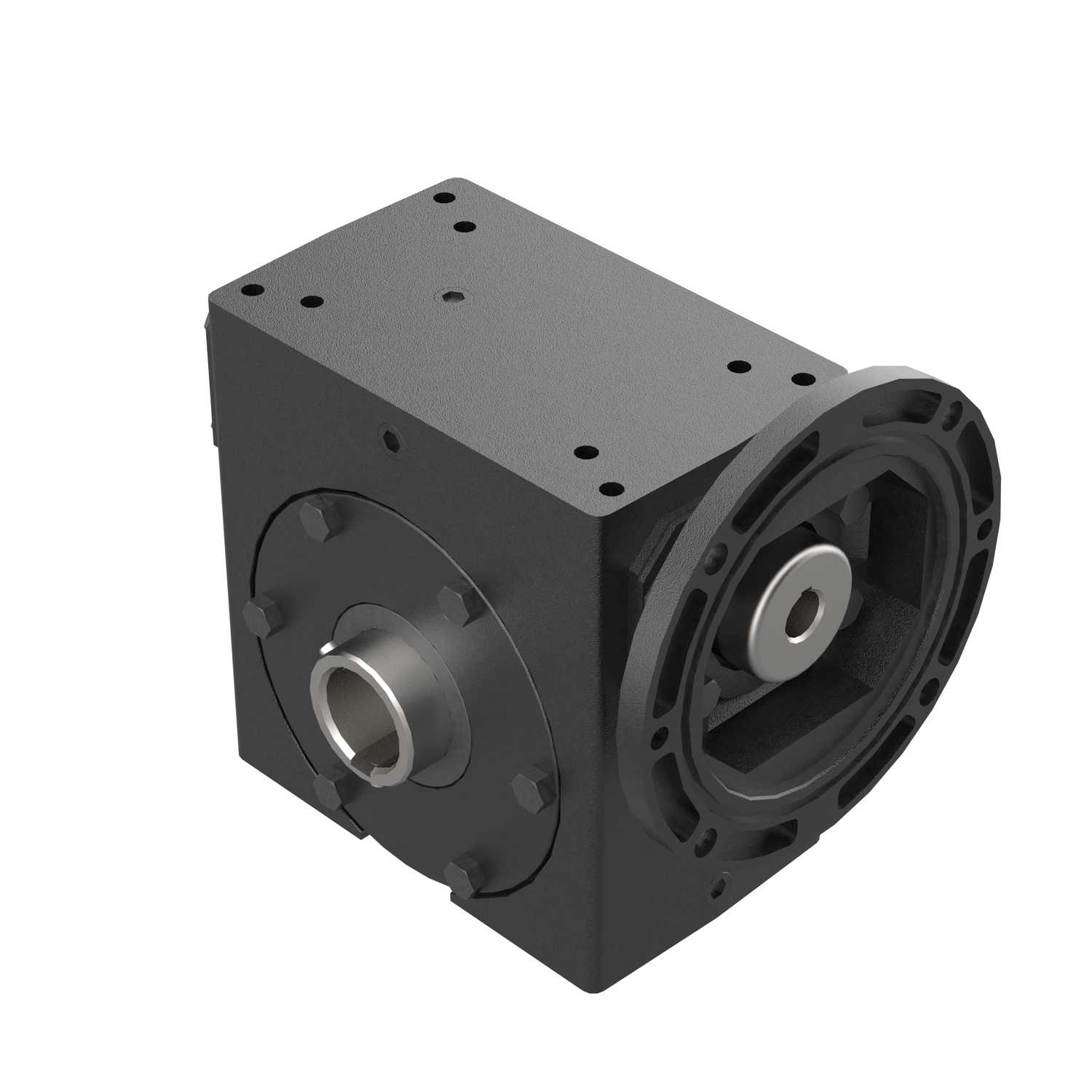

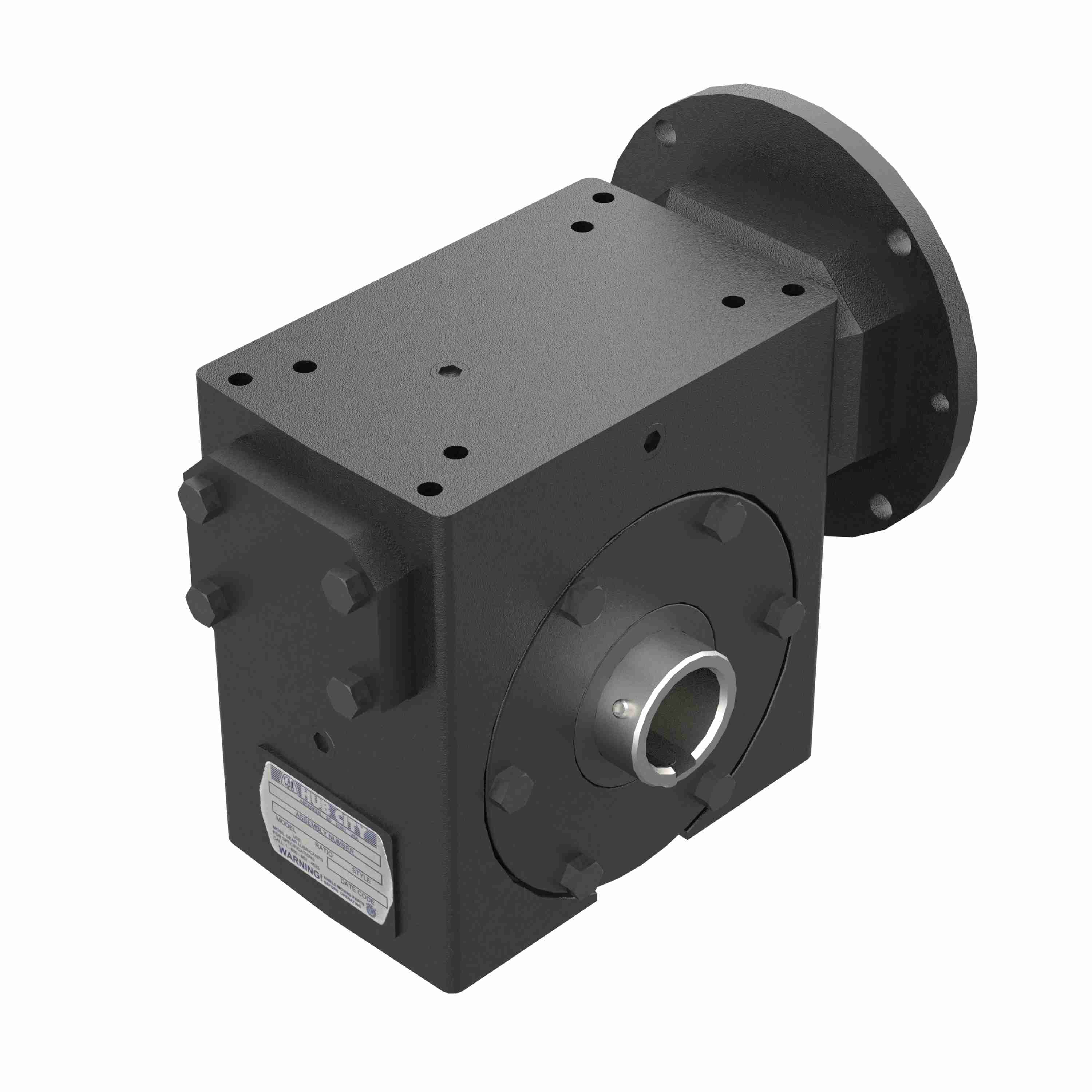

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 265 30/1 A WR 56C 1.438
Part #:0230-07317
Catalog #:265 30/1 A WR 56C 1.438
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Model Code: | 265 | Series Code: | 260PCX |
| Output Diameter (in): | 1.438 in | Ratio: | 30:1 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Frame Size: | 56C |
| Input HP: | 2 | Input Diameter (in): | 0.625 in |
| Product Type: | RIGHT ANGLE | Output RPM: | 58.3 |
| Style: | A | Service Factor: | 1.0 |
| Gear Type: | Worm | Input Style: | C-Face Quill |
| Mounting Style: | A | Motor Frame Size: | 56C |
| Ratio Range: | 30:1 | Keyway: | 3/16 x 3/32 |
| Center Distance (in): | 2.63 | Reduction: | SINGLE |
| Output Shaft Direction: | L or R | Output Shaft: | Hollow Bore |
| Output Torque Rating (in-lb): | 1634 in/lbs | Housing Material: | Cast Iron |
General Specifications
| UPC: | 662961755896 | Weight: | 38.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
