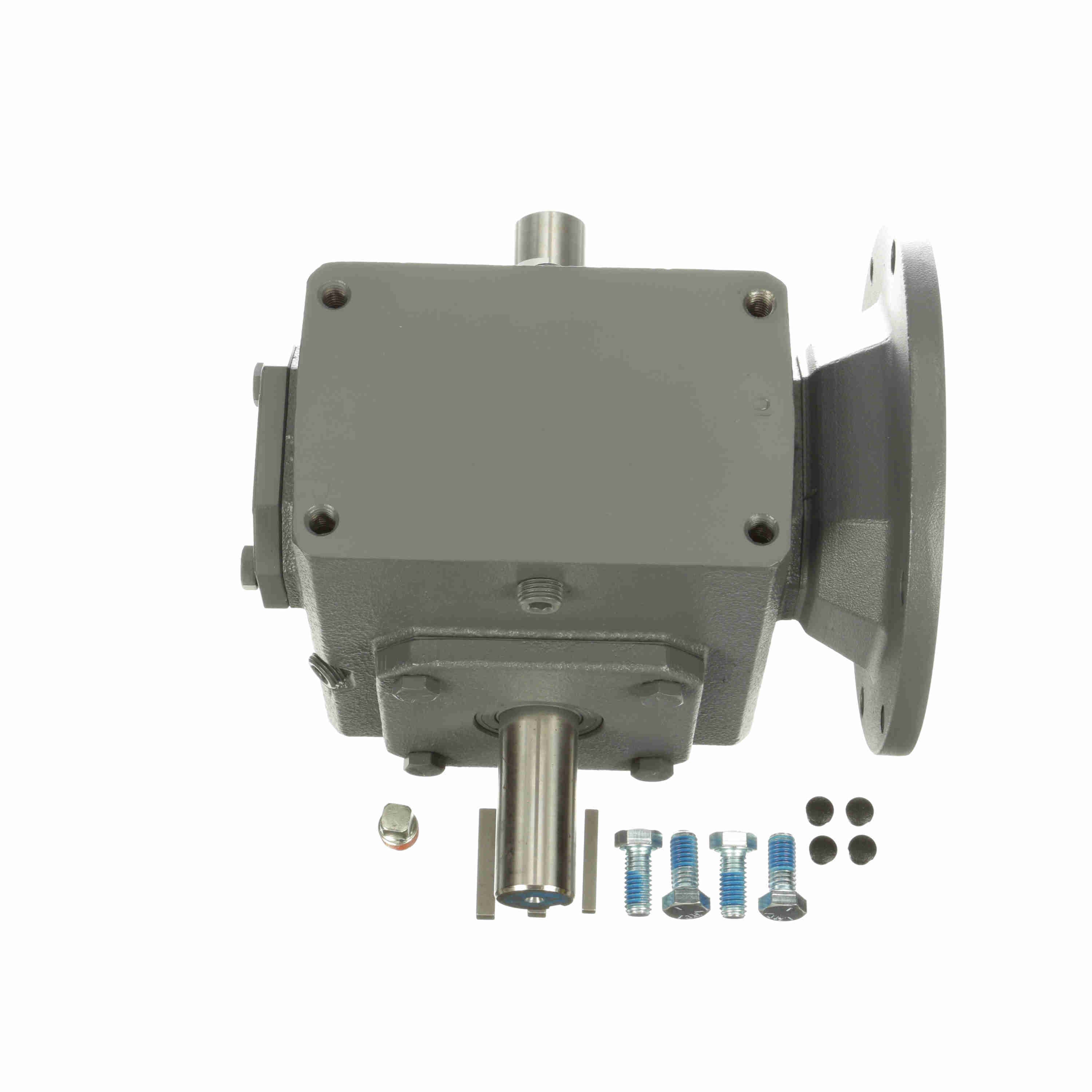

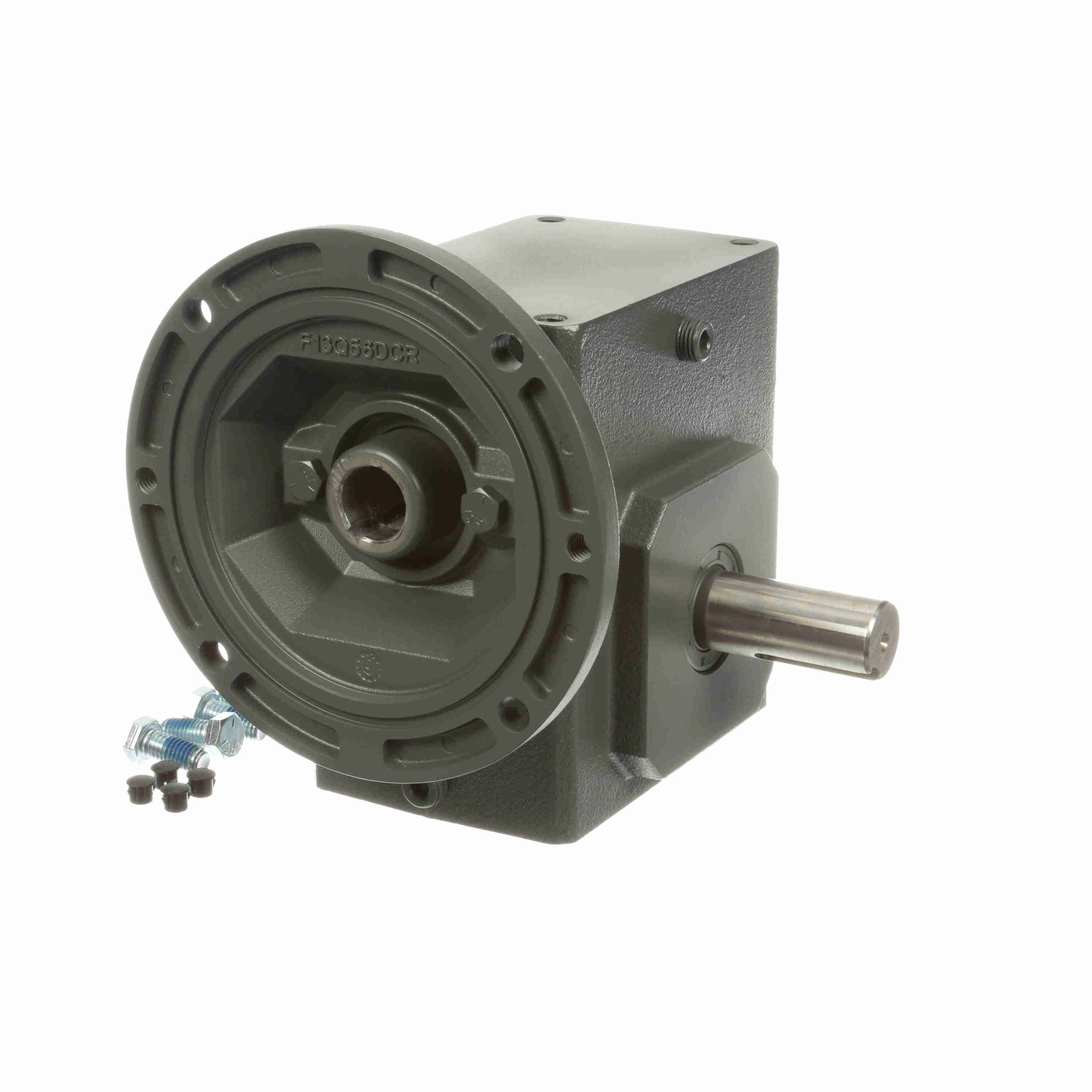

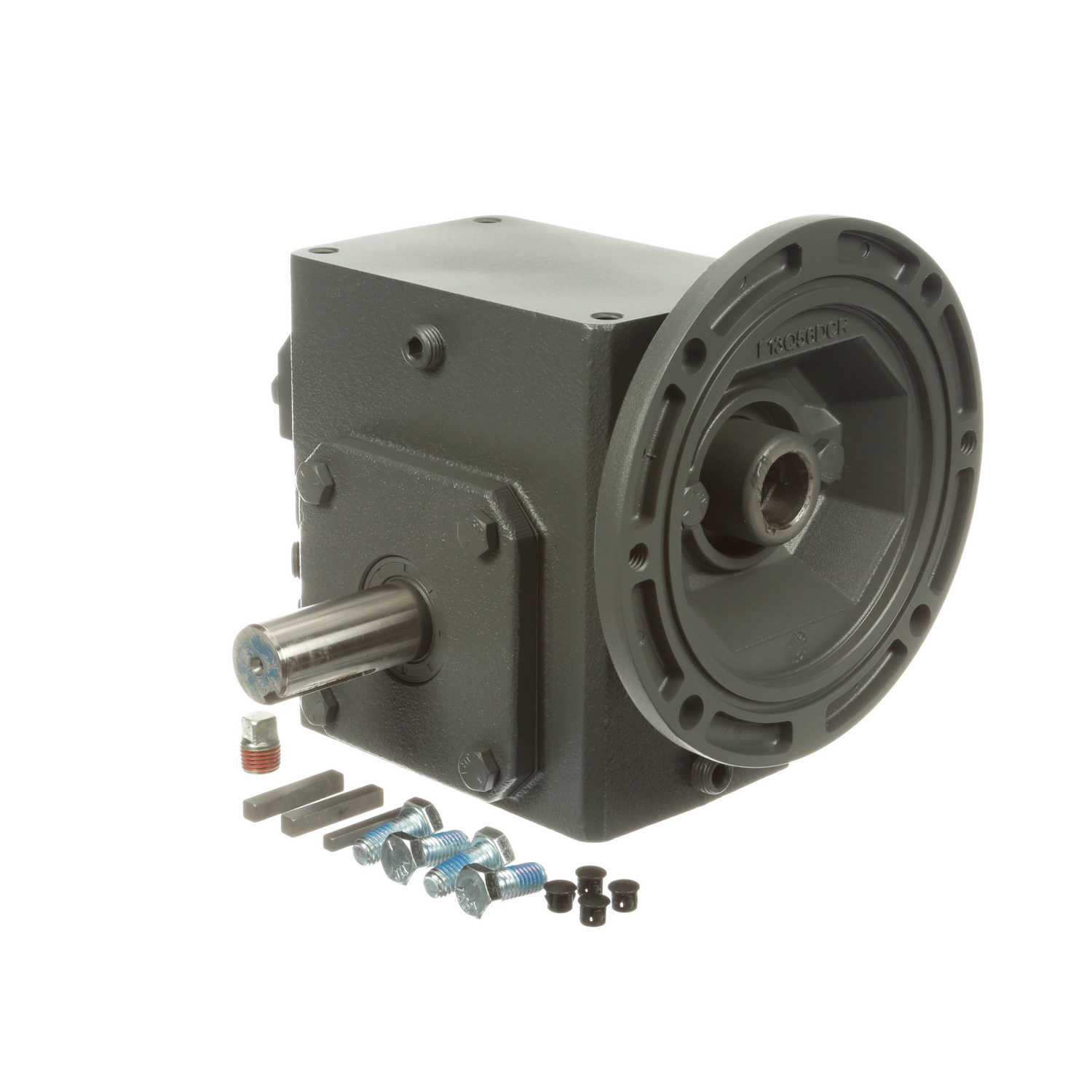

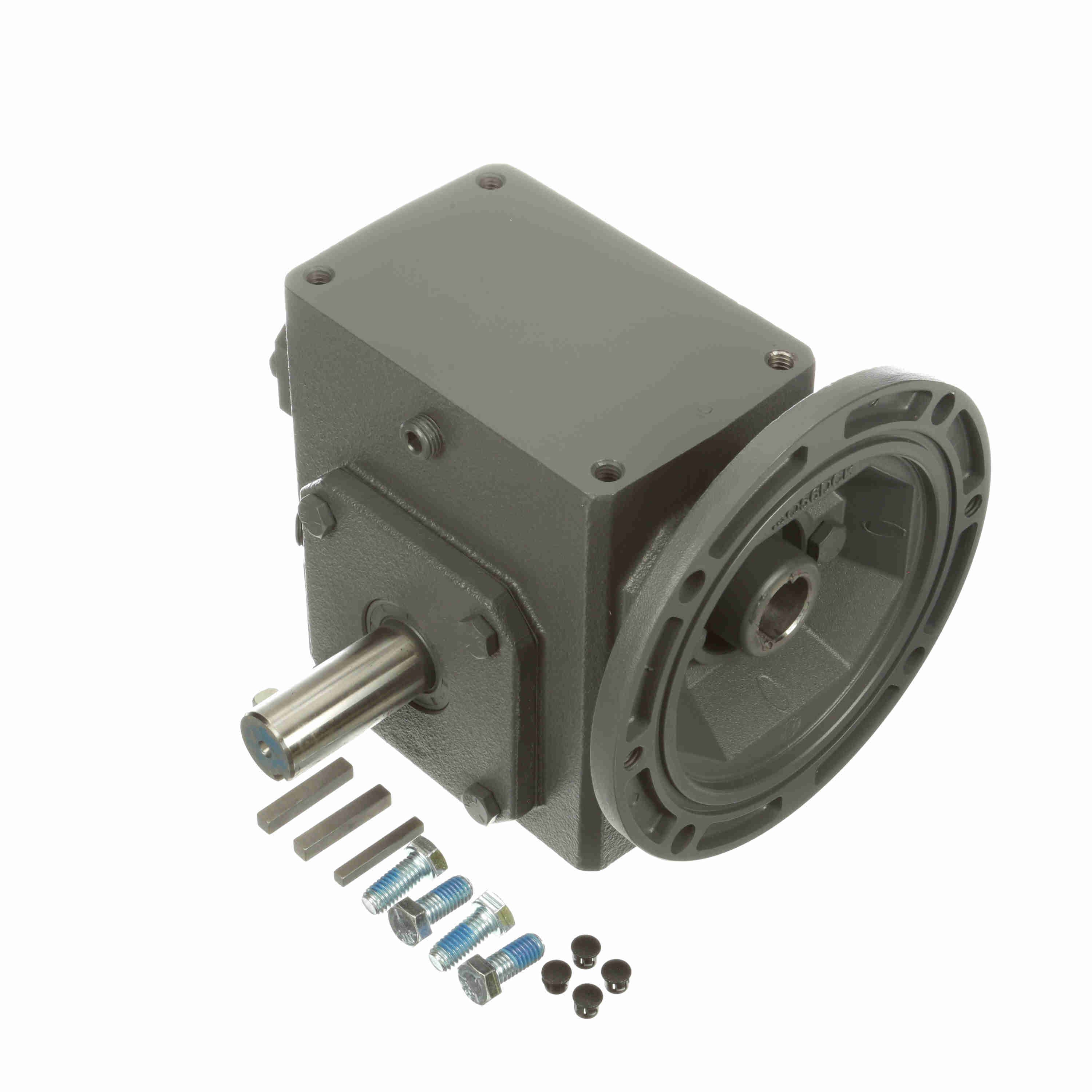

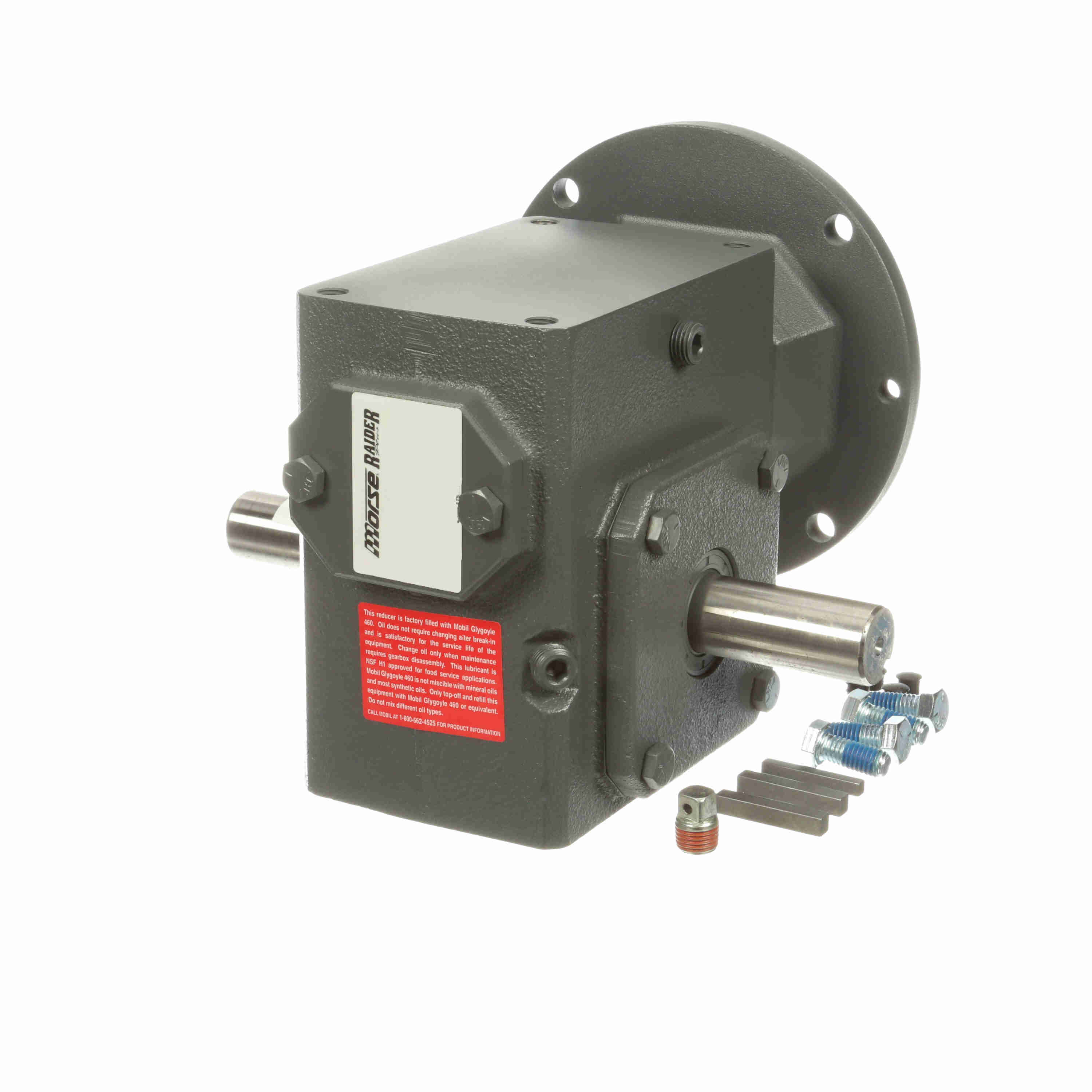

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 206Q56LR15
Part #:XE1114
Catalog #:206Q56LR15
KEY FEATURES
- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| N: | 4.69 | H: | 2.28 in |
| F: | 2.88 | J: | 5 in |
| R: | 3.25 in | P: | 4.34 in |
| M: | 7.07 | C: | 6.38 in |
| L: | 3.61 in | V: | 2.29 in |
| K: | 2.5 in | B: | 5.5 |
| D: | 2.28 | O: | 2 in |
| O*: | 2 in | T: | 1 |
| BE: | 0.38 in | G: | 1.44 |
| A: | 3.75 | I: | 3 in |
| E: | 2.5 | BD: | 6.5 |
| H-Tap size: | 3/8 - 16 in | Center Distance (in): | 2.06 in |
| LQ: | 4.75 in | AK: | 4.5 |
| TAP Depth: | 0.61 in | AJ: | 5.88 |
| BF: | 0.41 |
Technical Specifications
| Thrust Rating - output shaft: | 1820 | Input Bore (C Face): | 0.625 |
| Input Speed: | 1750 | Ratio: | 15:1 |
| Motor Frame Size: | 56C | Reducer Style: | Standard |
| Input Keyway (C Face): | 3/16 X 3/32 | Efficiency: | 80 |
| Shaft Seal Material: | Nitrile | Mounting Style: | No Base |
| Reducer: | Worm - Right Angle | Frame Size: | 56C |
| Ratio Range: | 15:1 | No. of Gear Reductions: | Single |
| Input HP @ 1750 RPM: | 1.64 | Series Code: | Raider |
| Service Factor: | 1 | Output Shaft Orientation: | LR |
| Output Key: | 1/4 X 1.75 | Center Distance (in): | 2.06 |
| Assembly: | Q-LR | Output Shaft Assembly Code: | D |
| Input Style: | C-Face Quill | Input Diameter (in): | 0.625 in |
| Output RPM: | 116.6 | Gear Type: | Worm |
| Output Diameter (in): | 1.000 in | Model Code: | 206Q |
| Input RPM: | 1,750 | Product Type: | Worm Speed Reducer |
| Output Shaft Direction: | Double | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1,078 lb |
| Output Torque Rating (in-lb): | 897 in-lbs @1750 input RPM in/lbs |
General Specifications
| UPC: | 662288346487 | Weight: | 27.02 LB |
| Packaged Length: | 15.10 IN | Packaged Width: | 11.60 IN |
| Packaged Height: | 11.90 IN |
