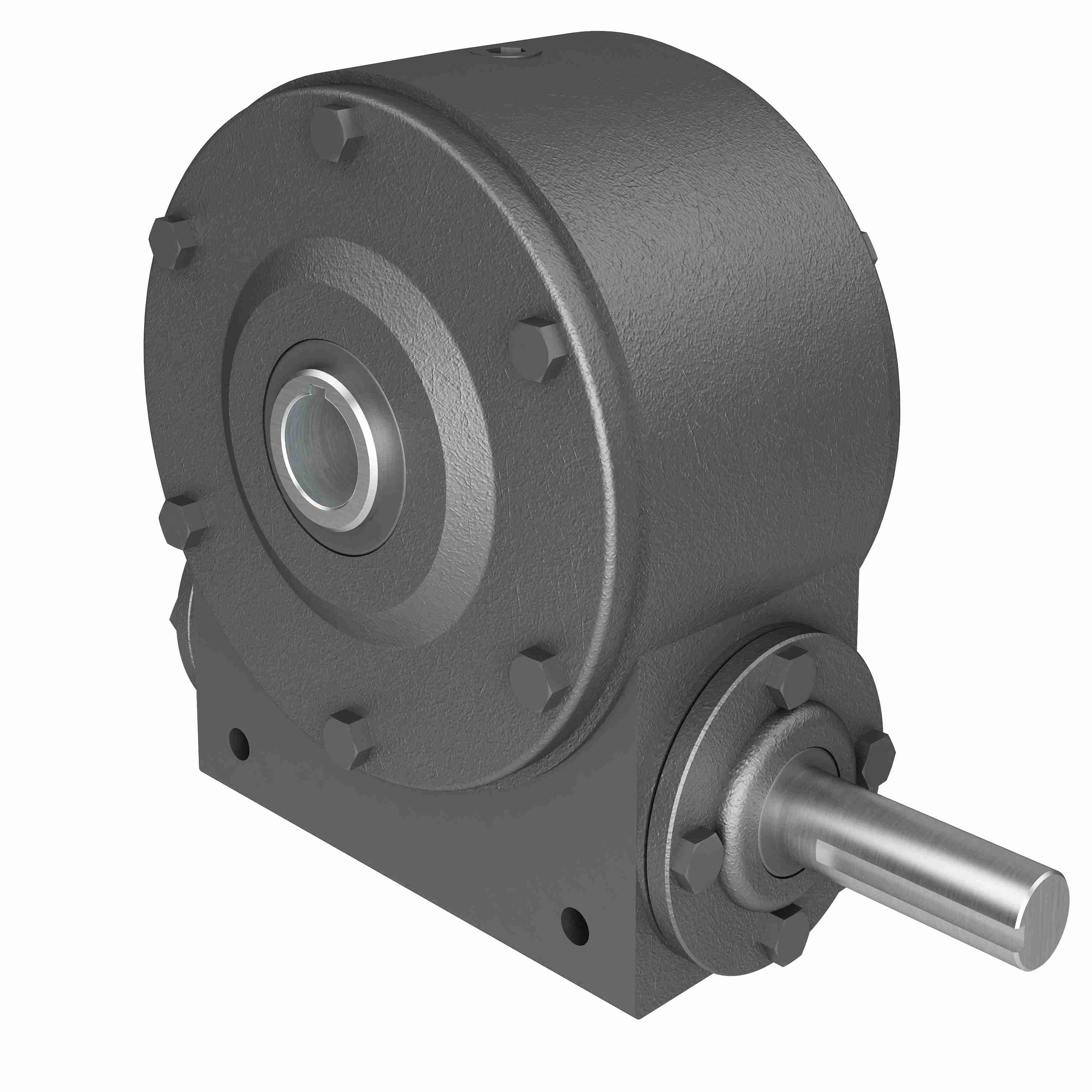

Hub City Century Series Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - W50B 8/1 A WR 1.250
Part #:0220-03001
Catalog #:W50B 8/1 A WR 1.250
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| M: | 3 | AD: | 5.38 |
| Center Distance (in): | 3.67 in | T: | 1.25 |
| D: | 1.94 | I: | 4.47 in |
| C: | 9.69 in | U: | 1 in |
| L: | 7.47 in | J: | 5.84 in |
| AG: | 5.75 |
Technical Specifications
| Product Type: | Right Angle | Product Line: | Worm Gear Drive |
| Output Diameter (in): | 1.250 in | Gear Type: | Worm |
| Style: | A | Input Diameter (in): | 1 in |
| Ratio: | 8:1 | Service Factor: | 1 |
| Output RPM: | 218 | Input HP: | 5.5 |
| Model Code: | W50B | Series Code: | W50B |
| Input HP @ 1750 RPM: | 5.5 | Series: | Hub City-Worm Gear Reducer |
| Mounting Style: | A | Output Key: | 1/4 X 3.00 |
| Input RPM: | 1,750 | Assembly: | W50B-A |
| Ratio Range: | 8:1 | No. of Gear Reductions: | Single |
| Center Distance (in): | 3.67 | Input Keyway: | 1/4 X 2.625 in |
| Keyway: | 1/4 x 1/8 | Input Style: | Solid Shaft |
| Reducer: | Worm - Right Angle | Output Shaft Assembly Code: | A |
| Output Shaft Direction: | L or R | Output Torque Rating (in-lb): | 1510 in/lbs |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
General Specifications
| UPC: | 662798006048 | Weight: | 55.00 LB |
| Packaged Length: | 13.25 IN | Packaged Width: | 12.50 IN |
| Packaged Height: | 7.50 IN |
