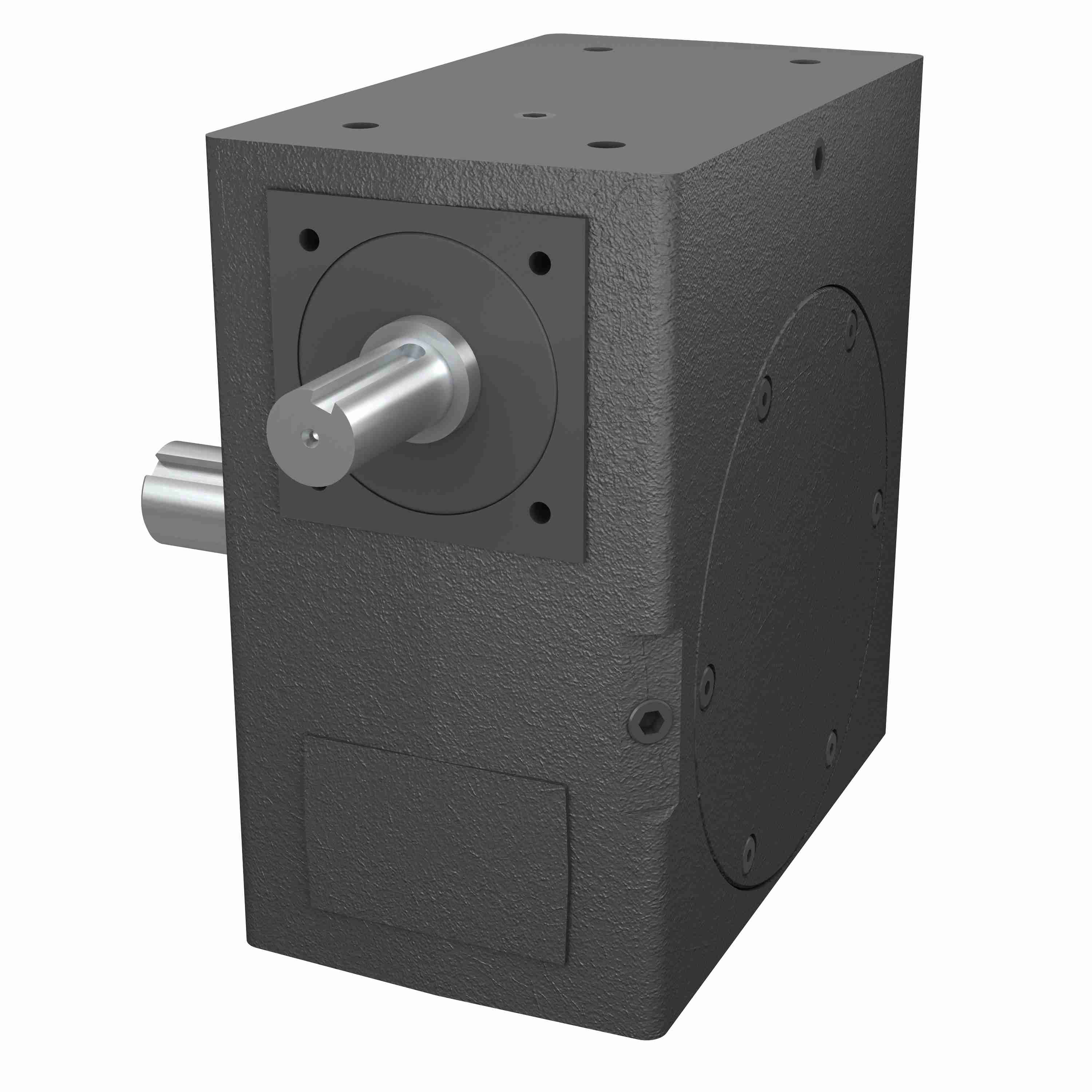

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 381L 50/1 B WR
Part #:0220-08278
Catalog #:381L 50/1 B WR
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Output RPM: | 35 | Service Factor: | 1 |
| Product Type: | Right Angle | Gear Type: | Worm |
| Input Diameter (in): | 1 in | Series Code: | 380L |
| Ratio: | 50:1 | Style: | B |
| Output Diameter (in): | 1.500 in | Model Code: | 381L |
| Product Line: | PAG Lubed PowerCube Worm Gear Drive | Input HP: | 3.37 |
| Center Distance (in): | 3.75 | Ratio Range: | 50:1 |
| Input Style: | Shaft | Output Shaft Direction: | Left |
| Output Shaft: | Shaft | Output Torque Rating (in-lb): | 4605 in/lbs |
| Housing Material: | Cast Iron |
General Specifications
| UPC: | 662798654256 | Weight: | 89.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 12.25 IN |
| Packaged Height: | 13.50 IN |
