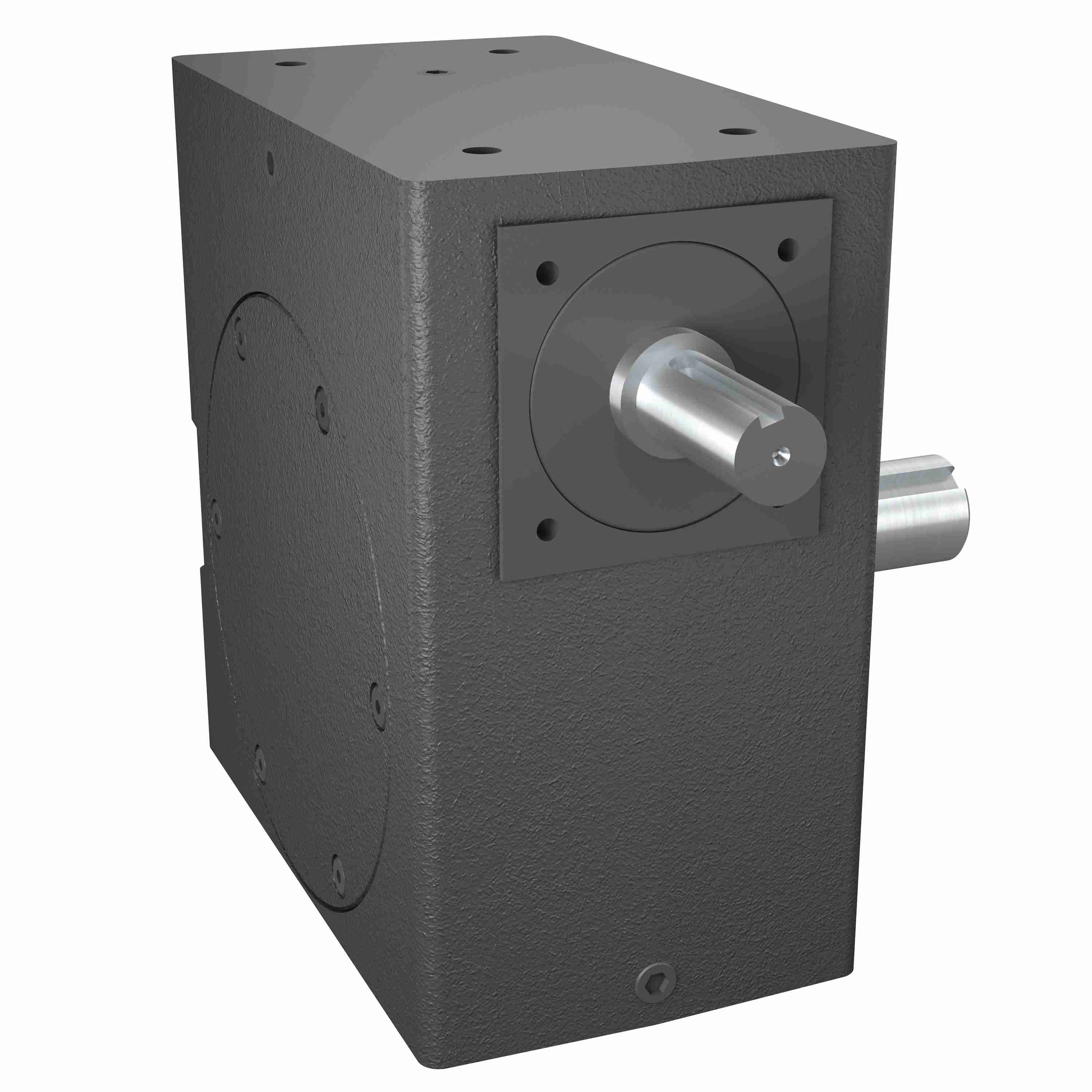

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 381L 20/1 C WR
Part #:0220-08283
Catalog #:381L 20/1 C WR
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Service Factor: | 1 | Gear Type: | Worm |
| Style: | C | Input Diameter (in): | 1 in |
| Series Code: | 380L | Output Diameter (in): | 1.500 in |
| Product Type: | Right Angle | Output RPM: | 87.5 |
| Product Line: | PAG Lubed PowerCube Worm Gear Drive | Input HP: | 7.44 |
| Ratio: | 20:1 | Model Code: | 381L |
| Ratio Range: | 20:1 | Center Distance (in): | 3.75 |
| Input Style: | Shaft | Output Shaft Direction: | Right |
| Output Torque Rating (in-lb): | 4727 in/lbs | Output Shaft: | Shaft |
| Housing Material: | Cast Iron |
General Specifications
| UPC: | 662798654300 | Weight: | 89.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 12.25 IN |
| Packaged Height: | 13.50 IN |
