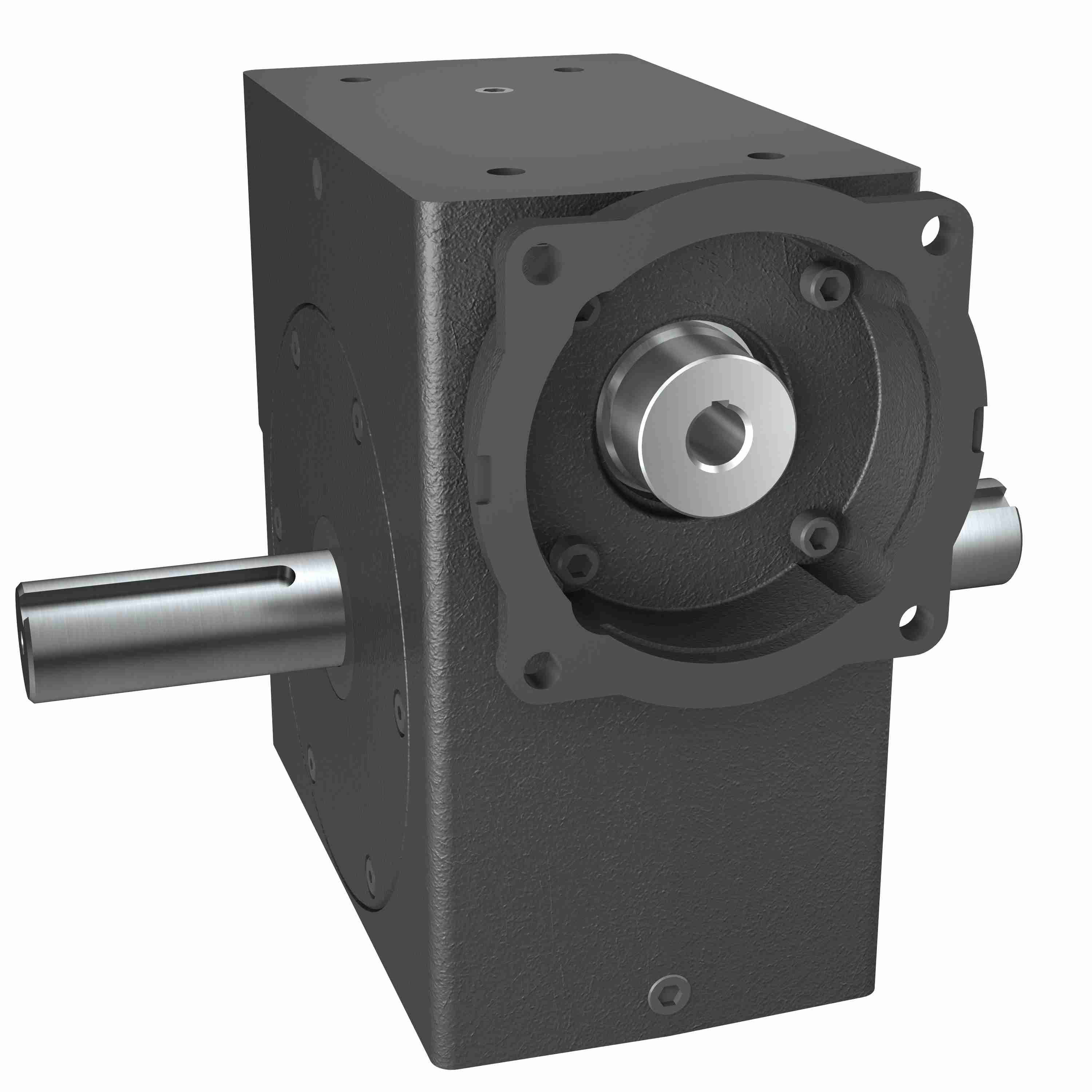

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 384L 5/1 A WR 56C
Part #:0220-08352
Catalog #:384L 5/1 A WR 56C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Ratio: | 5:1 | Input Diameter (in): | 0.625 in |
| Service Factor: | 1 | Output Diameter (in): | 1.500 in |
| Product Line: | PAG Lubed PowerCube Worm Gear Drive | Input HP: | 20 |
| Series Code: | 380L | Output RPM: | 350 |
| Model Code: | 384L | Gear Type: | Worm |
| Frame Size: | 56C | Product Type: | Right Angle |
| Style: | A | Input Style: | C-Face Quill |
| Output Shaft Orientation: | LR | Motor Frame Size: | 56C |
| Ratio Range: | 5:1 | Center Distance (in): | 3.75 |
| Output Shaft Direction: | Double | Output Torque Rating (in-lb): | 3435 in/lbs |
| Output Shaft: | Shaft | Housing Material: | Cast Iron |
General Specifications
| UPC: | 662798654997 | Weight: | 94.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 12.25 IN |
| Packaged Height: | 13.50 IN |
