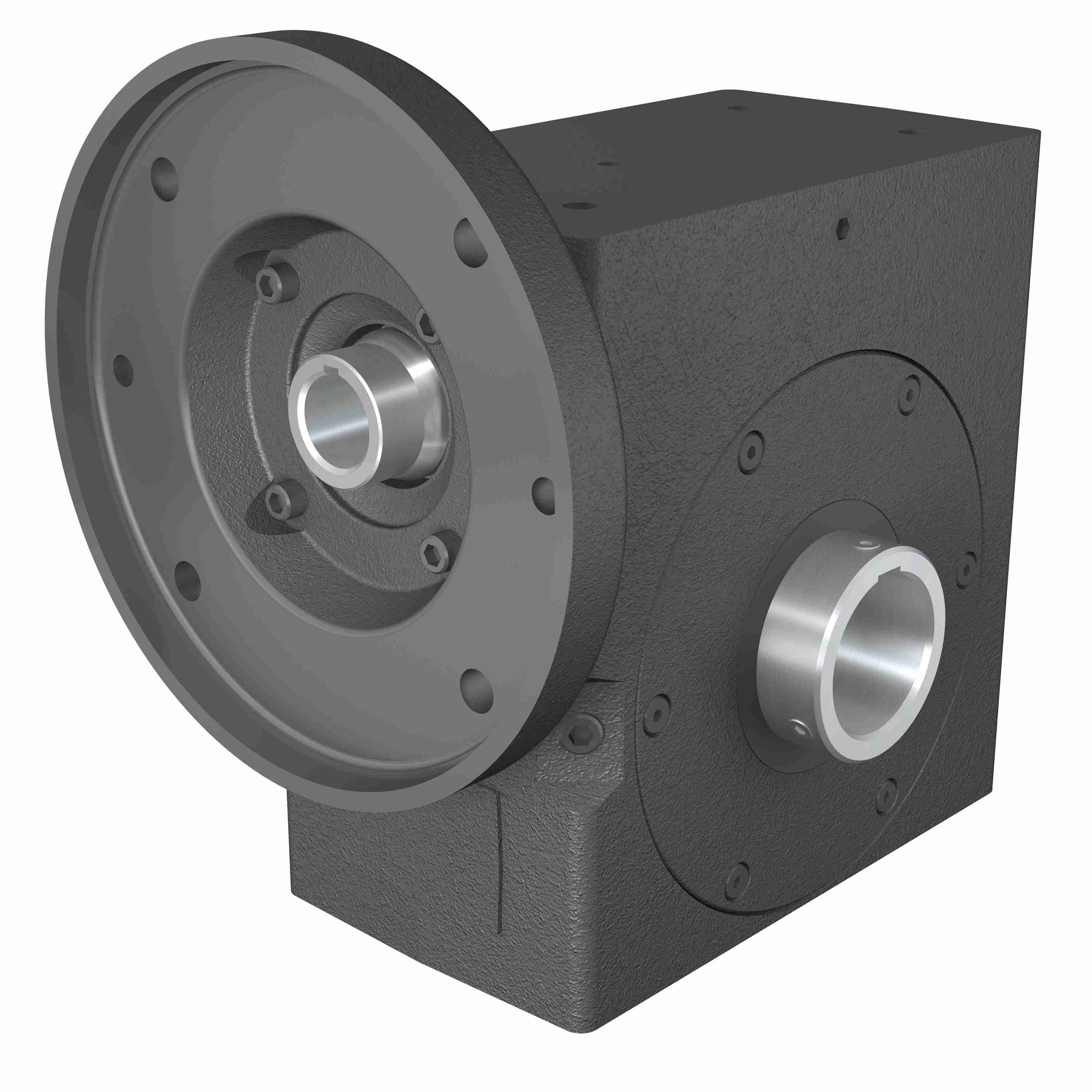

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 385L 30/1 B WR 182TC 2.000
Part #:0220-08604
Catalog #:385L 30/1 B WR 182TC 2.000
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Input Diameter (in): | 1.125 in | Product Type: | Right Angle |
| Product Line: | PAG Lubed PowerCube Worm Gear Drive | Model Code: | 385L |
| Frame Size: | 180TC | Style: | B |
| Output Diameter (in): | 2.000 in | Output RPM: | 58.3 |
| Series Code: | 380L | Service Factor: | 1 |
| Gear Type: | Worm | Ratio: | 30:1 |
| Input HP: | 5 | Center Distance (in): | 3.75 |
| Input Style: | C-Face Quill | Ratio Range: | 30:1 |
| Motor Frame Size: | 180TC | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 4440 in/lbs |
General Specifications
| UPC: | 662798657516 | Weight: | 92.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 12.25 IN |
| Packaged Height: | 13.50 IN |
