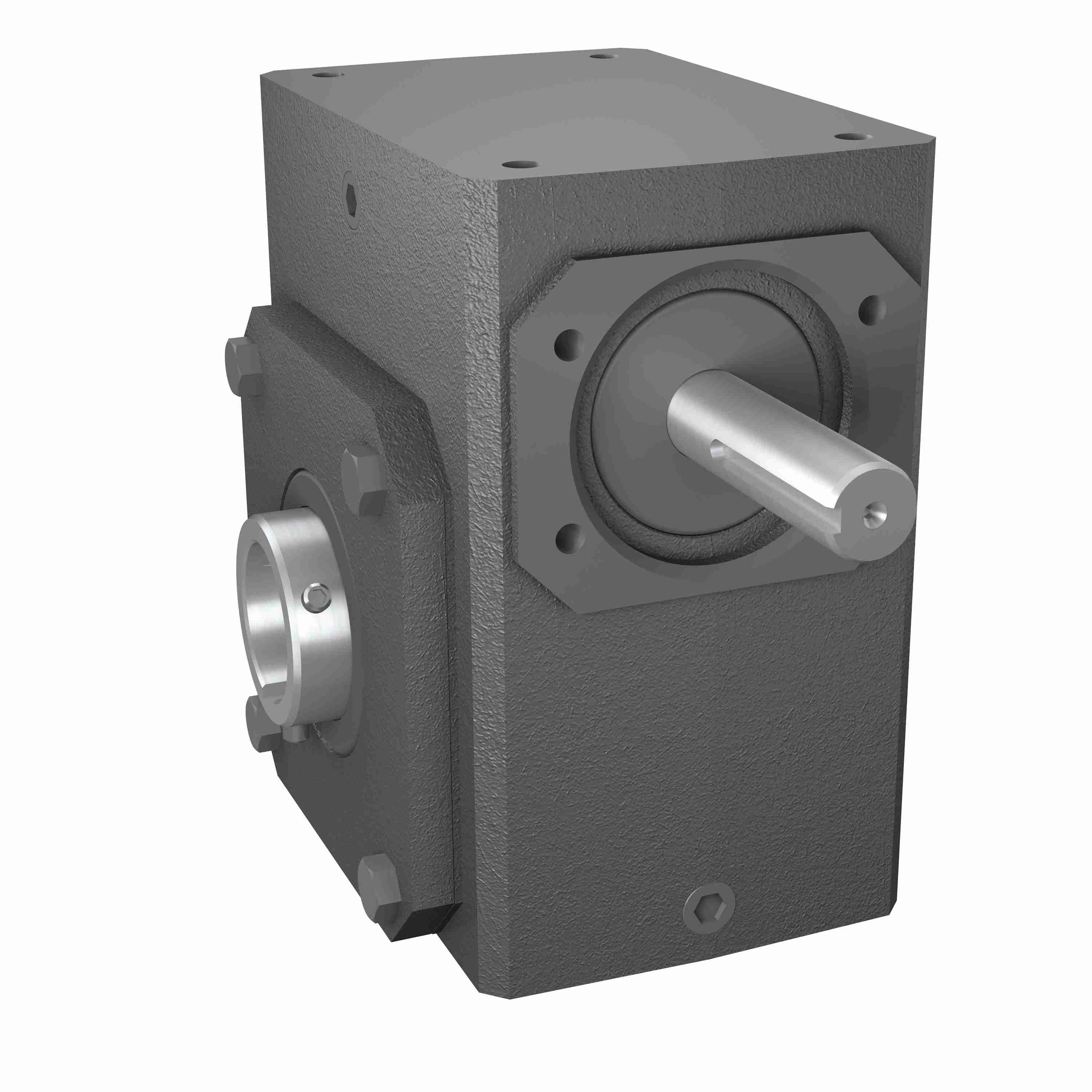

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 242 10/1 A WR 1.125
Part #:0230-04401
Catalog #:242 10/1 A WR 1.125
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Output Diameter (in): | 1.125 in |
| Input HP: | 3.69 | Service Factor: | 1 |
| Gear Type: | Worm | Series Code: | W240PCX |
| Model Code: | 242 | Style: | A |
| Output RPM: | 175 | Ratio: | 10:1 |
| Product Type: | RIGHT ANGLE | Input Diameter (in): | 0.75 in |
| Input Style: | Shaft | Ratio Range: | 10:1 |
| Center Distance (in): | 2.38 | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 1123 in/lbs |
General Specifications
| UPC: | 662798899909 | Weight: | 37.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
