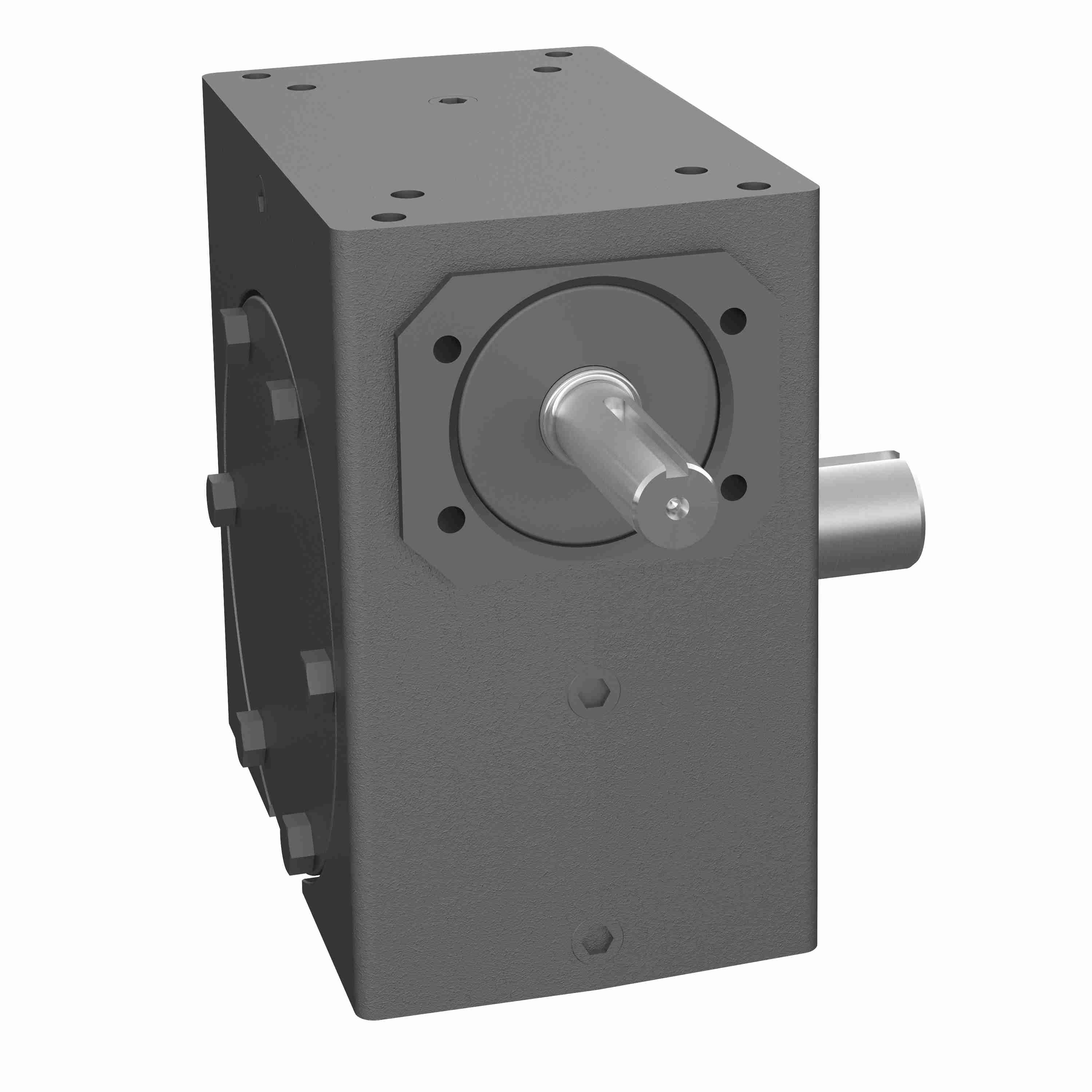

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 261 80/1 C WR
Part #:0230-06985
Catalog #:261 80/1 C WR
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | RIGHT ANGLE | Output Diameter (in): | 1.250 in |
| Gear Type: | Worm | Output RPM: | 21.9 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Input HP: | 0.67 |
| Style: | C | Service Factor: | 1 |
| Model Code: | 261 | Ratio: | 80:1 |
| Series Code: | 260PCX | Input Diameter (in): | 0.75 in |
| Center Distance (in): | 2.63 | Ratio Range: | 80:1 |
| Input Style: | Shaft | No. of Gear Reductions: | 1 |
| Output Shaft Direction: | Right | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 1212 in/lbs | Output Shaft: | Shaft |
General Specifications
| UPC: | 662798958842 | Weight: | 37.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
