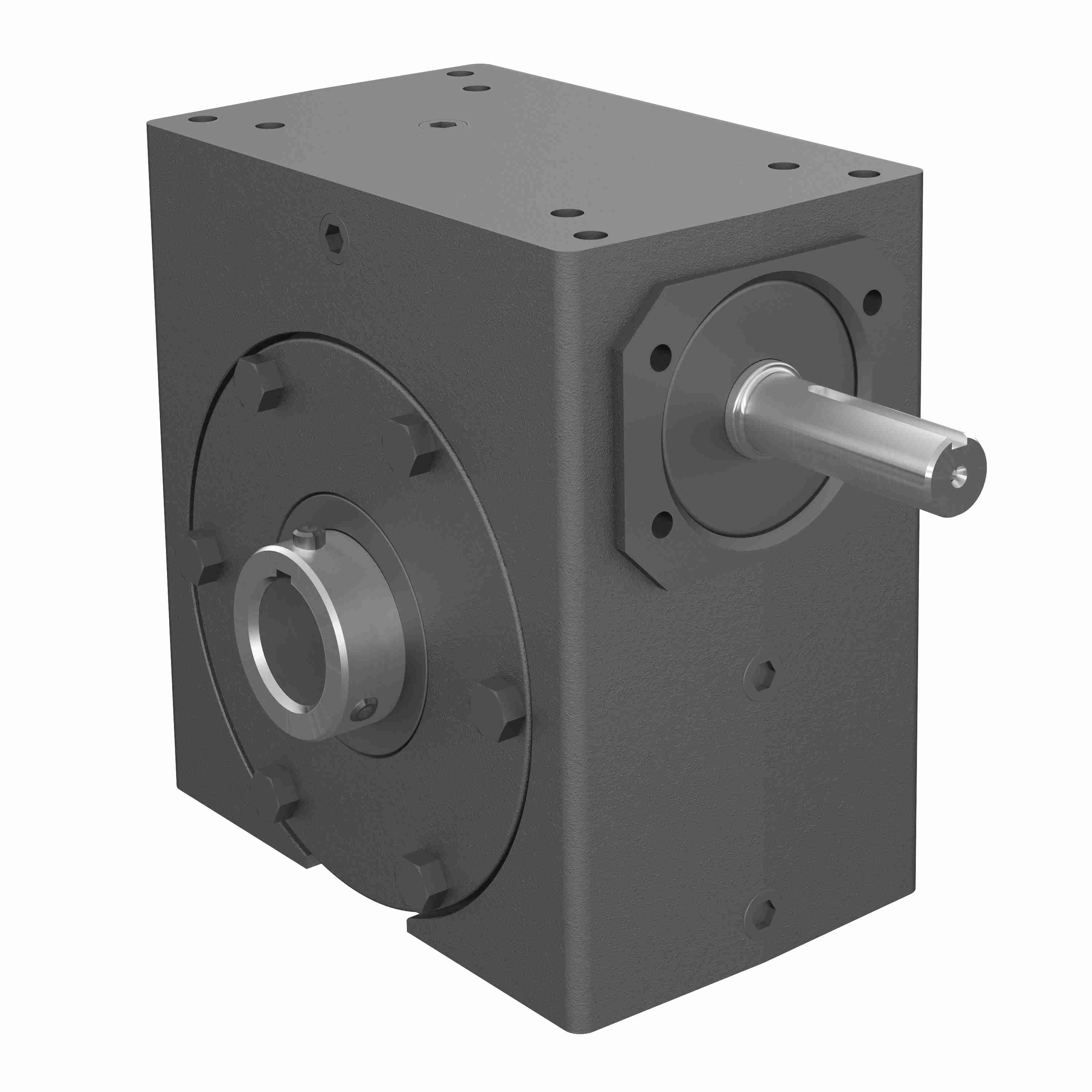

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 262 25/1 A WR 1.438
Part #:0230-07028
Catalog #:262 25/1 A WR 1.438
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Model Code: | 262 |
| Output Diameter (in): | 1.438 in | Ratio: | 25:1 |
| Product Type: | RIGHT ANGLE | Series Code: | 260PCX |
| Gear Type: | Worm | Style: | A |
| Output RPM: | 70 | Input Diameter (in): | 0.75 in |
| Input HP: | 2.31 | Service Factor: | 1 |
| Input Style: | Shaft | Ratio Range: | 25:1 |
| Center Distance (in): | 2.63 | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 1640 in/lbs | Output Shaft: | Hollow Bore |
General Specifications
| UPC: | 662798959276 | Weight: | 37.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
