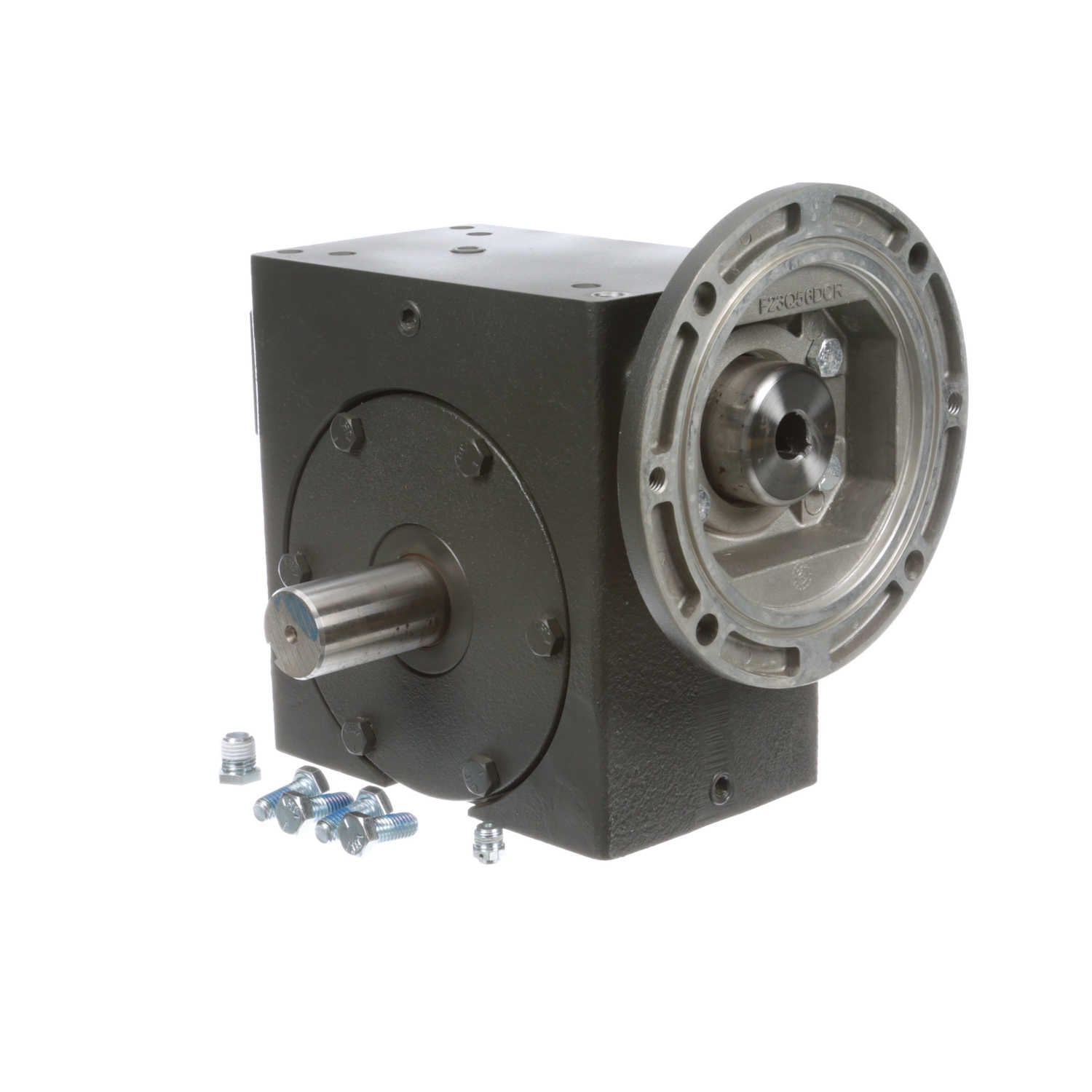

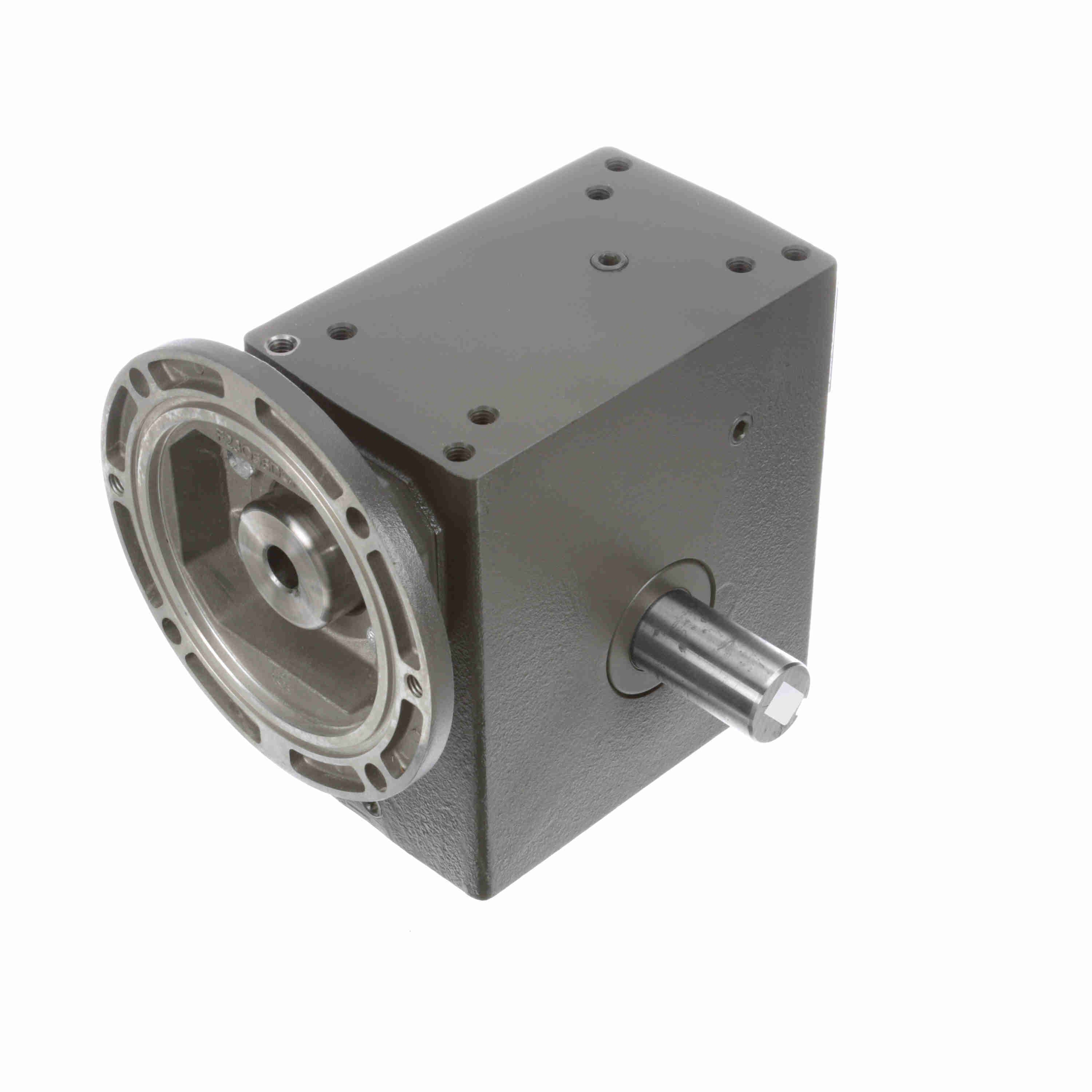

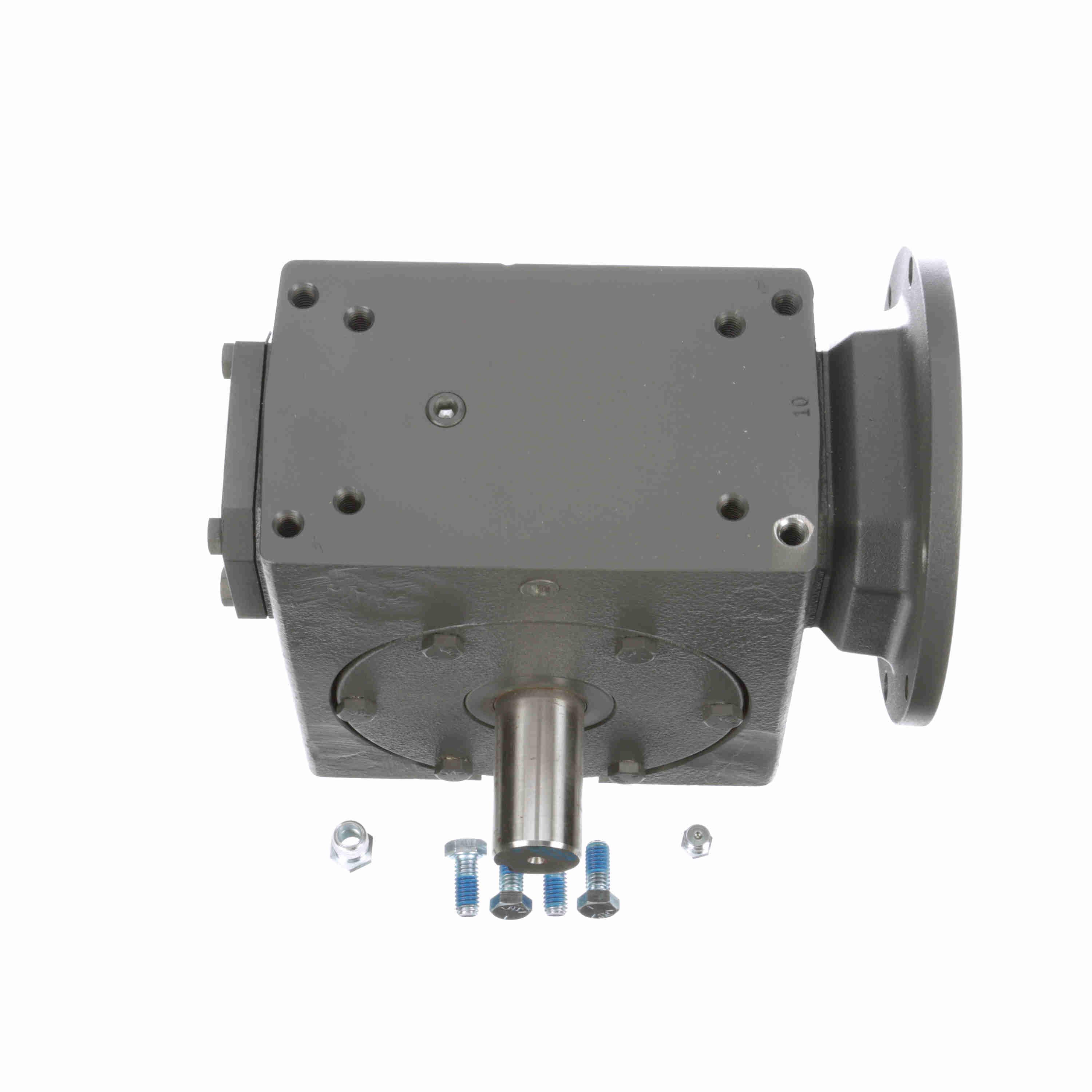

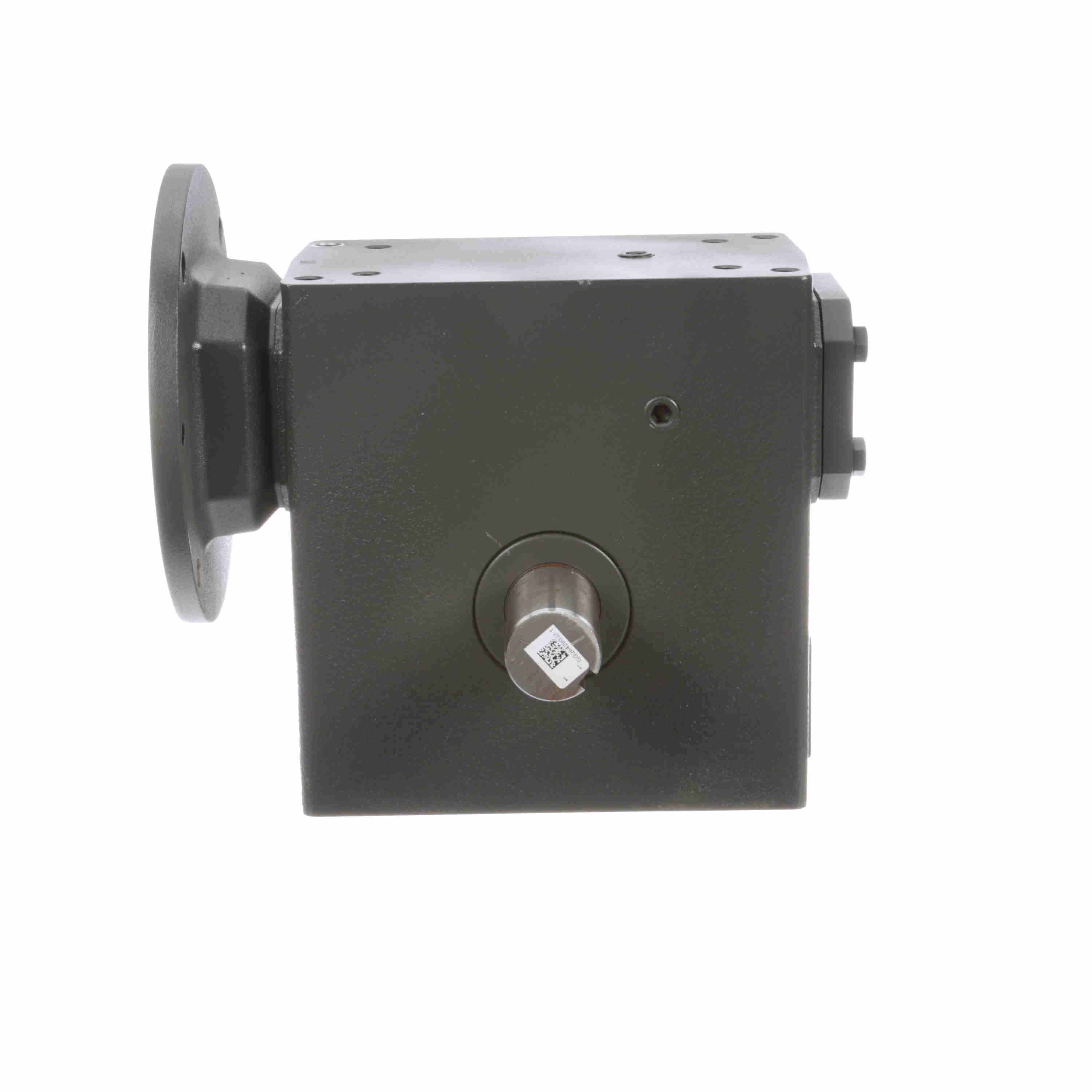

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 264 100/1 B WR 143TC
Part #:0230-07226
Catalog #:264 100/1 B WR 143TC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Ratio: | 100:1 | Gear Type: | Worm |
| Frame Size: | 140TC | Service Factor: | 1 |
| Input HP: | 0.45 | Output RPM: | 17.5 |
| Product Type: | RIGHT ANGLE | Style: | B |
| Output Diameter (in): | 1.250 in | Product Line: | POWERCUBEX WORM GEAR DRIVE |
| Series Code: | 260PCX | Model Code: | 264 |
| Input Diameter (in): | 0.875 in | Motor Frame Size: | 140TC |
| Ratio Range: | 100:1 to 250:1 | No. of Gear Reductions: | 1 |
| Input Style: | C-Face Quill | Center Distance (in): | 2.63 |
| Output Shaft Direction: | Left | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 945 in/lbs | Output Shaft: | Shaft |
General Specifications
| UPC: | 662798961255 | Weight: | 38.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
