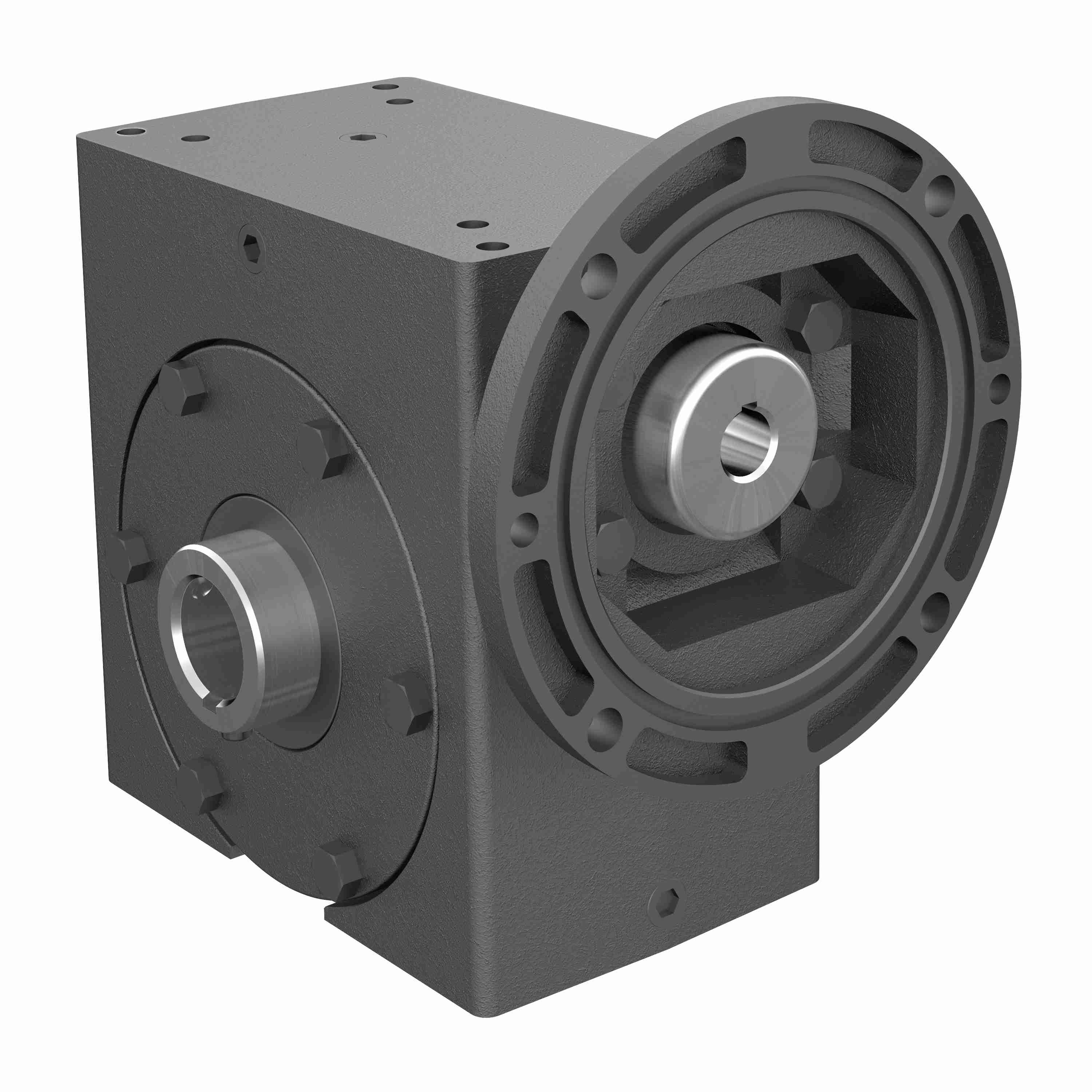

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 265 80/1 A WR 56C 1.000
Part #:0230-07285
Catalog #:265 80/1 A WR 56C 1.000
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Service Factor: | 1 | Style: | A |
| Input Diameter (in): | 0.625 in | Output RPM: | 21.9 |
| Frame Size: | 56C | Series Code: | 260PCX |
| Product Type: | RIGHT ANGLE | Output Diameter (in): | 1.000 in |
| Gear Type: | Worm | Product Line: | POWERCUBEX WORM GEAR DRIVE |
| Ratio: | 80:1 | Model Code: | 265 |
| Input HP: | 0.67 | Motor Frame Size: | 56C |
| Center Distance (in): | 2.63 | Input Style: | C-Face Quill |
| Ratio Range: | 80:1 | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 1212 in/lbs |
General Specifications
| UPC: | 662961755650 | Weight: | 38.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
