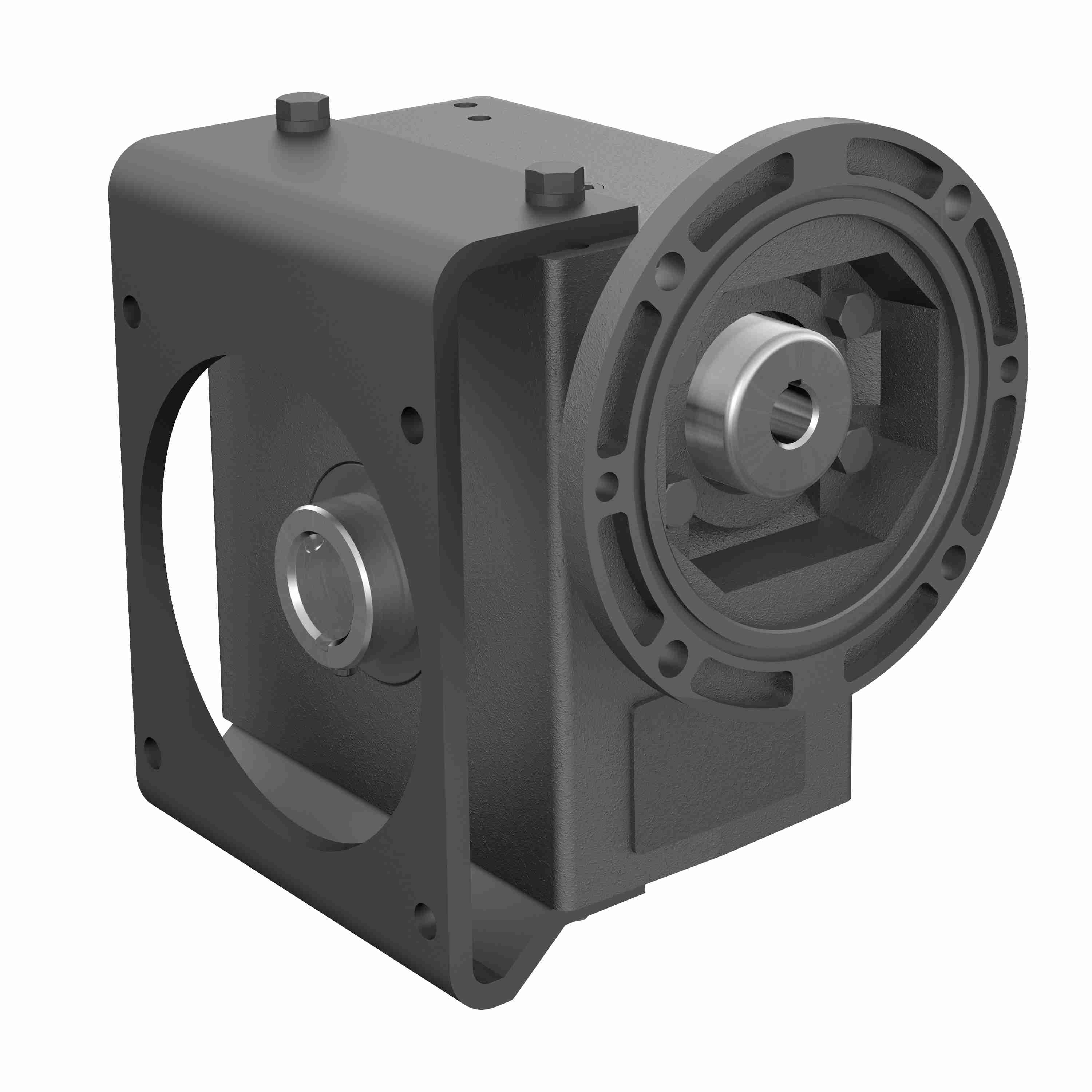

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 266 60/1 L WR 56C 1.250
Part #:0230-07488
Catalog #:266 60/1 L WR 56C 1.250
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Ratio: | 60:1 |
| Output Diameter (in): | 1.250 in | Style: | L |
| Series Code: | 260PCX | Model Code: | 266 |
| Product Type: | RIGHT ANGLE | Input Diameter (in): | 0.625 in |
| Output RPM: | 29.2 | Input HP: | 1.03 |
| Service Factor: | 1 | Gear Type: | Worm |
| Frame Size: | 56C | Input Style: | C-Face Quill |
| Motor Frame Size: | 56C | Center Distance (in): | 2.63 |
| Ratio Range: | 60:1 | Output Torque Rating (in-lb): | 1493 in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
General Specifications
| UPC: | 662961816351 | Weight: | 43.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
