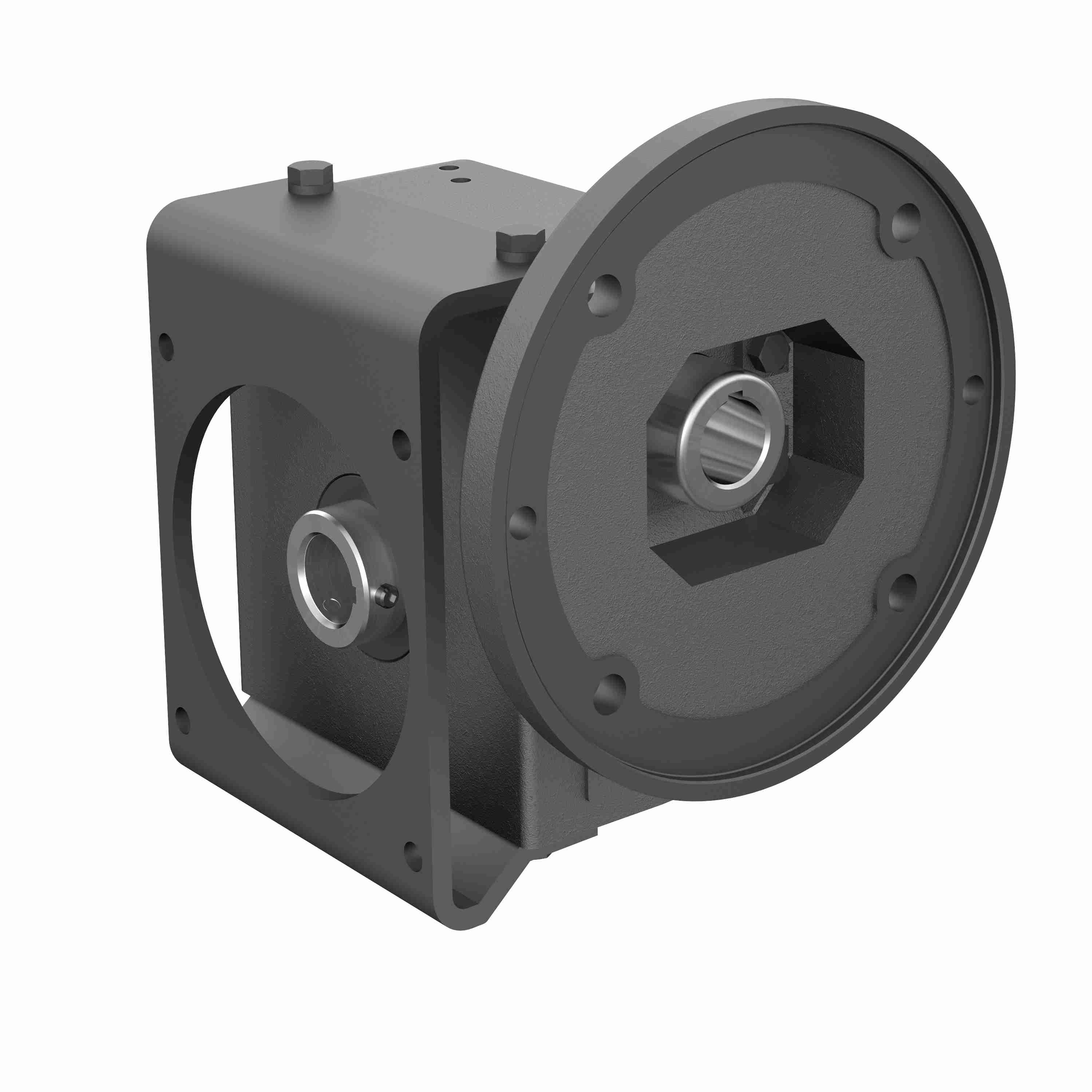

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 266 25/1 L WR 182TC 1.500
Part #:0230-07628
Catalog #:266 25/1 L WR 182TC 1.500
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Output Diameter (in): | 1.500 in | Gear Type: | Worm |
| Frame Size: | 180TC | Input Diameter (in): | 1.125 in |
| Input HP: | 2.31 | Series Code: | 260PCX |
| Model Code: | 266 | Output RPM: | 70 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Service Factor: | 1 |
| Style: | L | Product Type: | RIGHT ANGLE |
| Ratio: | 25:1 | Input Style: | C-Face Quill |
| Ratio Range: | 25:1 | Motor Frame Size: | 180TC |
| Center Distance (in): | 2.63 | Output Torque Rating (in-lb): | 1640 in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
General Specifications
| Weight: | 43.00 LB | Packaged Length: | 12.00 IN |
| Packaged Width: | 10.00 IN | Packaged Height: | 11.00 IN |
