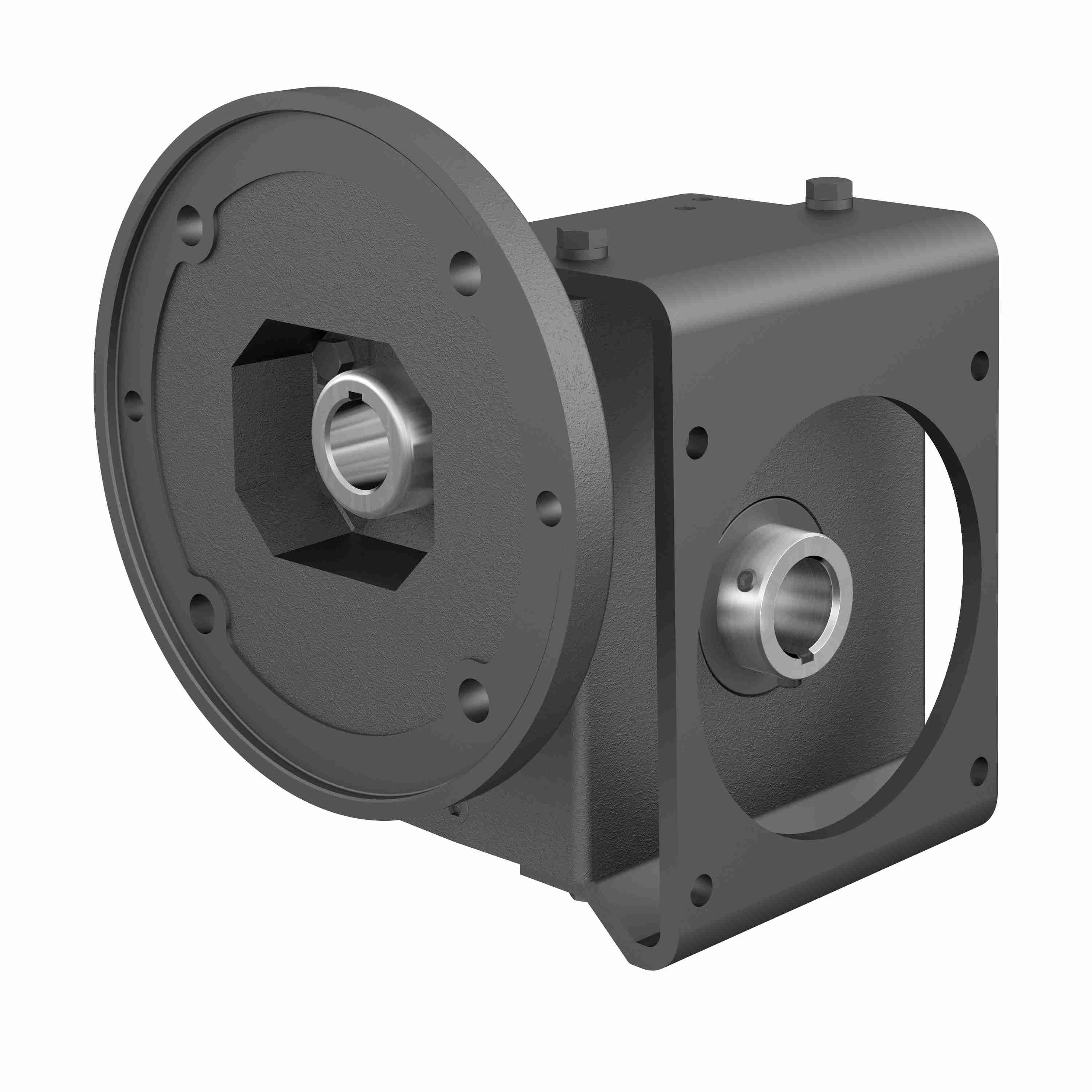

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 266 25/1 R WR 182TC 1.188
Part #:0230-07772
Catalog #:266 25/1 R WR 182TC 1.188
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Style: | R | Service Factor: | 1 |
| Product Type: | RIGHT ANGLE | Input Diameter (in): | 1.125 in |
| Output Diameter (in): | 1.188 in | Series Code: | 260PCX |
| Model Code: | 266 | Frame Size: | 180TC |
| Output RPM: | 70 | Input HP: | 2.31 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Ratio: | 25:1 |
| Gear Type: | Worm | Input Style: | C-Face Quill |
| Ratio Range: | 25:1 | Center Distance (in): | 2.63 |
| Motor Frame Size: | 180TC | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 1640 in/lbs | Output Shaft: | Hollow Bore |
General Specifications
| UPC: | 662961817556 | Weight: | 43.00 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 10.00 IN |
| Packaged Height: | 11.00 IN |
