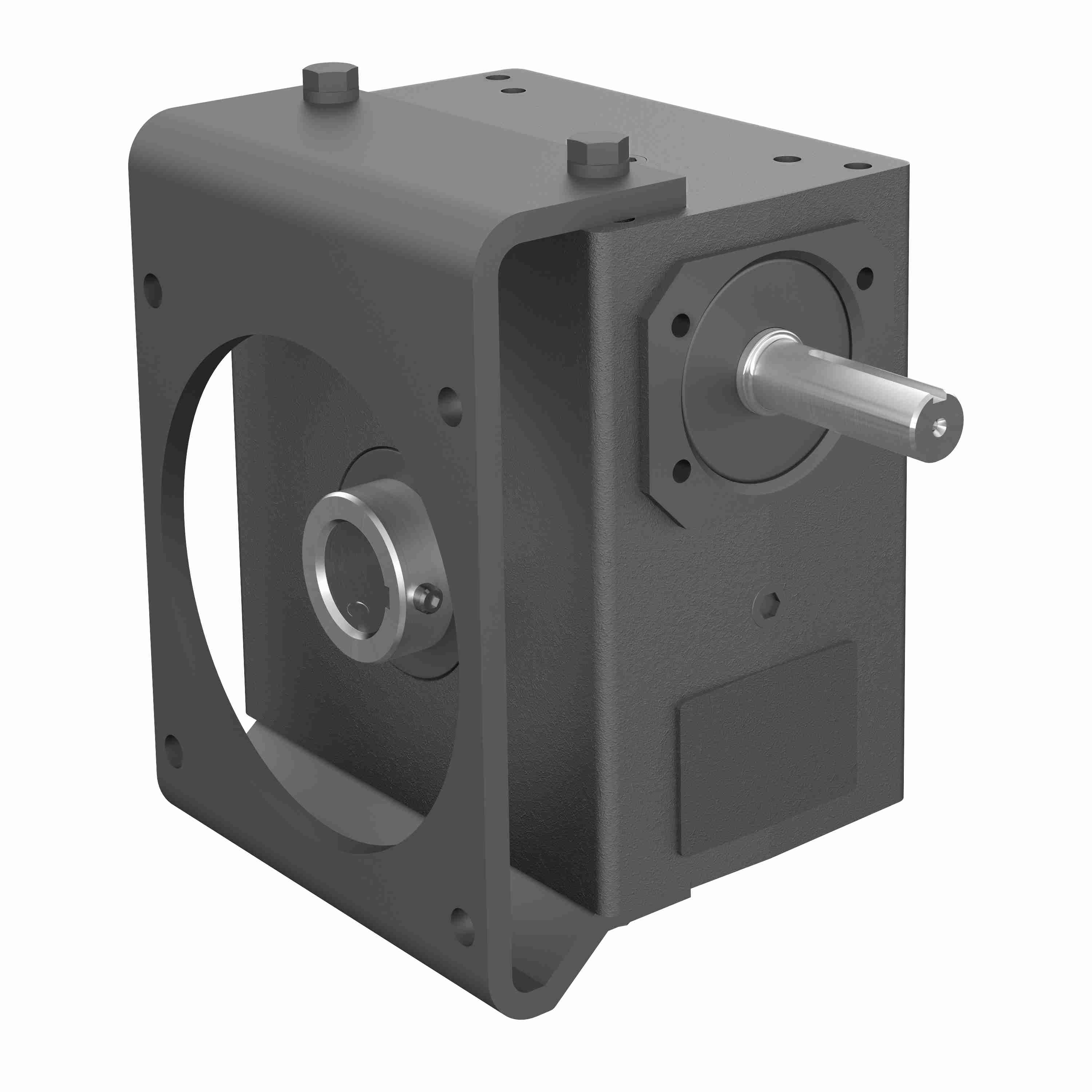

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 263L 10/1 L WR 1.000
Part #:0230-07913
Catalog #:263L 10/1 L WR 1.000
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Style: | L | Ratio: | 10:1 |
| Model Code: | 263L | Output Diameter (in): | 1.000 in |
| Gear Type: | Worm | Output RPM: | 175 |
| Input HP: | 5 | Product Type: | RIGHT ANGLE |
| Series Code: | 260LPCX | Service Factor: | 1 |
| Product Line: | PAG LUBED POWERCUBEX WORM GEAR DRIVE | Input Diameter (in): | 0.75 in |
| Ratio Range: | 10:1 | Center Distance (in): | 2.63 |
| Input Style: | Shaft | Output Torque Rating (in-lb): | 1623 in/lbs |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
General Specifications
| Weight: | 46.00 LB | Packaged Length: | 12.00 IN |
| Packaged Width: | 10.00 IN | Packaged Height: | 11.00 IN |
