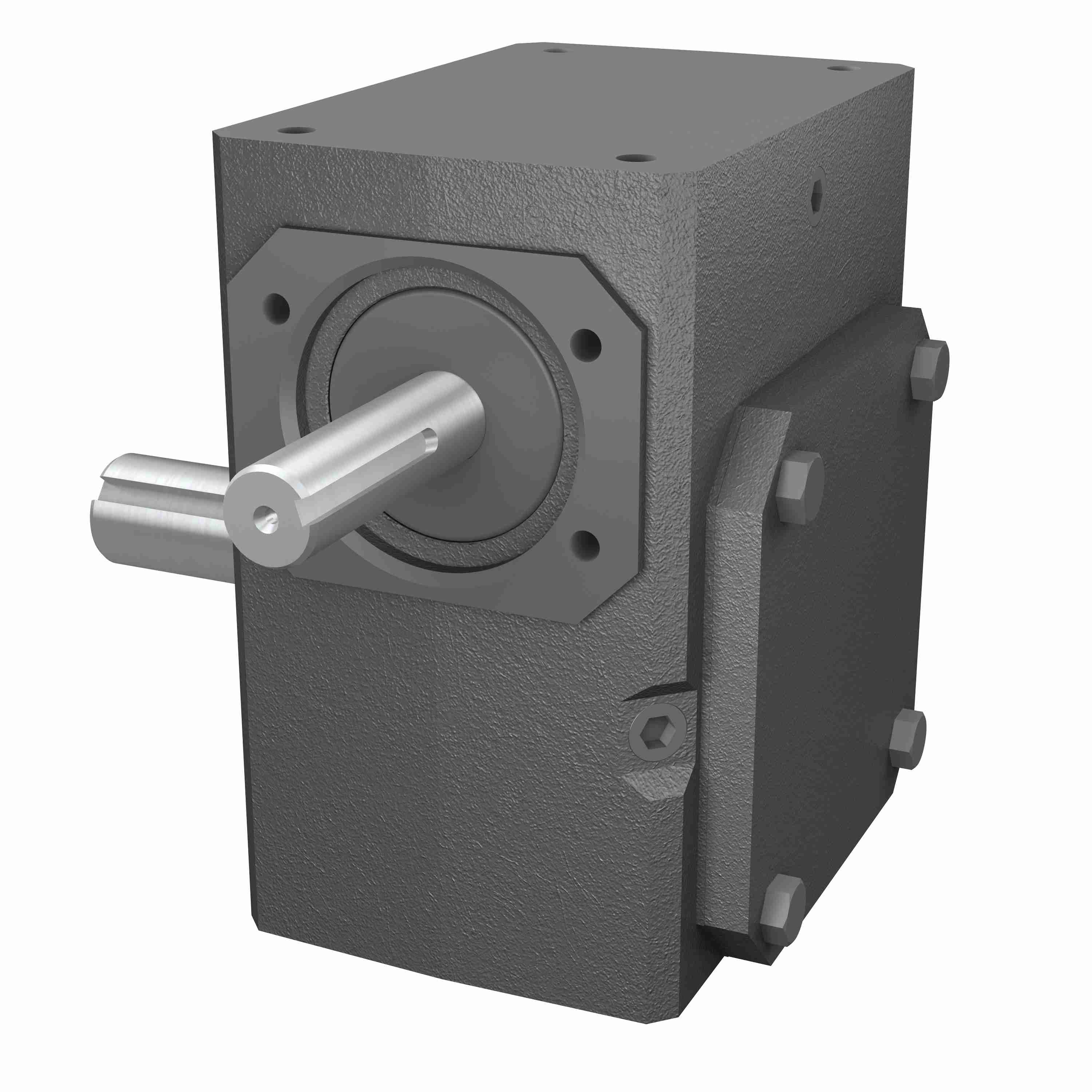

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 301 7.5/1 B WR
Part #:0230-08714
Catalog #:301 7.5/1 B WR
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Style: | B | Ratio: | 7.5:1 |
| Model Code: | 301 | Output RPM: | 233 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Gear Type: | Worm |
| Service Factor: | 1 | Input HP: | 6.33 |
| Output Diameter (in): | 1.250 in | Product Type: | RIGHT ANGLE |
| Input Diameter (in): | 0.875 in | Series Code: | 300PCX |
| Input Style: | Shaft | Ratio Range: | 7.5:1 |
| Center Distance (in): | 3 | Output Shaft Direction: | Left |
| Output Torque Rating (in-lb): | 1471 in/lbs | Output Shaft: | Shaft |
| Housing Material: | Cast Iron |
General Specifications
| Weight: | 57.00 LB | Packaged Length: | 12.00 IN |
| Packaged Width: | 10.00 IN | Packaged Height: | 11.00 IN |
