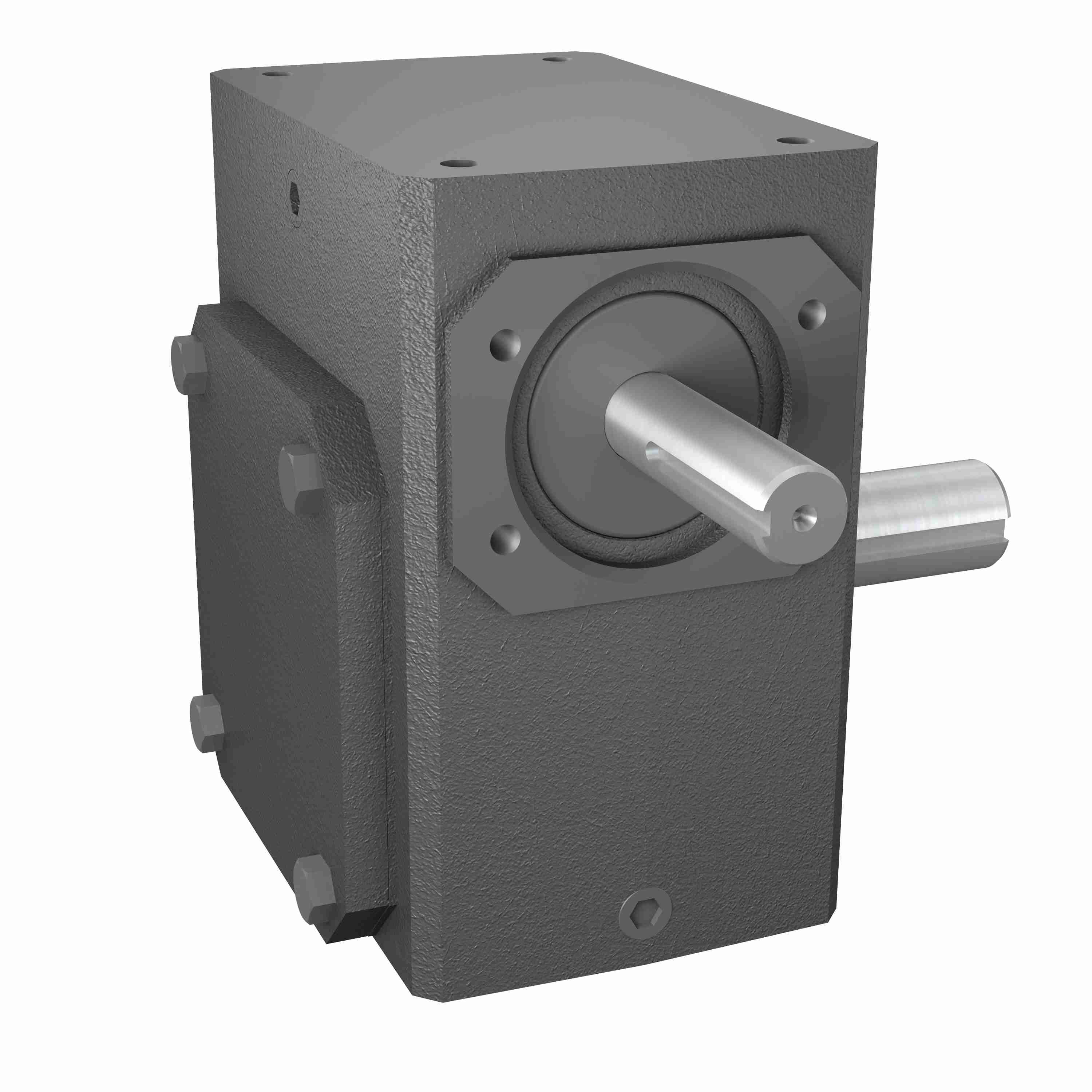

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 301 100/1 C WR
Part #:0230-08736
Catalog #:301 100/1 C WR
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Style: | C | Gear Type: | Worm |
| Ratio: | 100:1 | Output Diameter (in): | 1.250 in |
| Model Code: | 301 | Product Type: | RIGHT ANGLE |
| Series Code: | 300PCX | Input Diameter (in): | 0.875 in |
| Output RPM: | 17.5 | Service Factor: | 1 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Input HP: | 0.7 |
| Ratio Range: | 100:1 to 250:1 | Input Style: | Shaft |
| Center Distance (in): | 3 | Output Shaft Direction: | Right |
| Housing Material: | Cast Iron | Output Shaft: | Shaft |
| Output Torque Rating (in-lb): | 1466 in/lbs |
General Specifications
| Weight: | 57.00 LB | Packaged Length: | 12.00 IN |
| Packaged Width: | 10.00 IN | Packaged Height: | 11.00 IN |
