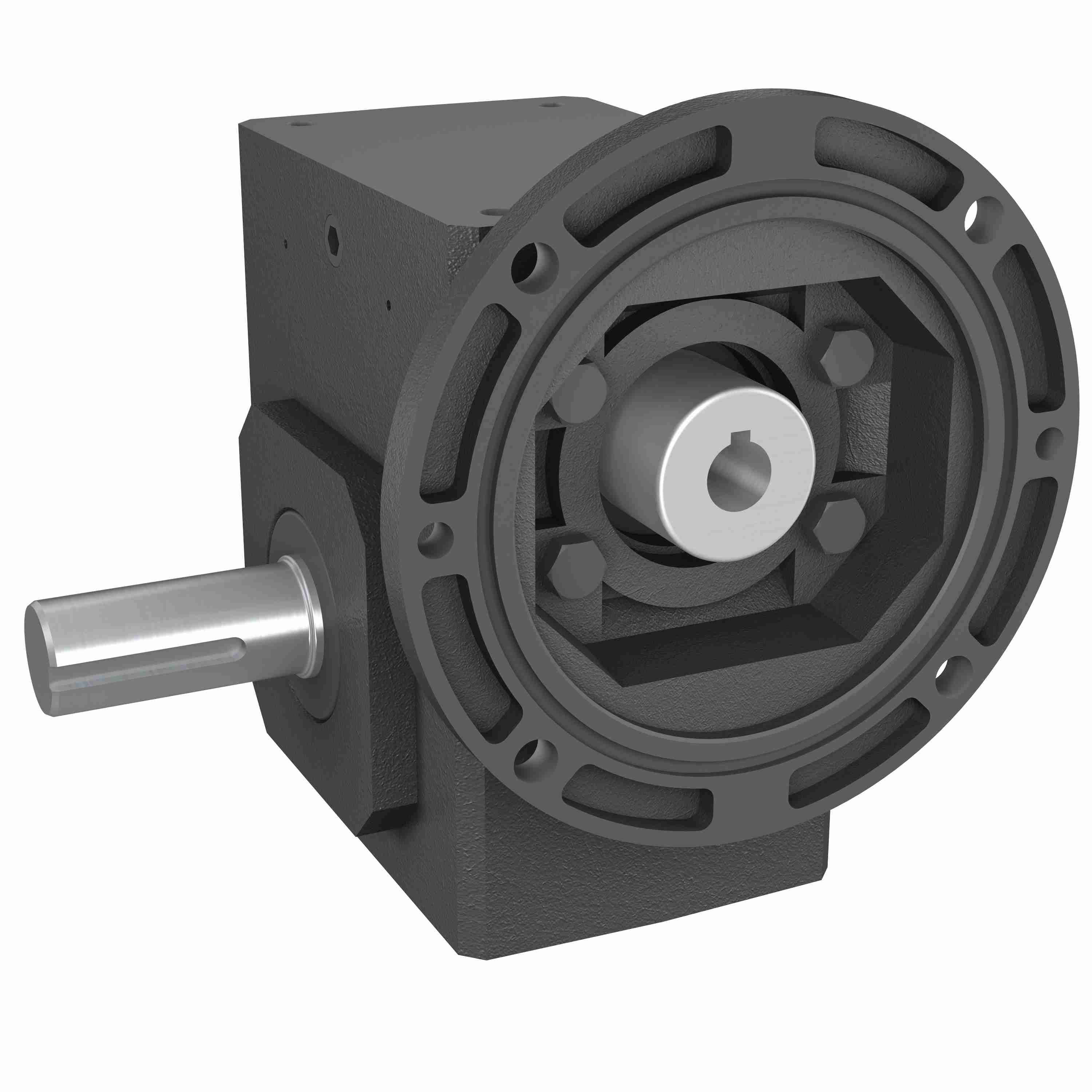

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 304 10/1 B WR 143TC
Part #:0230-09327
Catalog #:304 10/1 B WR 143TC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Output RPM: | 175 | Input Diameter (in): | 0.875 in |
| Model Code: | 304 | Product Type: | RIGHT ANGLE |
| Gear Type: | Worm | Input HP: | 5.79 |
| Series Code: | 300PCX | Product Line: | POWERCUBEX WORM GEAR DRIVE |
| Ratio: | 10:1 | Service Factor: | 1 |
| Style: | B | Output Diameter (in): | 1.250 in |
| Frame Size: | 140TC | Input Style: | C-Face Quill |
| Ratio Range: | 10:1 | Center Distance (in): | 3 |
| Motor Frame Size: | 140TC | Output Shaft Direction: | Left |
| Output Torque Rating (in-lb): | 1774 in/lbs | Output Shaft: | Shaft |
| Housing Material: | Cast Iron |
General Specifications
| Weight: | 61.00 LB | Packaged Length: | 14.00 IN |
| Packaged Width: | 12.25 IN | Packaged Height: | 13.50 IN |
