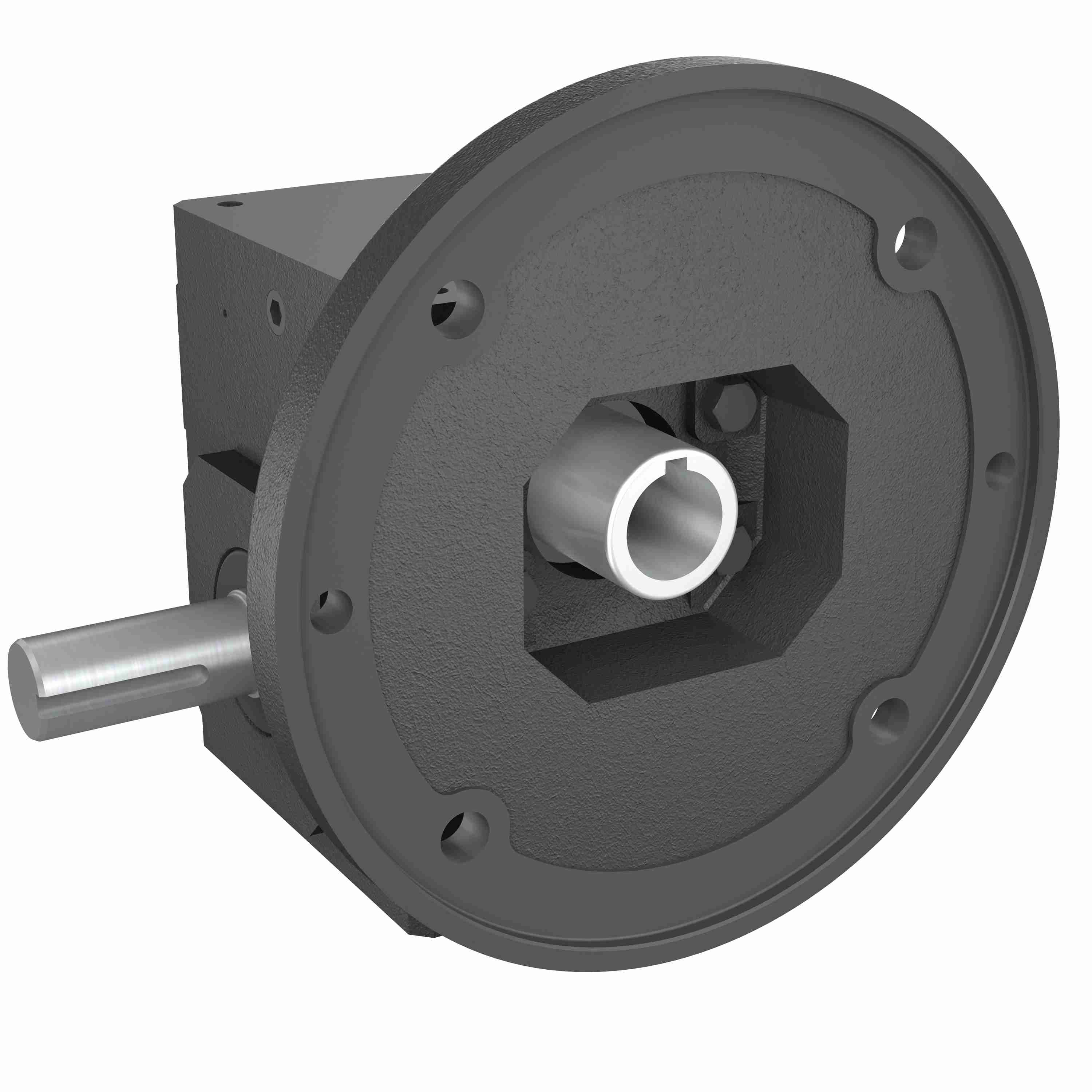

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 304 25/1 B WR 182TC
Part #:0230-09342
Catalog #:304 25/1 B WR 182TC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Series Code: | 300PCX |
| Ratio: | 25:1 | Output RPM: | 70 |
| Frame Size: | 180TC | Gear Type: | Worm |
| Input Diameter (in): | 1.125 in | Input HP: | 3.37 |
| Output Diameter (in): | 1.250 in | Product Type: | RIGHT ANGLE |
| Service Factor: | 1 | Model Code: | 304 |
| Style: | B | Ratio Range: | 25:1 |
| Center Distance (in): | 3 | Input Style: | C-Face Quill |
| Motor Frame Size: | 180TC | Output Shaft Direction: | Left |
| Output Shaft: | Shaft | Output Torque Rating (in-lb): | 2385 in/lbs |
| Housing Material: | Cast Iron |
General Specifications
| UPC: | 662961817297 | Weight: | 61.00 LB |
| Packaged Length: | 14.00 IN | Packaged Width: | 12.25 IN |
| Packaged Height: | 13.50 IN |
