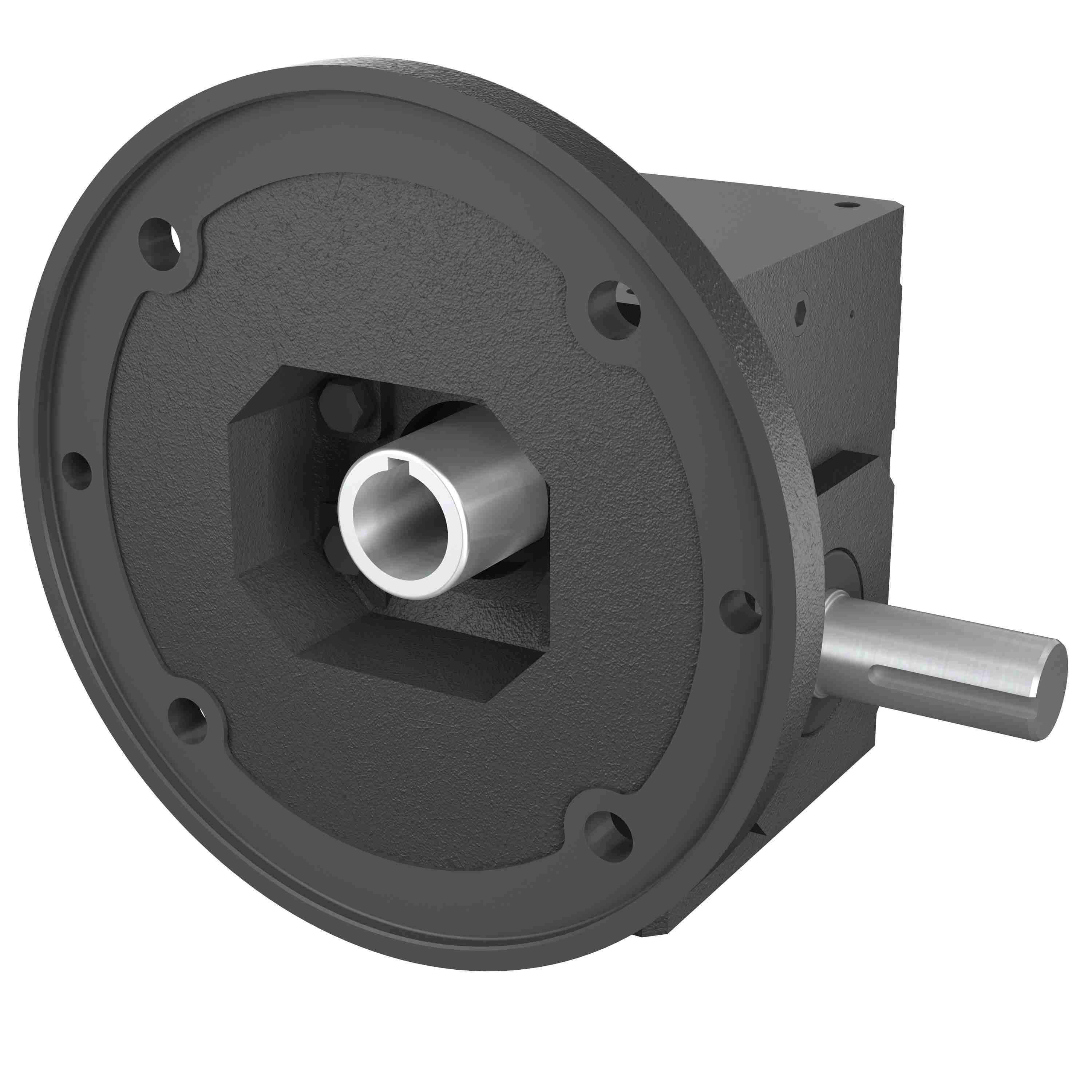

Hub City PowerCubeX Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer - 304 10/1 C WR 182TC
Part #:0230-09387
Catalog #:304 10/1 C WR 182TC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Input Diameter (in): | 1.125 in | Input HP: | 5.79 |
| Frame Size: | 180TC | Model Code: | 304 |
| Output Diameter (in): | 1.250 in | Gear Type: | Worm |
| Product Type: | RIGHT ANGLE | Ratio: | 10:1 |
| Series Code: | 300PCX | Output RPM: | 175 |
| Product Line: | POWERCUBEX WORM GEAR DRIVE | Service Factor: | 1 |
| Style: | C | Motor Frame Size: | 180TC |
| Center Distance (in): | 3 | Ratio Range: | 10:1 |
| Input Style: | C-Face Quill | Output Shaft Direction: | Right |
| Output Torque Rating (in-lb): | 1774 in/lbs | Housing Material: | Cast Iron |
| Output Shaft: | Shaft |
General Specifications
| Weight: | 61.00 LB | Packaged Length: | 14.00 IN |
| Packaged Width: | 12.25 IN | Packaged Height: | 13.50 IN |
