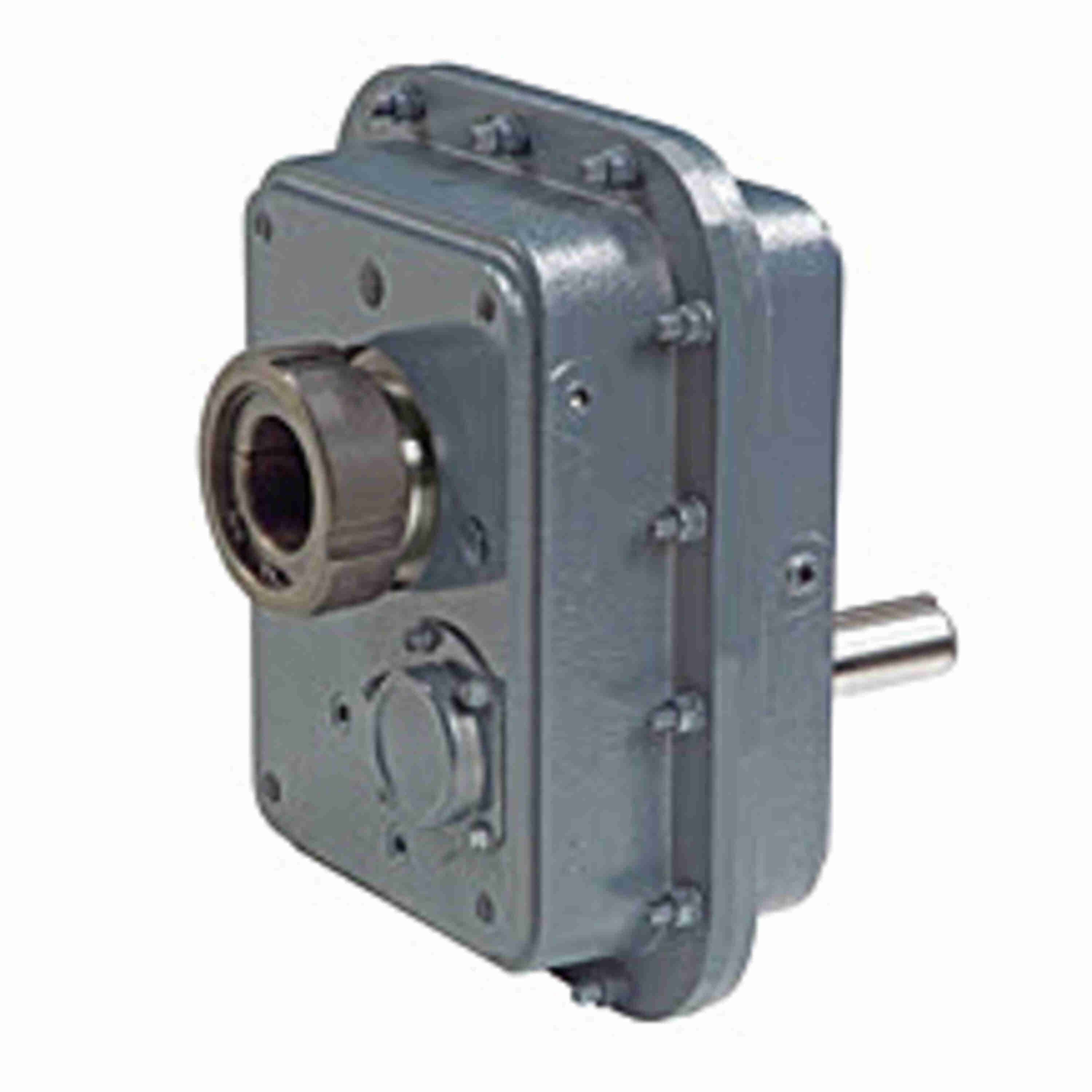

Falk 5203JR25 0794904 - 0794904
Part #:10614995
Catalog #:0794904
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| High Speed Shaft Speed [Max] (rpm): | 1,886 rpm | Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline: | 4.07 in |
| Series: | Quadrive Gear Drives | Unit Size: | 5203 |
| Product: | 5203J | High Speed Shaft Diameter (in): | 1.375 in |
| Nominal Ratio: | 25 | Recommended Driven Shaft Length [Nom] (in): | 5.625 in |
| Width Through Housing (in): | 6.4 in | Drive Type: | Shaft Mounted (JR) |
| Type of Auxiliary Cooling Supplied with Gear Drive: | None | Lip Seal Material: | Viton |
| High Speed Shaft Length (in): | 3 in |
General Specifications
| UPC: | 782934988073 | Weight: | 126.00 LB |
| HTC: | 8483905090 | Country of Origin: | United States of America |
